Harxon Manufacture HX DU1601D High Quality Channel Programmable External Radio Modem
- Category: >>>
- Supplier: Harxon Corporation
Share on (1600682170641):
Product Overview
Description
Harxon Exhibition
Product Description
Radio Modem
Specification
GENERAL | |
Frequency | 410MHz~470MHz |
Operating Mode | Half-duplex |
Channel Width | 25KHz |
Modulation Type | GMSK/4FSK |
Channels | 8 (programmable) |
Operating Voltage | 9~20V |
Power Consumption (Typical) | High Power 3.2W@12V DC Low Power 2.5W@12V DC Standby 0.7W@12V DC |
Frequency Stability | ≤±1.0ppm |

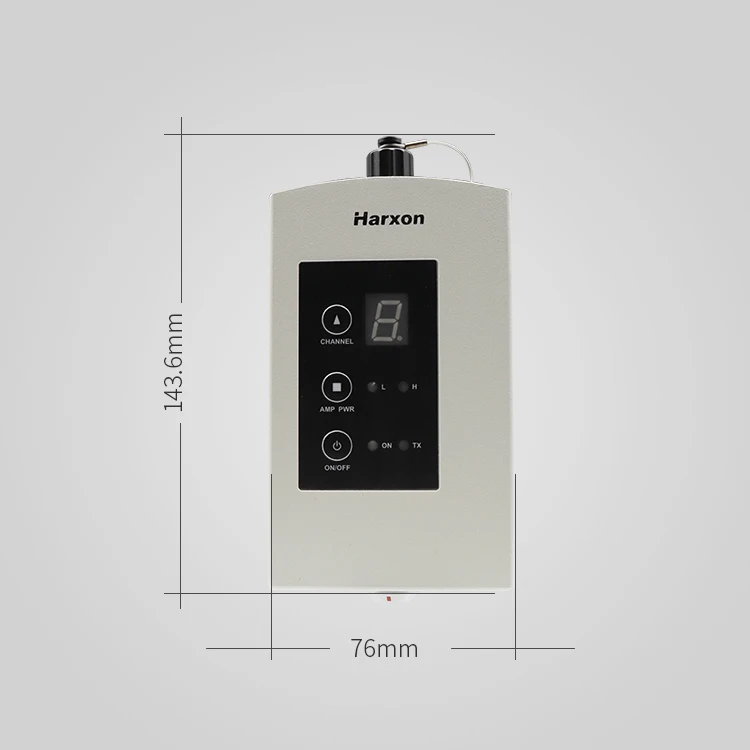

Size | 143.6(L)×76(W)×44(H)mm |
Weight | Approx.340g |

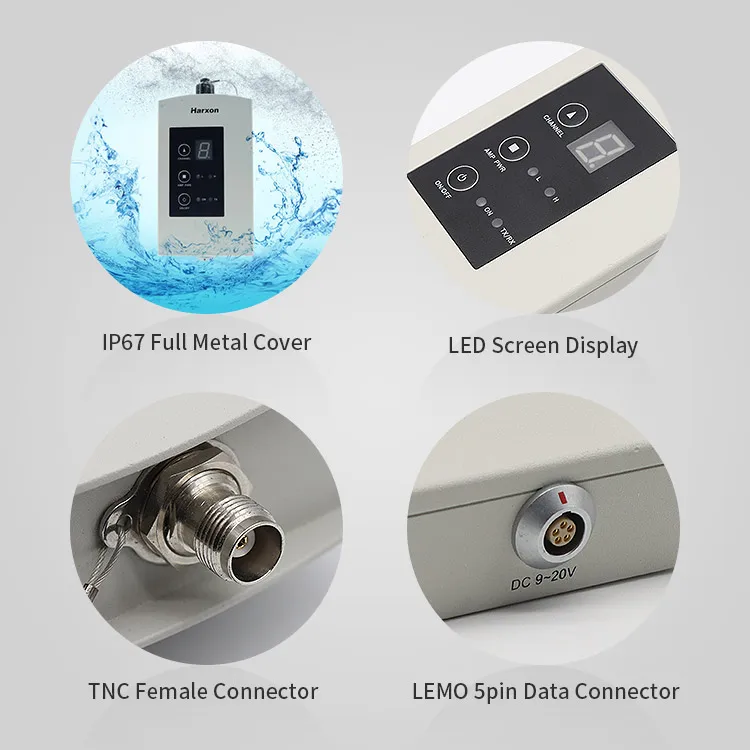

Antenna Interface | TNC Female |
Antenna Interface Impedance | 50ohm |
Data Interface | LEMO 5pin |
MODEM | |
Air Baud Rate | 9600bps / 19200bps |
Serial Port Baud | 9600bps / 19200bps / 38400bps / 115200bps |
TRANSMITTER | |
RF Output Power | 410~470MHz High Power（1W） 30.0±0.5dBm@DC 12V Low Power (0.5W) 27.0±1.0dBm@DC 12V |
Power Stability | ≤±1dB |
Adjacent Channel Power | >50dB@25KHz |
RECEIVER | |
Sensitivity | better than -115dBm@BER 10-3/9600bps |
Co-channel Rejection | >-12dB |
OPERATION ENVIRONMENT | |
Temperature (operation) | -40℃~+70℃ |
Temperature (storage) | -50℃~+85℃ |
FAQ
Q: Are you a manufacturer or a trading company?
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
A: We have been professional GNSS antenna manufacturer for 14 years.
Q: What can I buy from Harxon on alibaba?
GNSS antenna, vehicle antenna, communication antenna and wireless data radio.
Q: Can I get free sample?
A: No, we do not offer free samples.
Q: What is the minimum order (MOQ)?
A: For automotive antennas and communication antennas, the MOQ is 500; for other products, the MOQ is 1.
Q: What's the delivery time?
A: The delivery time depends on the product category, please consult customer service.
Q: Could I use my own LOGO or design on products?
A: Please contact our sales manager via sales@harxon.com if you have customization requirements.
Q: What is the payment term?
A: T/T, MoneyGram and Western Union.
Q: Does your product have warranty?
A: Yes, we offer 1-year warranty for our products. After-sales service is also available.
