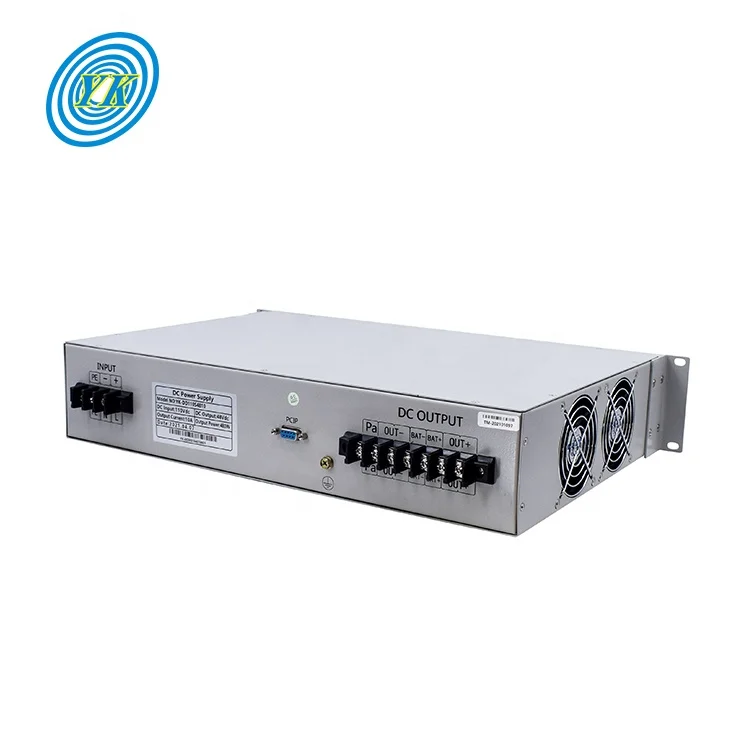

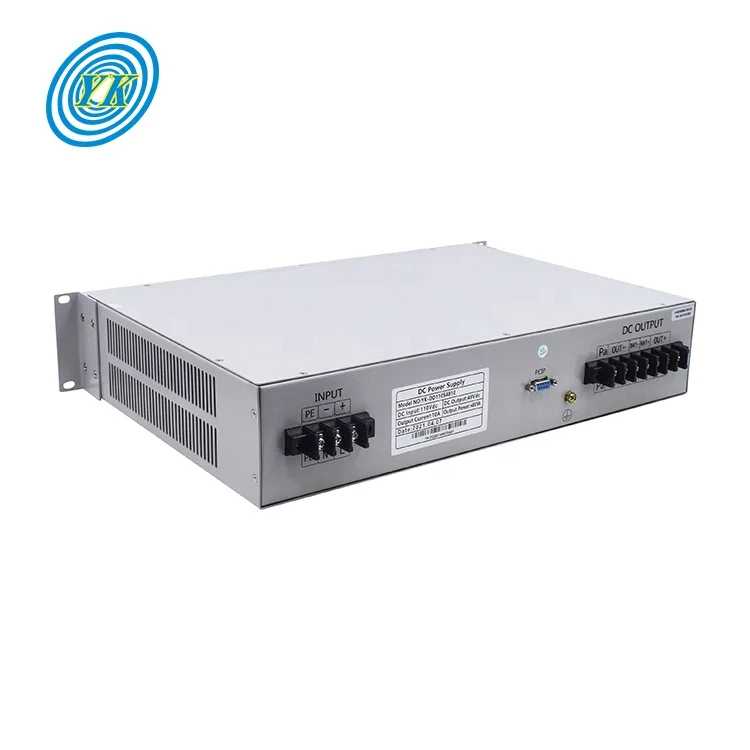

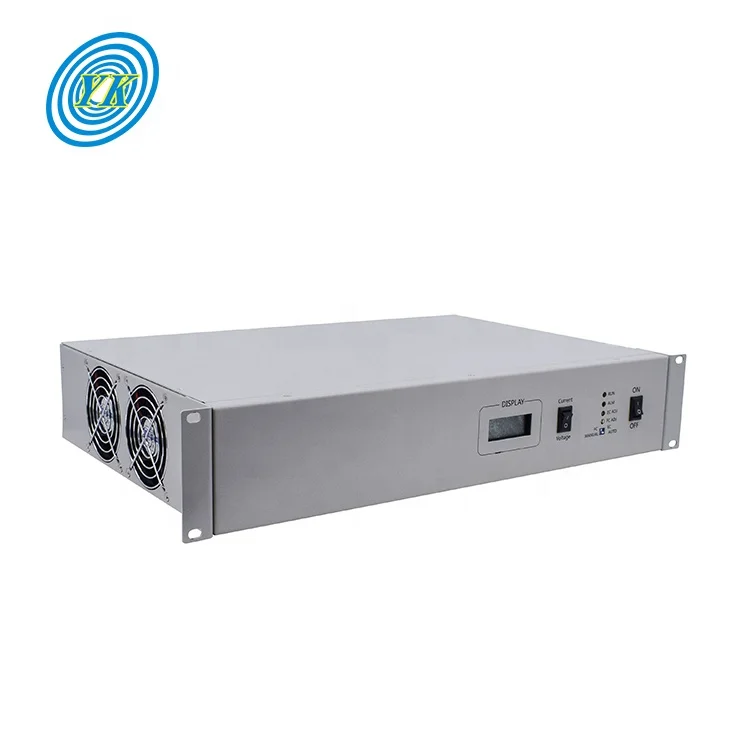

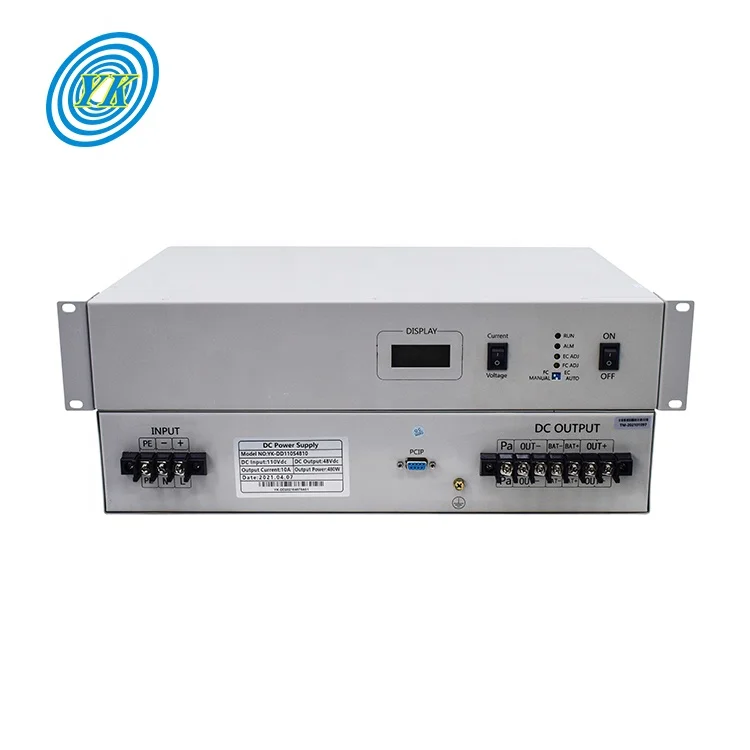

2u dc step down buck voltage converter 220v to 110v
- Category: >>>
- Supplier: Yucoo Network Equipment Co. Limited
Share on (1600682170804):
Product Overview
Description
Hot Selling Products
Product Description
Specification
Model | YK-DD220S11010/20/30...100 | ||||
Output rate Current | 10A | 20A | 30A | ||
DC Input rate voltage | 220VDC | ||||
DC Input voltage range | 180-270VDC | ||||
Output rate voltage | 110VDC | ||||
Output voltage range | 90-130VDC | ||||
Load regulation | ≤0.2% | ||||
Power grid regulation | ≤0.1% | ||||
Degree of imbalance for equalized current | ≤±5% | ||||
Phone weighted noise voltage | ≤2mV（CCITT） | ||||
Peak—peak noise | ≤150mV | ||||
Wide frequency noise | ≤50mV | ||||
Discrete noise | ≤20mV | ||||
Efficiency | ≧83% | ||||
Dynamic response | 20% ~ 100% step load≤200Restoring time≤100uS | ||||
Working temperature | －5～45℃ | ||||
Cooling mode | Temperature control wind cooling | ||||
MTBF | 100,000Hour | ||||
