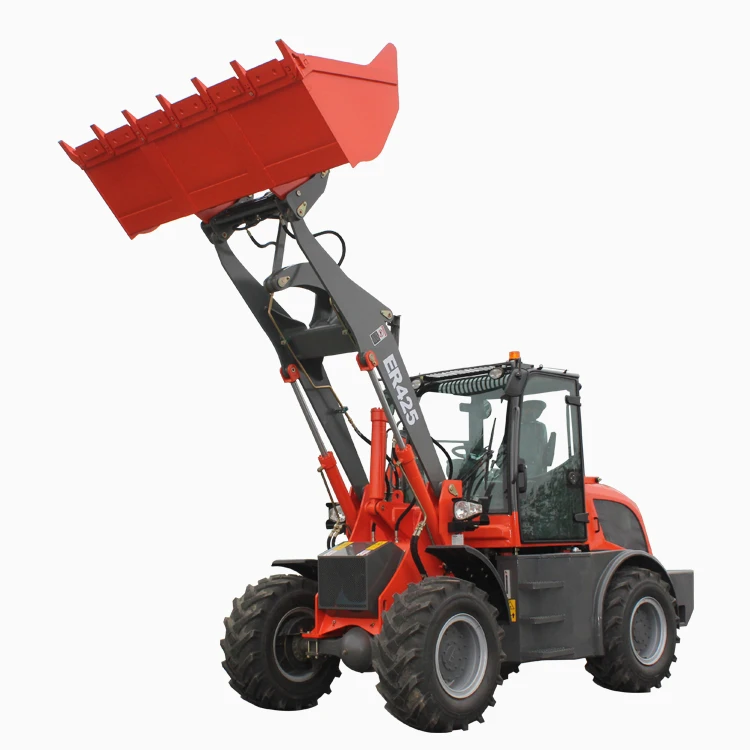

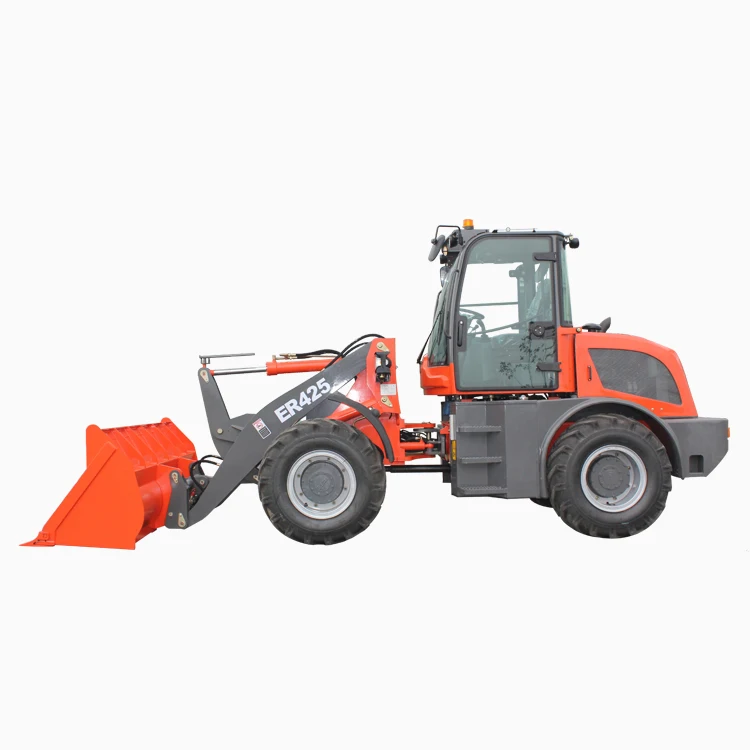

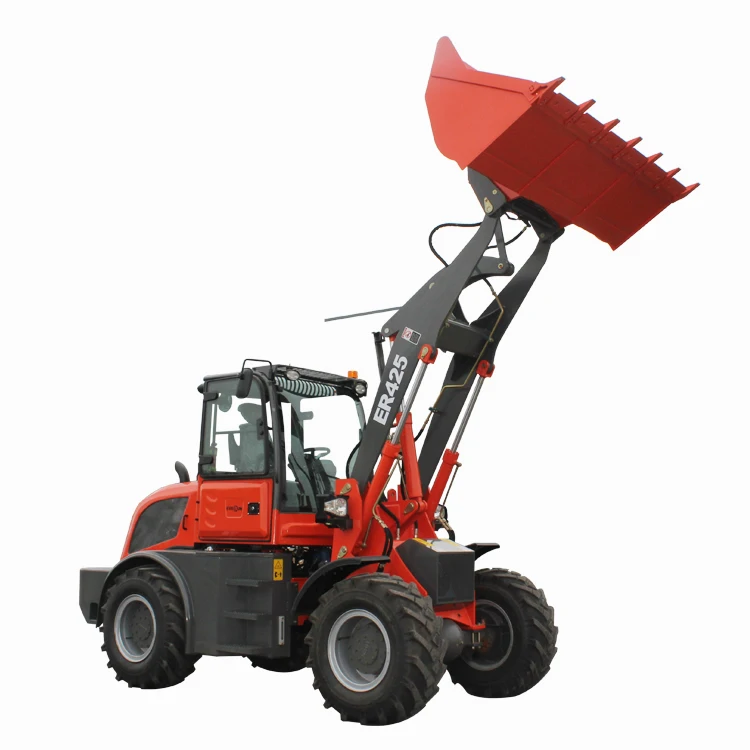

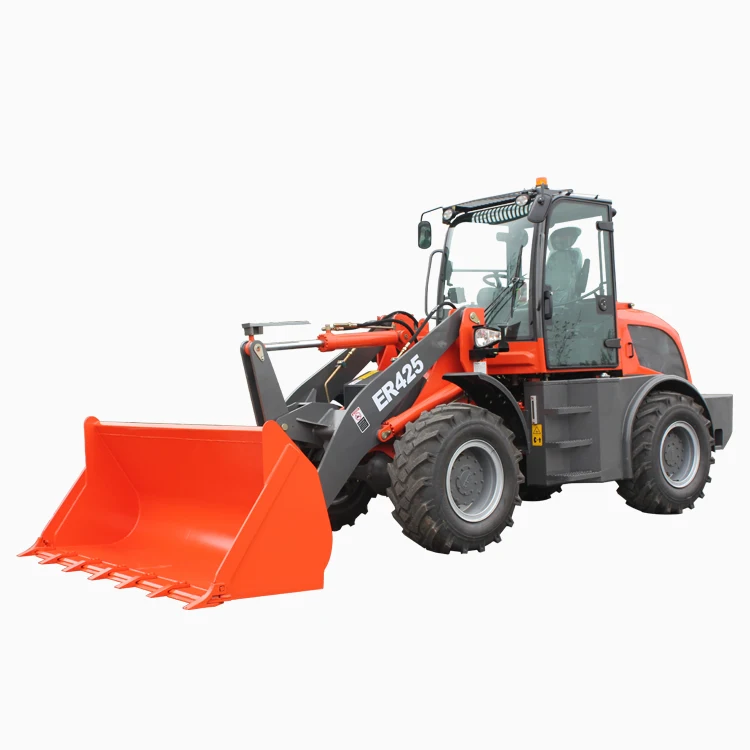

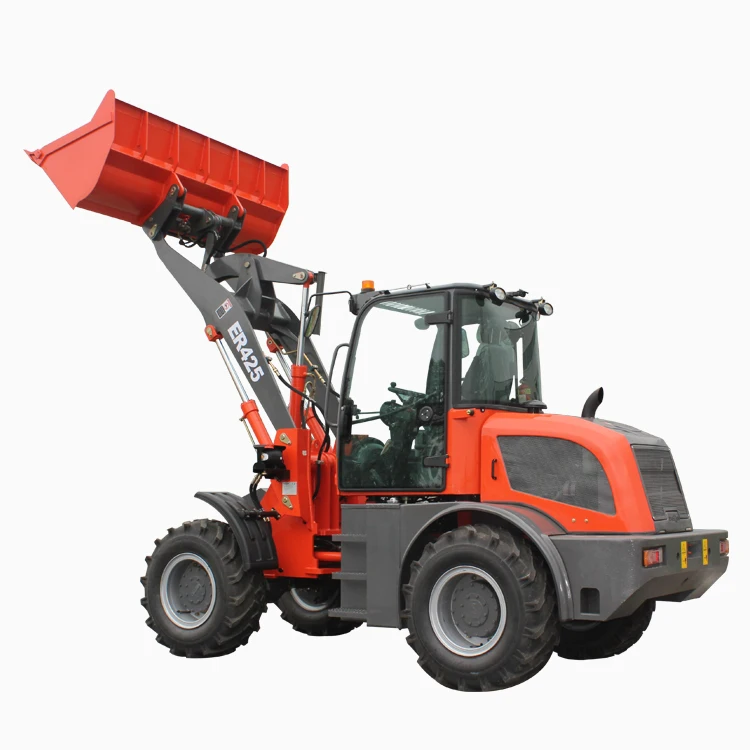

EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader
EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader

EVERUN ER425 2.5ton construction Heavy Duty Articulation Front End Diesel Wheel Loader

Share on (1600682196186):


Price:$12,750.00 - $14,750.00

Quantity:


Product Overview

Description

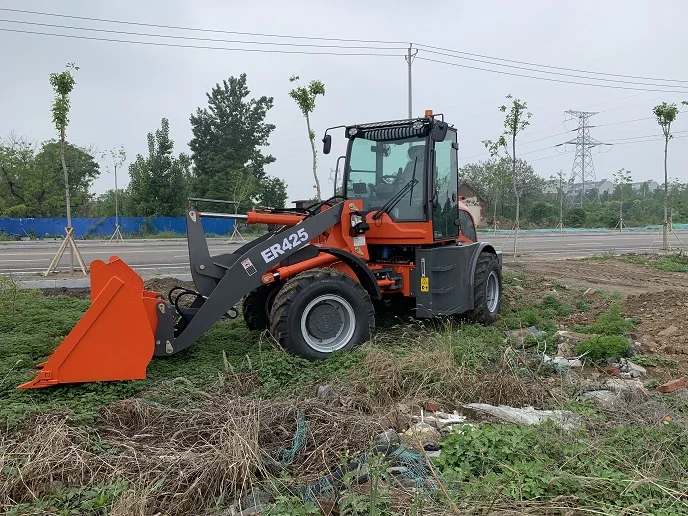

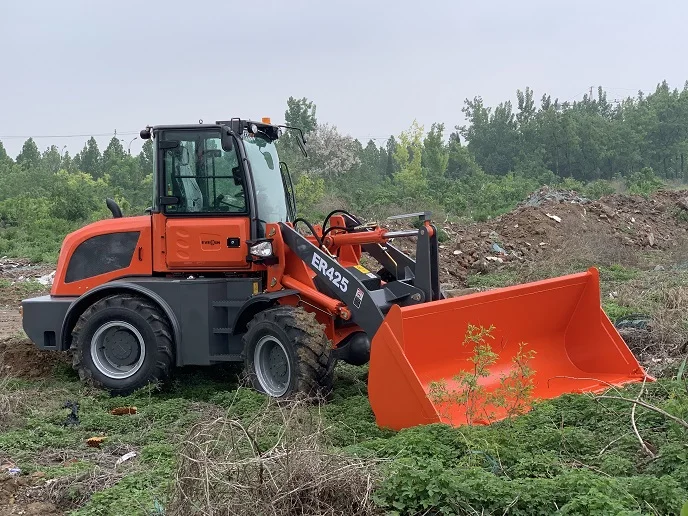

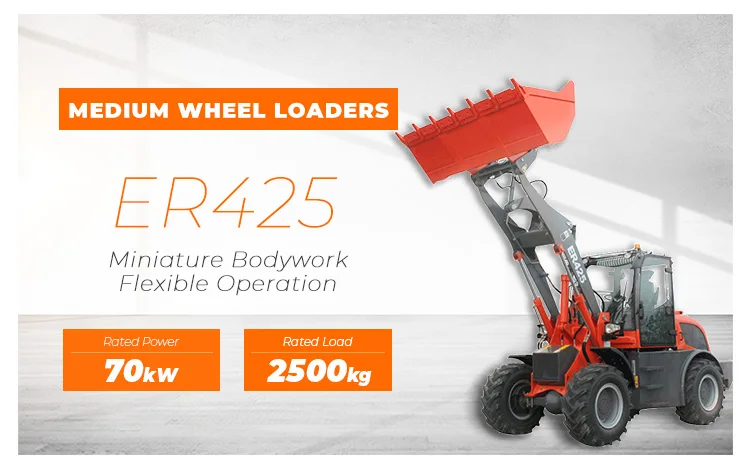

EVERUN ER425 2.5ton Europe Design Heavy Duty Articulation Front End Diesel Wheel Loader with Good Price




Product Description










Specification


Specificaion of ER425
Performance
rated loading (kg)
2500
overall weight (kg)
5600
rated bucket capacity (CBM)
0.67
maximum tractive force (kN）
45
maximum breakout force (kN）
55
maximum grade ability（°）
25
maximum dump height（mm）
3045
maximum dump reach（mm）
844
overall dimension (L×W×H) （mm）
5834*2010*2739
minimum turning radius（outside of wheels）（mm）
4593
maximum steering angle(°)
40
Engine
model
Xichai 4DX22-96
type
lnline water cooled, four stroke
No. of cylinder-bore/stroke （mm）
4-102×118
displacement （L）
3.856
rated power（kW）
70
idel speed (r/min)
800-850
rated speed (r/min)
2400
maximum torque N.m @speed r/min
330 @ 1600-1800
min fuel-consume ratio
≤220g/kw.h
Transmission system
torque converter
280
gearbox mode
Power shift normally engaged straight gear
gear shift
Mechanical， 2forward shift 2 reverse shift
maximum speed
15km/h
Drive axles
main reducing mode
Bevel gear grade l reduction
wheel base (mm)
2526
wheel tread(mm)
1610
ground clearance(mm)
294
Hydraulic system
system working pressure (Mpa)
20
boom lifting time (s)
4.5
total time (s)
9
fuel tank capacity (L)
94
Brake System
Service Brake
Air-assist hydraulic brake, disc brake
Parking Brake
Manual disc brake
Tyre
type specification
16/70-20
front tyre pressure （kPa）
350
rear tyre pressure （kPa）
350
