VICTOR 606B Digital Clamp Meter 5999 Counts 600V 600A AC Clamp Multimeter With Live NCV Flashlight LOW INPEDANCE Voltage
- Category: >>>
- Supplier: Starmeter Instruments Co. Ltd.
Share on (1600682334359):
Product Overview
Description
Product Description
Product Description

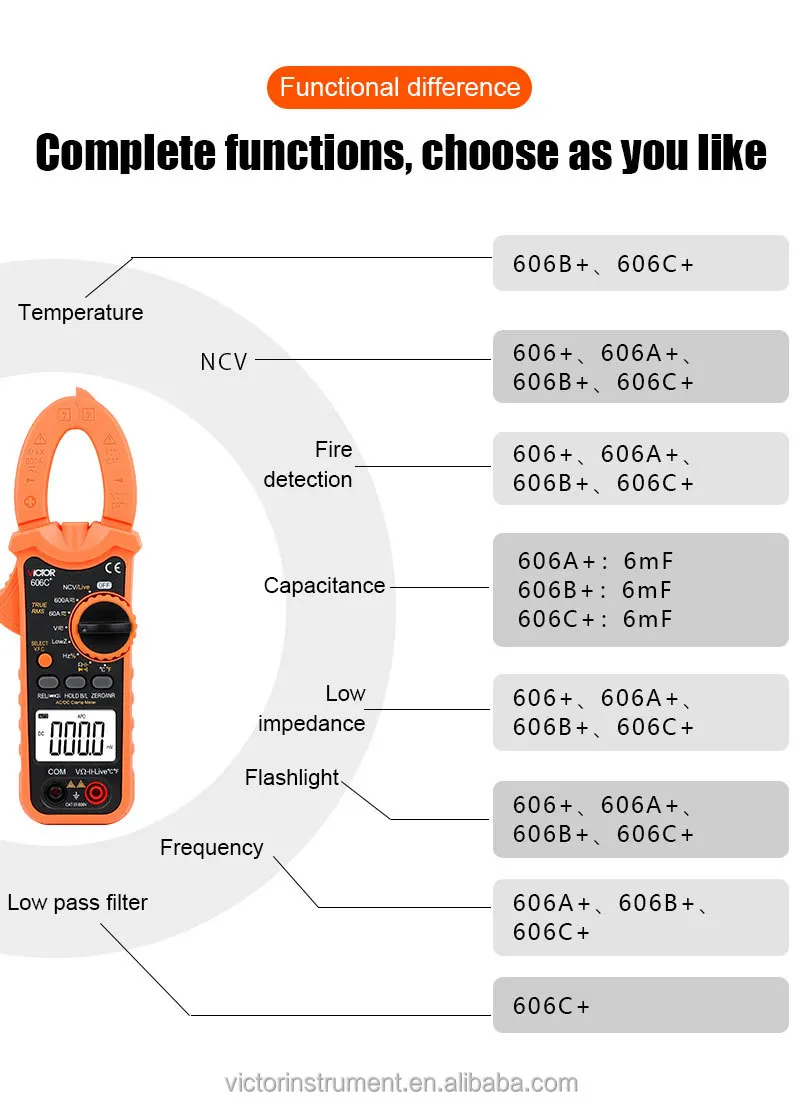

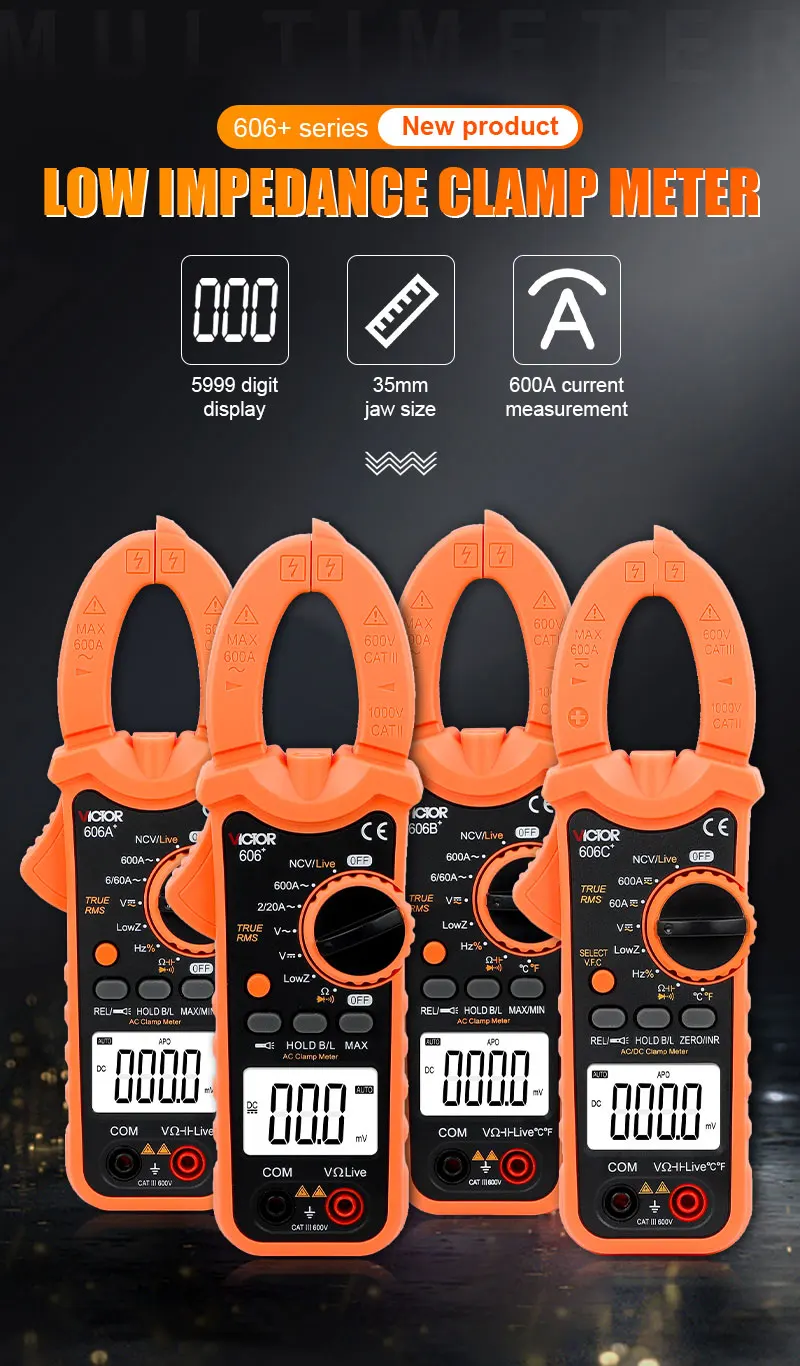

VICTOR 606+ 606A+ 606B+ 606C+ Digital Clamp meter 5999 counts AC/DC 600V 600A Clamp multimeter with Live NCV Flashlight True-RMS function
1. SUMMARIZE
This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as
DCV, ACV, DCA and ACA, Resistance, Continuity Buzzer, Diode, Frequency etc.
2. SAFETY OPERATION RULE
The meter’s design is in accordance with the CE certification, meets the standard of IEC61010. Read the following before
operation.
2-1. Input over range is prohibited in each range during the test.
2-2. Place the function knob to the proper range before measurement, in case damage the meter, do not switch the range during measurement.
2-3. Voltage less than 36V is safety voltage. To avoid electric shock, be careful when measuring voltage higher than 36V DC, 25V AC.
2-4. Don’t input voltage under the resistance, capacitance, diode, continuity test, frequency measurement.
1. SUMMARIZE
This meter is a handheld automatic range digital multiemter which driven by battery. It can be used to measure such parameters as
DCV, ACV, DCA and ACA, Resistance, Continuity Buzzer, Diode, Frequency etc.
2. SAFETY OPERATION RULE
The meter’s design is in accordance with the CE certification, meets the standard of IEC61010. Read the following before
operation.
2-1. Input over range is prohibited in each range during the test.
2-2. Place the function knob to the proper range before measurement, in case damage the meter, do not switch the range during measurement.
2-3. Voltage less than 36V is safety voltage. To avoid electric shock, be careful when measuring voltage higher than 36V DC, 25V AC.
2-4. Don’t input voltage under the resistance, capacitance, diode, continuity test, frequency measurement.
This instrument is a 6000 counts hand-held automatic range True RMS clamp digital meter. The circuit design of the meter takes the large-scale integrated circuit ∑/ analog-to-digital converter (ADC) as the core, and it has the full-range overload protection, safe and reliable, Innovative appearance patent design, so it is a special electronic instrument with superior performance.

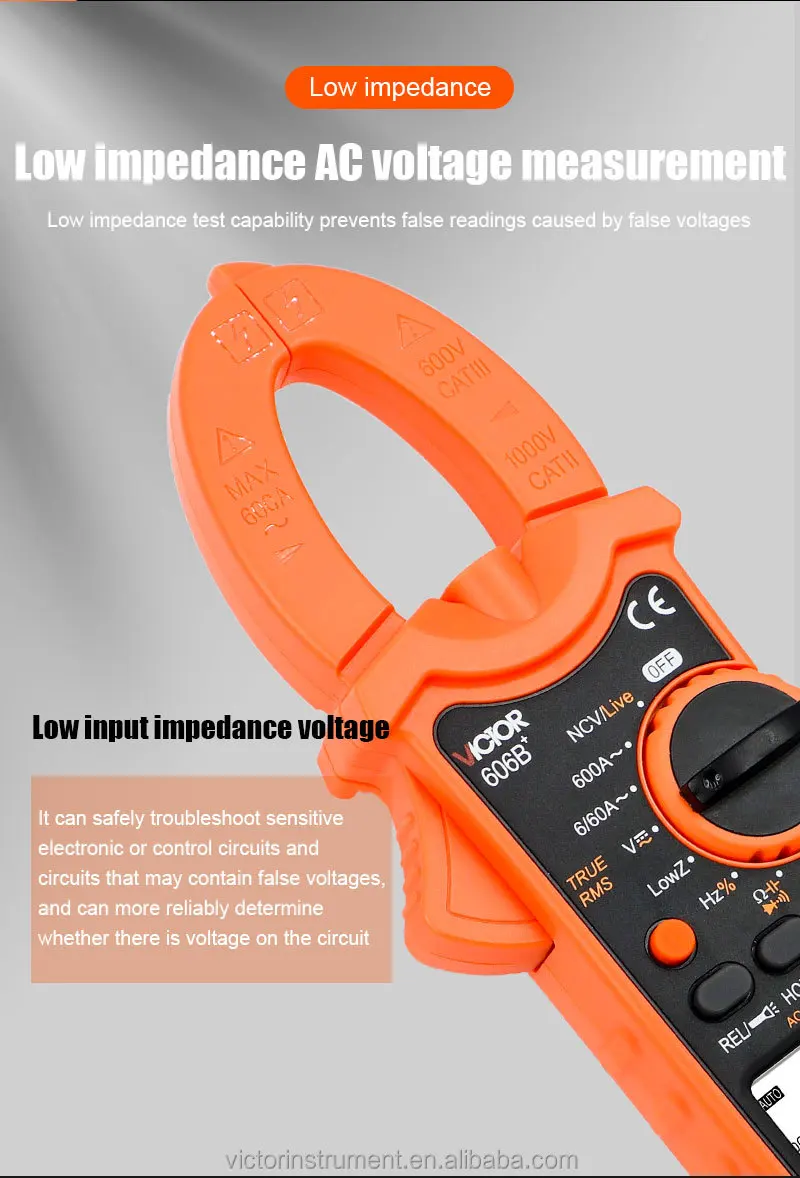

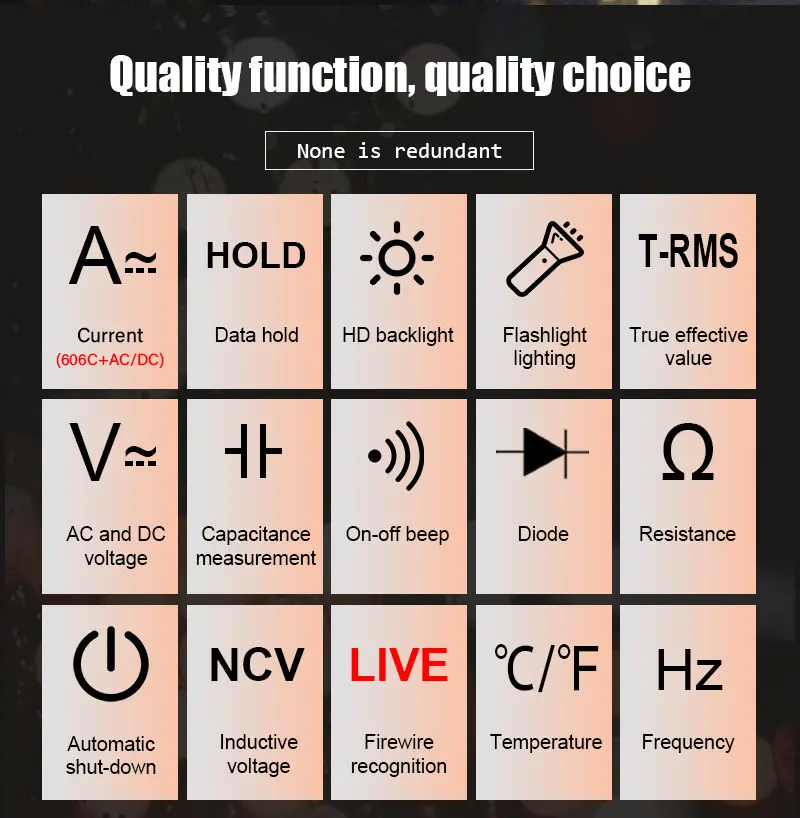

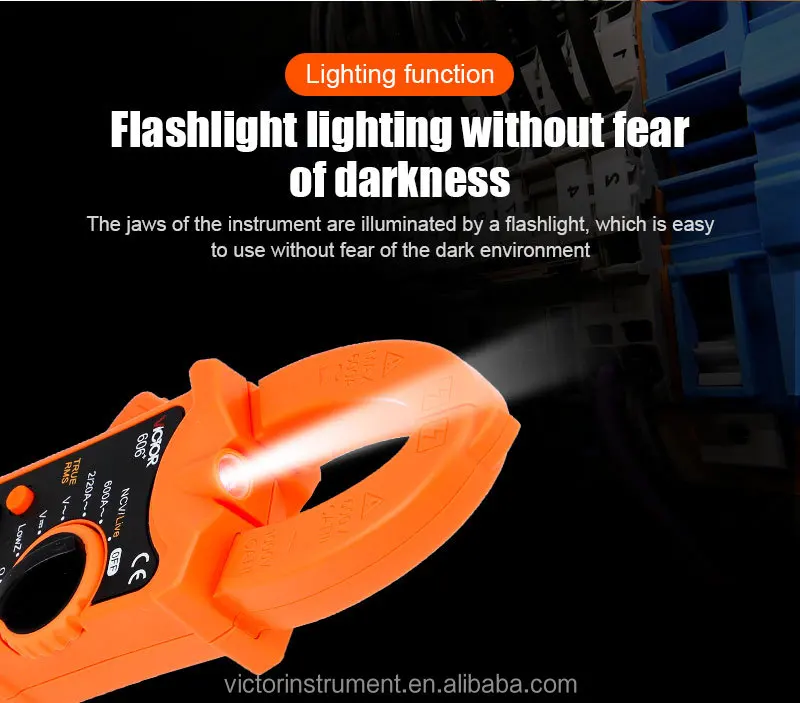

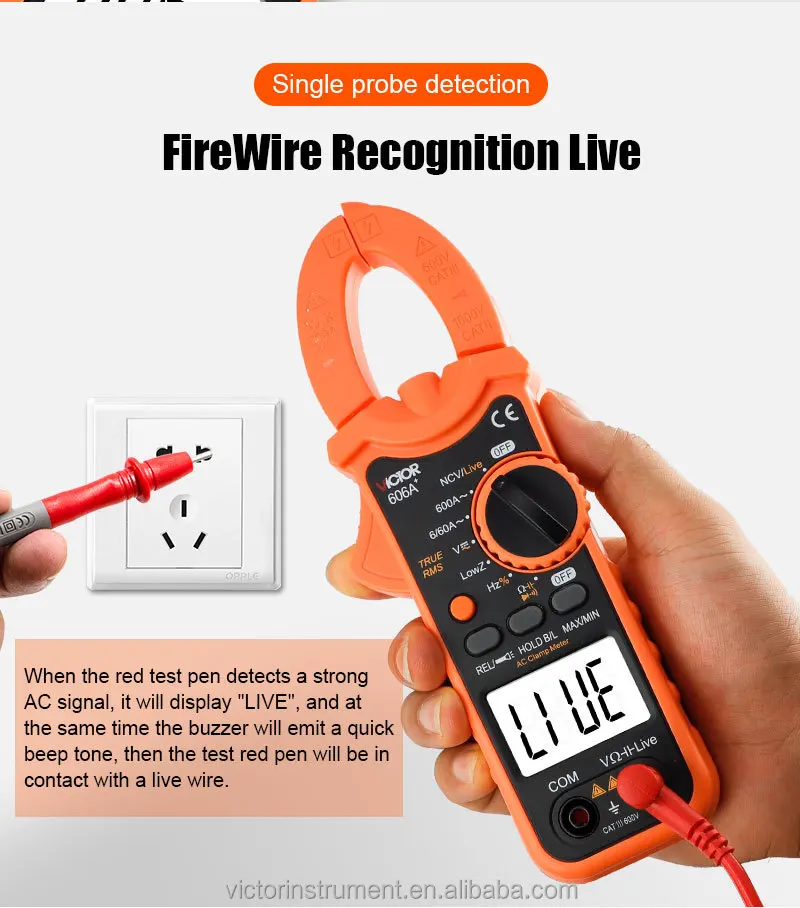

It can be used to measure AC current, AC and DC voltage, low impedance AC voltage (LowZ), capacitance, resistance, diode, continuity test and other parameters, at the same time, it has REL relative value measurement, data hold/backlight display, maximum value or minimum value measurement, torch function, NCV/Live judgment (Live), under-voltage display and automatic shutdown function.
It can be used to measure AC current, AC and DC voltage, low impedance AC voltage (LowZ), capacitance, resistance, diode, continuity test and other parameters, at the same time, it has REL relative value measurement, data hold/backlight display, maximum value or minimum value measurement, torch function, NCV/Live judgment (Live), under-voltage display and automatic shutdown function.

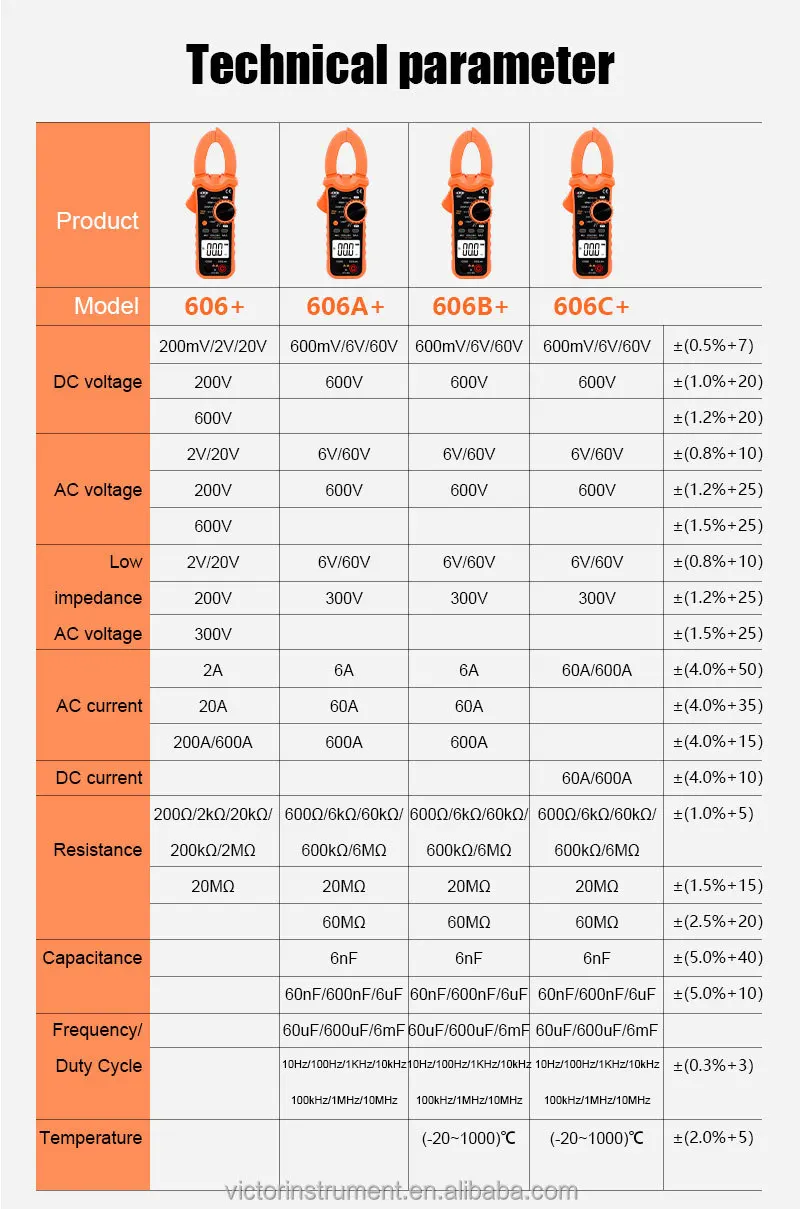

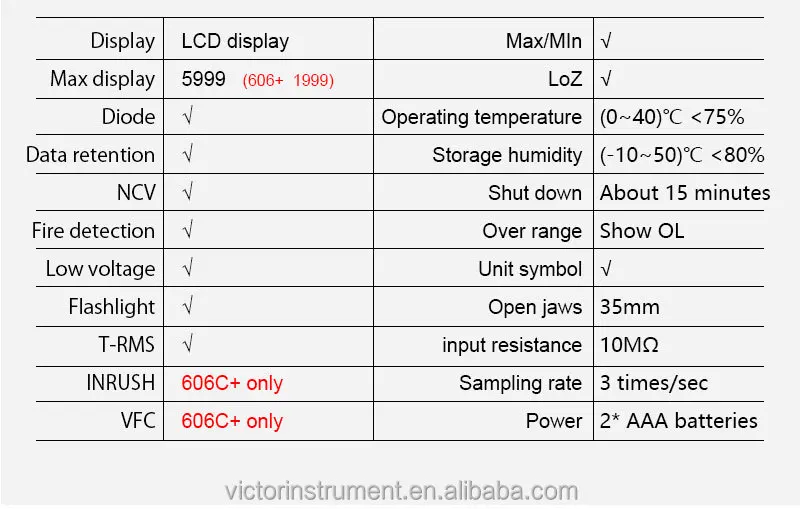

Specification
Specification

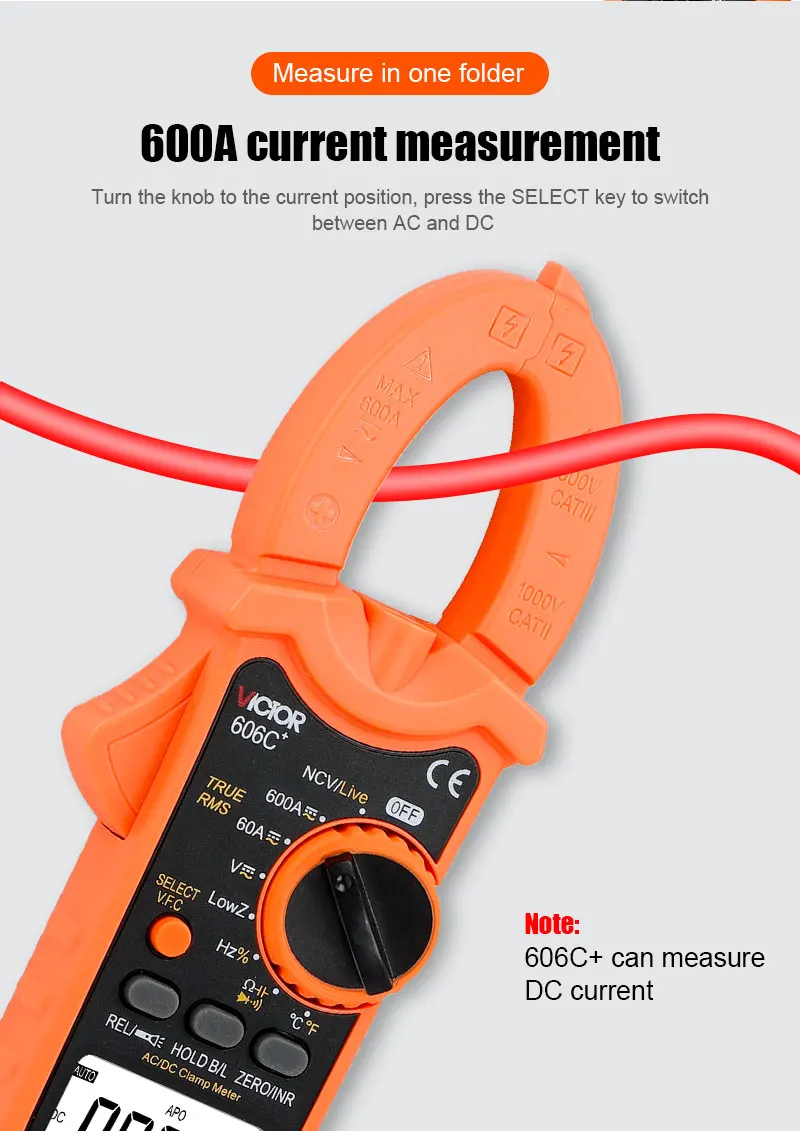

ACA : 6A/60A/600A ±(4.0%+50)
ACV : 6V/60V/600V ± (0.8%+10)
DCV : 600mV/6V/60V/600V ± (0.5%+7)
Low z: 6V / 60V 300V
Temperature : (-20~ 1000) ℃ /(-4~1832)℉
