2.8' 2.8 inch tft lcd OEM ODM customize touch panel

Product Overview

Description

2.8 Inch 240x320 MCU/SPI Interface Color Display Resistive Touch Panel Industrial Medical Vehicle China TFT Touch Screen





LCD type	TFT, Transmissive
Display type	2.8 inch TFT lcd , 262k color, normal white
Driver element	a-si TFT Active matrix

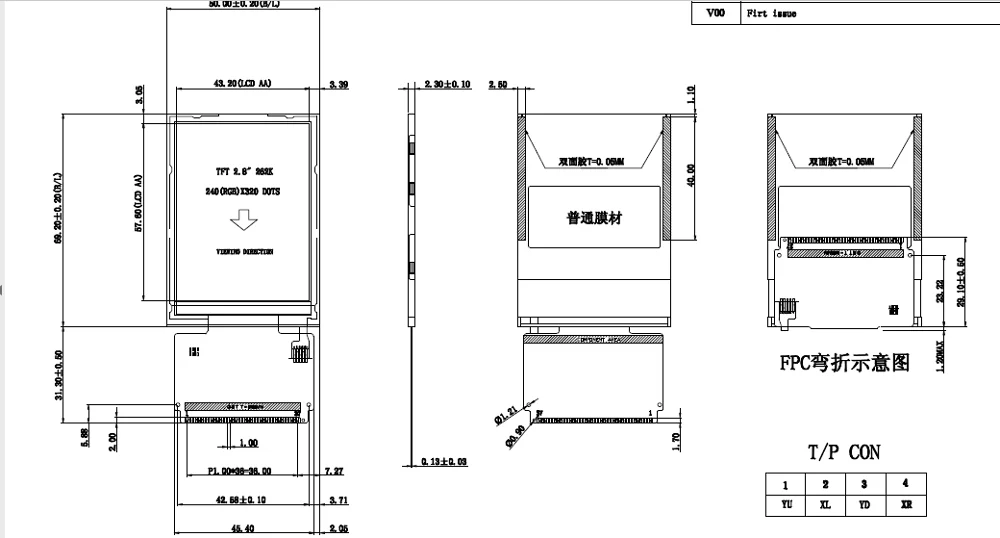

Outline Dimension(mm)	50x69.2x3.6(without touch panel)
A.A.(mm)	43.2x57.6
Driver IC	ILI9341
Item	2.8 inch tft lcd display
Resolution(dots)_	240*320
Viewing Direction	6H
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	800(H)x 3RGB x 480(V)
Dots Pitch	0.18x0.18
Operating Volatge	3.2v
Pixel arrangement	RGB Vertical Stripe
Display mode	Normally white
Surface treatment	Antiglare, Hard-Coating(3H)
Weight(g)	TBD
Backlight	4 LEDs, White
Weight(g)	TBD
Interface	MCU
Module lifetime(Hours)	50,000-100,000





 2.8 Inch 240x320 MCU/SPI Interface Color Display Resistive Touch Panel Industrial Medical Vehicle China TFT Touch Screen



2.8 Inch 240x320 MCU/SPI Interface Color Display Resistive Touch Panel Industrial Medical Vehicle China TFT Touch Screen







3.5 inch QVGA TFT LCD	3.5 inch Reflective sunreadable	3.5 inch with SSD2119



1.We are professional LCD module manufacture in China with precise and advanced equipments.

 2.High quality Control with CE,ROHS and so on approved.

 3.More than 10 years of industry experience and involved main markets all over the world

 4.Dedicated and professional sales team will offer you 24 hours online and immediate service

 5.OEM and ODM support,12 months warranty for all of our products

 6.Our mission is to help our customers achieve success, then fulfill our both dreams



Pre-sales service :

1.Our team design and make solutions based on different requirements from different customers.

 2.We provide 24-hours service,and every message you quote inquiry will be replied within 12 hours.



After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

 2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

 3. We have professional engineer  customer to keep fastly reply.
