Product Overview

Description





Product Description


NP type plastic chemical pumps used in-20°C -110°C. of acid,alkali and chemical contamination of the liquid. Typical applications include chemical and metal processing industries,steel and stainless steel pickling acid regeneration, coking desulfurization, and air purification and cleaning wastewater.

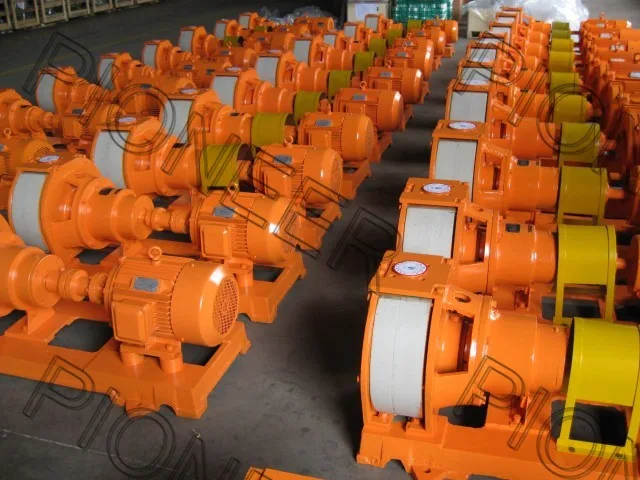

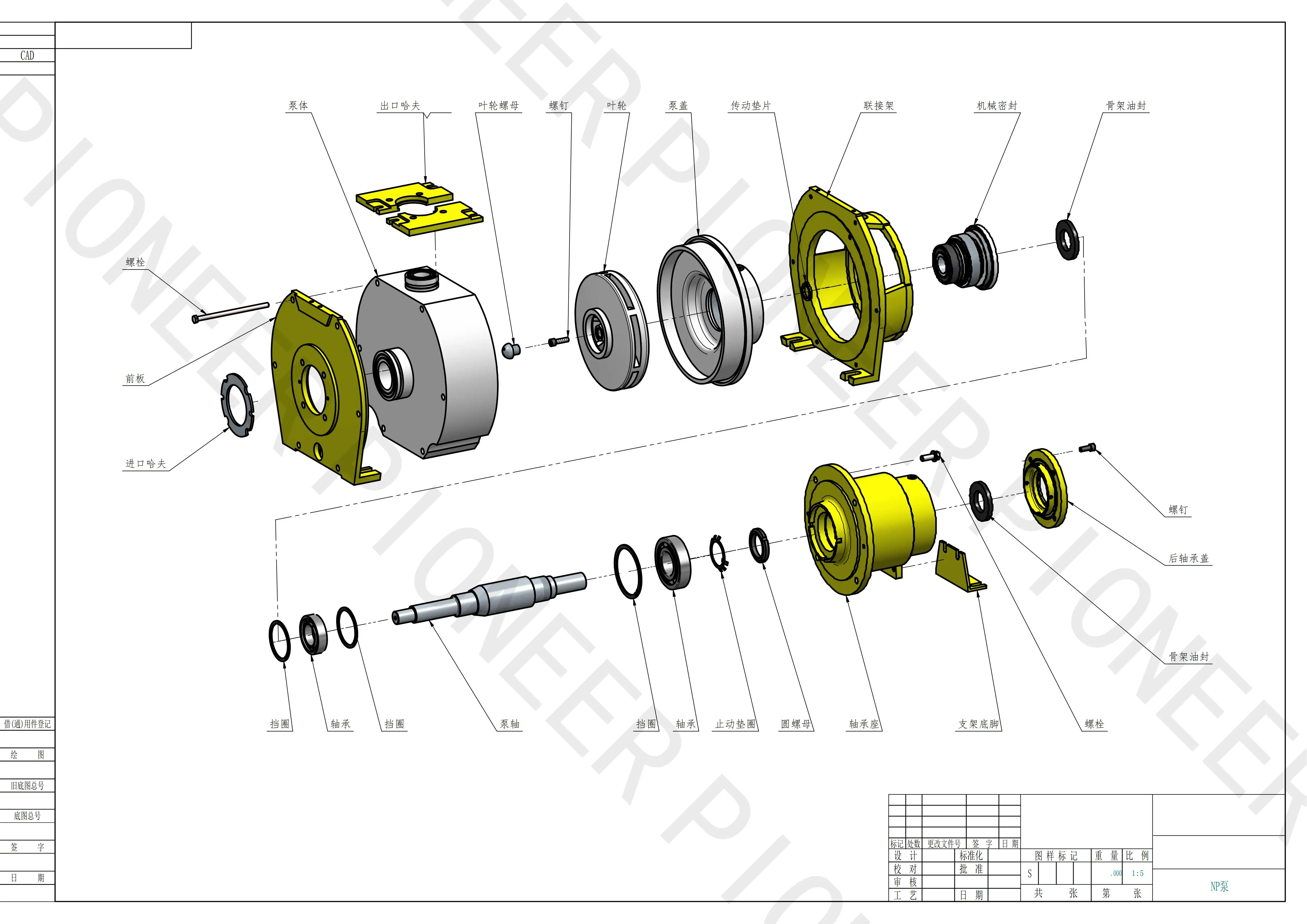

NP type plastic centrifugal chemical pumps are horizontal, plastic spiral and single-stage radial impeller. Pump flange mounting dimensions and import and export compliance EN 22858/IS02858.

Chemical standard pumps of type NP are used,when using acids, alkalis or chemically contaminated media or are to be conveyed without solids. Their areas of application are the chemical industry, electroplating, steel or stainless steel pickling plants, evaporation and regeneration plants, flue gas cleaning after waste incineration as well as exhaust air purification and wastewater treatment.


Design Features
1.Solid metal armor has all legal armor system pressure and piping forces.
2.Solid, one-piece all-plastic housing and solid housing cover:
diffusion-tight, therefore no secondary sealing problems, resistant to mechanical wear; high operational reliability chemically aggressive and abrasive media.

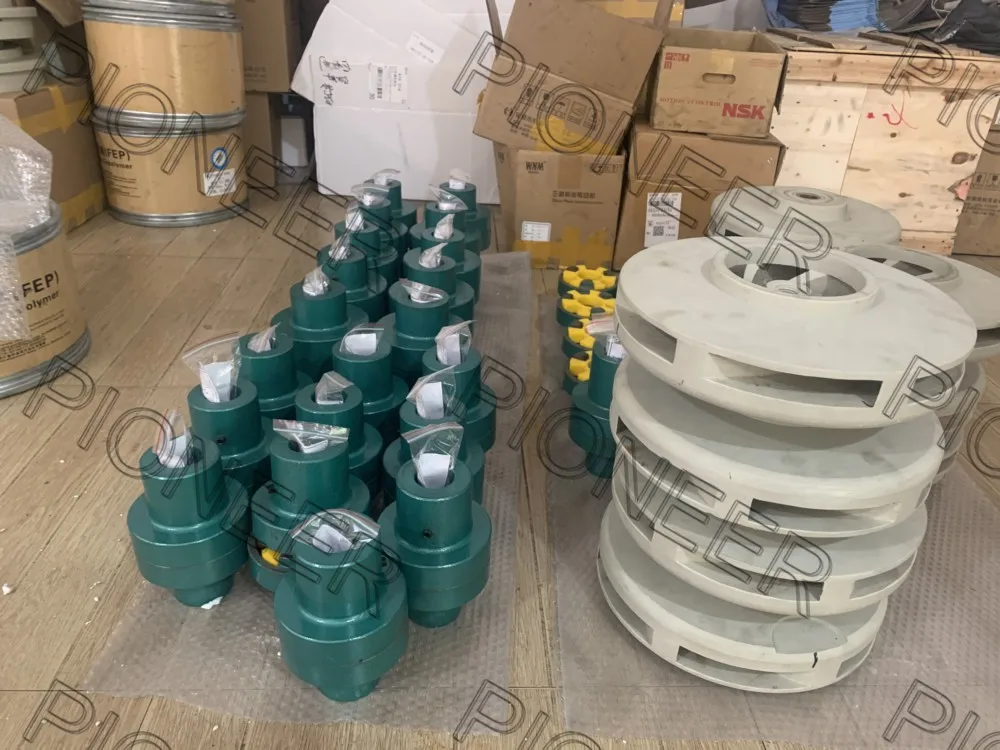

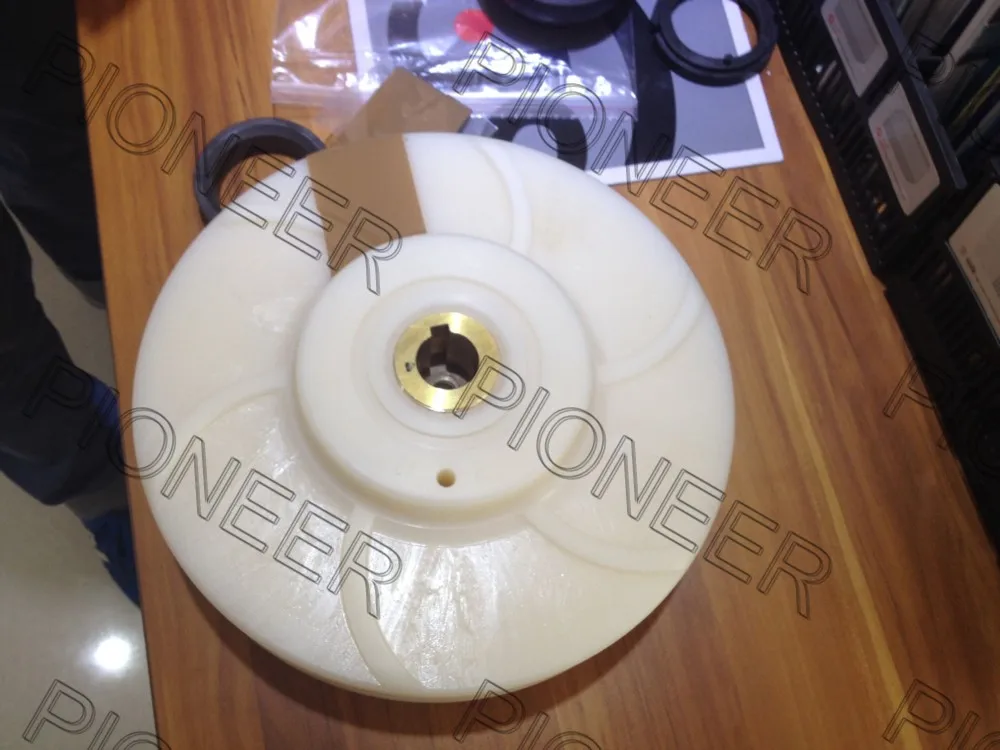

3.Impeller: available in closed or semi-open design.
4.Hydraulics designed according to the latest calculation methods, which means: good suction behavior due to low NPSH values, low mechanical vibrations of the components, long service life roller bearings and the mechanical seal, low running noise.
5.Positive locking of the impeller prevents the impeller from turning loose if the motor rotates in the wrong direction.

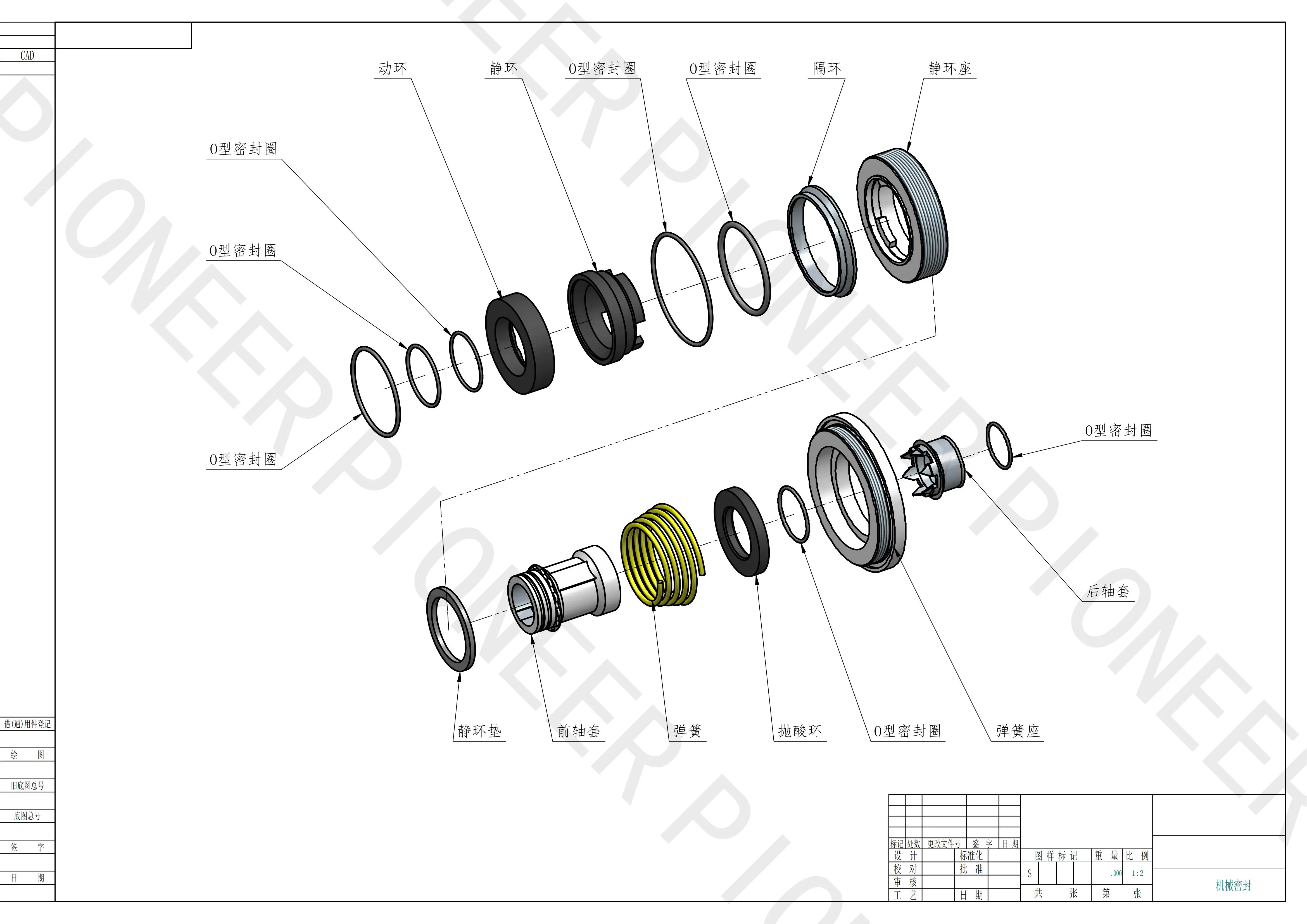

6.Dead space-free seal chamber ensures a continuous fluid exchange.
7.Rigid shaft guarantees a long service life the mechanical seal.












Specification


item
value
Warranty
1 year
Customized support
OEM, ODM, OBM
Brand Name
PIONEER
Model Number
NP80-65-160
Place of Origin
Shanghai
Application
Automotive Industry, Drinking water treatment, Food and Beverage Industry, Industrial Boilers, Metal and Equipment Manufacturers, Mining industry, Pharmaceutical industry, Wastewater Transport and Flood Control, Water Distribution, Water Treatment Solutions
Horsepower
20.1hp
Power Source
Electric
Pressure
10 bar
Structure
Single-stage Pump
Outlet Size
65mm
Voltage
380V/440V
Power
15kw
Material
PVDF PP/PE
Certification
ISO
Type
NP80-65-160
Standard or Nonstandard
Standanrd
Temperture
-20 ~110 °C


Certifications




Company Profile




Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali, pharmaceutical industry and Mineral.










Packing & Delivery

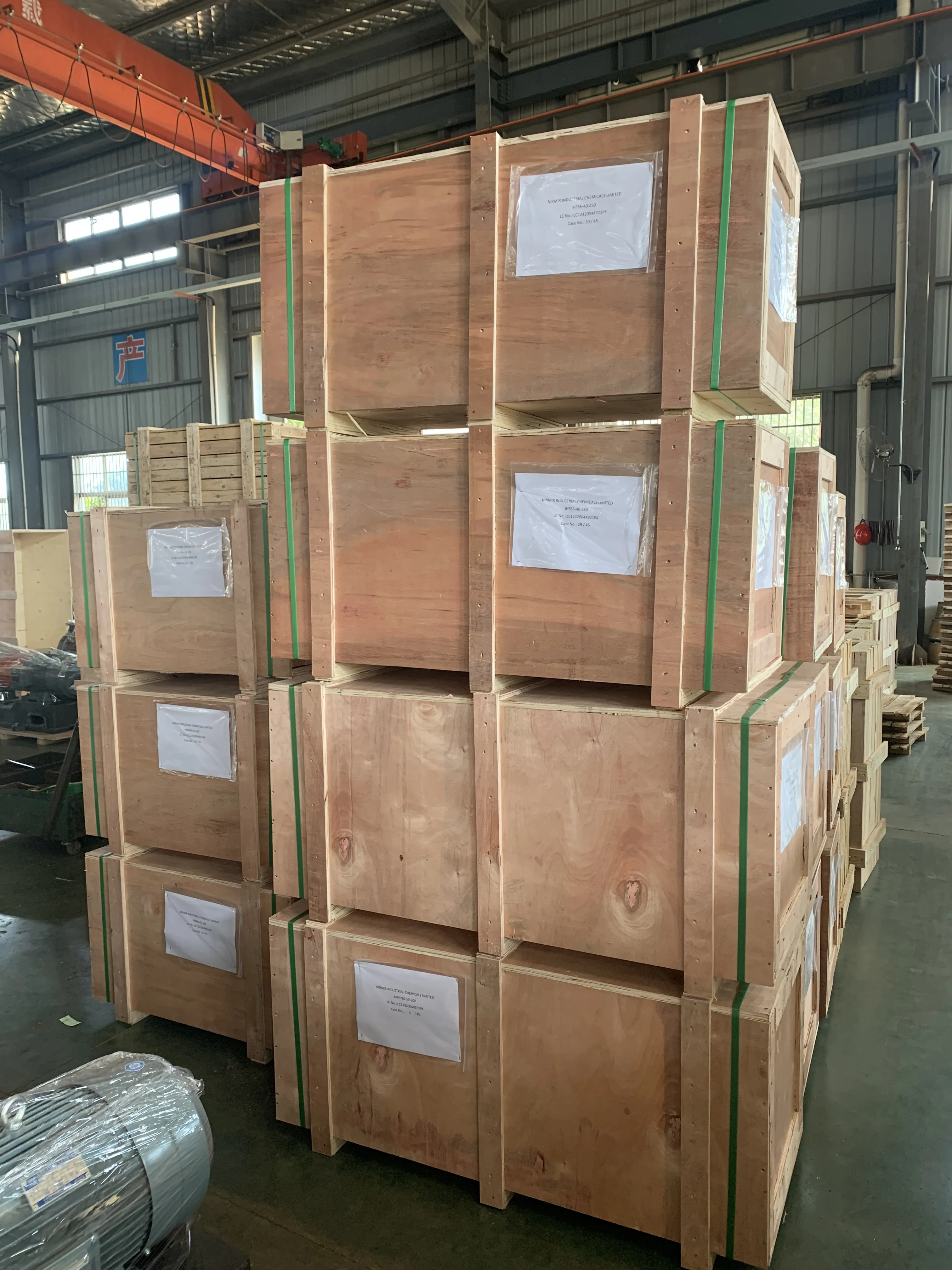

Plywood case for safety sea shipping








FAQ


1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe

4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
