Promotion in factory Newest 220V smd3030 12W indoor led rigidly bar strip Hight lumen led light bars for advertising light box
- Category: >>>
- Supplier: Dongguan Diguang Lighting Technology Co. Ltd.Dongguan Ltd.
Share on (1600682448784):
Product Overview
Description
Product Description
Wide Voltage 85-265V input
Individual Drive,No external Driver is required
175° Beam Angle,PMMA Optical Lens

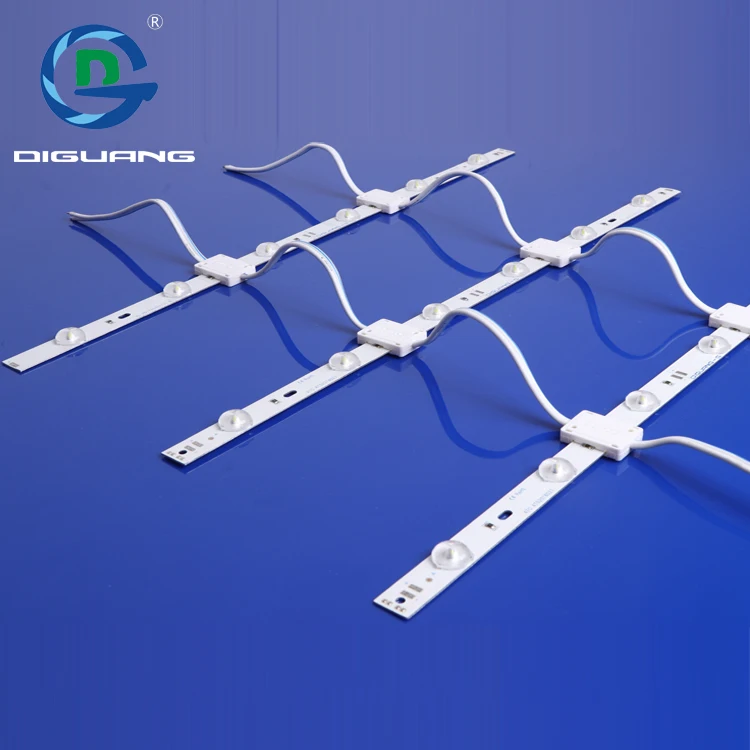

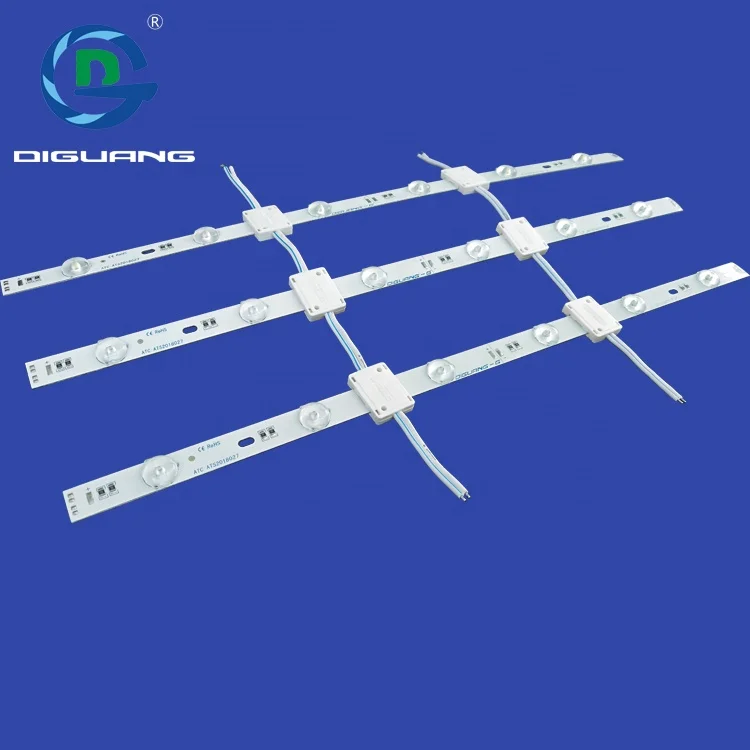

220V smd3030 12W led module led strip led light bar for advertising light box

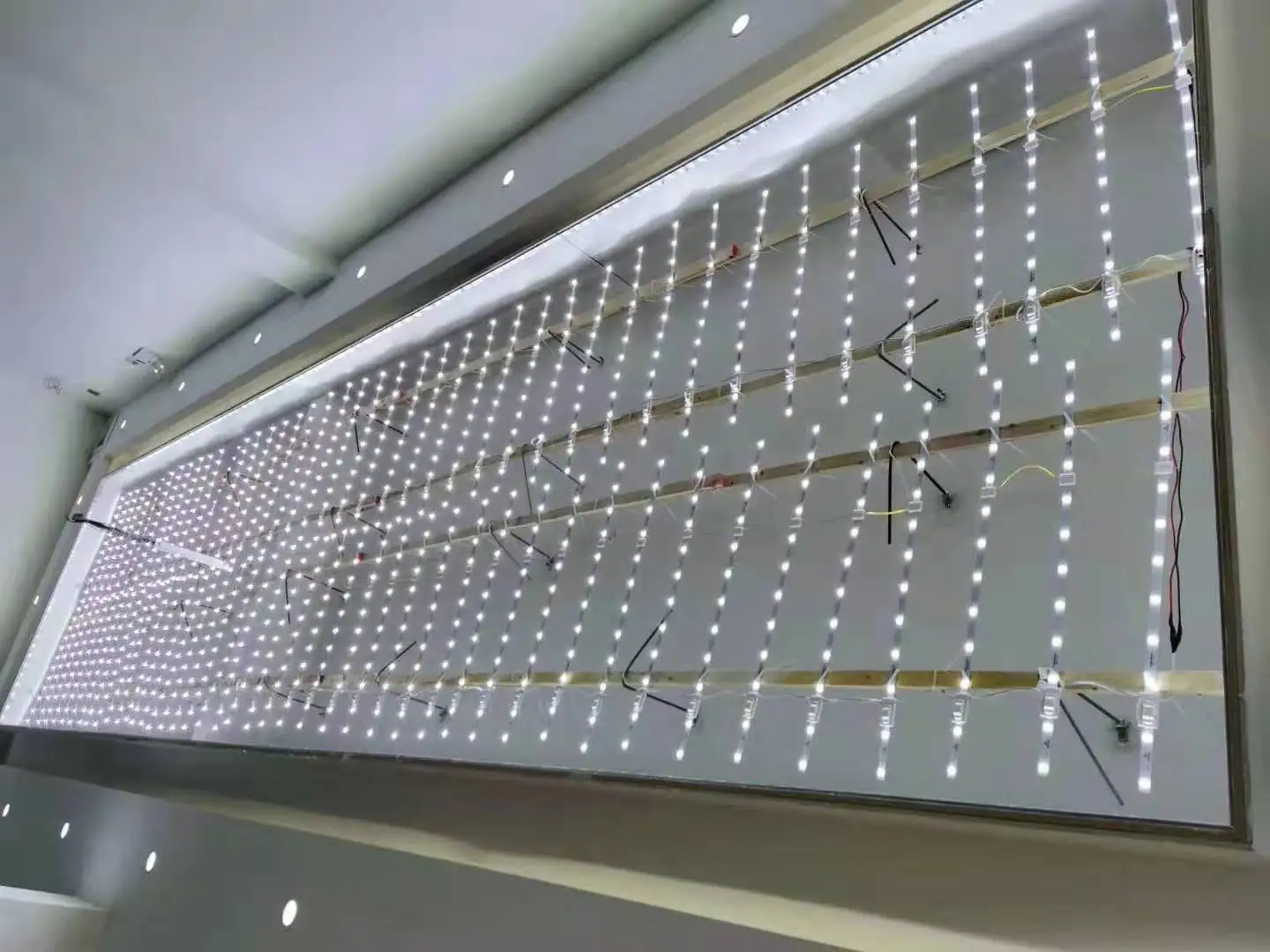

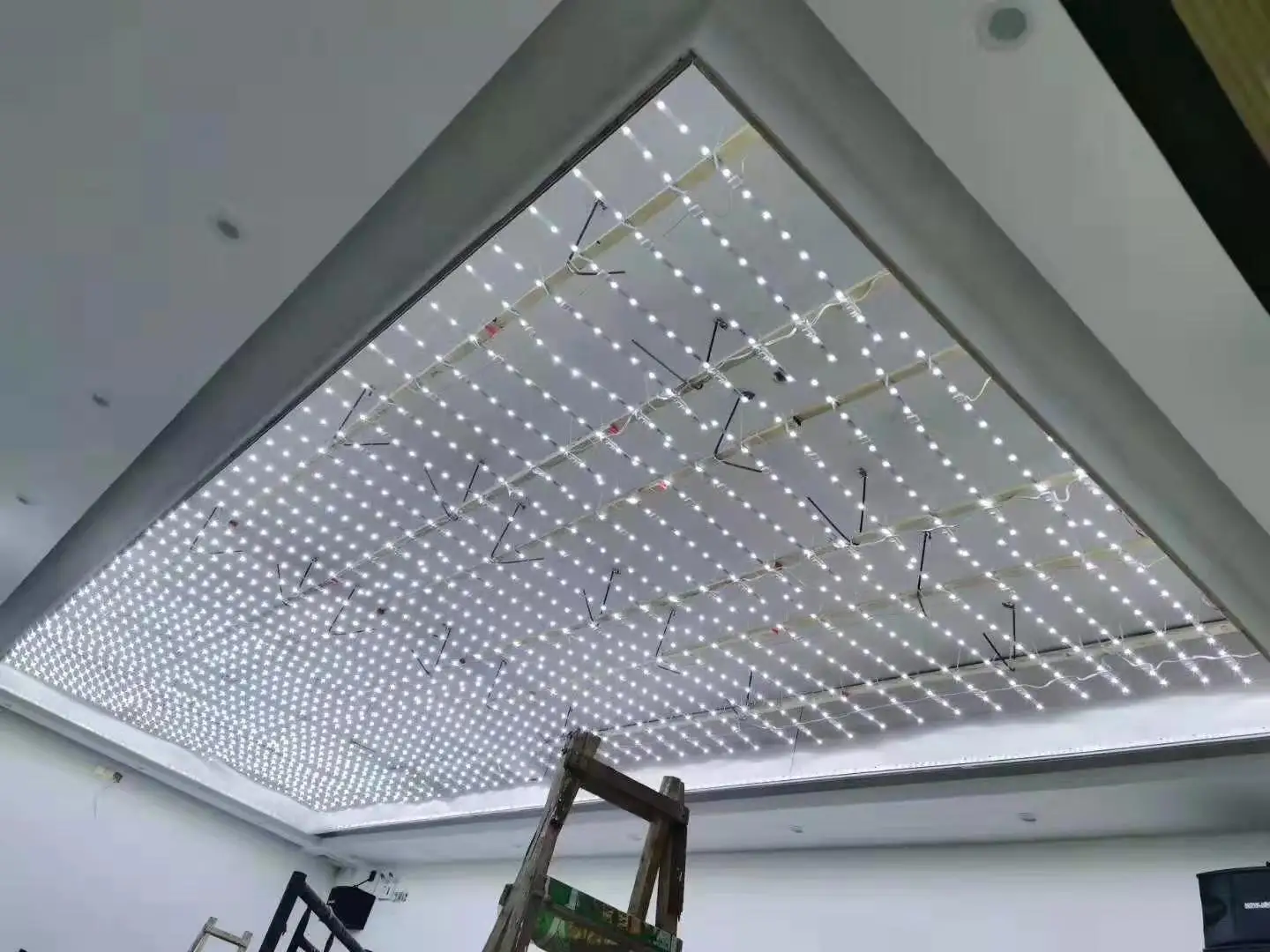

Project Samples
Best For 4-15cm depth of single-sided light box

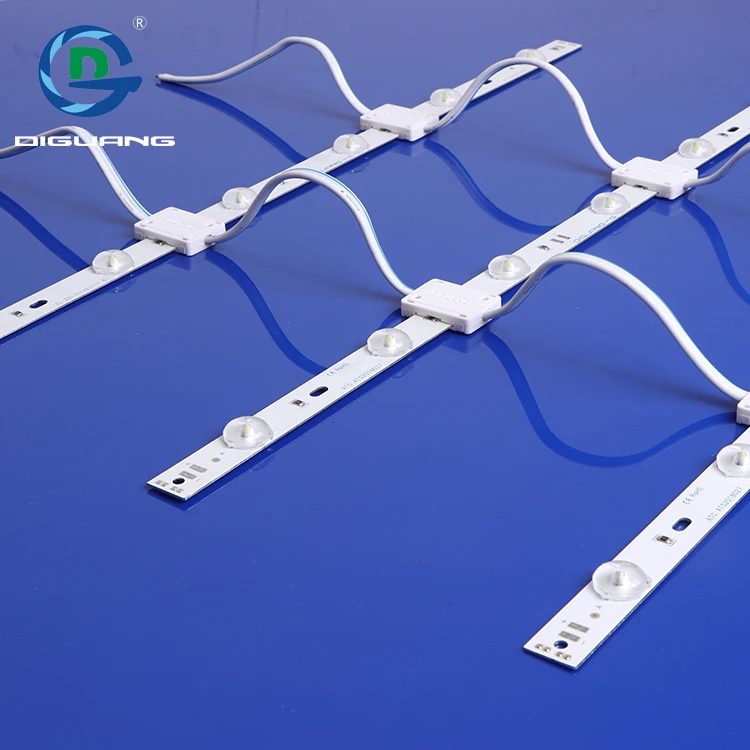

Detailed Images
Product Detail Drawing

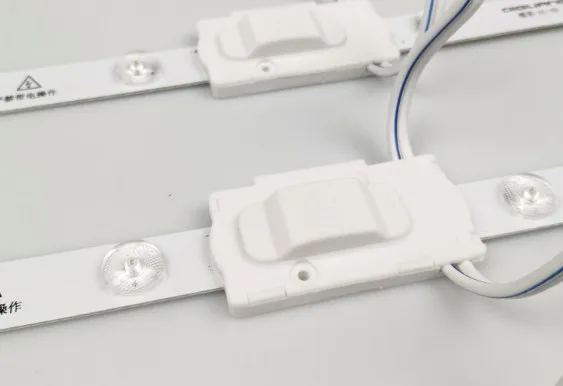

Individual Drive,
No External Driver is required.

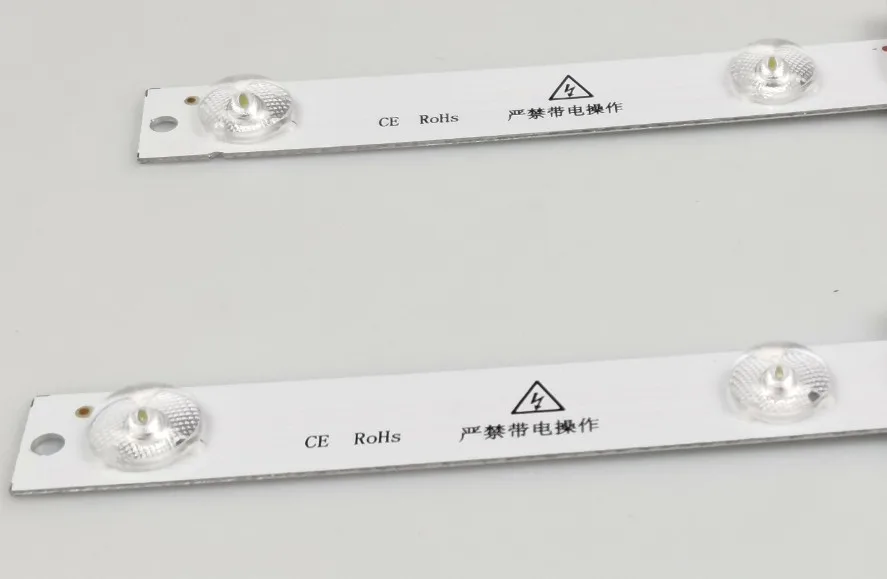

175° Beam Angle ,High Efficiency,
PMMA Optical Lens;

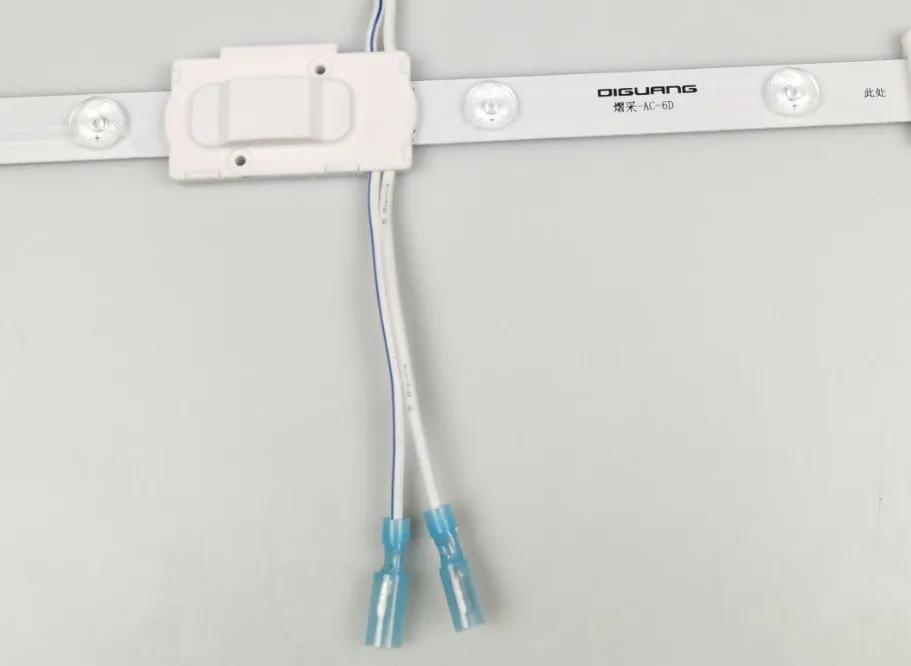

With flexiable connector,more convenient for installation

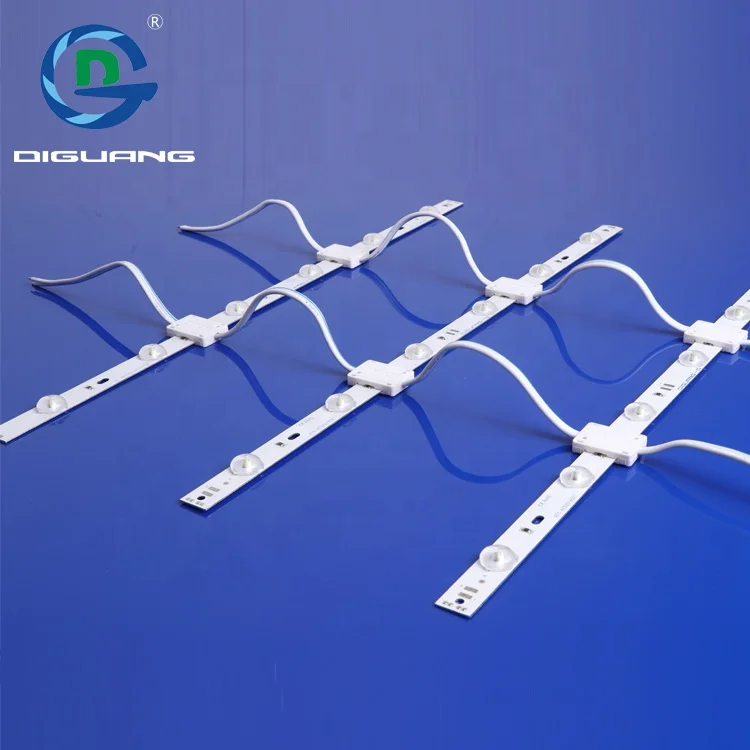

Product Presentation
◆YICAI SERIES
BEST FOR:4-15CM Depth of single-sided light box
● 85-265V wide voltage input,individual drive,No external driver is required;
● Output 27-65V,safe and reliable;
● AL PCB thickness 1.0mm,high heat conducivity;
● 175° beam angle,high efficiency,PMMA optical lens;
● New independent drive solution to solve the stroboscopic problem;
● Sanan Chip,lumen reach 130lm/led,lifetime>50000Hrs;
● This product is underwritten by PICC.
YI CAI SERIES AC220V LED BAR | |
AL PCB | |
1W/LED | |
AC220V | |
SMD3030 | |
DG-YC13K-N220V | |
IP Rating | IP20 |
Size introduction and size picture
Model | Size | Voltage | Rated Power | Color Temperature | Luminous Flux |
DG-YC13K-N220V-6/45 | 450*17*1.0mm | AC220V | 6W | 3000-13000K | 780LM |
DG-YC13K-N220V-8/65 | 650*17*1.0mm | AC220V | 8W | 3000-13000K | 1040LM |
DG-YC13K-N220V-10/80 | 800*17*1.0mm | AC220V | 10W | 3000-13000K | 1300LM |
DG-YC13K-N220V-12/95 | 950*17*1.0mm | AC220V | 12W | 3000-13000K | 1560LM |
DG-YC13K-N220V-14/110 | 1100*17*1.0mm | AC220V | 14W | 3000-13000K | 1820LM |

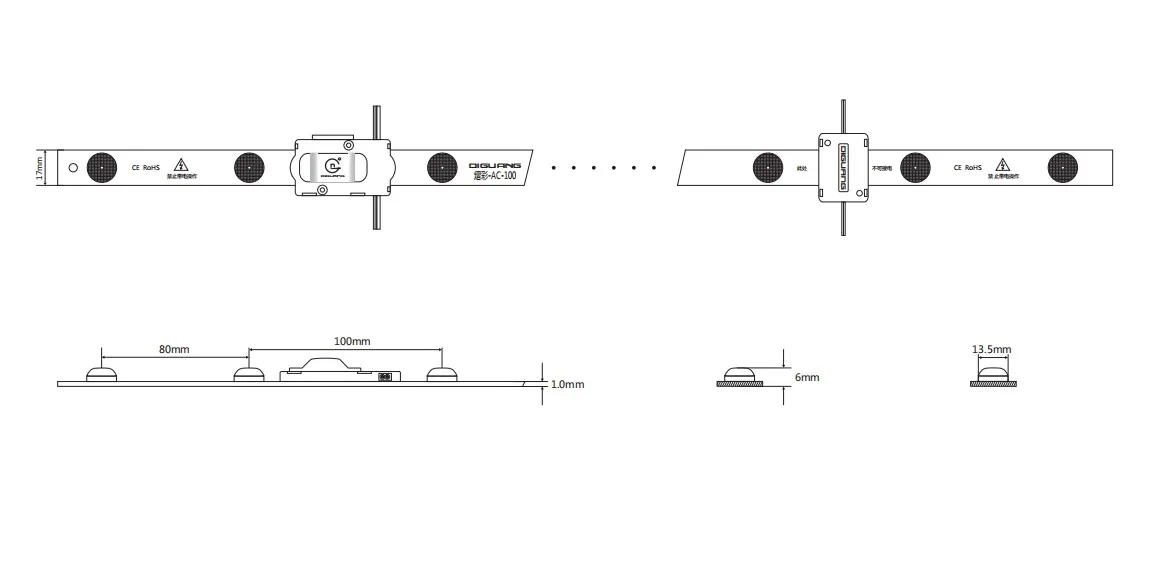

Dimension Drawing:
Related Products

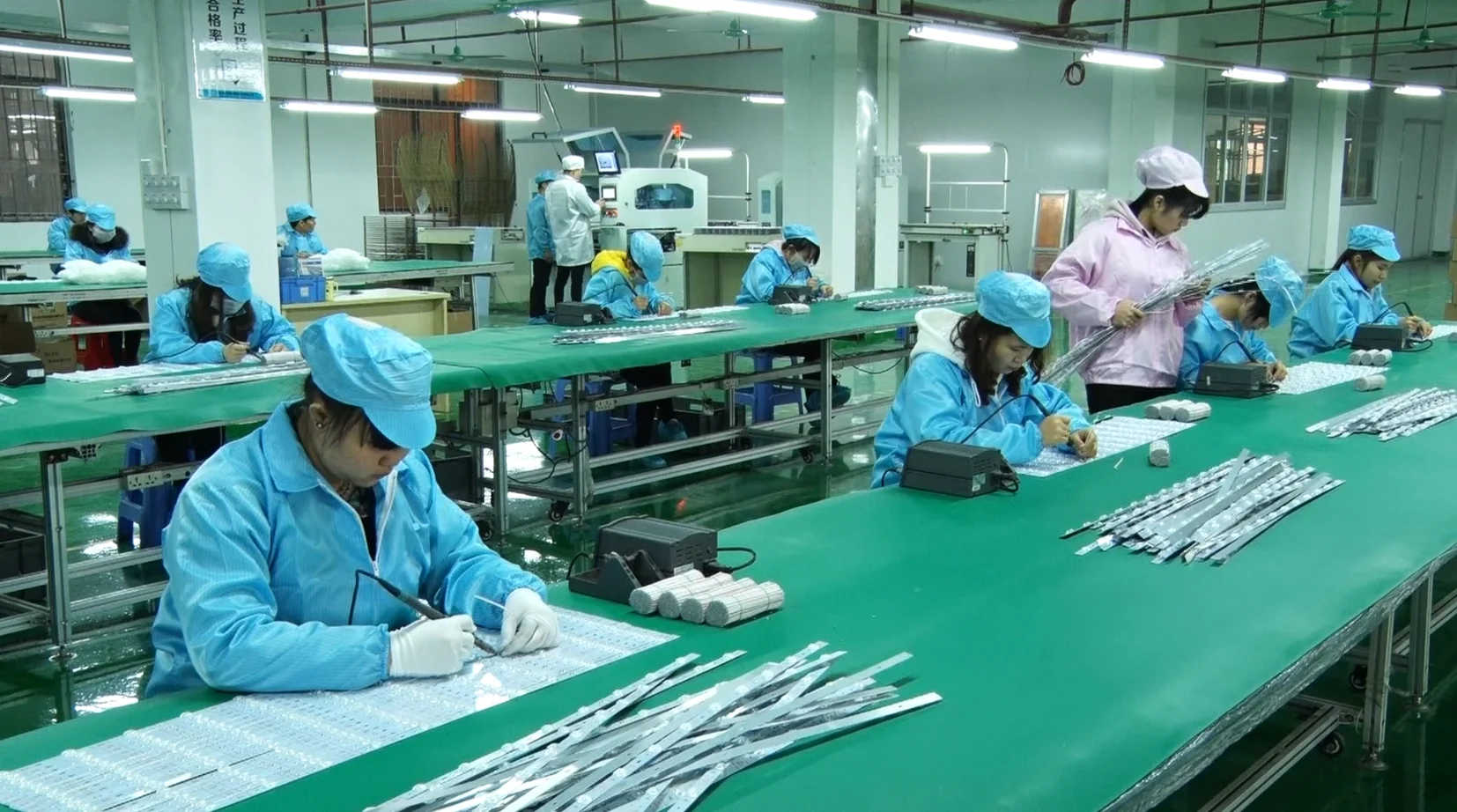

Company Introduction

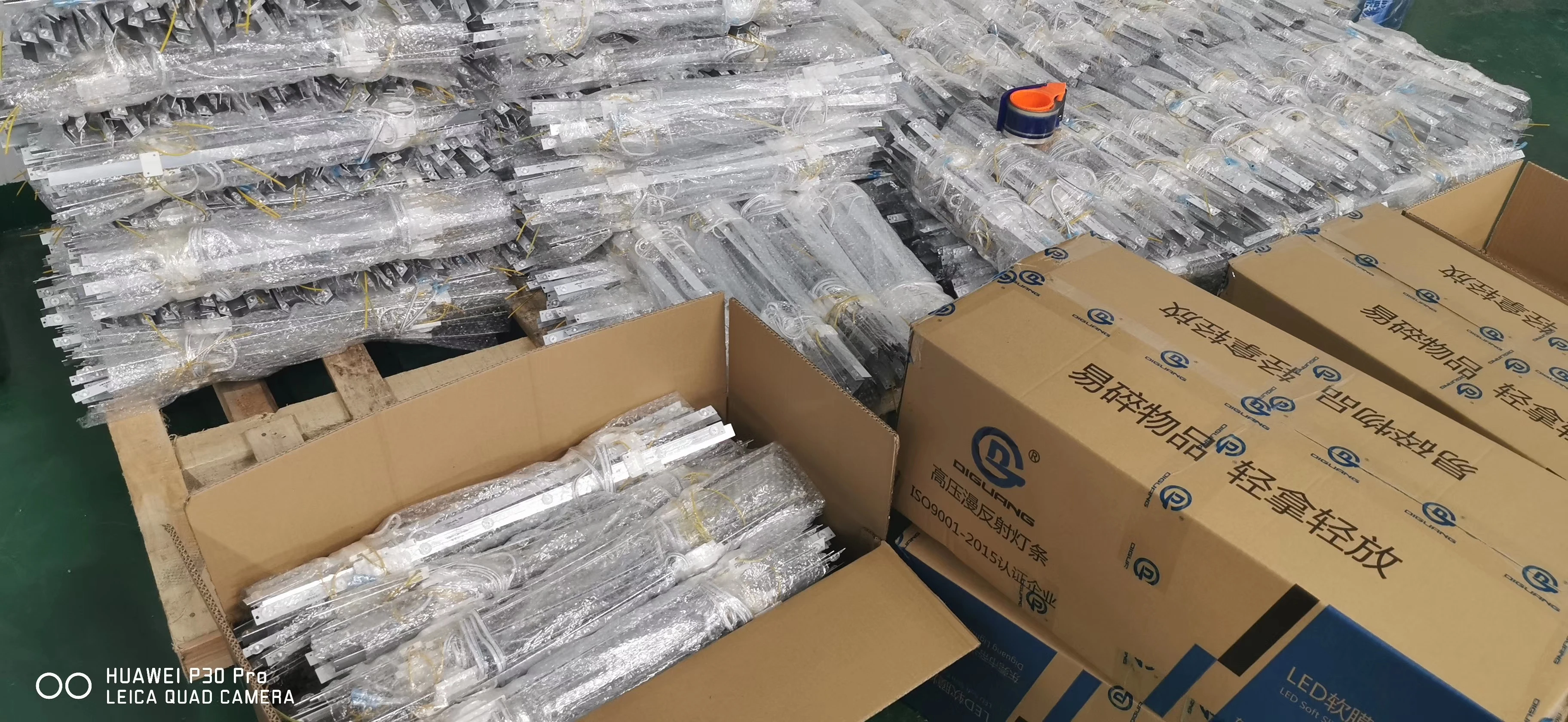

Packing&Shipping
