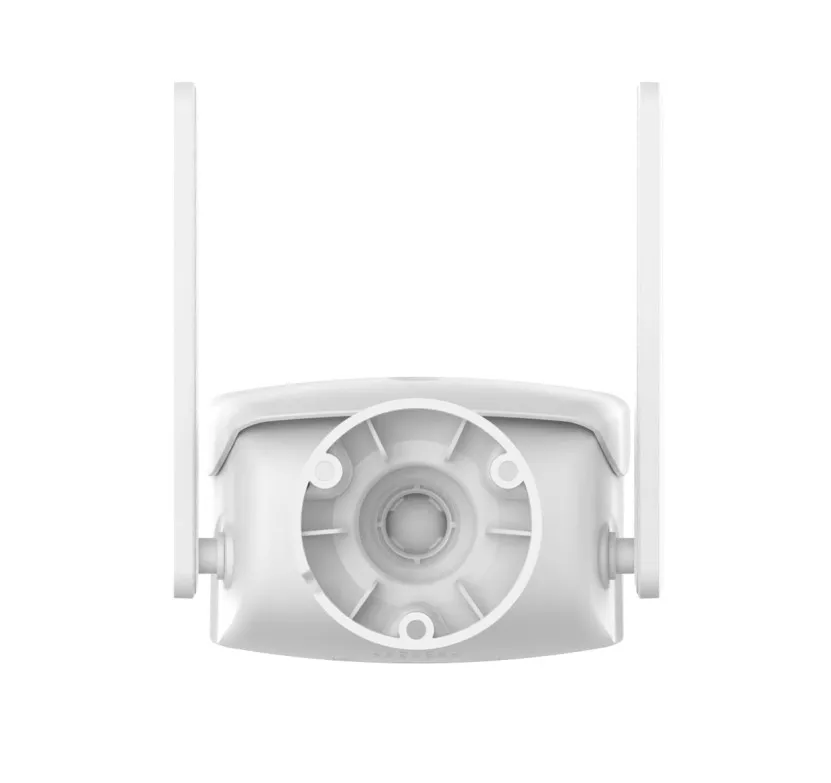

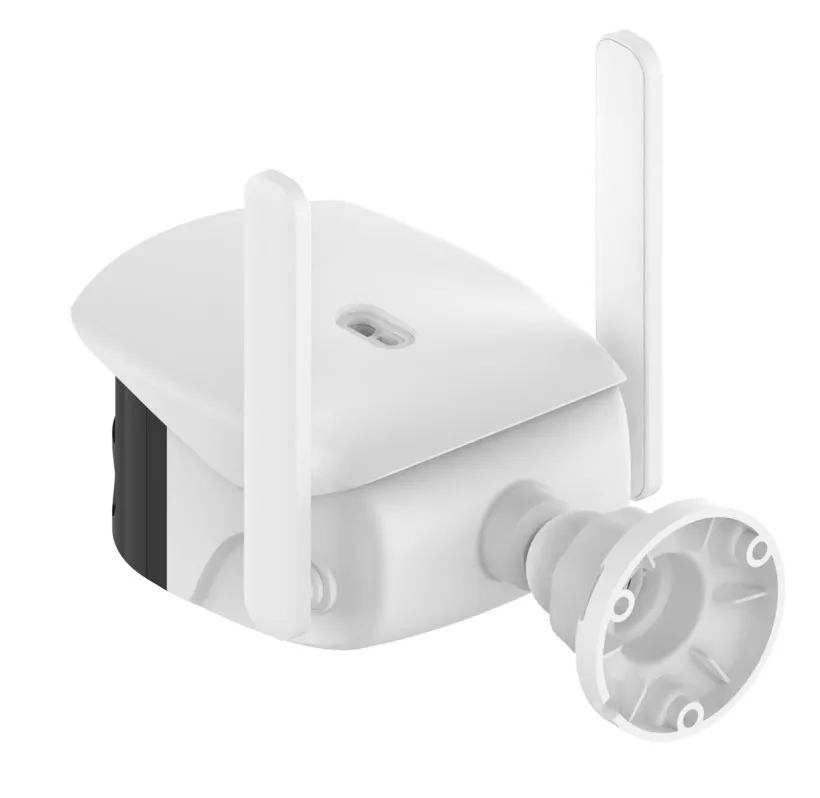

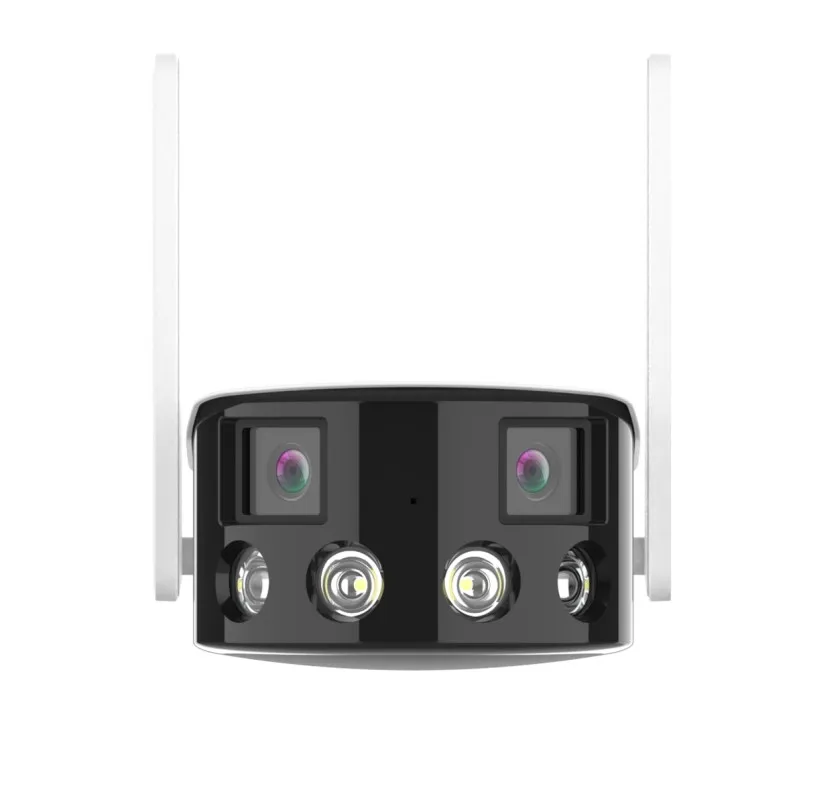

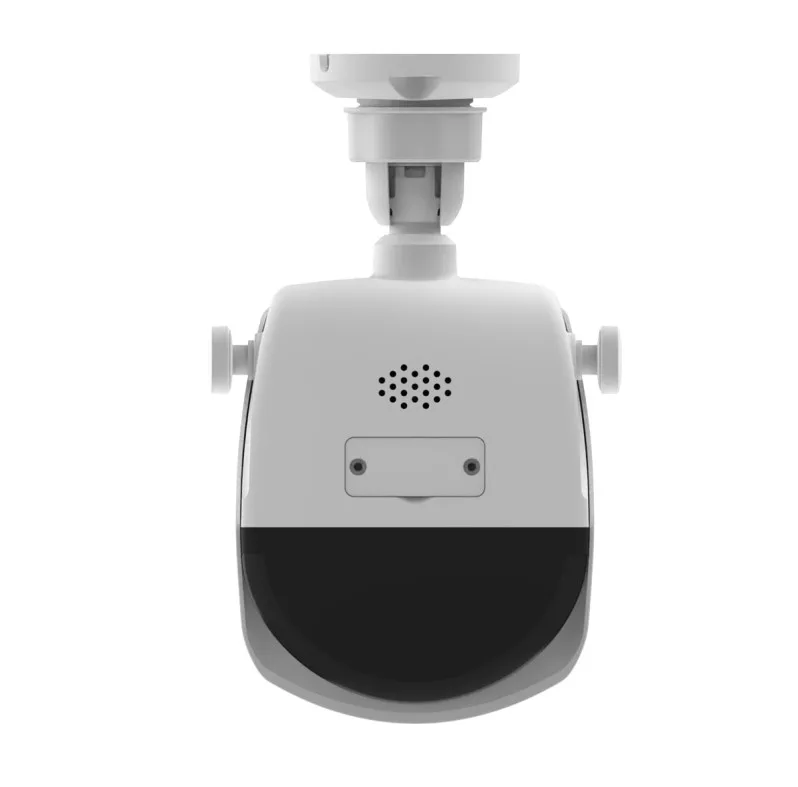

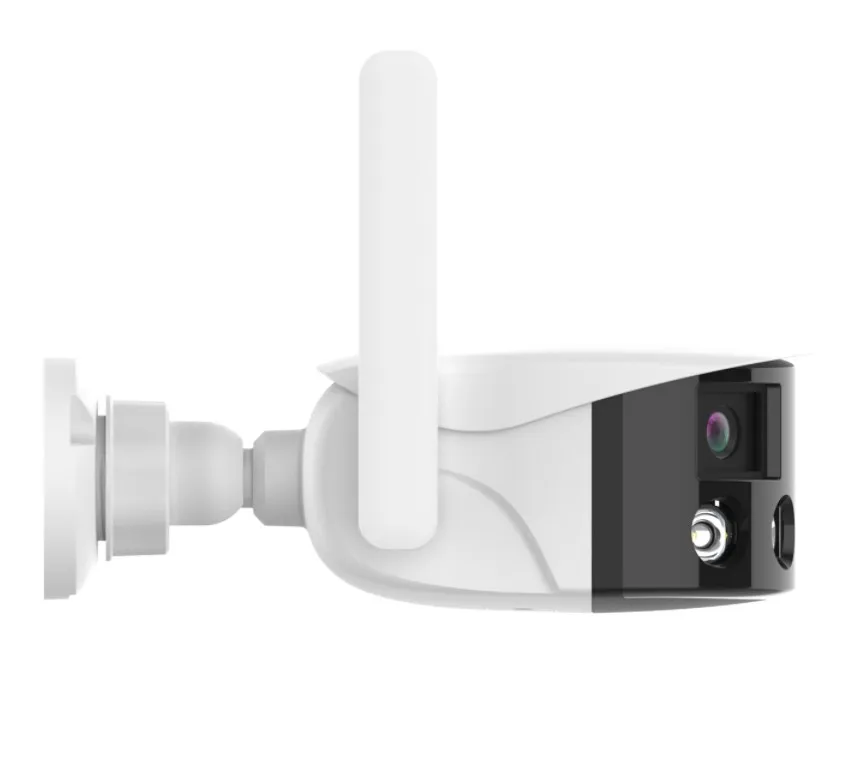

Model No. | KDM-6940XDWL | |
Camera | ||
Sensor | 2*2.0 Megapixel 1/2.8"high performance CMOS sensors | |
Minimum illumination | Day:0.01Lux @(F1.2,AGC ON); 0 Lux with IR Night:0.001Lux @ (F1.2,AGC ON),0 Lux with IR | |
shutter | 1/50 (1/60) seconds to 1/10000 seconds | |
Lens | 4mm@F1.6 | |
Day/Night | IR-CUT | |
Compression standard | ||
Video | H. 265AI/H.265+video coding compression | |
Compressed code | 0.1Mbps~8Mbps | |
Audio | G.711a | |
Image | ||
Maximum image size | 3840*1080 | |
resolving power | 3840*1080@12fps | |
network | WIFI 802.11 b/g/n+RJ45, | |
Features | ||

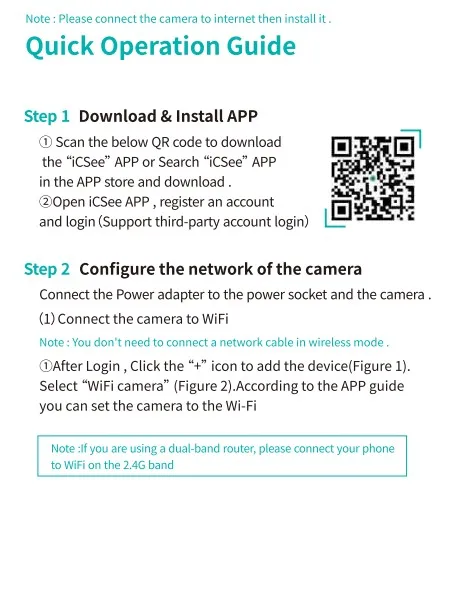

4.0 Megapixel high-definition pixels;The infrared night vision distance is 30-40m;The external storage TF card slot can support up to 128G; Support mobile detection; Support "Super Look" mobile monitoring APP;APP:icsee. | ||
Operating temperature and humidity | -10℃~60℃, Humidity less than 90% (no condensation) | |
Power | DC12V±10% | |
IR | 30-40m | |
Waterproof | IP66 | |
Weight | 374g | |
Package | 124mm*72mm*201mm | |




Shenzhen ESOE Technology Co., Ltd,that is located in Shenzhen City, Guangdong Province. We are a high quality security equipment manufacturer from China. As A professional Manufacturer of surveillance equipment, We have over more than 5 years experience in the security field.Our main products are Smart home camera ,wifi mini ptz camera ,tuya camera ,solar amera ,wifi nvr kit ,smart doorbell ,smart fingerprint lock ,adaptor ,power supply and so on . Our company provides the customized products and OEM service.Strict quality control is the root of our company. We have professional pre-sales and after-sales services.To choose ESOE means that you have chosen a professional company! We sincerely hope to establish long-term relationship with customer .Hope we can build win-wincooperation with u !


1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
4.We choose the best and safe packaging material to make sure your orders won't be damaged during delivery.
