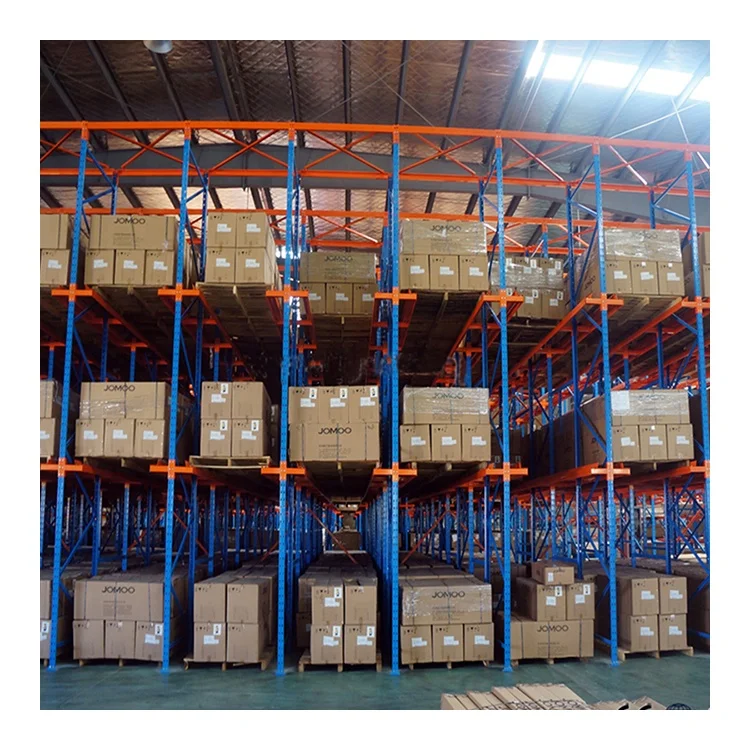

Wholesale Industrial Shelving Warehouse Storage Pallet Racking Drive In Pallet Rack System
- Category: >>>
- Supplier: Nanjing A-Plus Metal Products Co. Ltd.
Share on (1600682981978):
Product Overview
Description
Products Description

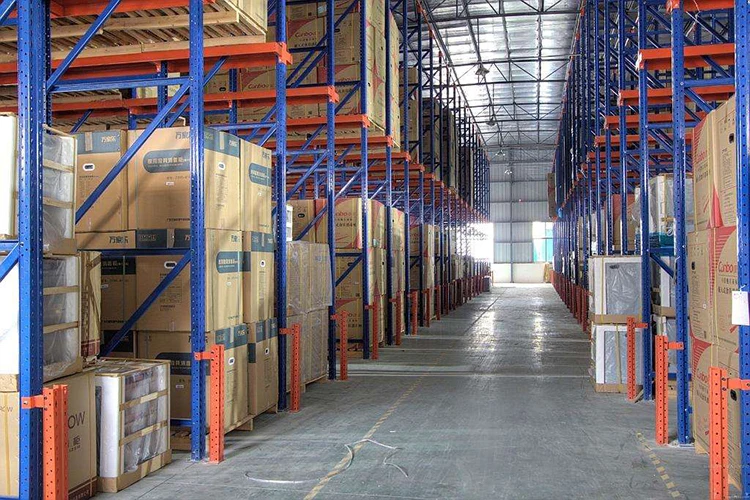

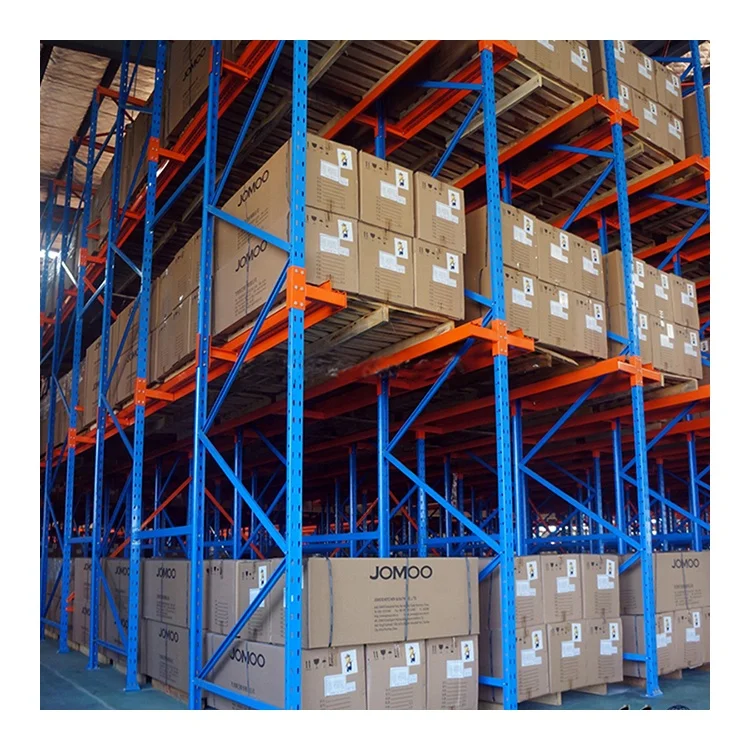

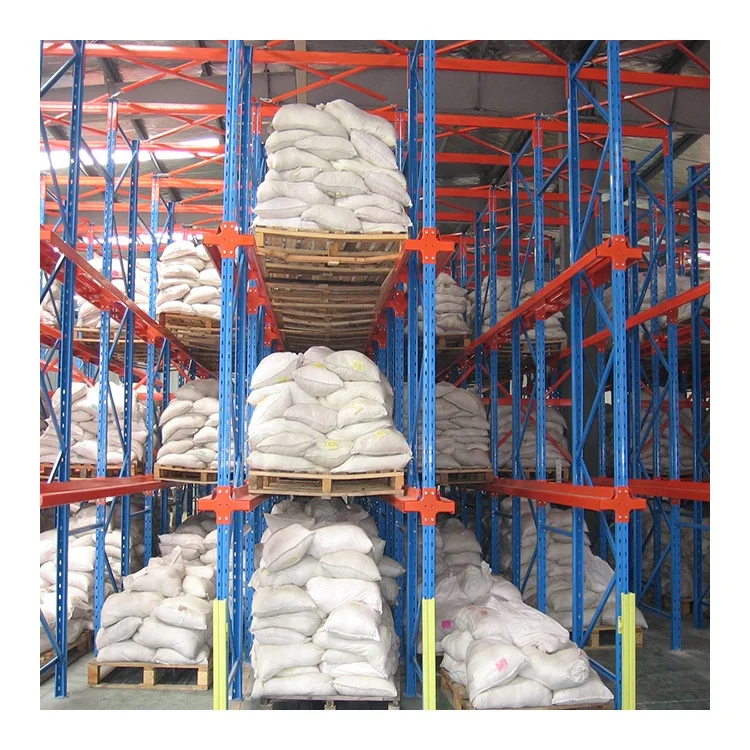

Drive in pallet rack

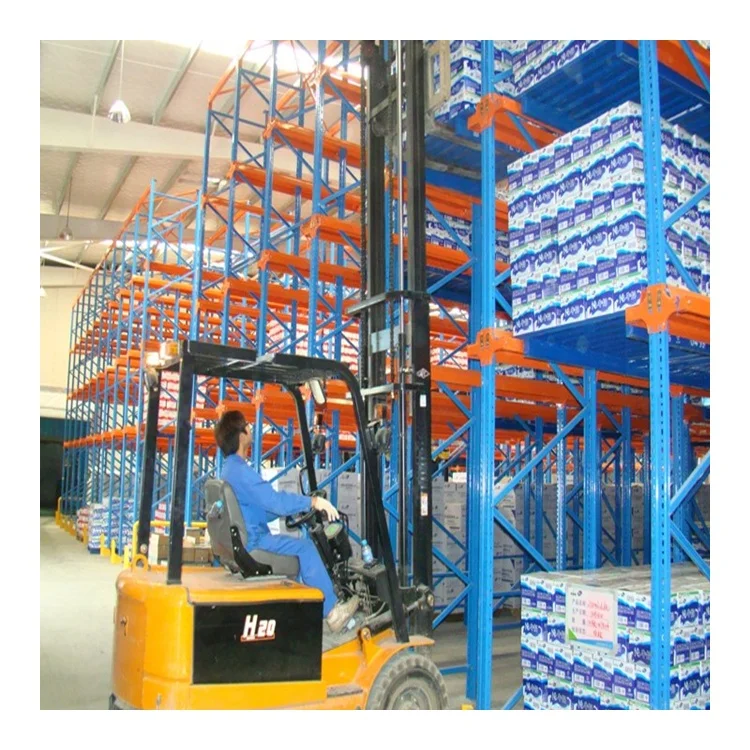

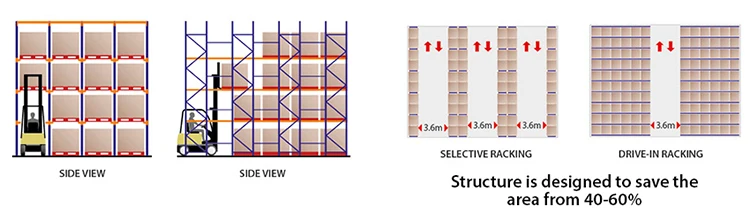

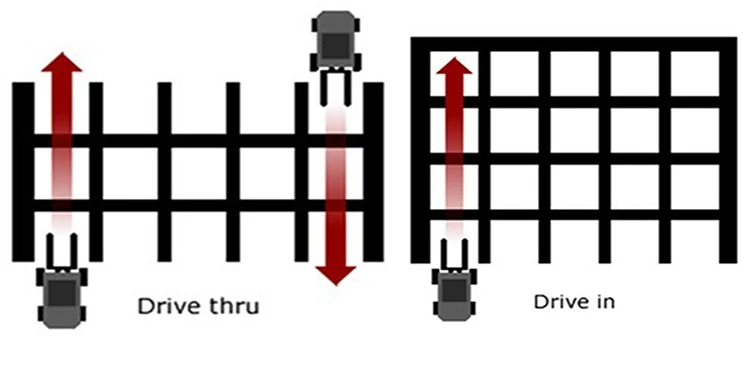

Drive in racking is also known as drive through racking. It is suitable for the storage of goods at same size by large quantity,with higher space utilization and lower cost. It has no special channel for trolleys and trucks, when storing goods the forklift operates from inner side to outer side, but oppositely when picking, that is called first-in, last-out.
Specification
Product Name | Heavy duty warehouse storage drive in Pallet Rack | ||||||
Upright Section | 80x60, 90x67, 100x67, 120x95mm etc, thickness: 1.8-3.0mm | ||||||
Beam Section | 100x50, 120x50, 130x50, 140x50, 160x50mm, thickness 1.5-2.0mm | ||||||
Material | High-Quality Q235 Cold rolled steel | ||||||
Standard Color | Blue(RAL5017), Orange(RAL2004), Green(RAL6000), Light Grey (RAL7035), Yellow(RAL1037) | ||||||
Adjustable Pitch | 50mm,50.8mm,76.2mm | ||||||
Surface Treatment | Powder Coated or Galvanized | ||||||
Application Environment | Normal Temperature or Freezer | ||||||
Design Service | Free CAD service available | ||||||
Back-up Service | Installation Drawing/On Site Instruction | ||||||
Lead time | 3 weeks for 2*40' container | ||||||
Standard package | Palletized, Export-Purpose Packaging | ||||||
Container Load | 15-18tons/1*20' container, 20-25tons/1*40' container | ||||||
Trade Term | EXW/FOB/CNF/CIF | ||||||

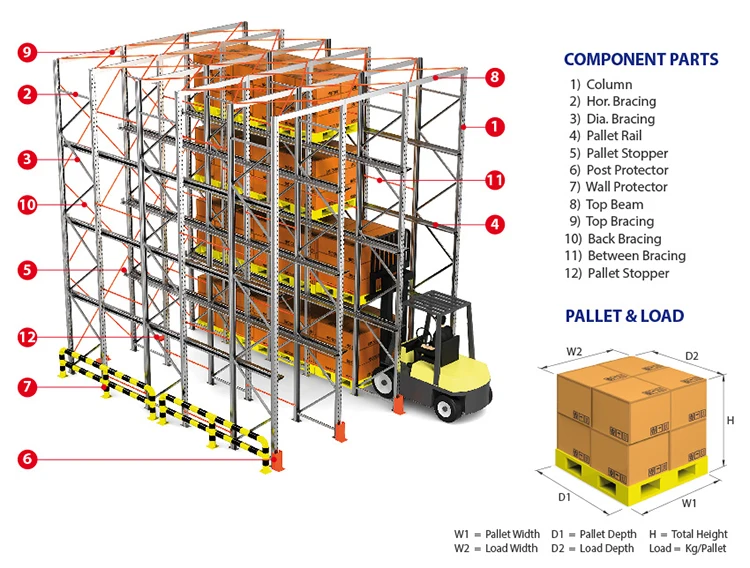

Product Components

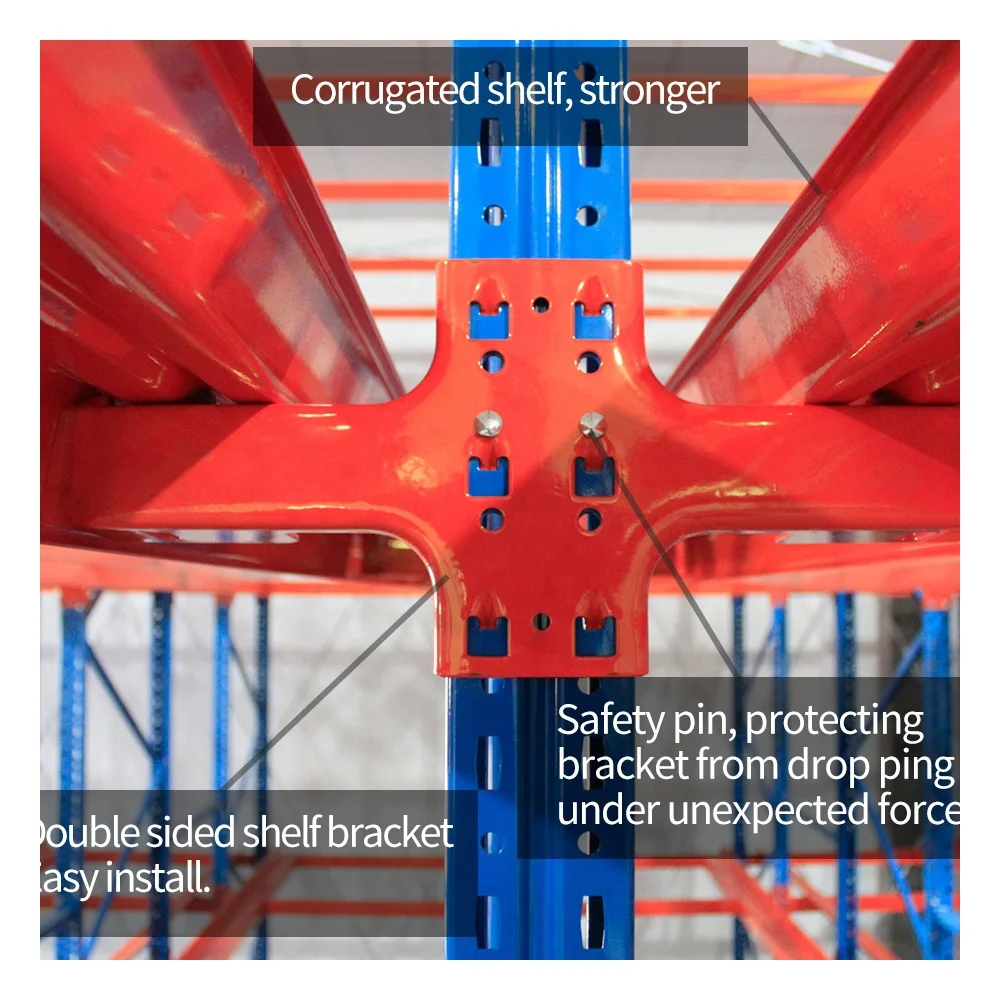

Details Images

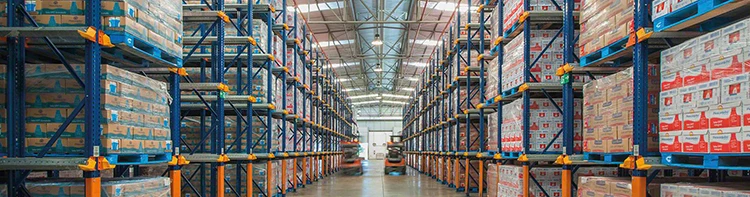

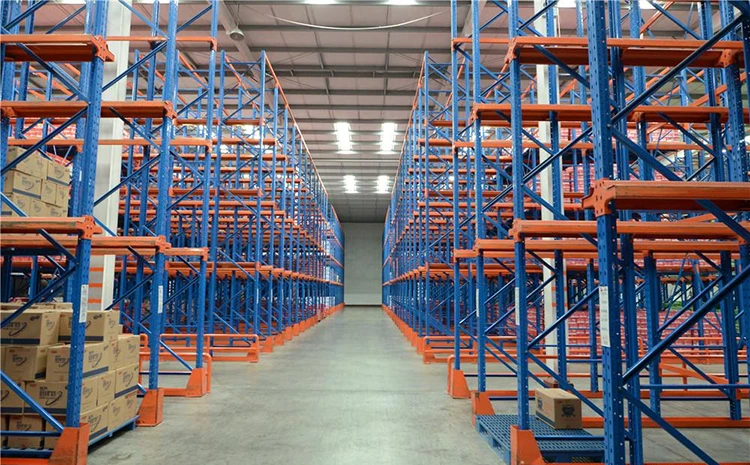

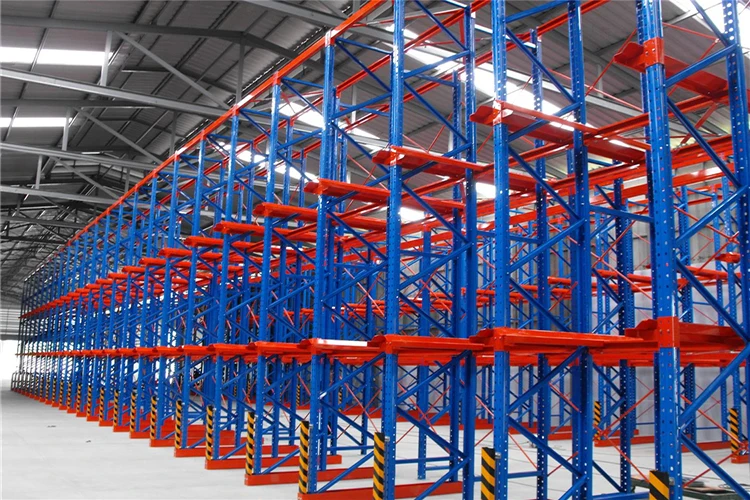

Project Case
