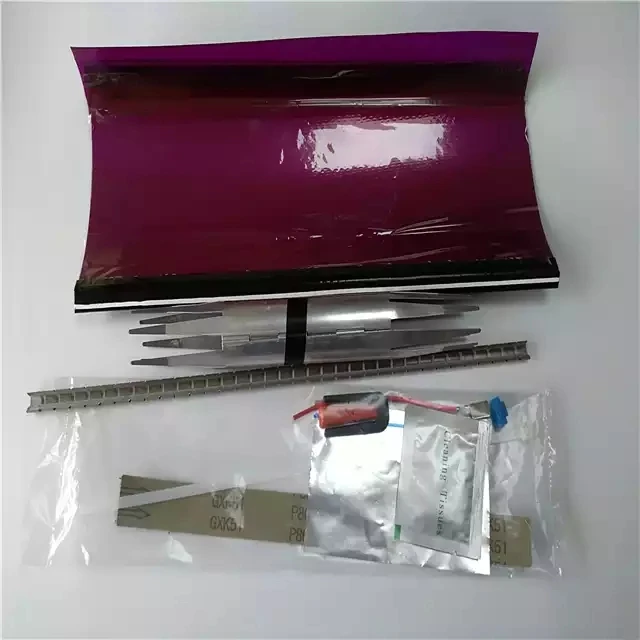

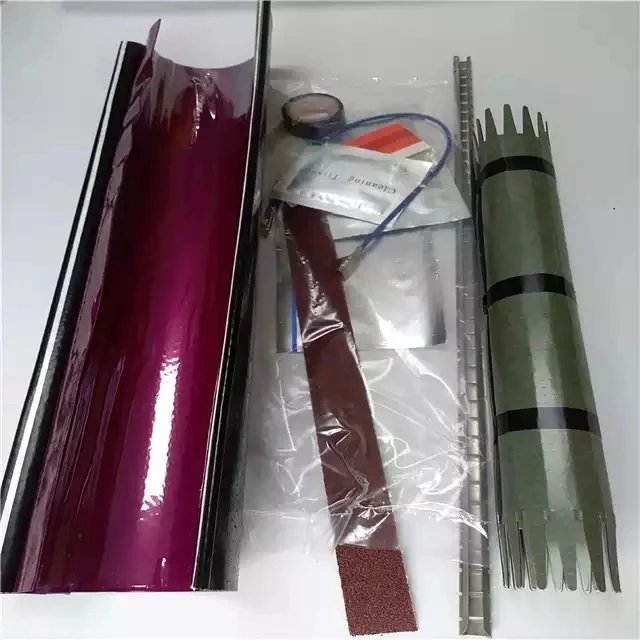

XAGA 500/550 Heat shrink closure reinforced kits

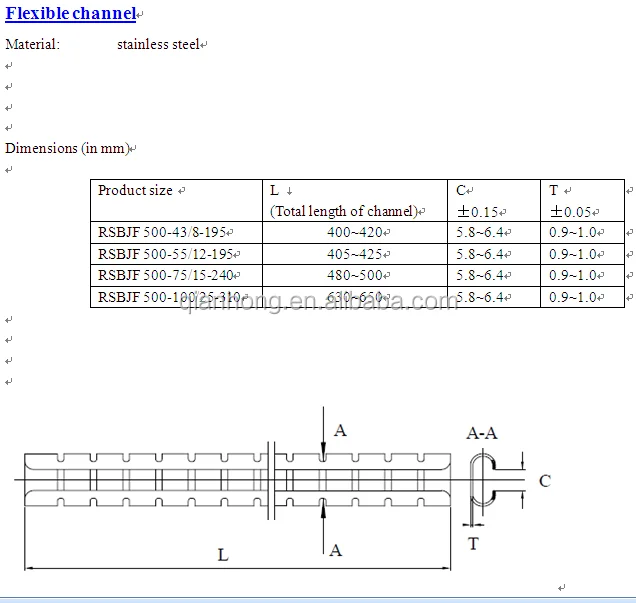

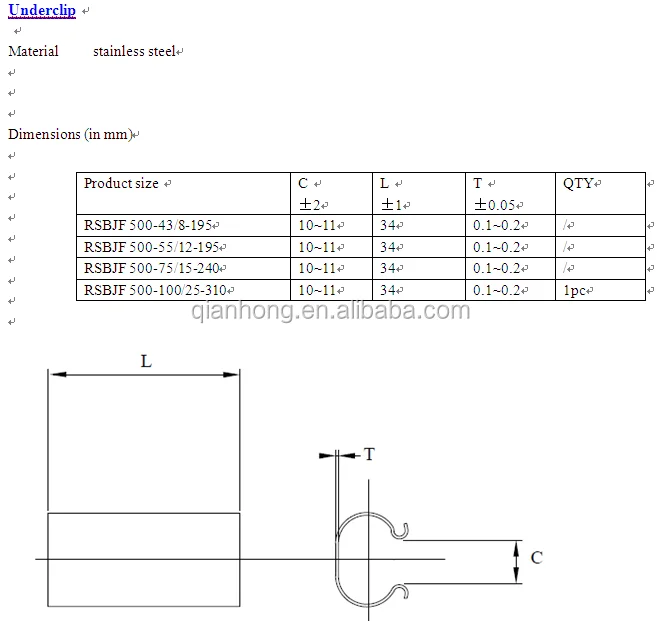

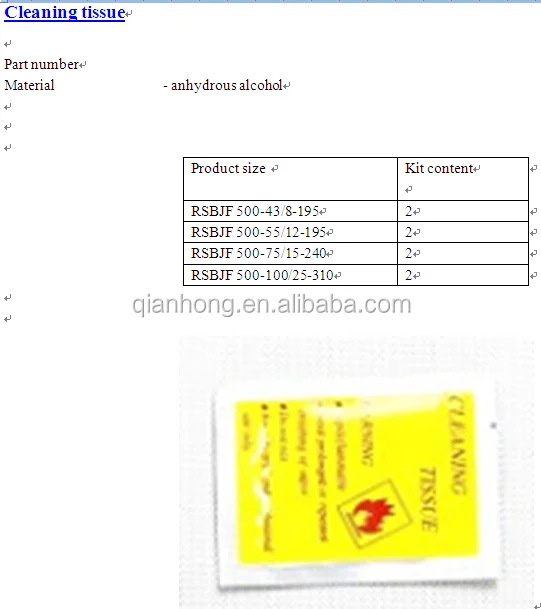

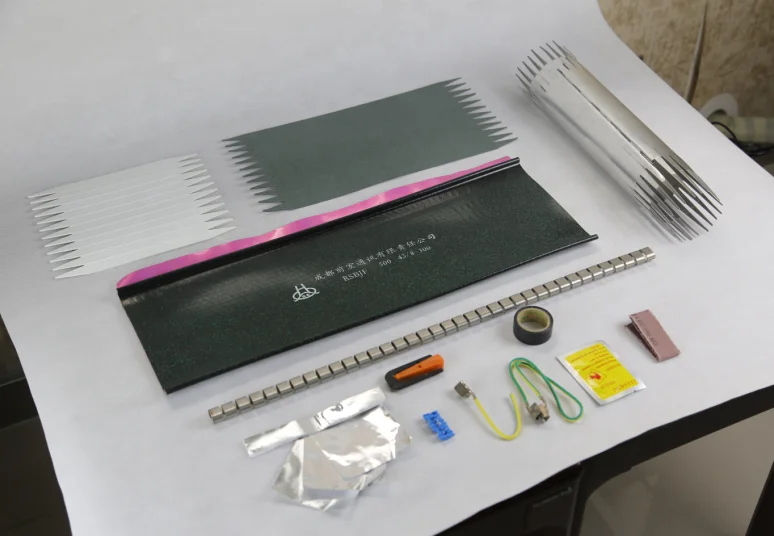

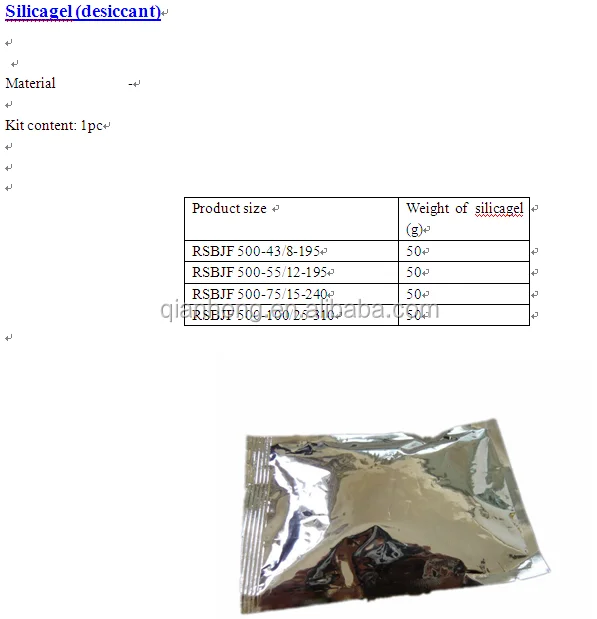

Product Overview

Description

Layers&materials of sleeve



1^stlayer: Polyethylene film

2^ndlayer: High density web (heat shrinkable thread+ glass fiber)

3^rdlayer: Polyethylene film

4^thlayer: Aluminum film (super moisture-resistant performance)

5^thlayer: Hot-melt adhesive



Dimensions (in mm)

(a=as supplied, b=as recovered)

Product size	Ha Nom.	La ±5	Fa* Min.	Wa Min
RSBJF 500-43/8-195	180	400	20~25	1.45~1.55
RSBJF 500-55/12-195	210	405	20~25	1.45~1.55
RSBJF 500-75/15-240	300	480	20~25	1.45~1.55
RSBJF 500-100/25-310	390	630	20~25	1.45~1.55













Common parameter  Lb: shrinkage < 3% of La on max. Diameter substrate

*Note             Fa is measured perpending to the rail

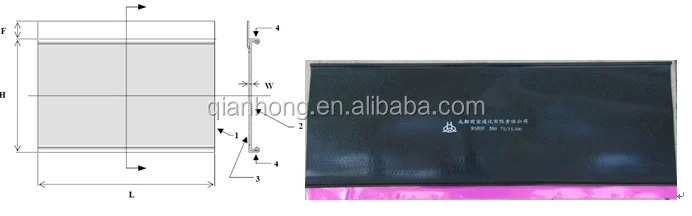

Drawing key

                  1. Reinforce heat-shrinkable material

                  2. Temperature-indicating paint(green color, will fade once the temperature up to 220 degree)

                  3. Hot-melt adhesive

                  4. PE sheet pasted on the adhesive side, tear able.

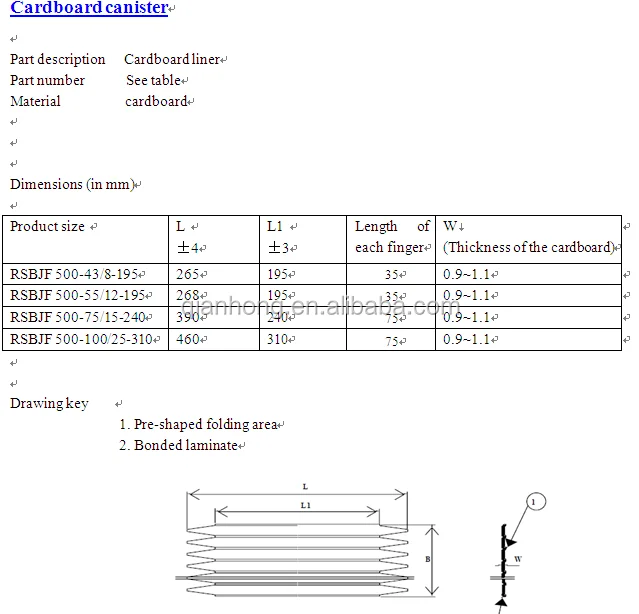

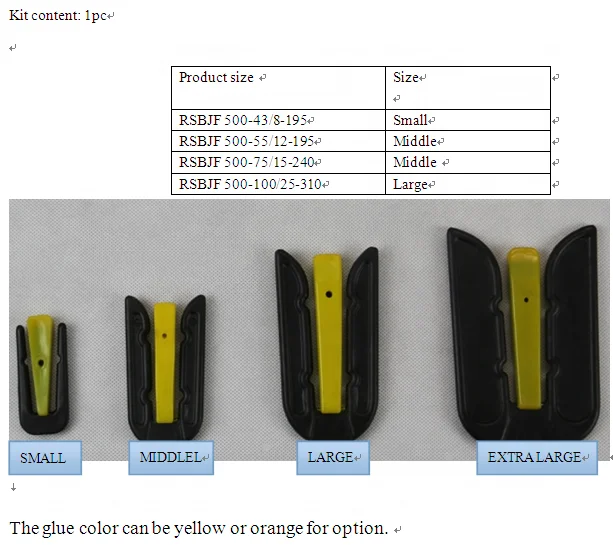

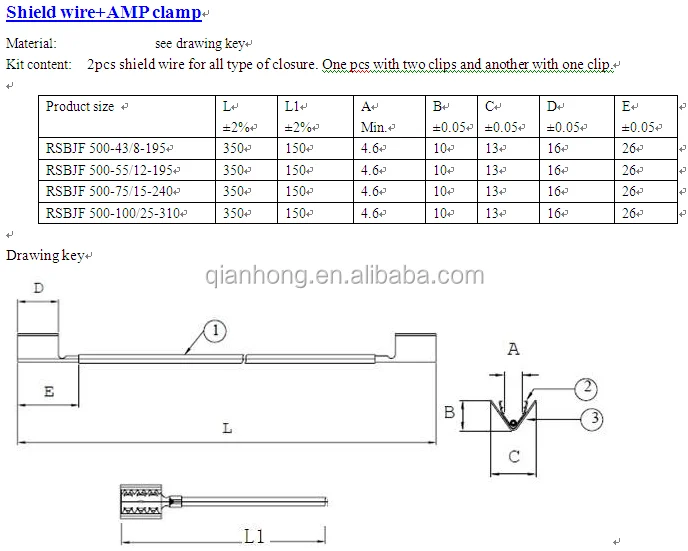

                  5. Dia for the nylon bar(As showing of “4”) is 4MM.
