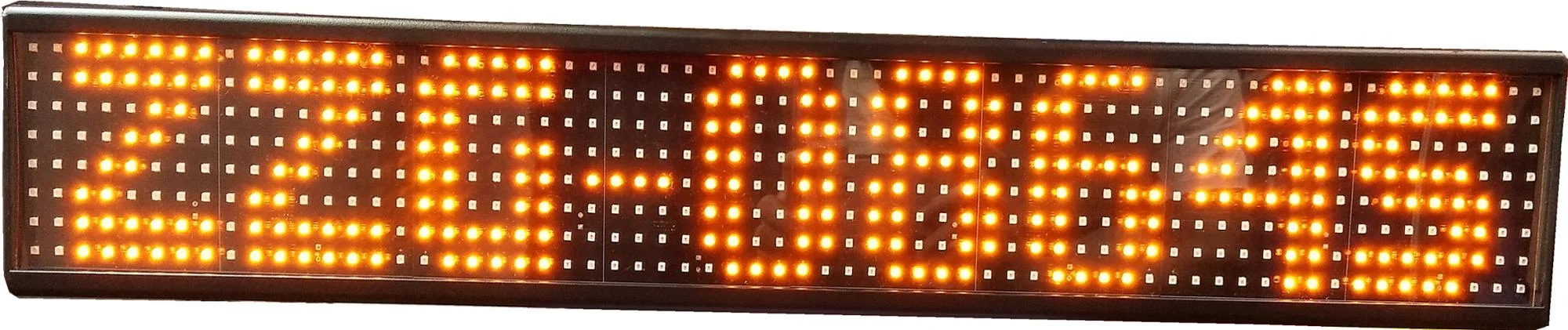

On board bus LED amber color scrolling text destination sign digital signage screen and displays
- Category: >>>
- Supplier: Shenzhen Zhongzhigu Electronic Technology Co. Ltd.
Share on (1600683034994):
Product Overview
Description
Product Images
Product Description
Features
1. Easy to operate. The message can be updated via U flash drive. The drivers can select the stored routes via some buttons.
2. Self-defined English, Spanish fonts, specially designed for Africa and South America.
3. Adopt Taiwan Epistar 12mil LED chip with high brightness, little heat and long life time.
4. The brightness is automatically controlled, it will save more energy and make the life time longer.
5. Constant current driver with reliable quality.
6. The software and hardware are both developed by ourself, so we can make the price competitive.
Specification of ZZG bus led display screen sign for destination sign bus led display board for bus stop
| NO. | Item | Specification |
| 1 | Type of Media | SMD 3528 |
| 2 | LED color | Amber/White |
| 3 | Wavelength | 592 to 595 |
| 4 | Pitch | 10mm horizontal,12.5mm vertical |
| 5 | Line Resolution | 11*80 |
| 6 | Character Height | 138mm |
| 7 | Display Area Dimensions | 800mm(H)*138mm(W) approx. |
| 8 | Visibility | 60-100meters |
| 9 | Viewing Angle | 120oH/60oV |
| 10 | Languages Supported | English/Spanish/Portuguese(complete font), Regional language |
| 11 | Brightness | Inbuilt light sensor,automatically adjusted. Also 4class set,25%,50%,75%,100% |
| 12 | Data Interface | Wireless, RS232/485 |
| 13 | Inbuilt Controller | 999routes/1000 stations per route. |
| 14 | UV Resistant | yes |
| 15 | Operating Voltage Range | DC12V~36V |
| 16 | Ingress protection | If need IP65,will add a organic glass |
| 17 | Ambient Operating Temperature | -40℃ to +80℃ |
| 18 | LED Chip | Taiwan Epistar 14mil |
| 19 | Cabinet material | Aluminium |
| 20 | Life Span | >100,000hrs |
Company Information
Our Services
FAQ
Q1: How long is the lead time usually?
A1: The lead time is usually 10 to 15 days after the order is placed.
Q2: What payment terms do you accept?
A2: T/T payment, West Union and PayPal are available.
Q3: Can you make OEM display?
A3: Yes, of cause we are able to do it. You just need to tell us your own idea, then we will do the rest.
Q4: Are the contents that showing on the LED display programable?
A4: Yes, we will offer soft ware and manuals for you. And then you can program it by yourselves.
Q5: Are you a factory or a trading company?
A5: We are a factory.
For more details about ZZG bus led display screen sign for destination sign bus led display board for bus stop, please feel free to contact us
