ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube
ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube

ARGUS Easy to operate co2 laser marking machine for jeans SCM3000 with 100w rf tube

Share on:


Price:$40,000.00 - $55,000.00
Price in USD:Details

Quantity:


Product Overview

Description







Model Type
SCM3000
Max.Marking Area
1500*1500mm
Worktable
Marble worktable
Laser power
250watts/350watts
Power Consumption
≤7kWh
Application material
Non-metal material
Laser Source
Coherent CO2 metal RF Laser Tube
Laser Wavelength
10.64μm
Laser Frequency
20kHz~200kHz

Galvo Scanner
CTI America
Repetition Precision
0.01mm
Min.Letter Size
0.3mm
System Support
Windows
Output Compatibility
Auto CAD, Photoshop, CorelDRAW etc
File Formats
PLT, DXP, BMP, JPG, AI etc
Software Character
Integrated Function of Dotting Design, Vector Drawing, Marking, Scribing ,cutting
Power Supply
110V~380V/50Hz~60Hz
Cooling Way
Circulation of Water Cooling
Warranty of core components
1 Year
Core Components
Motor, Other, Gear, PLC
Life Span
20000 hours (at least 4~5 years)
Cooling Way
Circulation of Water Cooling
Laser Outpower
150/250/350W
Marking Speed
<20000mm/s
Certification
ISO,CE










Top 1 Denim jeans laser printing,engraving,washing,whisker machine

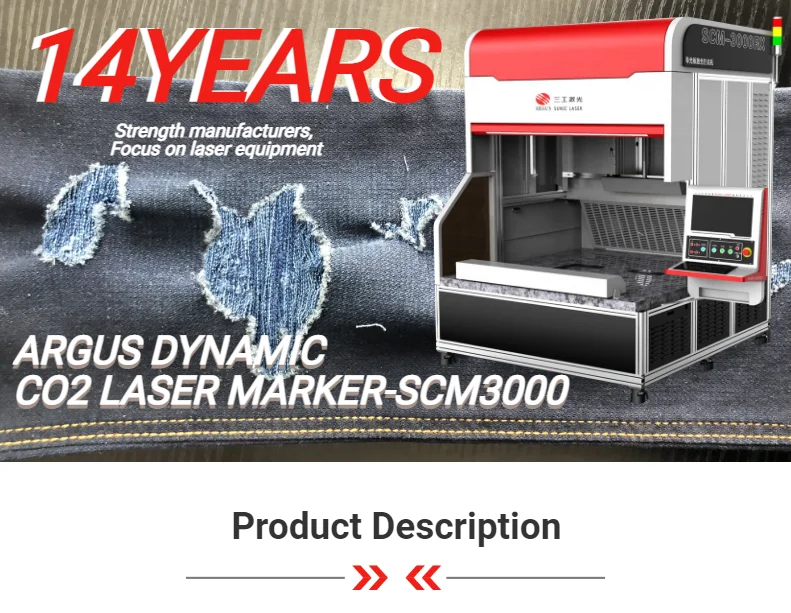

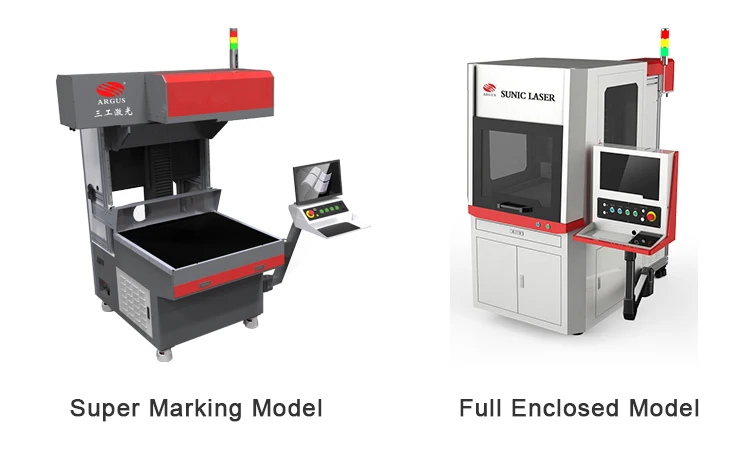

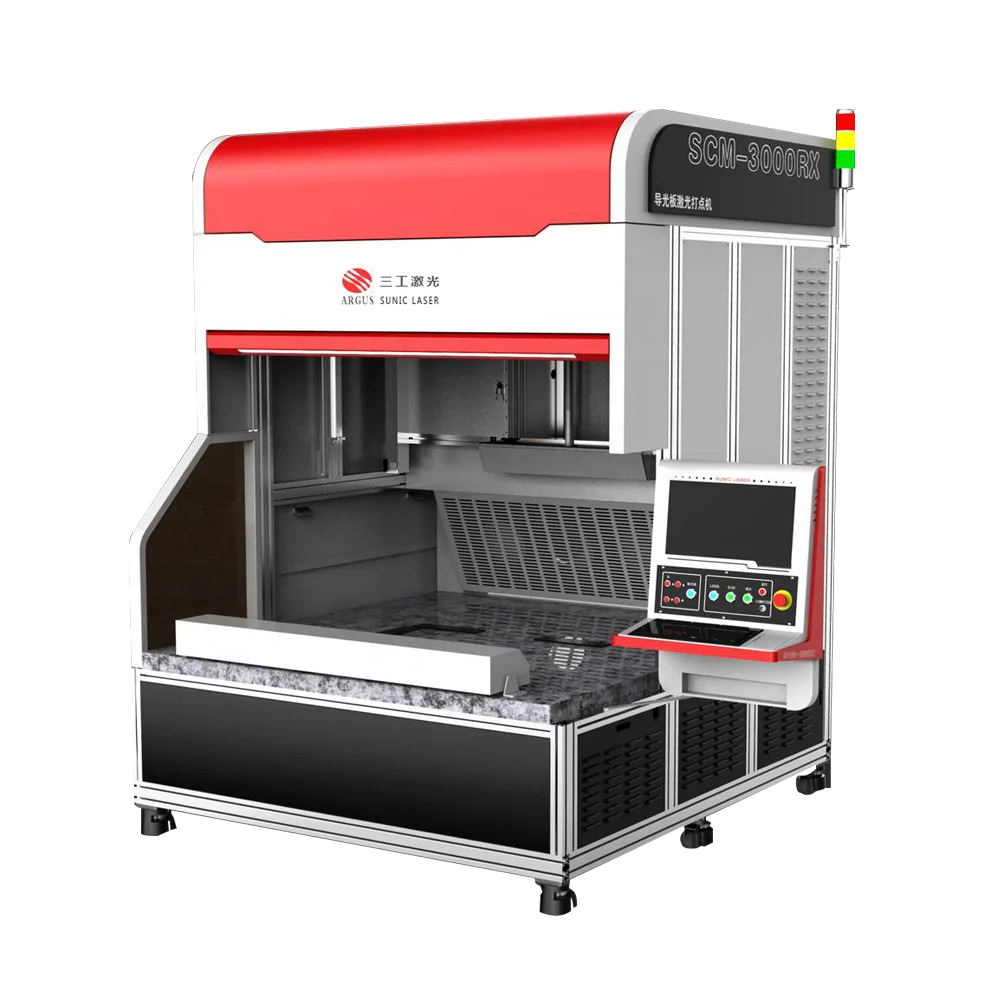

The SCM3000 3D Dynamic CO2 Laser Marking Machine is specialized designed for denim Laser Marking Application, which is widely used in the jeans producing, and it is also the most popular model in the market.It is the outcomes of SUNIC Laser’s technical expertise and experience in marking and engraving denim for jeans applications exploiting proprietary laser technology to produce washing mark, whisker result on denim up to 1500×1500 mm working size. This process is much more productive in comparison to other traditional technologies and other lasers, even with the maximum quality.


Main Features
The denim processed by Laser Engraving display the excellent features of quick producing speed, no need washing process,Environment friendly, easy customized design, and permanent result.Technical Parameters

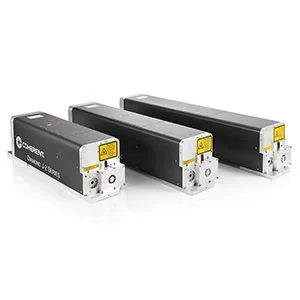

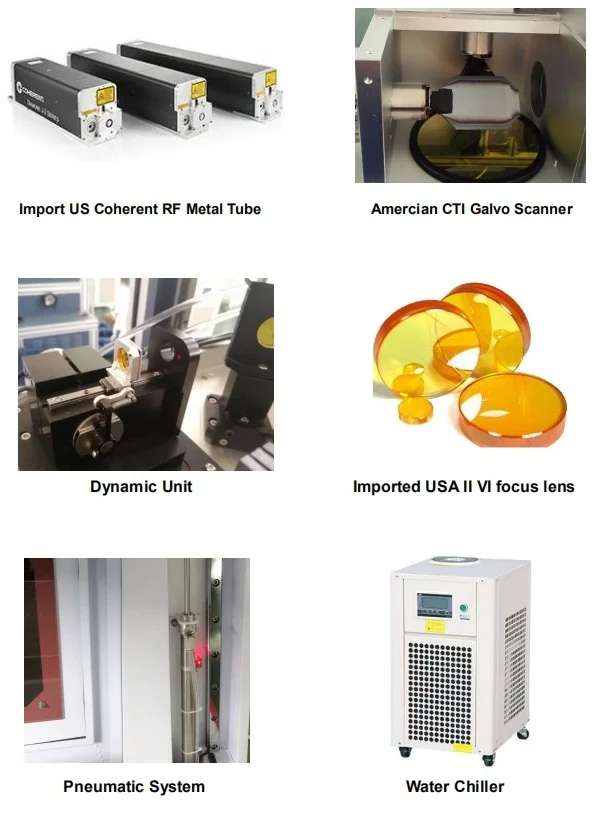

Laser Source
Use imported Coherent CO2 R.F. Metal Laser Tube.Fine laser beam, stable output power, long life span.

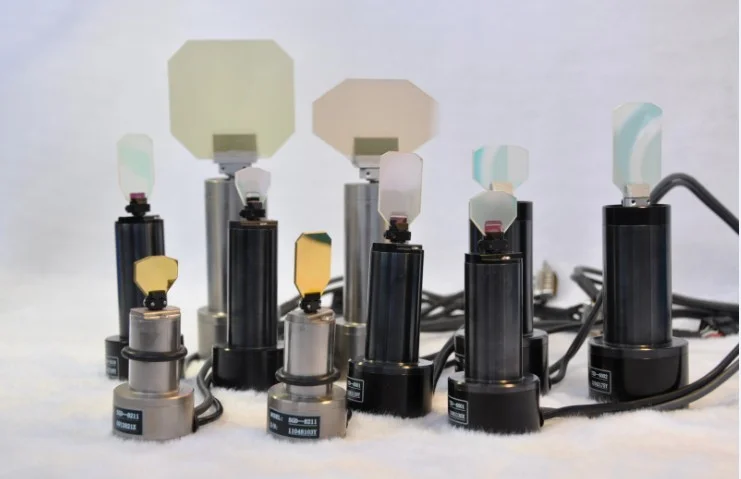

Galvo Scanner
Imported high speed digital galvo scanner.High speed, high accuracy, stable performance

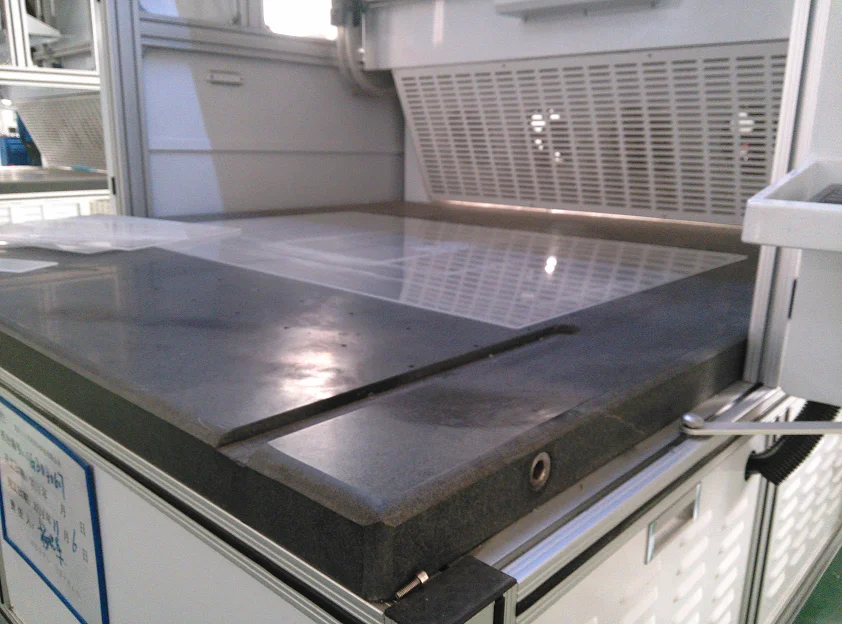

Worktable
Full Marble worktable.Flat worktable, no deformation, heavy weight to keep equipment stable during working.

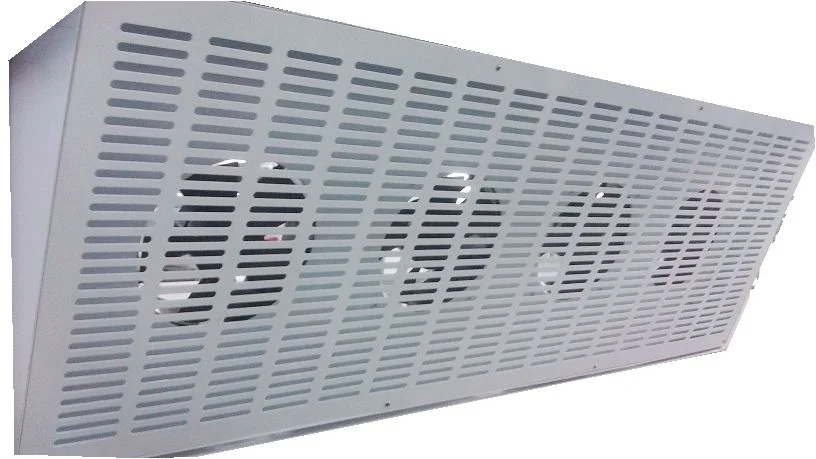

Exhausting System
Four fans exhausting system, more powerful. Dust-proof grille, easy cleaning.
