120A 200A 250Amp 4 Stroke Air Cooled Diesel Engine welding machine 10kva Portable 2 In 1 Diesel Generator Welder
- Category: >>>
- Supplier: Shenzhen Langao Technology Co. Ltd.
Share on (1600683201457):
Product Overview
Description
Product Description

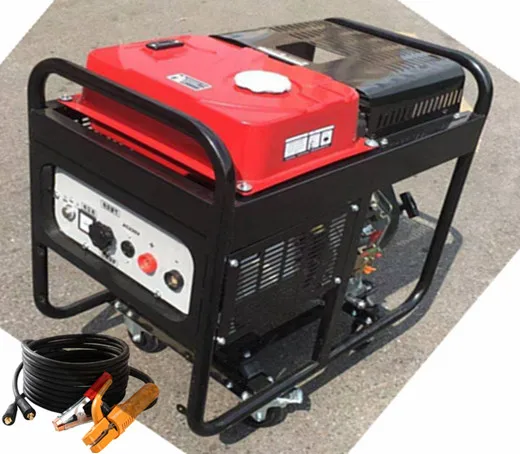

120A 200A 250Amp 4 Stroke Air Cooled Diesel Engine welding machine 10kva Portable 2 In 1 Diesel Generator Welder
-The diesel engine welder generator Adopt intermediate frequency three-phase rectifier, has the advantages of smooth current, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements, and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.
Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).
Abandon the IGBT (insulated gate bipolar transistor) control system, substituted by adopting the "embedded" control mode, which greatly improve the reliability of the control system.
-The diesel engine welder generator Adopt intermediate frequency three-phase rectifier, has the advantages of smooth current, good dynamic characteristics,fast response speed (1-3ms). It can meet different welding requirements, and is suitable for all kinds of acid electrode, basic electrode and argon arc welding works.
Adopt rare earth permanent magnet technology, has the advantages of smaller size, lighter weight, low iron loss and higher efficiency(efficiency up to 90%).
Abandon the IGBT (insulated gate bipolar transistor) control system, substituted by adopting the "embedded" control mode, which greatly improve the reliability of the control system.
Specification
GENERATOR | Model | LNW250 | ||
Frequency(HZ) | 50 | 60 | ||
Rated.AC voltage(V) | 230 | 240 | ||
Rated current(A) | 7.8 | 9.2 | ||
Rated output(KVA) | 2 | 2.2 | ||
Rated speed(rpm) | 3000 | 3600 | ||
WELDER | Welding no-load voltage(V) | 55-65 | ||
Working voltage(V) | 26-30 | |||
Rated current (A) | 160 | |||
Range of current(A) | 30- 250 | |||
Welding efficiency | 60% | |||
Phase | 1 | |||
ENGINE | Engine type | Single-cylinder, vertical, 4-stroke air-cooled diesel engine | ||
Bore× stroke(mm) | 86×72 | |||
Displacement capacity(cc) | 855 | |||
Fuel | Diesel | |||
Lubrication oil volume(L) | 1.65 | |||
Combustion system | Direct lnjection | |||
STANDARD FEATURES | Voltmeter | yes | ||
AC Output Socket | 2 | |||
AC circuit breaker | yes | |||
Oil warning light | yes | |||
Oil alert | yes | |||
