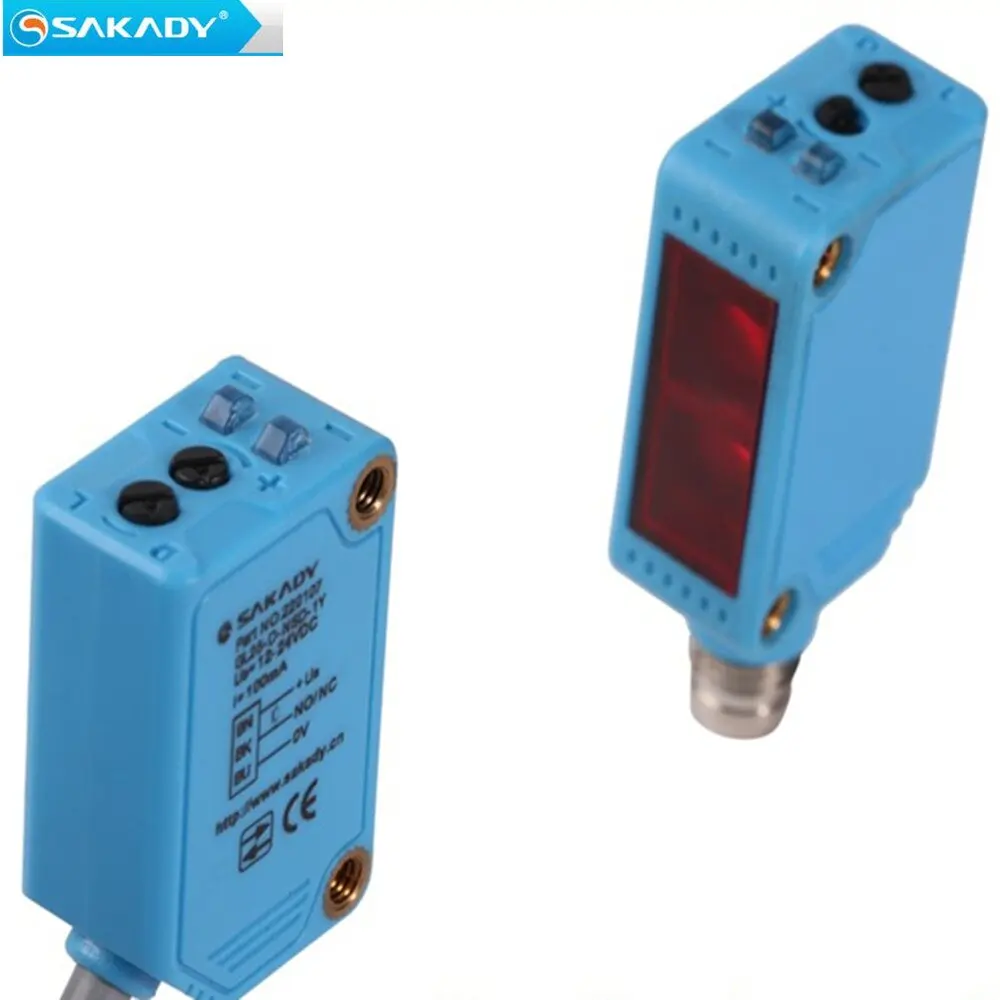

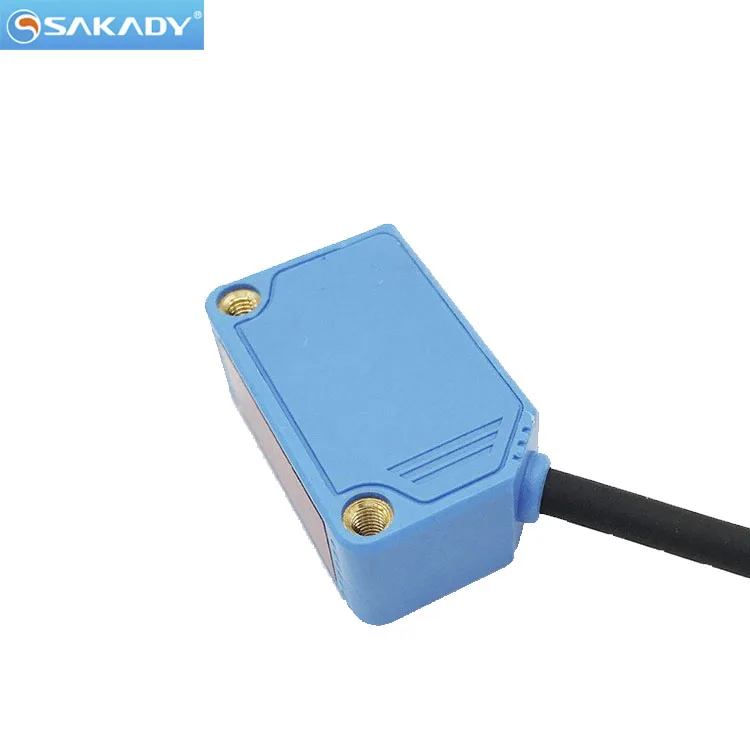

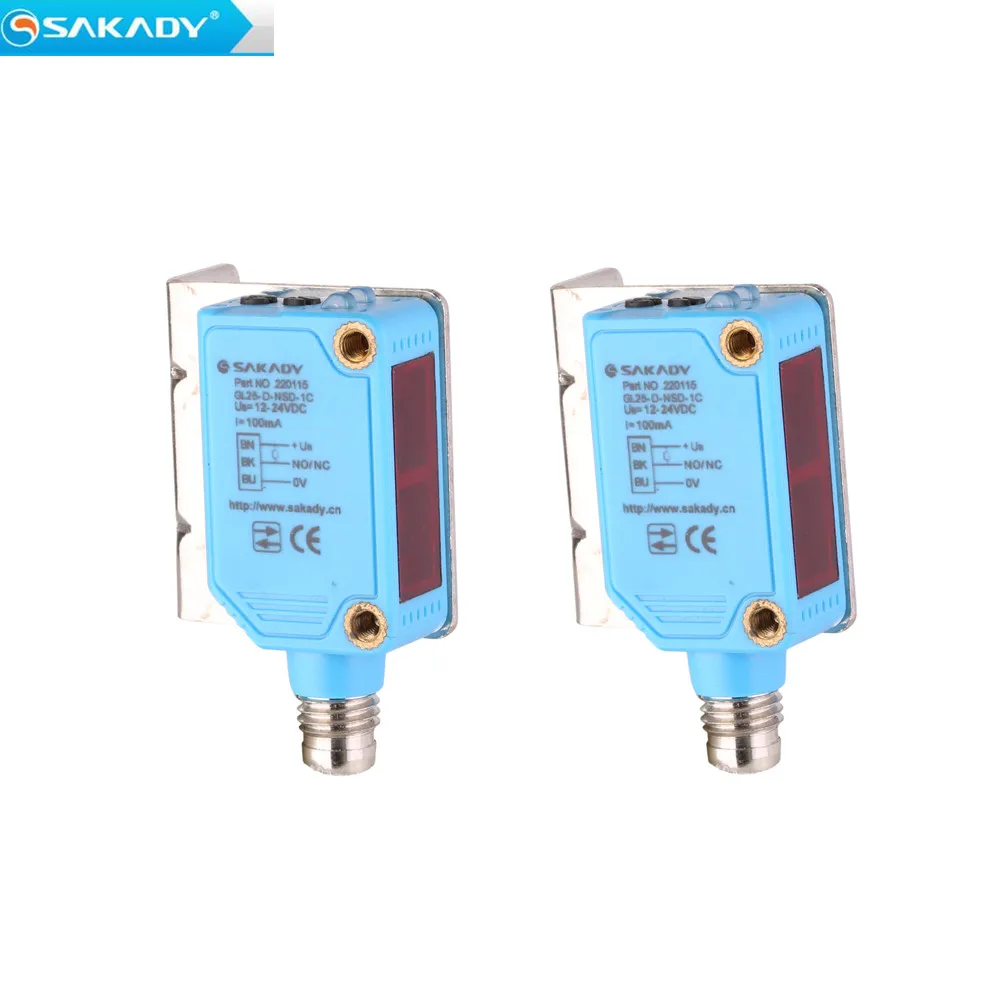

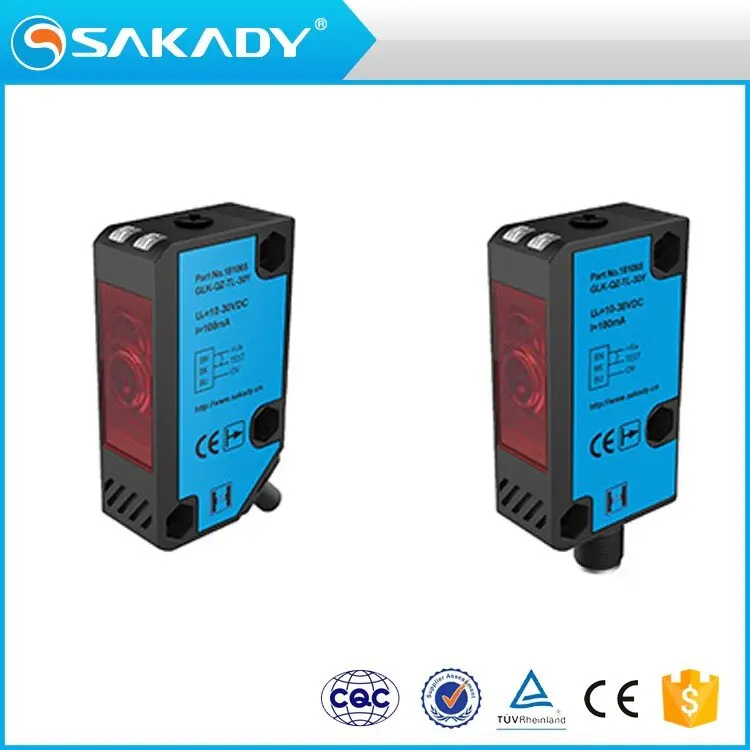

Sakady infrared photoelectric sensor 12 24V reflector type/red Led reflector backreflection sensor/diffuse reflector type /Ip65
- Category: >>>
- Supplier: Hangzhou Sakady Sensor Co. Ltd.
Share on (1600683282115):
Product Overview
Description
Features
 |
|
Product Description
photo sensor light switch
Type | Through-beam type | Mirror reflection type | Diffuse reflection type | ||||
Connection | Lead type | Plug-in type | Lead type | Plug-in type | Lead type | Plug-in type | |
Model | NPN | GL25-D-NST -1 2Y | GL25-D-NST -12C | GL25-D-NSM -3Y | GL25-D-NST-3C | GL25-D-NSD -1Y | GL25-D-NSD -1C |
PNP | GL25-D-PST -12Y | GL25-D PST - 12C | GL25-D-PSM -3Y | GL25-D-PST-3C | GL25-D-PSD -1Y | GL25-D-PSD -1C | |
Sensing range | 12m | 3m(Note 2) | 1m(Note 3) | ||||
Minimum sensing object | Ø18mm or more opaque object (Setting distance between emitter and receiver is12m) | Ø54mm or more opaque, translucent or transparent object(note2,4) | Opaque, translucent or transparent object(note4) | ||||
Deviation | — | — | 3%～15% of operation distance(Note 3) | ||||
Supply voltage | 12 ～ 24V DC±10%, Pulsation(P-P): less than 10% | ||||||
Current consumption | Emitter: less than 25mA Receiver: less than 20mA | Less than 20mA | Less than 25mA | ||||
Output | NPN transistor | ||||||
Short-circuit protection | Incorporated | ||||||
Sensitivity adjustment | — | Single direction knob | |||||
Response time | Less than 1ms | ||||||
Operation indicator | Yellow LED lights up when the output is ON, incorporated on the receiver for Through-beam type | ||||||
Power indicator | Green LED lights up when the power is ON | ||||||
Environmental resistance | Population | 3(industrial environment) | |||||
Protection | IP65(IEC) | ||||||
Temperature | -25 ～+55℃(No dew condensation or icing allowed), Storage: -40 ～+70℃ | ||||||
Humidity | 50% RH (70℃) | ||||||
Light | Incandescent light: less than 5,000Lux/Sunlight: less than 10,000Lux | ||||||
EMC | EN60947-5-2 | ||||||
Voltage | 500V AC for one min. between all supply terminals connected together and enclosure | ||||||
Vibration | 10~55Hz frequency,0.5mm amplitude in X,Y and Z directions for 1.5 hours each | ||||||
Shock | 294m/s acceleration (30G approx) in X,Y and Z directions for three times each | ||||||
Emitting element | Red LED(peak emission wavelength 850nm, modulated) | ||||||
Material | Enclosure：ABS Lens:PMMA | ||||||
Cable | One 3-core(rubber cable, 2m) | ||||||

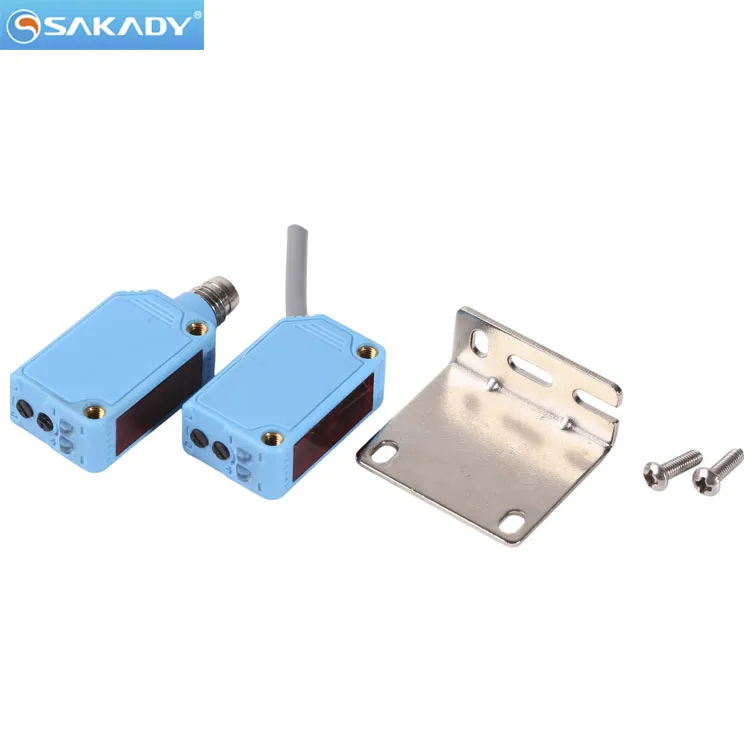

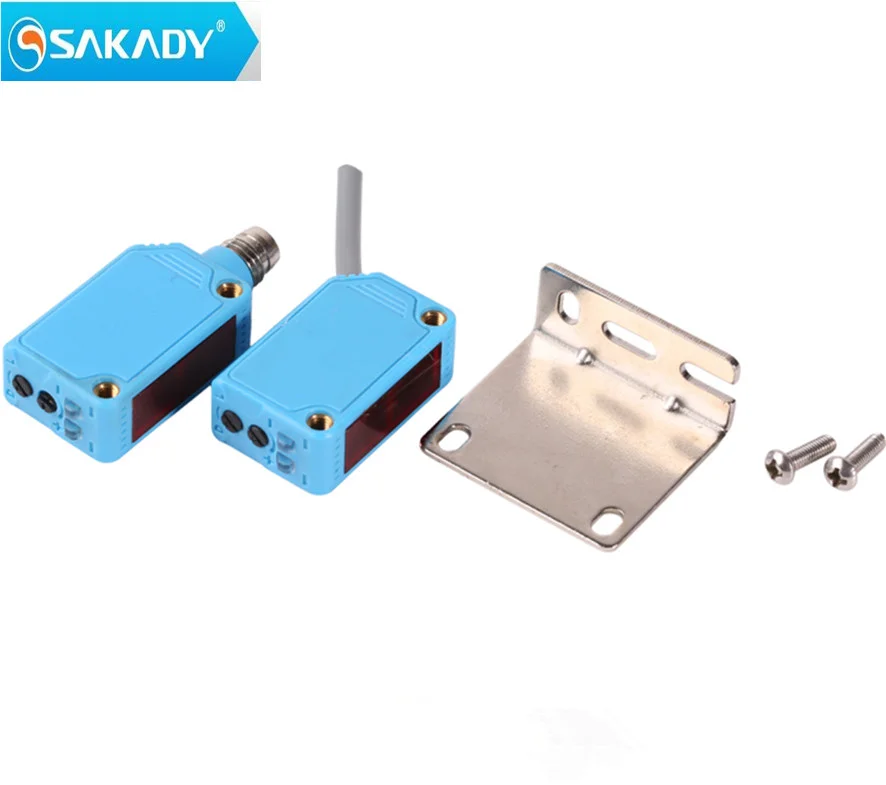

Attachment | A set of mounting screws | ||||||
fuse reflection sensor diffuse reflection sensor diffuse reflection sensor diffuse reflection sensor
Product Categories
Company Information
Sakady is a diversified enterprise integrating R & D, production and sales of sensor industrial control safety
equipment, providing customers with standardized and customized industrial automation safety equipment.
The products mainly include safety light curtain, safety carpet, safety edge, safety relay and photoelectric switch, etc.

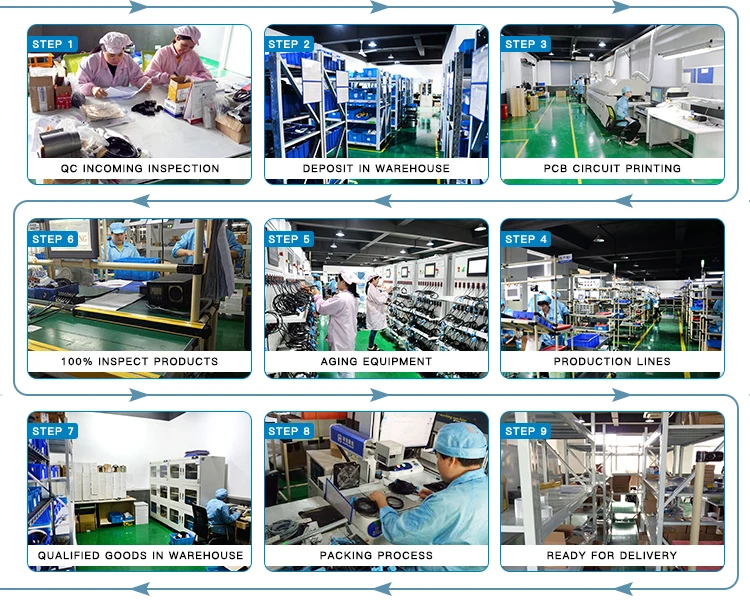

The company strictly checks every step in the production process. The enterprise has fully passed ISO9000
