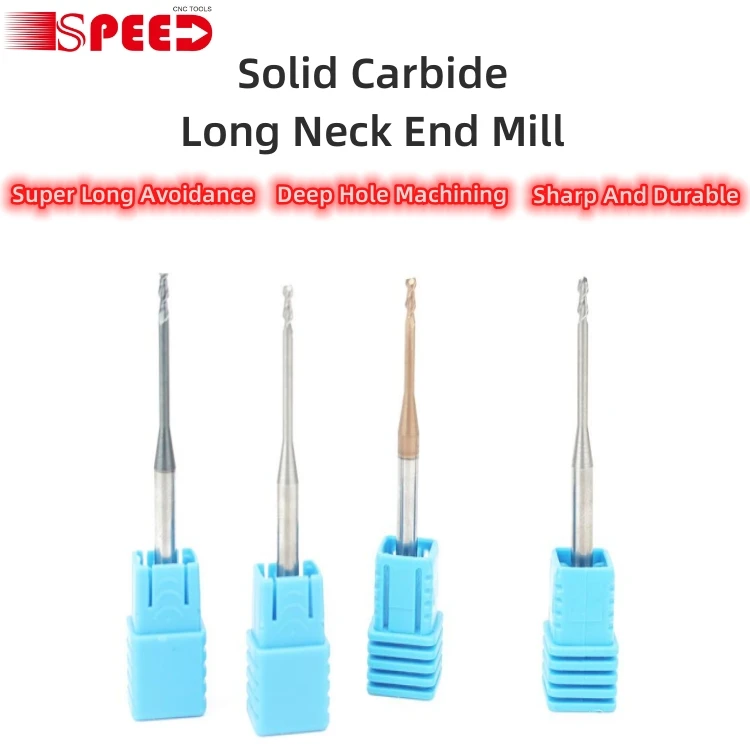

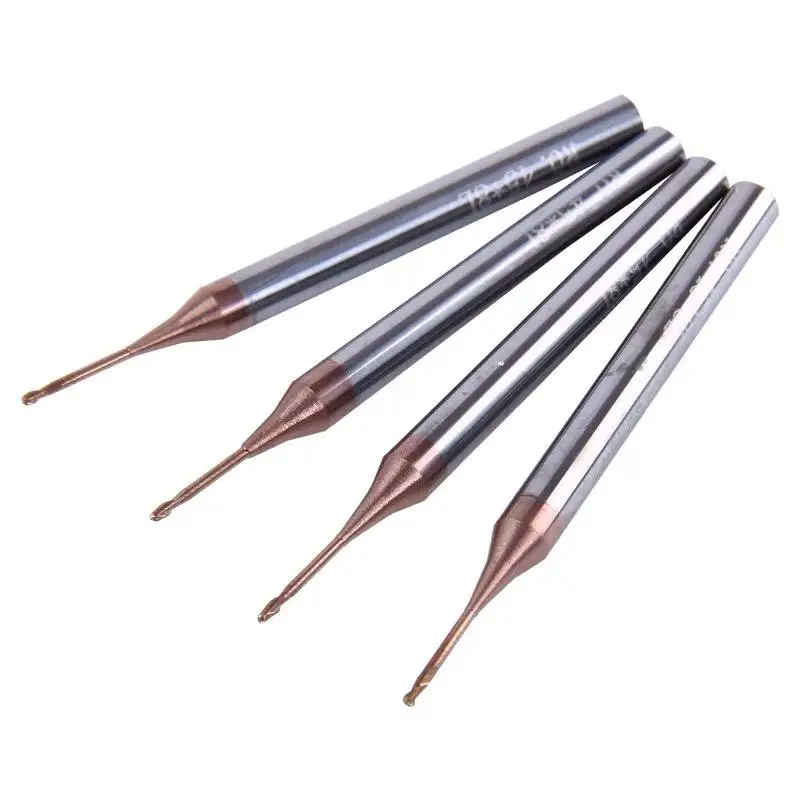

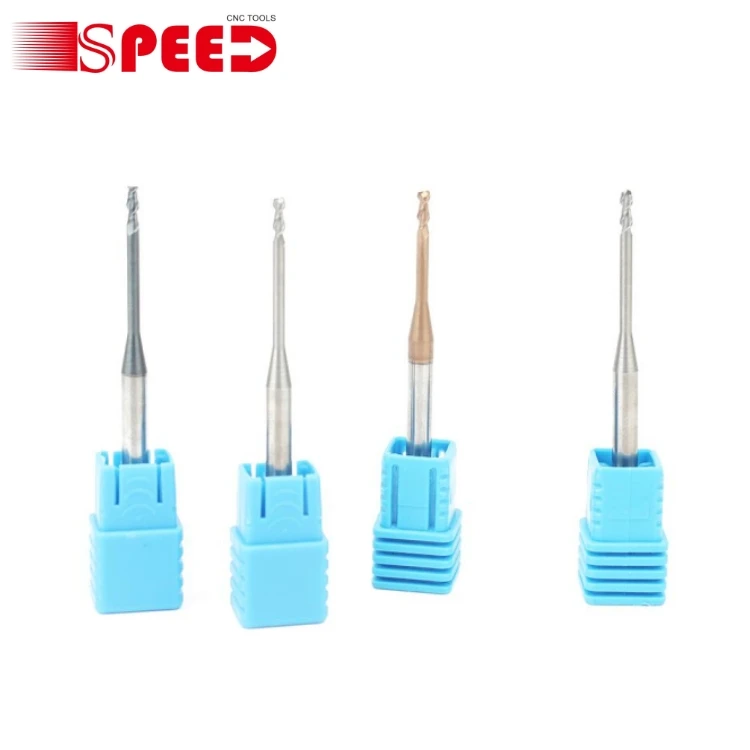

Depth Length Milling Cutter CNC Cutting Tools 2 Flute Carbide Spiral End Mill Long Neck Endmill
- Category: >>>
- Supplier: Hunan Speed Carbide Tools Co. Ltd.
Share on (1600683286004):
Product Overview
Description
Product Description

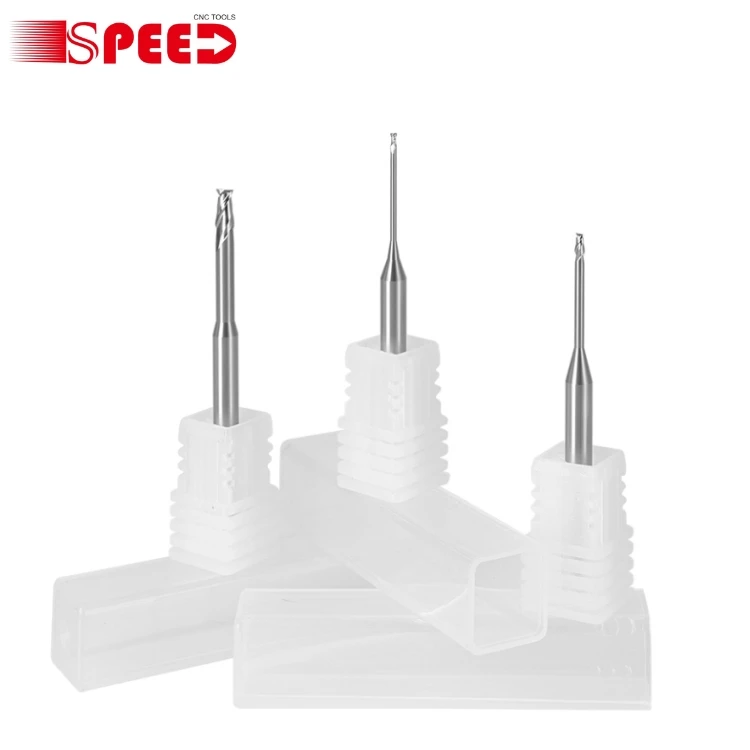

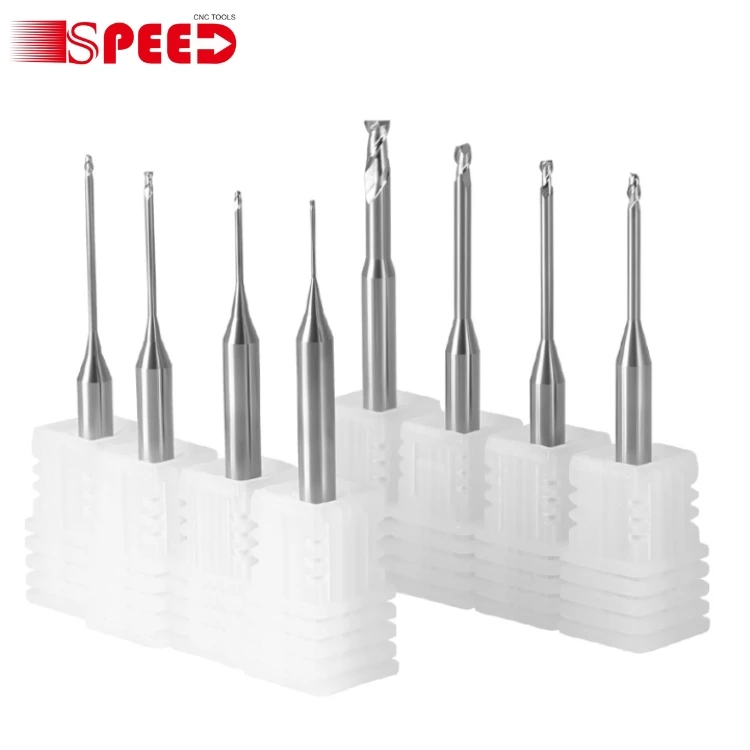

Depth Length Milling Cutter CNC Cutting Tools 2 Flute Carbide Spiral End Mill Long Neck Endmill
Specification
Product name: Endmill
Brand Name: SPPED
Coating: Non-coated/ AlTiN/TiAlN/TiSiN/Naco
HRC: 45/55/60/65 HRC
Flute: 2-6 Flutes
Diameter: 1-20MM
Raw material: 13%Co 86%Wc
Type: Solid Carbide End Mill
Precision:High Precision
Machine Type:Milling Machine
OEM & ODM: Acceptable
Brand Name: SPPED
Coating: Non-coated/ AlTiN/TiAlN/TiSiN/Naco
HRC: 45/55/60/65 HRC
Flute: 2-6 Flutes
Diameter: 1-20MM
Raw material: 13%Co 86%Wc
Type: Solid Carbide End Mill
Precision:High Precision
Machine Type:Milling Machine
OEM & ODM: Acceptable

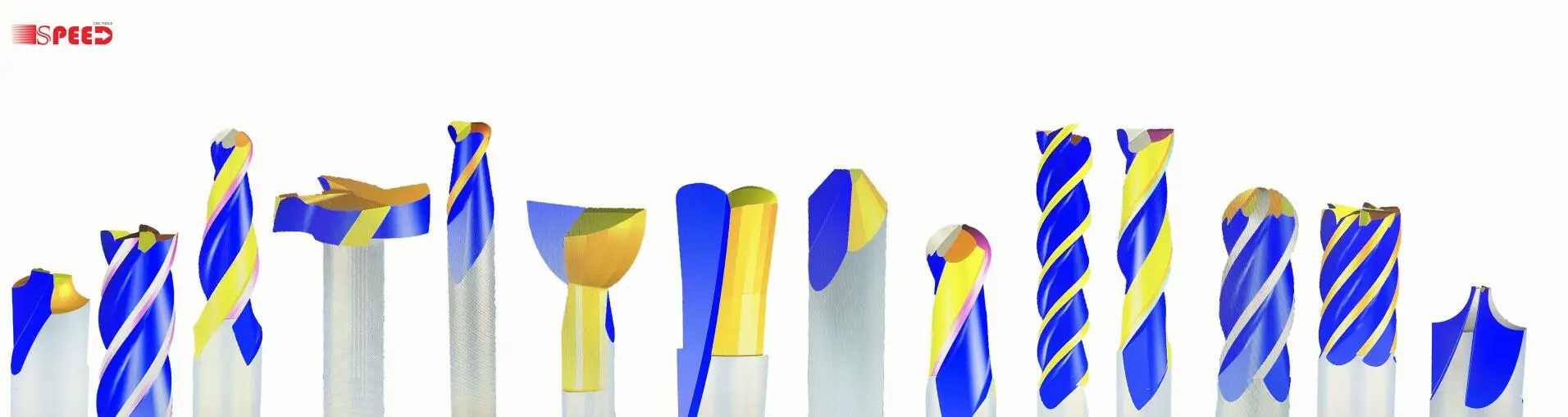

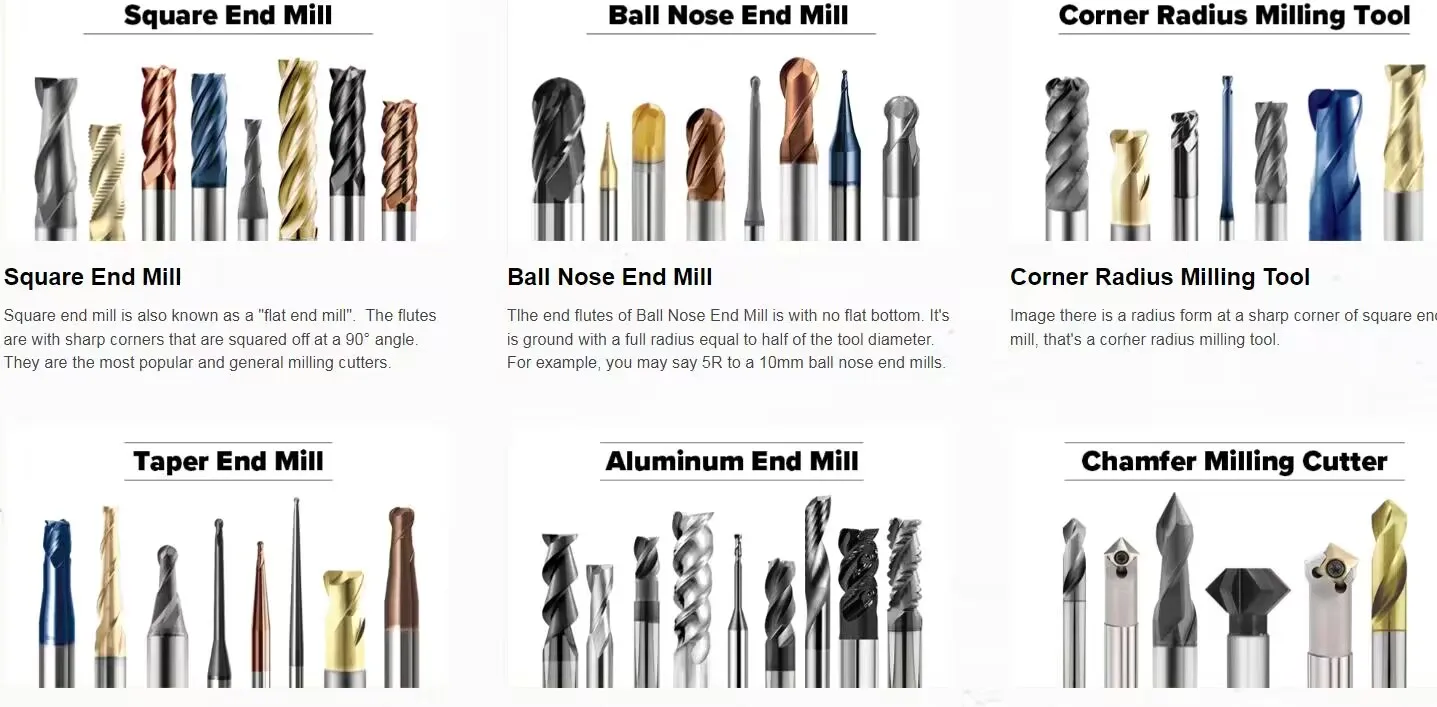

Major products:
squre end mill / ball nose end mill/ corner radiusend mill / 3 flute aluminum end mill / roughingend mill / single flute end mill/ 6 flute end mill/micro end mill / taper end mill...

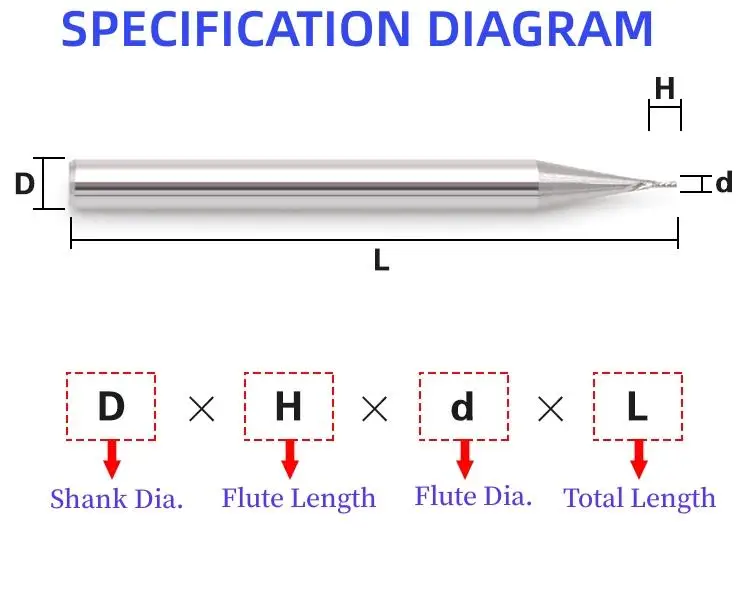

Flute Diameter(d) | Shank Diameter(D) | Flute Length(l) | Overall Length(L) |
1.0 | 4 | 3 | 50 |
1.5 | 4 | 4.5 | 50 |
2.0 | 4 | 6 | 50 |
2.5 | 4 | 7 | 50 |
3.0 | 4 | 8 | 50 |
4.0 | 4 | 11 | 50 |
5.0 | 6 | 16 | 50 |
6.0 | 6 | 15 | 50 |
7.0 | 8 | 18 | 60 |
8.0 | 8 | 20 | 60 |
9.0 | 10 | 23 | 75 |
10.0 | 10 | 25 | 75 |
11.0 | 12 | 28 | 75 |
12.0 | 12 | 30 | 75 |
16.0 | 16 | 40 | 100 |
20.0 | 20 | 40 | 100 |
Tips: The above specifications are standard Size, with a large amount of stock. At the same time, we support OEM customized production, the diameter is 0.2mm to 25mm, the Total length is 50mm to 200mm, include inch size end mill , the number of Flute is 4F, 5F, 6F, 8F and the logo could be customized.
Carbide Material Introduction | ||||||||
End Mill Grade | Material Grade | Grain Size | HRA | Application | ||||
HRC50 | YG10X | 0.6μm | 91.8 | Suitable for Aluminium,Cast Iron,Low Alloy steel,General Under Hardness HRC45 | ||||
HRC55 | WF25 | 0.6μm | 92.2 | Suitable for Cast Iron,Alloy Steel,General Under Hardness HRC50 | ||||
HRC60 | GU25UF | 0.4μm | 92.5 | Suitable for Super Alloy Steel,Stainless Steel Titanium, Inconel, Hardened Steel Under Hardness HRC55 | ||||
HRC65 | GU092 | 0.2μm | 93.5 | Suitable for Alloy Steel,Hardened Steel Under Hardness HRC62 | ||||

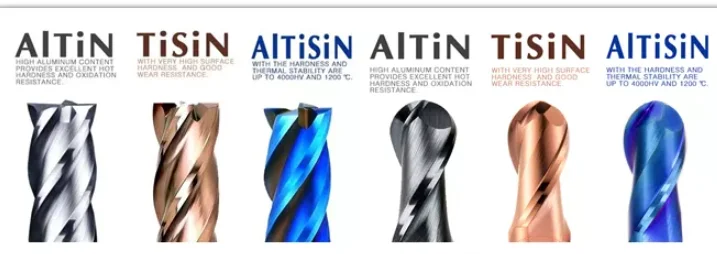

DIFFERENCE OF COATING:
AITiN：
HIGH ALUMINUM CONTENT PROVIDES EXCELLENT HOTHARDNESS AND OXIDATIONRESISTANCE.
TiSiN:
WITH VERY HIGH SURFACE HARDNES AND GOOD WEAR RESISTANCE.
AlTiSiN:
WITH THE HARDNESS AND THERMAL STABILITY ARE UP TO 4000HV AND 1200℃
HIGH ALUMINUM CONTENT PROVIDES EXCELLENT HOTHARDNESS AND OXIDATIONRESISTANCE.
TiSiN:
WITH VERY HIGH SURFACE HARDNES AND GOOD WEAR RESISTANCE.
AlTiSiN:
WITH THE HARDNESS AND THERMAL STABILITY ARE UP TO 4000HV AND 1200℃
Coating Introduction | ||||||||||
Coating Name | Color | Thickness | Hardness | Friction | The Max ℃ | |||||
AlTiN | Black | 1.5-3 | 3300 | 0.4 | 900 | |||||
AlTiSiN | Copper | 1.5-3 | 3500 | 0.35 | 1000 | |||||
TiAlN | Dark Violet | 1-3 | 3000 | 0.4 | 800 | |||||
Blue Nano | Blue | 2-4 | 3200 | 0.45 | 1000 | |||||
(APS)AlCrN | Dark Grey | 1.5-3 | 3500 | 0.3 | 1250 | |||||
DLC | Black | 1-3 | 1800 | 0.1 | 350 | |||||
Diamond | Black | 2-12 | 10000 | 0.02-0.1 | 650 | |||||
Coating can be customized according to your requirement. | ||||||||||

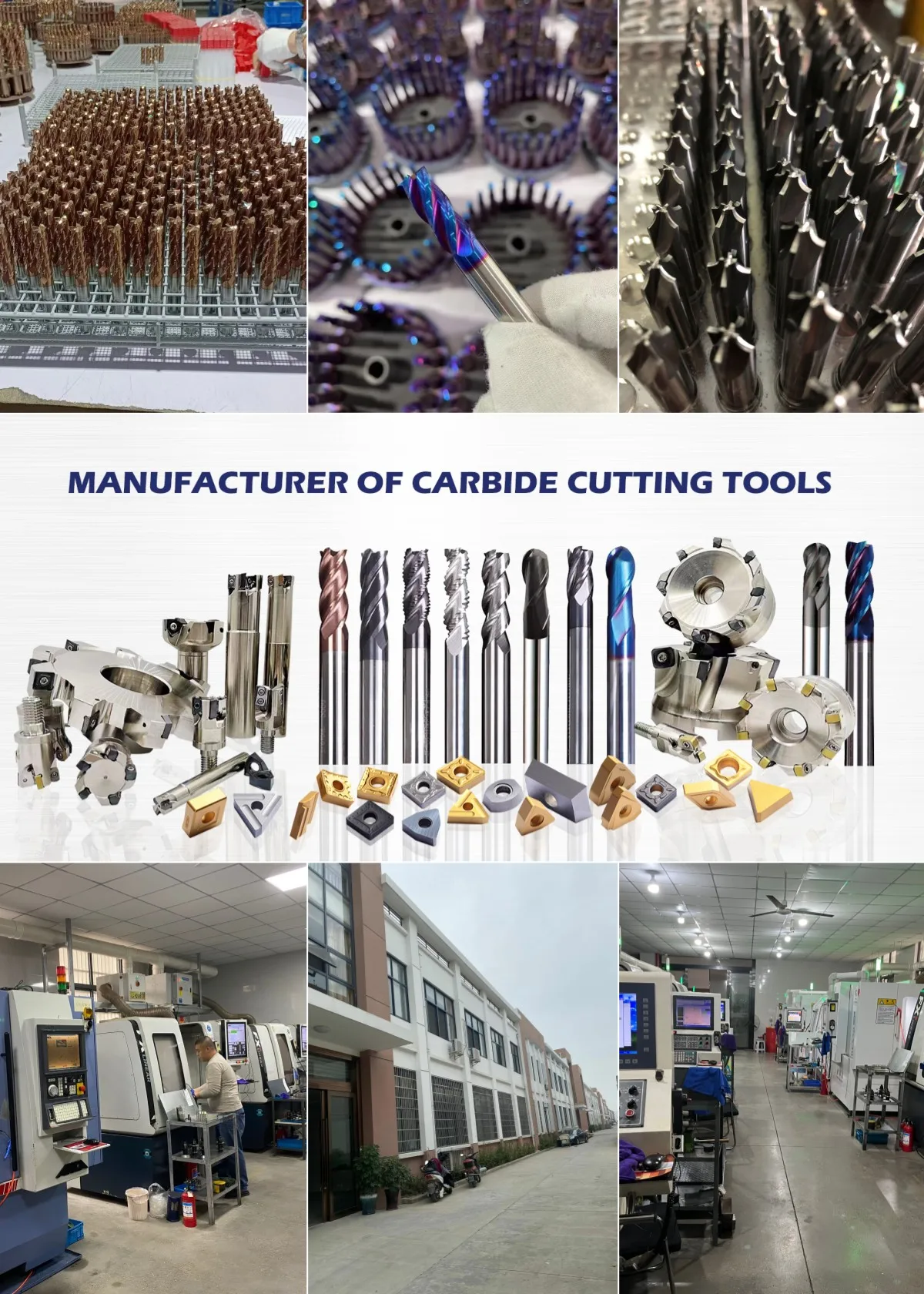

Produce machine: ANCA from Australia, DEKEL from Germany
Raw material:100% virgin material carbide rods
Oem and odm:oem brand is welcome, colorful sticker and laser logo is free
Raw material:100% virgin material carbide rods
Oem and odm:oem brand is welcome, colorful sticker and laser logo is free

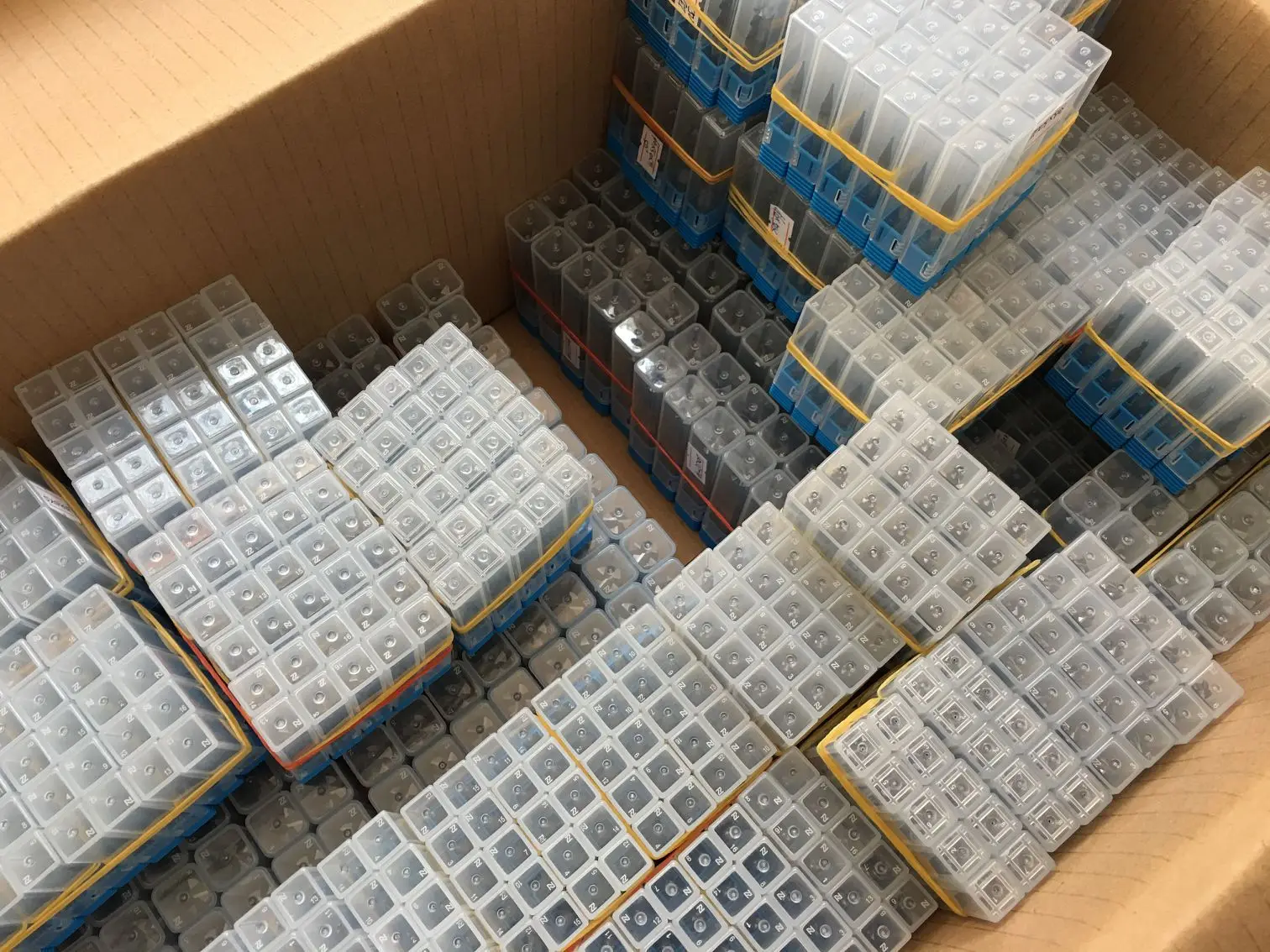

Packing & Delivery
Packing & Delivery:
1pcs/plastic box 50pcs/bubble bag 100pcs/Carton box
Delivery:
By sea, by air cargo, TNT, UPS,DHL,EMS
Our Advantages
Hunan Speed Carbide Tools Co., Ltd.
1. 10 years Factory direct sales,Quality gurantee, Fast delivery.
2. Germany machine Dekel,Australia machine ANCA, Make High Quality
3. Competitive Price,Considerate after-sale service
4. OEM & ODM with low MOQ customization.
2. Germany machine Dekel,Australia machine ANCA, Make High Quality
3. Competitive Price,Considerate after-sale service
4. OEM & ODM with low MOQ customization.
FAQ
Q: Manufacturer or trade?
A: Manufacturer with more than 10 years experience in carbide products
Q: MOQ?
A: 1pc/model.
Q: Can you customize LOGO?
A: Accept.
Q:Terms of payment?
A: 30% T/T in advance ,balance before shipping.
Q: Delivery time?
A: Sample & Goods in stock: 2-3 days.
Customized: abt. 10-15 days according to quantity.
Q: Shipping method?
A: By express like FedEx, UPS, DHL, TNT, EMS
For larger amount, by air or by sea.
A: Manufacturer with more than 10 years experience in carbide products
Q: MOQ?
A: 1pc/model.
Q: Can you customize LOGO?
A: Accept.
Q:Terms of payment?
A: 30% T/T in advance ,balance before shipping.
Q: Delivery time?
A: Sample & Goods in stock: 2-3 days.
Customized: abt. 10-15 days according to quantity.
Q: Shipping method?
A: By express like FedEx, UPS, DHL, TNT, EMS
For larger amount, by air or by sea.
