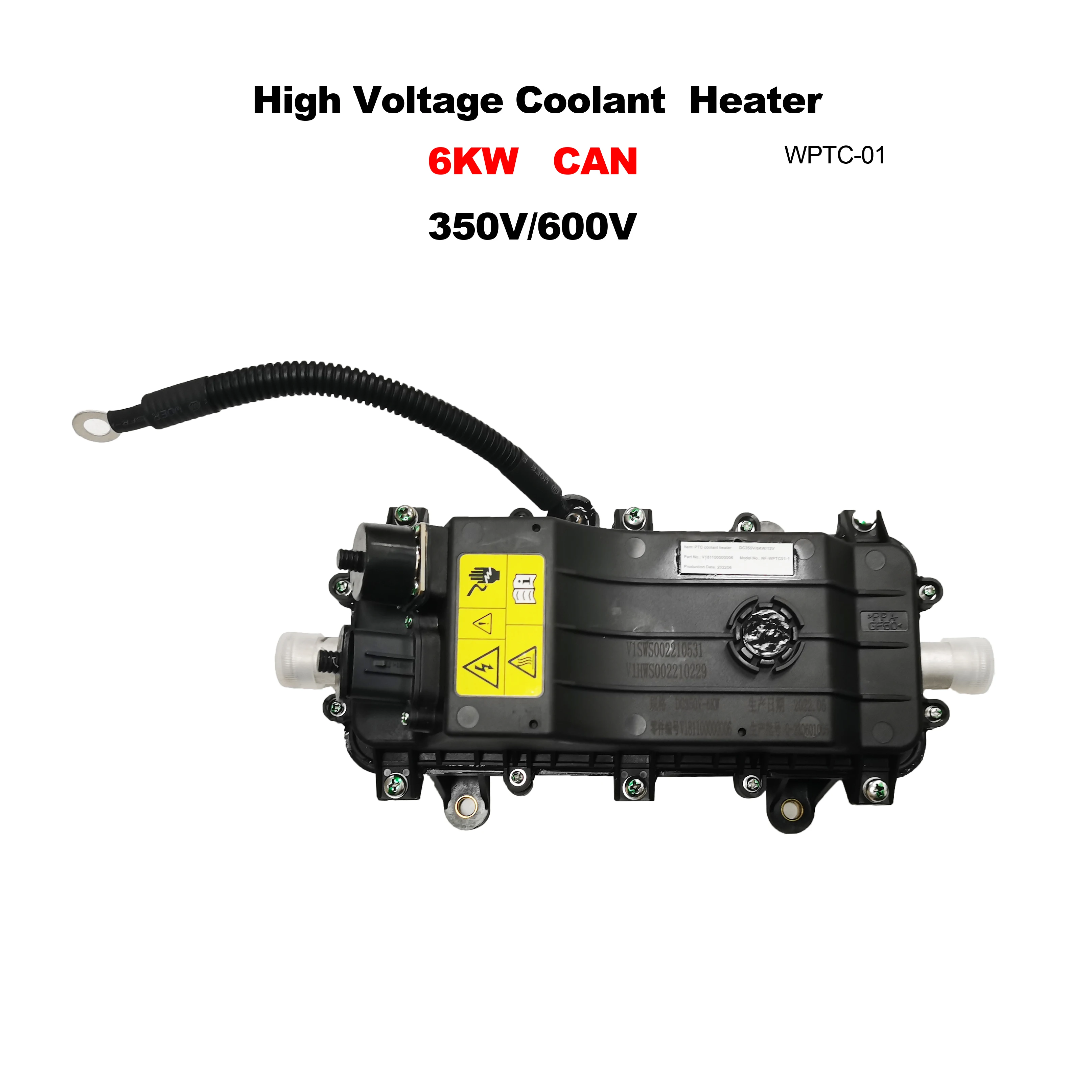

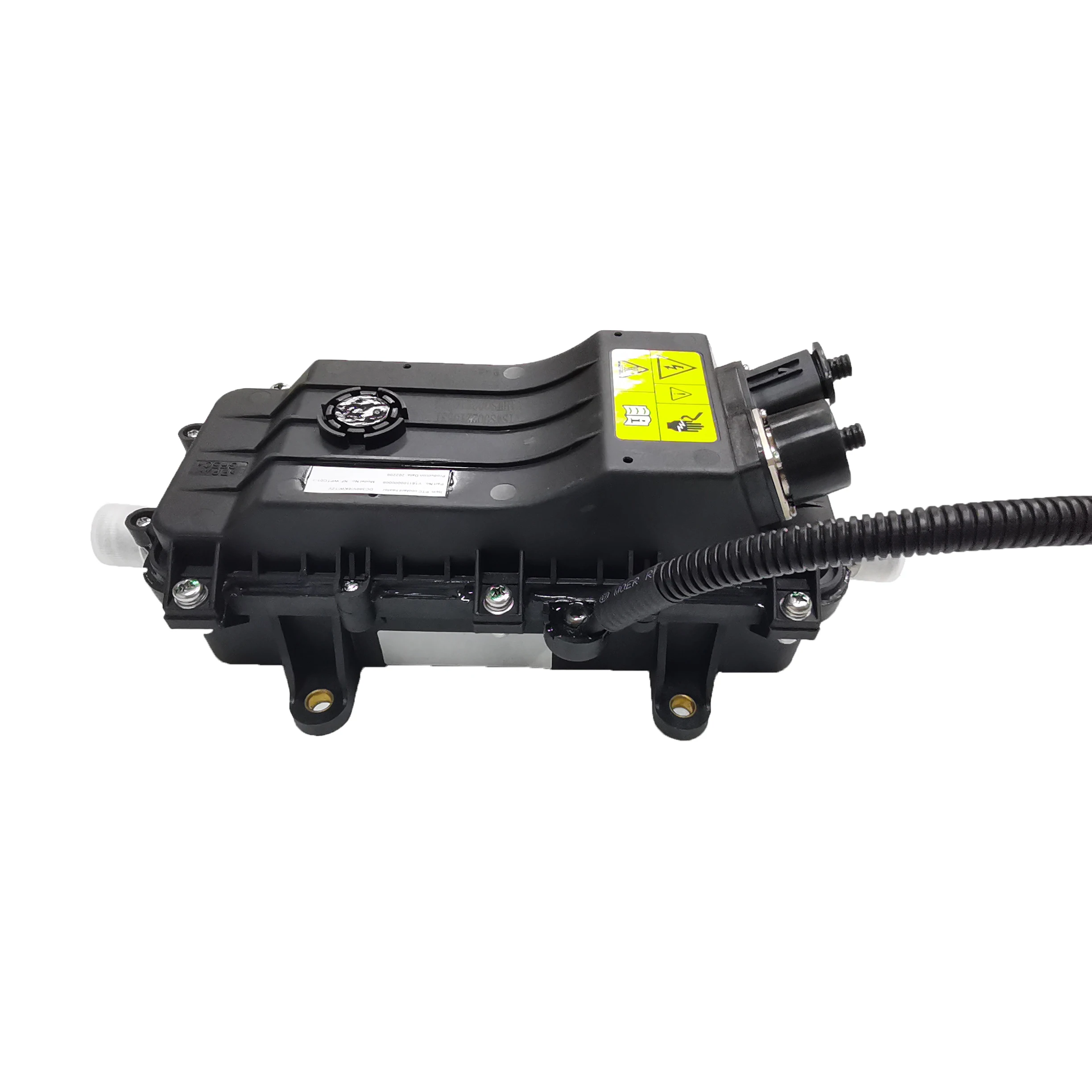

China Manufacture 6KW HV Heater 350v High Voltage Heater PTC Battery Cabin Heater For EV Cars
The electric High Voltage Heater (HVH) is the ideal heating system for plug-in hybrids (PHEV) and battery electric vehicles (BEV). It converts DC electric power into heat with practically no losses. Powerful similar to its namesake, this high-voltage heater is specialized for electric vehicles. By converting electrical energy of battery with DC voltage, ranging from 300 to 750v, into abundant heat, this device provides efficient, zero-emission warming-all throughout the interior of the vehicle.
Our high-voltage coolant heaters can be used for improving battery energy performance in EVs and HEVs. In addition it allows comfortable cabin temperatures to be generated in a short time enabling a better driving and passenger experience. With high thermal power density and fast response time due to their low thermal mass, these heaters also extend pure electric driving range as they use less power from the battery.
Features:
The electric heating antifreeze is used to heat the car through the heater core body.
Installed in the water cooling circulation system.
The warm air is mild and the temperature is controllable.
The power of IGBT is regulated by PWM.
The utility model has the function of short-time heat storage.
Vehicle cycle, support battery heat management.
Environmental Protection.
Installed in the water cooling circulation system.
The warm air is mild and the temperature is controllable.
The power of IGBT is regulated by PWM.
The utility model has the function of short-time heat storage.
Vehicle cycle, support battery heat management.
Environmental Protection.
Item | WPTC01-1 | WPTC01-2 | |
Heating output | 6kw@10L/min，T_in 40℃ | 6kw@10L/min，T_in 40℃ | |
Rated voltage(VDC) | 350V | 600V | |
Working voltage(VDC) | 250-450 | 450-750 | |
Controller low voltage | 9-16 or 18-32V | 9-16 or 18-32V | |
Control signal | CAN | ||
Heater dimension | 232.3 * 98.3 * 97mm | 232.3 * 98.3 * 97mm | |
Installation dimension | 144*128*119 | 144*128*119 | |
Joint dimension | φ25, φ20mm | φ25, φ20mm | |
Heater weight | ＜2.4kg | ＜2.4kg | |
Specification

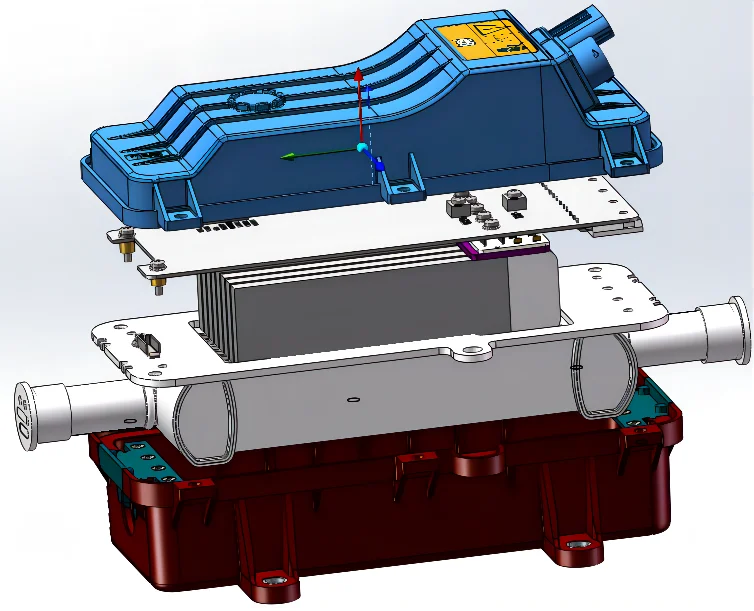

According to the voltage requirement of 600V, the PTC sheet adopts 3.5mm thickness and Tc210℃, which ensures good withstand voltage and durability. The internal heating core components of the product are divided into 4 groups, which are controlled by 4 IGBTs.In order to ensure the protection level of the product IP67, the heating core component of the product is installed into the lower base, sealed with potting glue in the lower base, and potted to the upper surface of the D-shaped tube. After assembling other parts, use a gasket to press and seal between the upper and lower bases to ensure good waterproof performance of the product.
Packing & Delivery
Advantages
Due to its low thermal mass, the coolant heater has a high thermal power density with short response times. As a result, the technology draws less power from the battery than from comparable systems, resulting in an increase in range for purely electric driving. In addition, the technology generates comfortable vehicle interior temperatures within a very short time.
Application
This PTC electric heater is suitable for electric / hybrid / fuel cell vehicles and is mainly used as the main heat source for temperature regulation in the vehicle. The PTC electric heater is applicable to both vehicle driving mode and parking mode. In the heating process, electric energy is effectively converted into heat energy by PTC components. Therefore, this product has faster heating effect than internal combustion engine. At the same time, it can also be used for battery temperature regulation (heating to working temperature) and fuel cell starting load.
