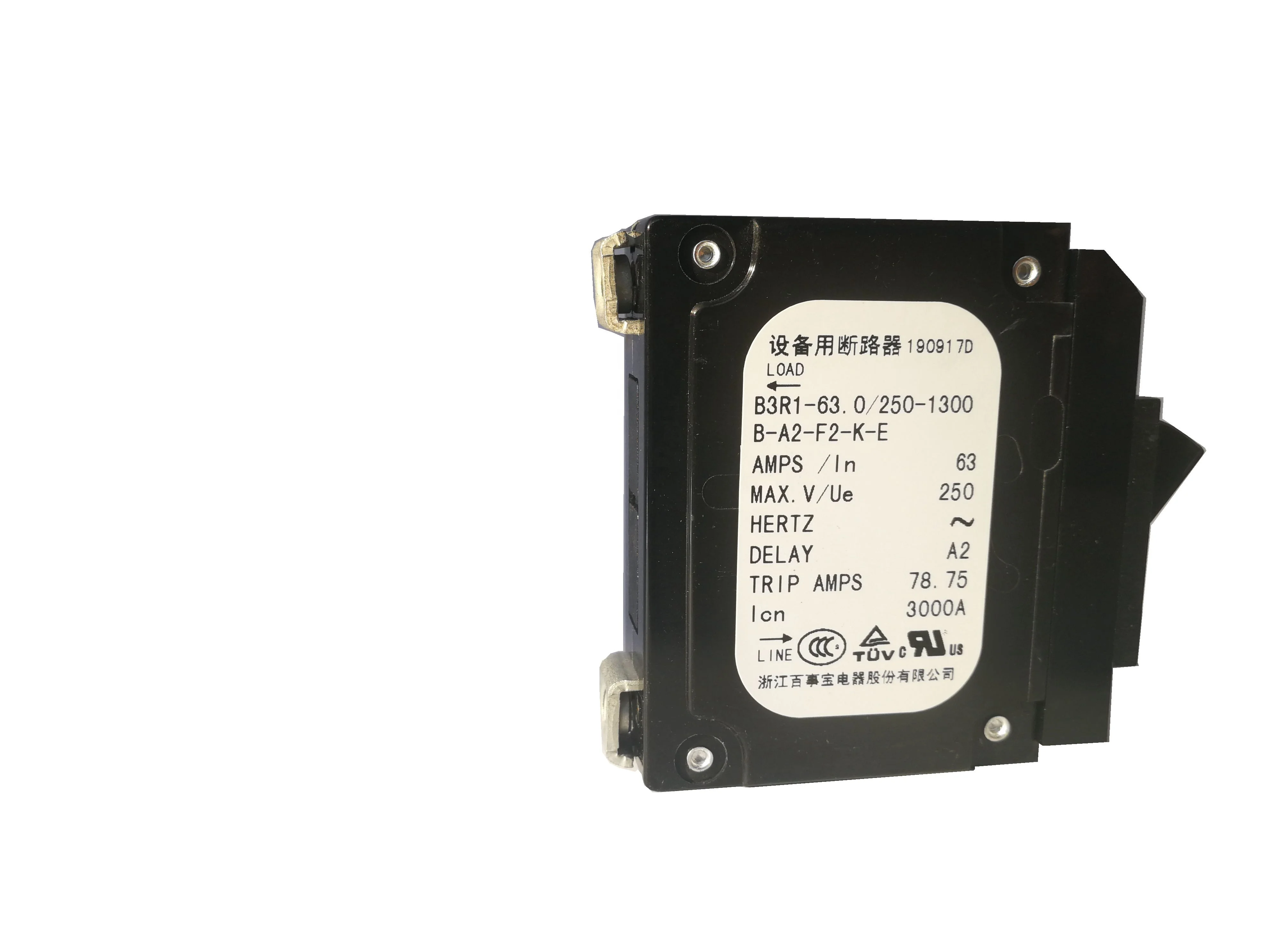

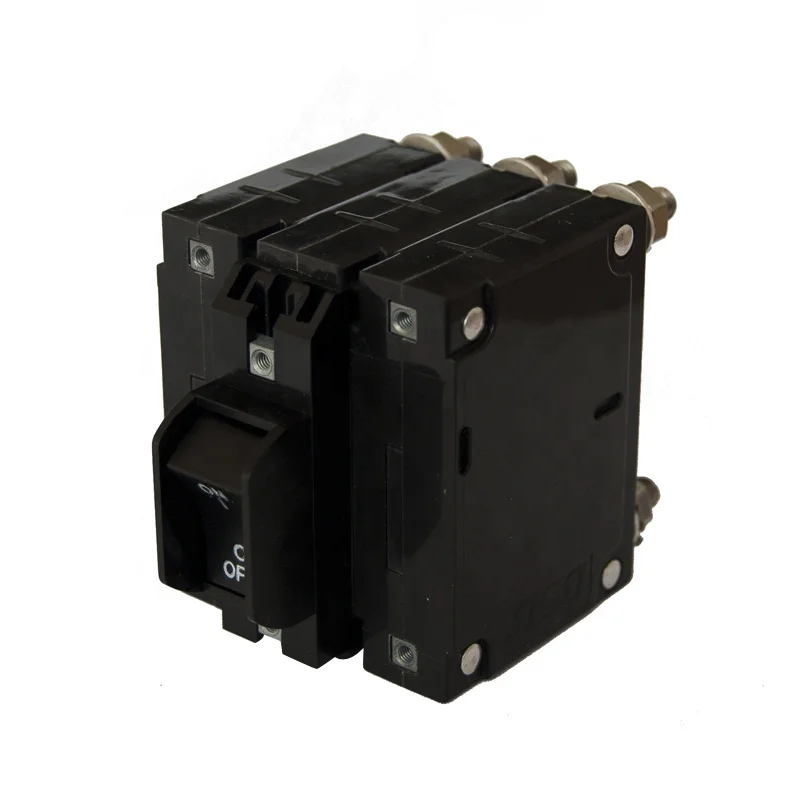

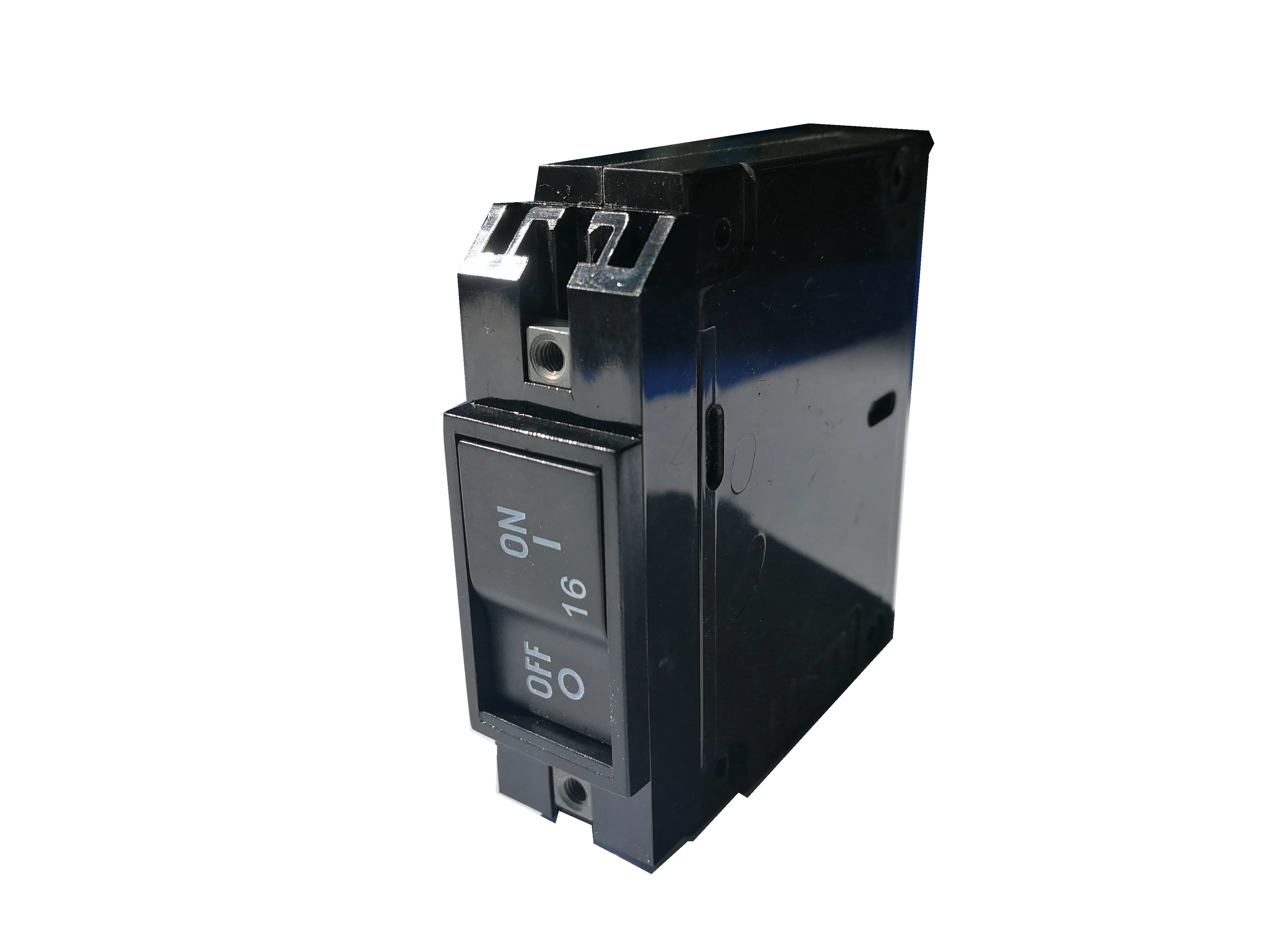

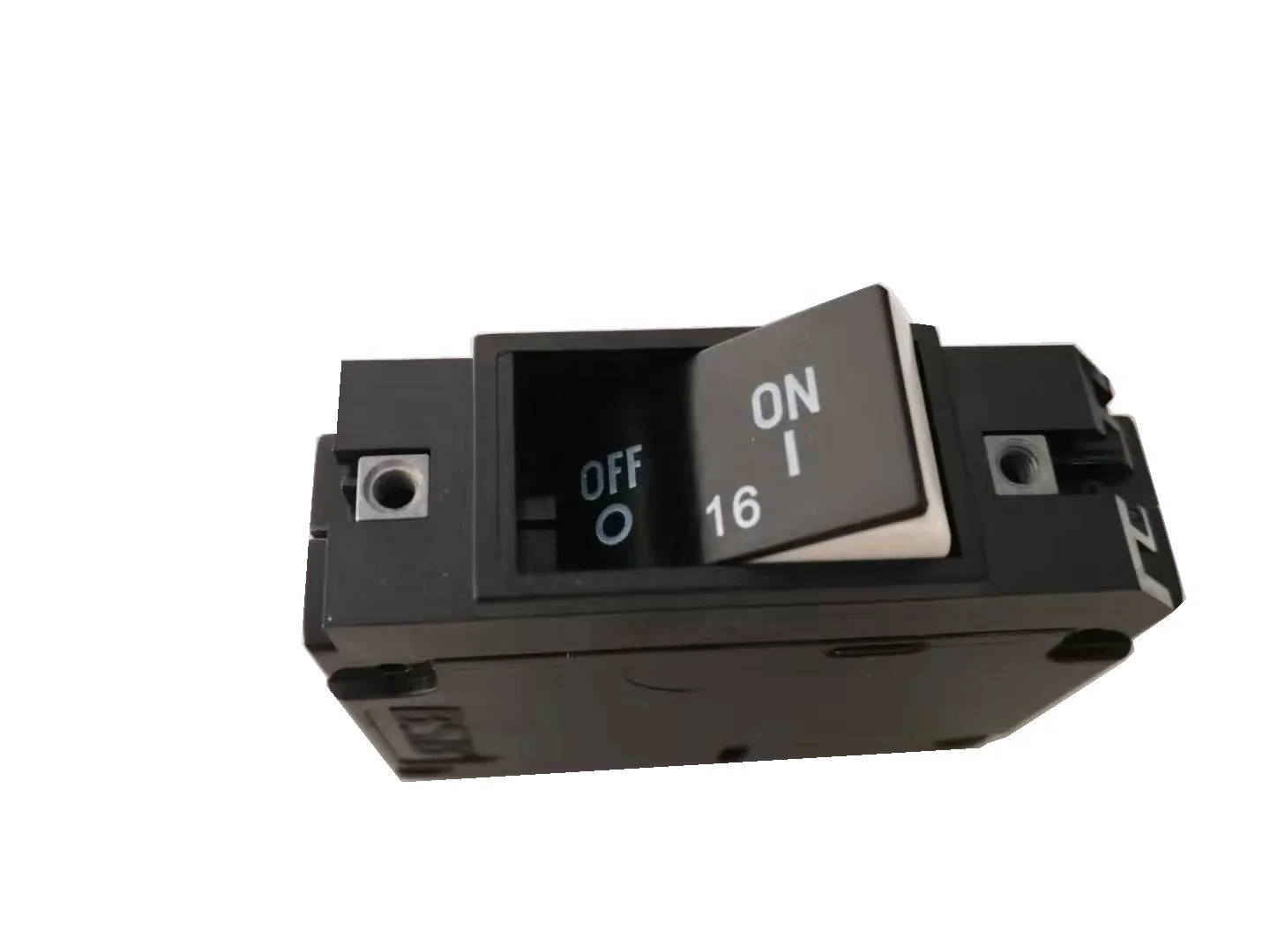

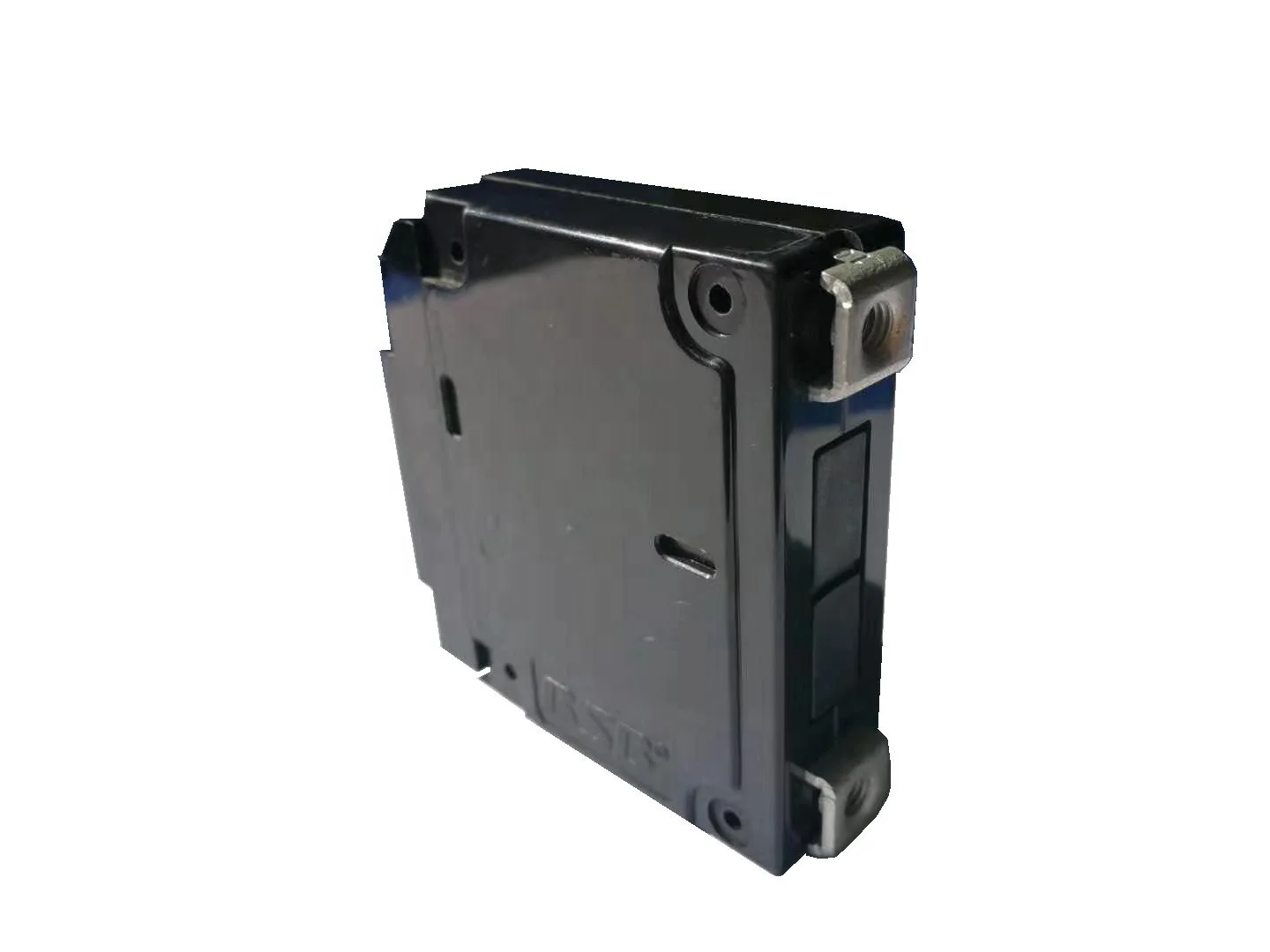

1p/2p/3p 100A Mcb Hydraulic Electromagnetic Circuit Breaker Circuit Break For Equipment Electromagnetic Trip Type C
- Category: Circuit Breakers >>>
- Supplier: Yiwu Supuli Electric Appliance Co. Ltd.
Share on (1600683323908):
Product Overview
Description
Product Name: | 1p/2p/3p Mcb Hydraulic Electromagnetic Circuit Breaker With Electromagnetic Trip Type C |
Model: | SPL3 |
Current Shell Frame: | 1A-100A |
Rated Current: | 1A-100A |
Rated Voltage: | 480 / 277VAC 50/60 Hz，80VDC |
Mechanical Life: | 20,000times |
Electrical Life: | 10,000times |
Frequency: | 50/60HZ |
Electromagnetic Trip Type: | C |
Conformity Certification: | TUV ,CE,ROHS,REACH,KEMA,SGS,IEC,CB,SAA |
Specifications of dc circuit breaker
Hydraulic electromagnetic Circuit Breakers MC series mcb minature circuit nreaker can protection and control of circuit aganist overload, voltage Surges and short circuit. It will protection equipment and its personnel shall be free from the danger of life and property damage caused by the above electrical accident. It is can be used in building installation-such as houses, offices, commercial complex, motor system and industrial installation for switching, control, protection and regulation of electrical circuits, also in switch gear panels, railway and marine application.Like Oven, lawn mower, servo motor protection, circuit board protection, PLC protection, garden lights, automotive industry, solar inverter.
1. Ability to carry 100% of rated current without nuisance tripping at elevated temperatures
2. Withstand current inrush without overload tripping
3. Unique construction provides precise trip characteristics across a broad temperature range
4. Hydraulic electromagnetic Circuit Breakers are available in circuit configurations such as the commonly-used Series Trip; Dual Rating for tripping at two discrete current ratings; Relay Trip for remote trip actuation isolated from the line voltage and Shunt Tap for remote tripping using the line voltage. An integrated auxiliary switch is available for remote alarm applications. Also available are a variety of screw, stud, clip and plug-in terminal options. Several handle color, marking and location options are also available.
Hydraulic electromagnetic Circuit Breakers MC series mcb minature circuit nreaker can protection and control of circuit aganist overload, voltage Surges and short circuit. It will protection equipment and its personnel shall be free from the danger of life and property damage caused by the above electrical accident. It is can be used in building installation-such as houses, offices, commercial complex, motor system and industrial installation for switching, control, protection and regulation of electrical circuits, also in switch gear panels, railway and marine application.Like Oven, lawn mower, servo motor protection, circuit board protection, PLC protection, garden lights, automotive industry, solar inverter.
1. Ability to carry 100% of rated current without nuisance tripping at elevated temperatures
2. Withstand current inrush without overload tripping
3. Unique construction provides precise trip characteristics across a broad temperature range
4. Hydraulic electromagnetic Circuit Breakers are available in circuit configurations such as the commonly-used Series Trip; Dual Rating for tripping at two discrete current ratings; Relay Trip for remote trip actuation isolated from the line voltage and Shunt Tap for remote tripping using the line voltage. An integrated auxiliary switch is available for remote alarm applications. Also available are a variety of screw, stud, clip and plug-in terminal options. Several handle color, marking and location options are also available.
