Price:$0.12 - $0.32

Quantity:


Product Overview

Description



Product Description


Needle roller bearings
SZDO needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. SZDO supplies needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate for a wide variety of operating conditions and applications.

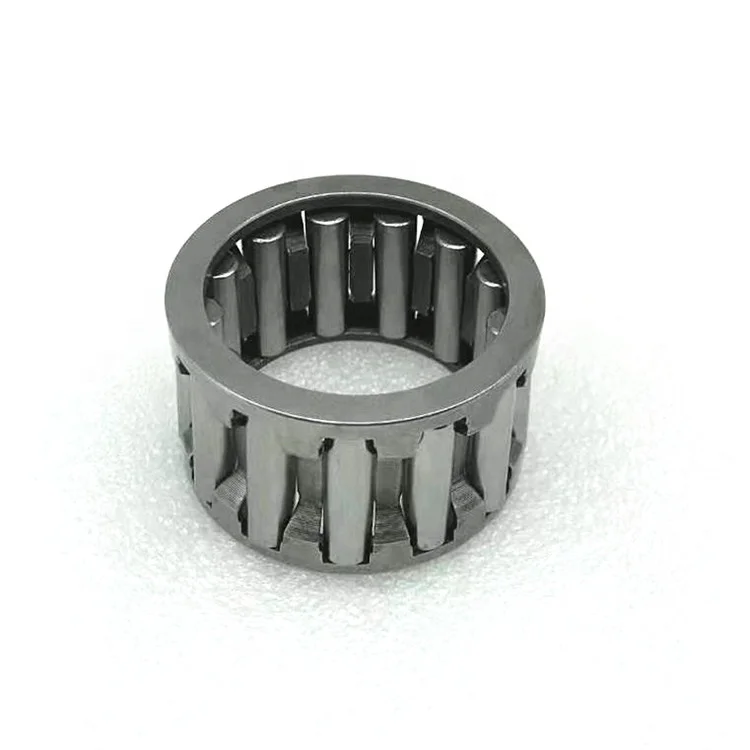

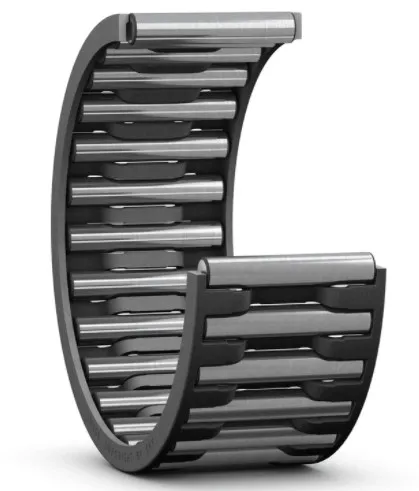

Needle roller and cage assemblies
The needle roller and cage assemblies are self­-contained, ready-­to­-mount bearings. In applications where the shaft and housing
bore can serve as raceways, the assemblies can be used to create bearing arrangements that require minimal radial space.


They are characterized by the following properties:
* simple to mount and robust
* accurate roller guidance in the cage pockets
* good running performance

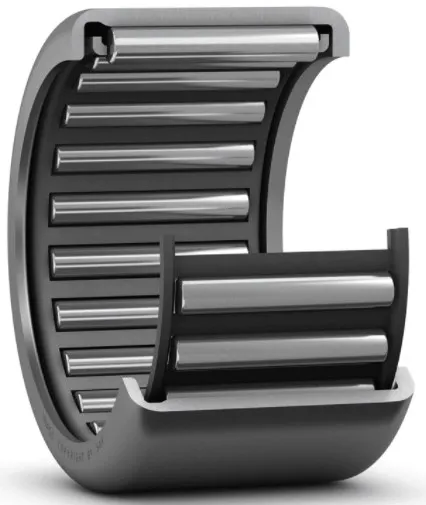

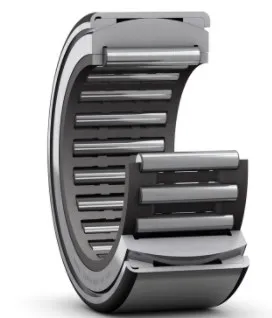

Drawn cup needle roller bearings
The drawn cup needle roller bearings have a deep drawn, thin-walled outer ring. Drawn cup needle roller bearings are typically
used in applications where the housing bore cannot be used as a raceway for a needle roller and cage assembly, but where a very
compact and economical bearing arrangement is required. These bearings are mounted with a tight interference fit in the housing.
That enables a simple and economic design of the housing bore, as shoulders or snap rings are not required to locate the bearing
axially.
The drawn cup of hardened steel and the needle roller and cage assembly of these bear­ings form a non­-separable unit.







Alignment needle roller bearings





The alignment needle roller bearings have an outer ring with a sphered (convex) outside surface.
Two polymer seating rings with a
sphered (concave) inside surface are encased in a drawn sheet steel sleeve and fitted over the outer ring.

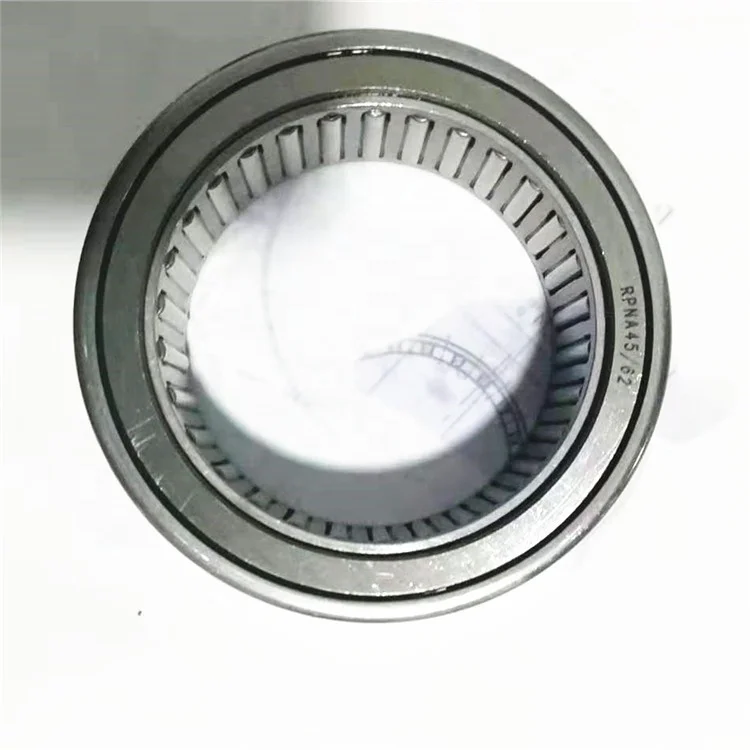

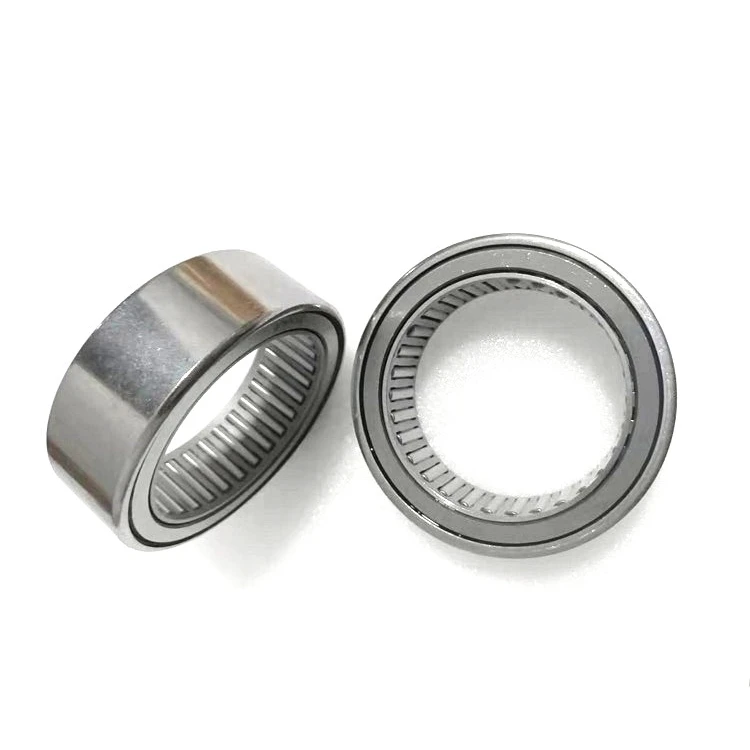

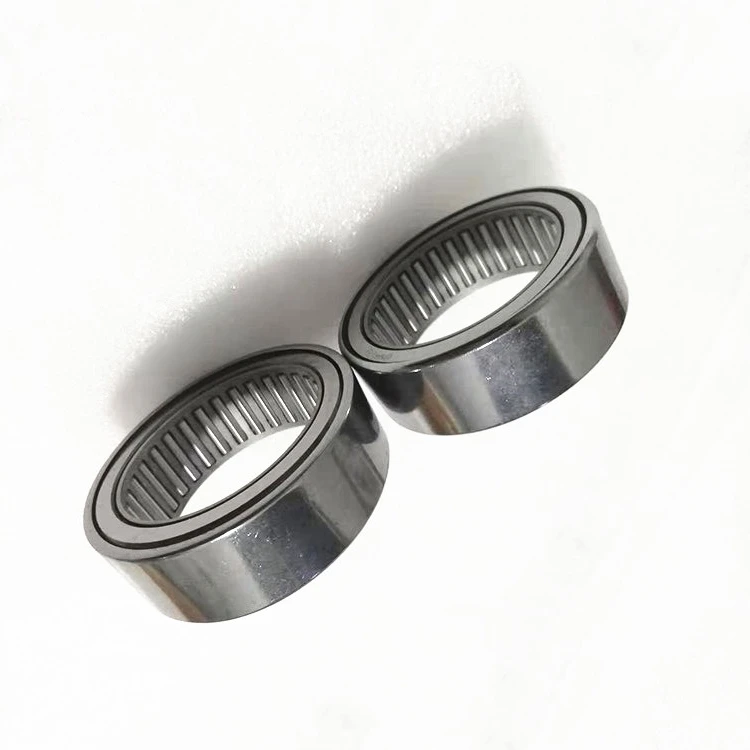

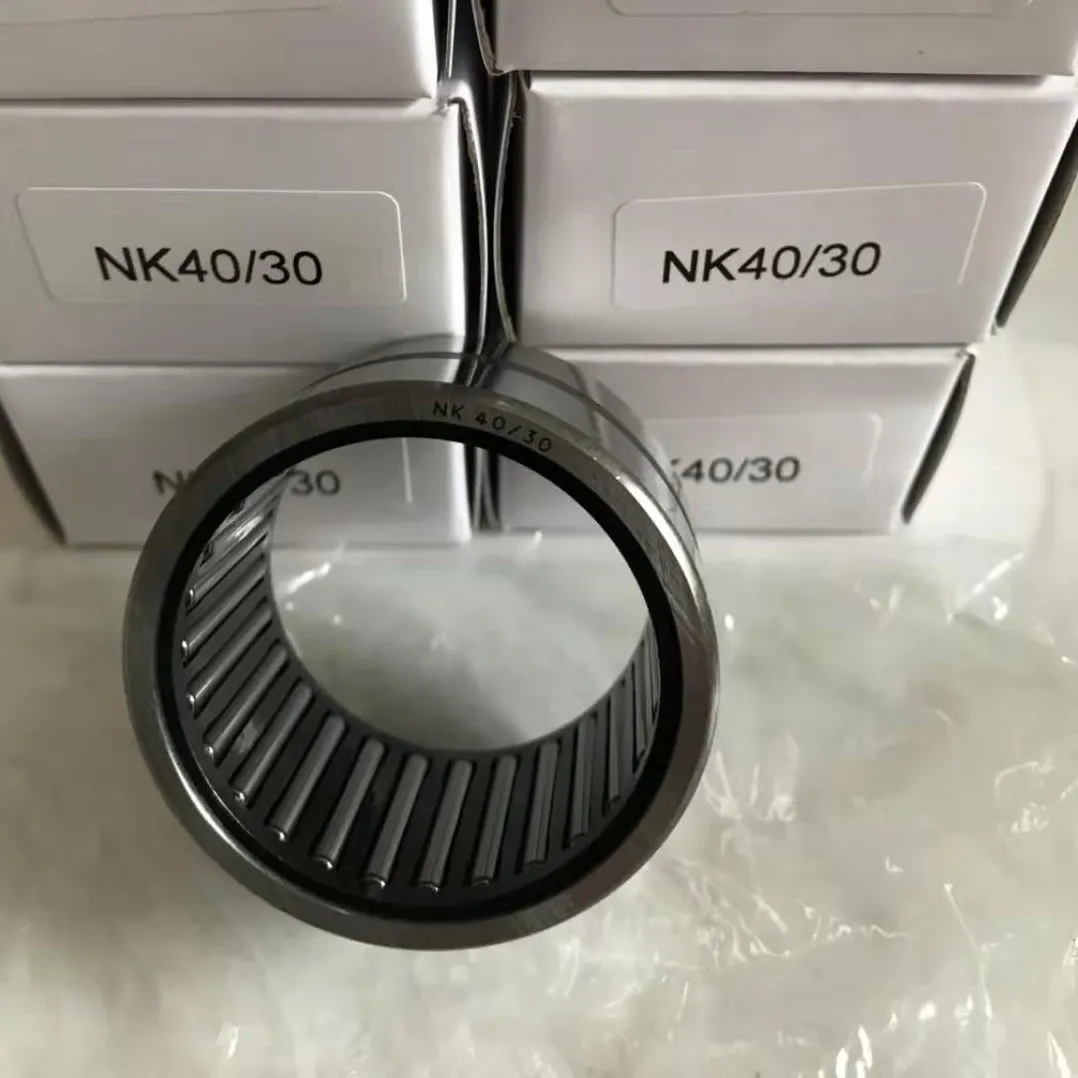

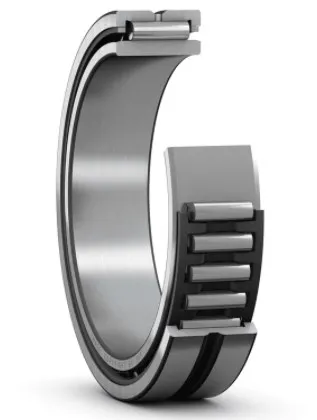

Needle roller bearings with machined rings







The needle roller bearings with machined rings are made of carbon chromium bearing steel.
SZDO supplies these bearings with or without flanges on the outer ring, in a wide range of series and sizes.
SZDO also supplies them with or without an inner ring.

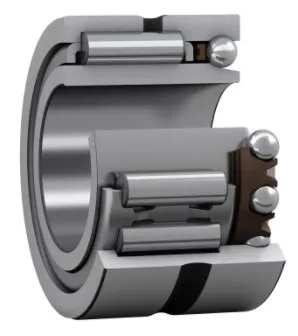

Combined needle roller bearings

The combined needle roller bearings consist of a radial needle roller bearing combined with a thrust bearing. They can accommodate
both radial and axial loads. They are particularly suitable for applications where other types of locating bearing arrangements
occupy too much space, or where the axial loads are too heavy, the speeds are too high, or the lubricant is inadequate for
arrangements with simple thrust washers.
* Needle roller/angular contact ball bearings
* Needle roller/thrust ball bearings
* Needle roller/cylindrical roller thrust bearing






Universal joint bearings
The universal joint bearings are manufactured with cold forged or machined cup needle roller bearings, incorporating a closed end, and
are for use in various types of application. They are used in the automotive industry, for joints in commercial vehicle propeller
shafts, and also in other industries, for special applications.










Needle roller thrust bearings
The needle roller thrust bearings are fitted with a form-stable cage to reliably retain and guide a large number of needle rollers.
Needle roller thrust bearings provide a high degree of stiffness within a minimum axial space. In applications where the faces of
adjacent machine components can serve as raceways, needle roller thrust bearings take up no more space than a conventional thrust
washer.


Details Images








Product Paramenters


Designation
Principal dimensions
Basic load ratings
Speed ratings
dynamic
static
Reference speed
Limiting speed
Fw[mm]
D[mm]
C[mm]
C[kN]
C0[kN]
[r/min]
[r/min]
BK 0306 TN
3
6.5
6
1.23
0.88
24 000
26 000
HK 0306 TN
3
6.5
6
1.23
0.88
24 000
26 000
BK 0408
4
8
8
1.76
1.37
22 000
26 000
HK 0408
4
8
8
1.76
1.37
22 000
26 000
BK 0509
5
9
9
2.38
2.08
22 000
24 000
HK 0509
5
9
9
2.38
2.08
22 000
24 000
BK 0609
6
10
9
2.81
2.7
20 000
22 000
HK 0606
6
10
6
1.72
1.29
20 000
22 000
HK 0608
6
10
8
2.01
1.73
20 000
22 000
HK 0609
6
10
9
2.81
2.7
20 000
22 000
BK 0709
7
11
9
3.03
3.05
20 000
22 000
HK 0709
7
11
9
3.03
3.05
20 000
22 000
BK 0808
8
12
8
2.7
2.75
19 000
22 000
BK 0810
8
12
10
3.69
4.05
19 000
22 000
HK 0808
8
12
8
2.7
2.75
19 000
22 000
HK 0810
8
12
10
3.69
4.05
19 000
22 000
HK 0810 RS
8
12
10
2.7
2.75
13 000
HK 0810.2RS
8
12
10
2.33
2.04
13 000
HK 0812 RS
8
12
12
3.69
4.05
13 000
HK 0812.2RS
8
12
12
2.7
2.75
13 000
BK 0910
9
13
10
4.13
4.8
18 000
20 000
BK 0912
9
13
12
5.12
6.4
18 000
20 000
HK 0908
9
13
8
3.52
3.9
18 000
20 000
HK 0910
9
13
10
4.13
4.8
18 000
20 000
HK 0912
9
13
12
5.12
6.4
18 000
20 000
BK 1010
10
14
10
4.29
5.3
18 000
20 000
BK 1012
10
14
12
5.39
6.95
18 000
20 000
BK 1012 RS
10
14
12
4.29
5.3
12 000
BK 1015
10
14
15
6.6
9
18 000
20 000
HK 1010 E
10
14
10
4.57
5.7
18 000
20 000
HK 1012
10
14
12
5.39
6.95
18 000
20 000
HK 1012 RS
10
14
12
4.29
5.3
12 000
HK 1012.2RS
10
14
12
3.19
3.55
12 000
HK 1014.2RS
10
14
14
4.29
5.3
12 000
HK 1015
10
14
15
6.6
9
18 000
20 000
BK 1210
12
16
10
4.84
6.4
16 000
18 000
BK 1212
12
18
12
6.27
7.35
16 000
18 000
HK 1210 E
12
16
10
5.01
6.8
16 000
18 000
HK 1212
12
18
12
6.27
7.35
16 000
18 000
HK 1214 RS
12
18
14
6.27
7.35
10 000
HK 1214.2RS
12
16
14
4.84
6.4
10 000
HK 1216.2RS
12
18
16
6.27
7.35
10 000
BK 1312
13
19
12
6.6
8
16 000
17 000
HK 1312
13
19
12
6.6
8
16 000
17 000
BK 1412
14
20
12
6.82
8.65
15 000
17 000
BK 1414 RS
14
20
14
6.82
8.65
9 500
HK 1412
14
20
12
6.82
8.65
15 000
17 000
HK 1414 RS
14
20
14
6.82
8.65
9 500
HK 1416.2RS
14
20
16
6.82
8.65
9 500
BK 1512
15
21
12
7.65
9.5
15 000
16 000
BK 1514 RS
15
21
14
7.48
10
9 500
BK 1516
15
21
16
10.1
14.6
15 000
16 000

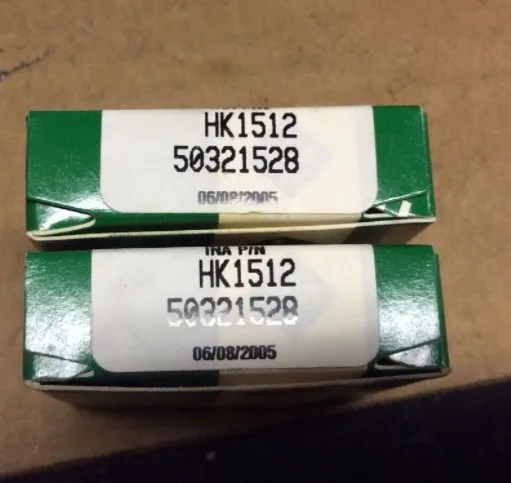

HK 1512
15
21
12
7.65
9.5
15 000
16 000
HK 1514 RS
15
21
14
7.48
10
9 500
HK 1516
15
21
16
10.1
14.6
15 000
16 000
HK 1516.2RS
15
21
16
7.48
10
9 500
HK 1518 RS
15
21
18

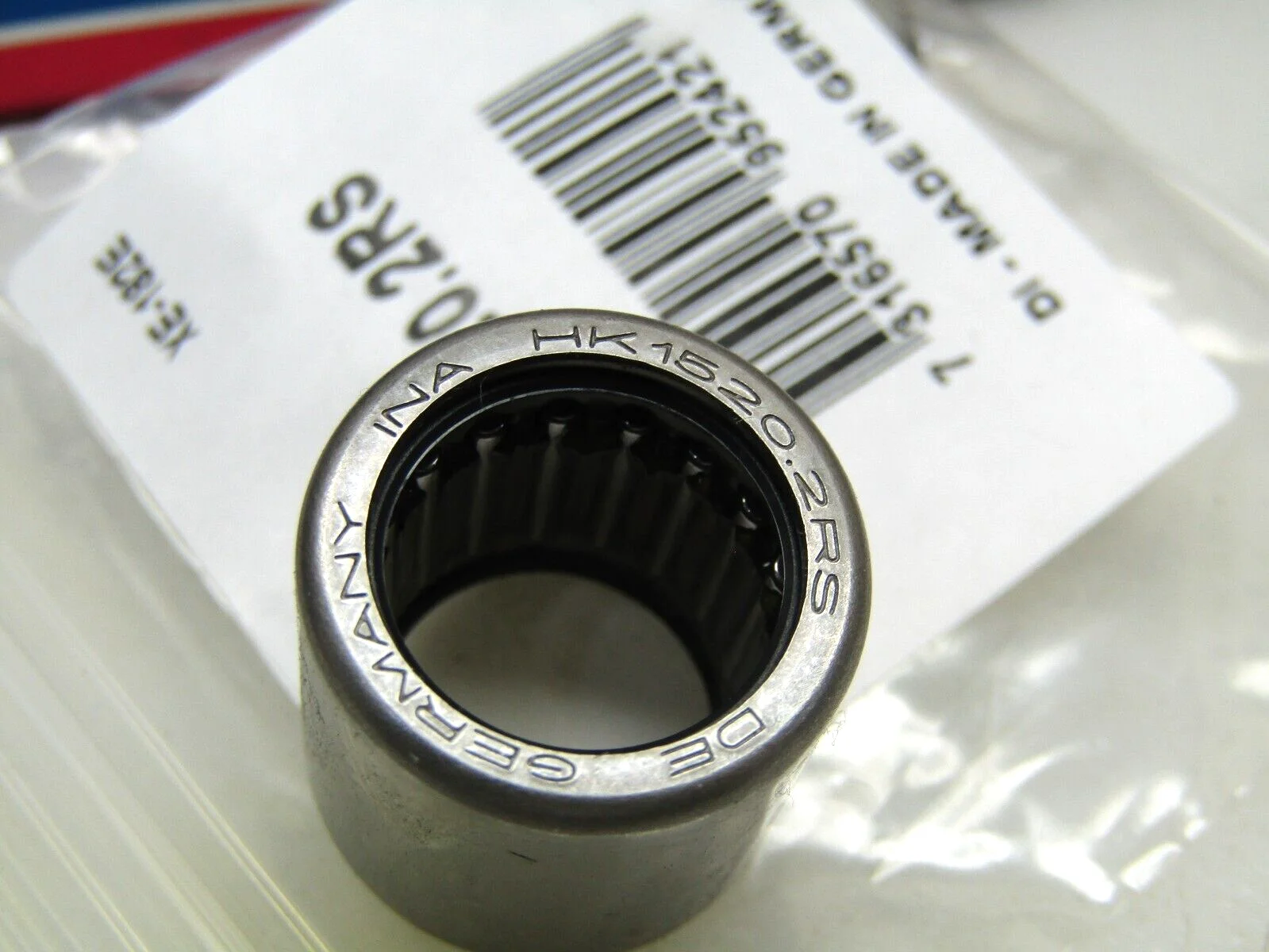

10.1
14.6
9 500

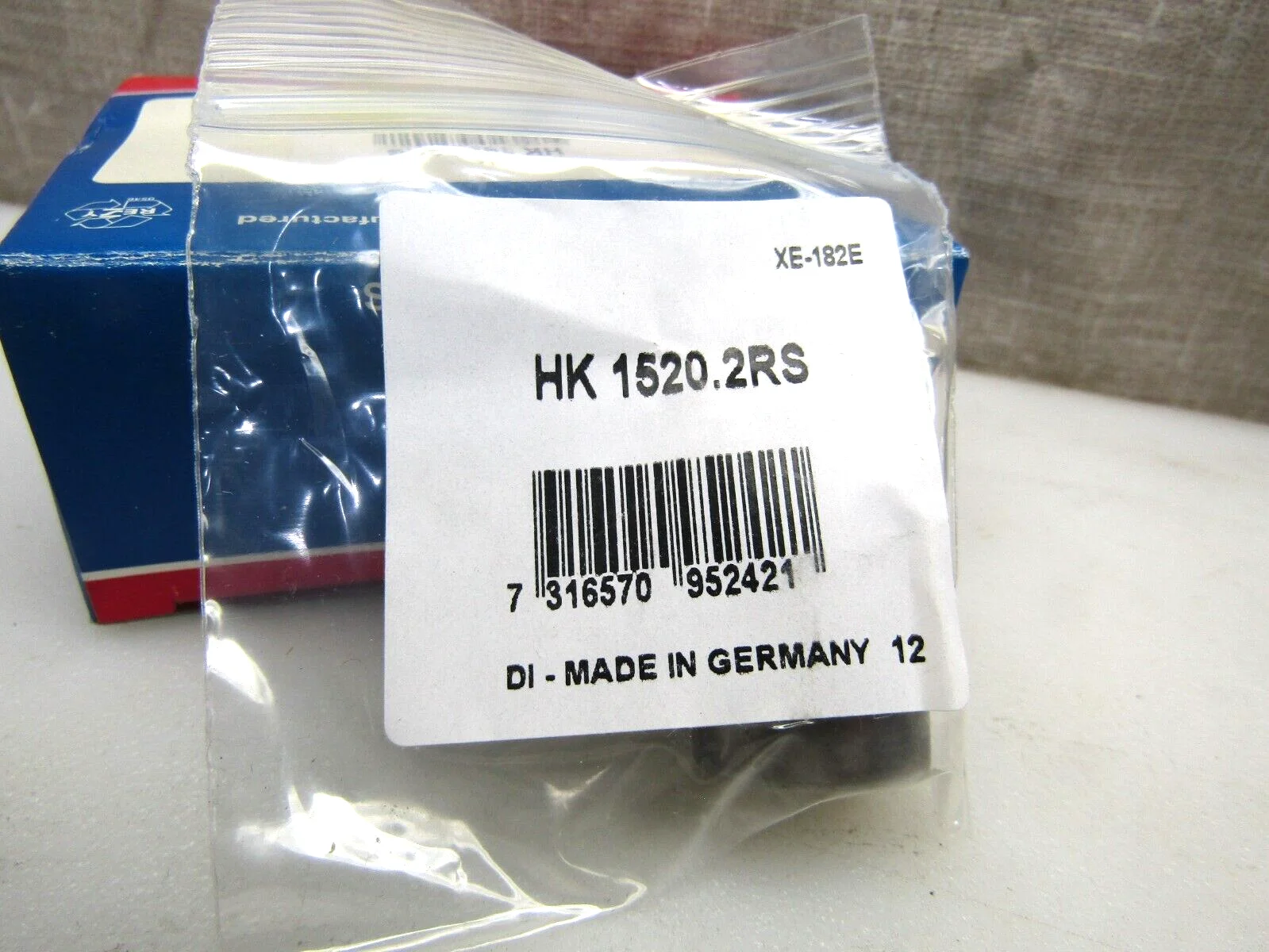

HK 1520.2RS
15
21
20
10.1
14.6
9 500
HK 1522
15
21
22
13
20
15 000
16 000
BK 1612
16
22
12
7.37
9.8
14 000
16 000
BK 1614 RS
16
22
14
7.37
9.8
9 000
BK 1616
16
22
16
10.5
15.6
14 000
16 000
HK 1612
16
22
12
7.37
9.8
14 000
16 000
HK 1614 RS
16
22
14
7.37
9.8
9 000
HK 1616
16
22
16
10.5
15.6
14 000
16 000
HK 1616.2RS
16
22
16
7.37
9.8
9 000
HK 1620.2RS
16
22
20
10.5
15.6
9 000
HK 1622
16
22
22
12.8
19.6
14 000
16 000

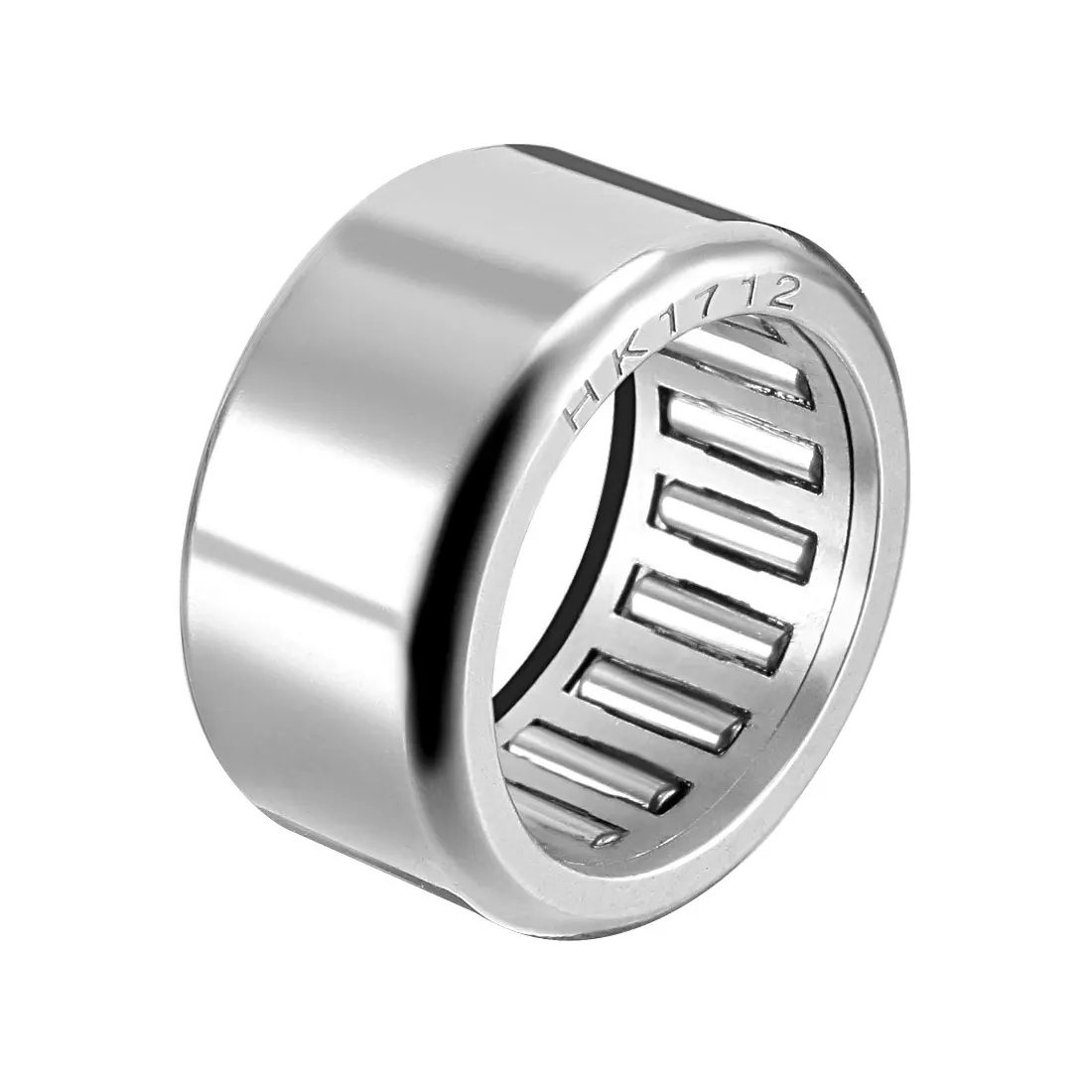

HK 1712
17
23
12
7.65
10.6
14 000
15 000
BK 1816
18
24
16
11.2
17.6
13 000
15 000
HK 1812
18
24
12
7.92
11.2
13 000
15 000
HK 1814 RS
18
24
14
7.92
11.2
8 500
HK 1816
18
24
16
11.2
17.6
13 000
15 000
HK 1816.2RS
18
24
16
7.92
11.2
8 500
BK 2016
20
26
16
12.3
20.4
12 000
14 000
BK 2018 RS
20
26
18
12.3
20.4
8 000
BK 2020
20
26
20
15.1
26.5
12 000
14 000
HK 2010
20
26
10
6.16
8.5
12 000
14 000
HK 2012
20
26
12
8.42
12.5
12 000
14 000
HK 2016
20
26
16
12.3
20.4
12 000
14 000
HK 2016.2RS
20
26
16
8.42
12.5
8 000
HK 2018 RS
20
26
18
12.3
20.4
8 000
HK 2020
20
26
20
15.1
26.5
12 000
14 000
HK 2020.2RS
20
26
20
12.3
20.4
8 000
HK 2030
20
26
30
20.9
40.5
12 000
14 000
BK 2216
22
28
16
13
22.4
11 000
12 000
HK 2210
22
28
10
7.21
10.6
11 000
12 000
HK 2212
22
28
12
8.8
13.7
11 000
12 000
HK 2214 RS
22
28
14
8.8
13.7
7 500
HK 2216
22
28
16
13
22.4
11 000
12 000
HK 2216.2RS
22
28
16
8.8
13.7
7 500
HK 2218 RS
22
28
18
13
22.4
7 500
HK 2220
22
28
20
15.7
29
11 000
12 000
HK 2220.2RS
22
28
20
13
22.4
7 500
BK 2518 RS
25
32
18
15.1
24
6 700
BK 2520
25
32
20
19
32.5
9 500
11 000
BK 2526
25
32
26
24.2
45
9 500
11 000
BK 2538
25
32
38
33
65.5
9 500
11 000
HK 2512
25
32
12
10.5
15.3
9 500
11 000
HK 2516
25
32
16
15.1
24
9 500
11 000
HK 2516.2RS
25
32
16
10.5
15.3
6 700
HK 2518 RS
25
32
18
15.1
24
6 700
HK 2520
25
32
20
19
32.5
9 500
11 000
HK 2520.2RS
25
32
20
15.1
24
6 700
HK 2524.2RS
25
32
24
19
32.5
6 700
HK 2526
25
32
26
24.2
45
9 500
11 000
HK 2530.2RS
25
32
30
24.2
45
6 700
HK 2538
25
32
38
33
65.5
9 500
11 000
HK 2816
28
35
16
15.7
26.5
9 000
9 500
HK 2818 RS
28
35
18
15.7
26.5
6 300
HK 2820
28
35
20
20.1
36.5
9 000
9 500
HK 2820.2RS
28
35
20
15.7
26.5
6 300
BK 3012
30
37
12
11.7
18.3
8 000
9 000
BK 3016
30
37
16
16.5
29
8 000
9 000
BK 3020
30
37
20
20.9
40
8 000
9 000
BK 3026
30
37
26
27
54
8 000
9 000
BK 3038
30
37
38
35.8
80
8 000
9 000
HK 3012
30
37
12
11.7
18.3
8 000
9 000
HK 3016
30
37
16
16.5
29
8 000
9 000
HK 3016.2RS
30
37
16
11.7
18.3
5 600
HK 3018 RS
30
37
18
16.5
29
5 600
HK 3020
30
37
20
20.9
40
8 000
9 000
HK 3020.2RS
30
37
20
16.5
29
5 600
HK 3022
30
37
22
23.8
46.5
8 000
9 000
HK 3024.2RS
30
37
24
20.9
40
5 600
HK 3026
30
37
26
27
54
8 000
9 000
HK 3038
30
37
38
35.8
80
8 000
9 000
HK 3220
32
39
20
22
43
7 500
8 500
HK 3224
32
39
24
26.4
54
7 500
8 500
BK 3520
35
42
20
22.9
46.5
7 000
8 000
HK 3512
35
42
12
12.5
21.6
7 000
8 000
HK 3516
35
42
16
17.9
34
7 000
8 000
HK 3516.2RS
35
42
16
12.5
21.6
5 000
HK 3518 RS
35
42
18
17.9
34
5 000
HK 3520
35
42
20
22.9
46.5
7 000
8 000
HK 3520.2RS
35
42
20
17.9
34
5 000
BK 4020
40
47
20
24.2
53
6 300
7 000
HK 4012
40
47
12
13.4
24.5
6 300
7 000
HK 4016
40
47
16
19
39
6 300
7 000
HK 4016.2RS
40
47
16
14.5
27.5
4 500
HK 4018 RS
40
47
18
19
39
4 500
HK 4020
40
47
20
24.2
53
6 300
7 000
HK 4020.2RS
40
47
20
19
39
4 500
BK 4520
45
52
20
26
60
5 600
6 300
HK 4512
45
52
12
14.2
27.5
5 600
6 300
HK 4516
45
52
16
20.5
43
5 600
6 300
HK 4518 RS
45
52
18
20.5
43
4 000
HK 4520
45
52
20
26
60
5 600
6 300
HK 4520.2RS
45
52
20
20.5
43
4 000
HK 5020
50
58
20
29.2
63
5 000
5 600
HK 5022 RS
50
58
22
29.2
63
3 600
HK 5024.2RS
50
58
24
29.2
63
3 600
HK 5025
50
58
25
36.9
85
5 000
5 600
HK 5520
55
63
20
30.3
67
4 500
5 000
HK 5528
55
63
28
41.8
104
4 500
5 000
HK 6012
60
68
12
17.6
32
4 300
4 800
HK 6020
60
68
20
31.9
75
4 300
4 800
HK 6032
60
68
32
51.2
137
4 300
4 800


Application

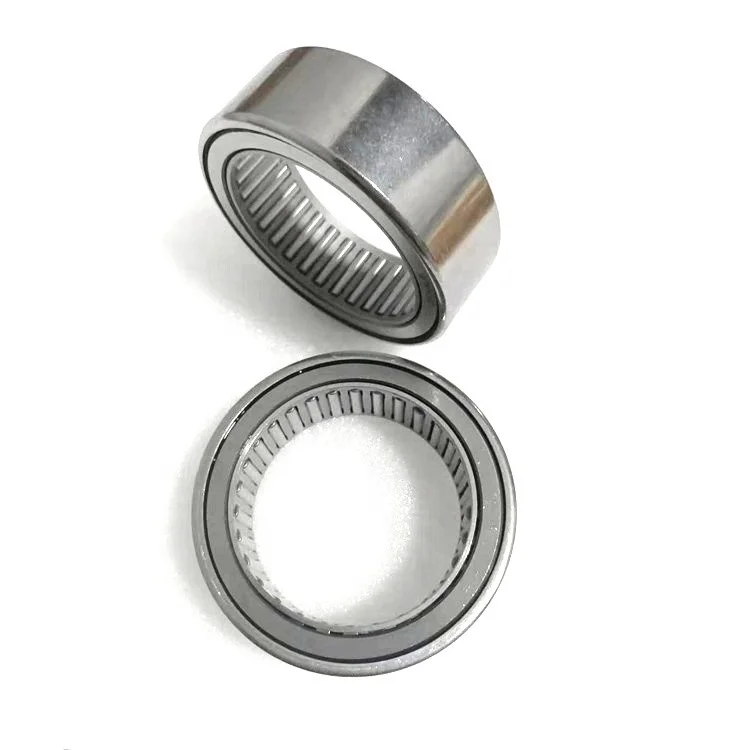

The needle roller bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The modified roller/raceway profile prevents stress peaks to extend bearing service life. We supplies needle roller bearings in many different designs, series and in a wide range of sizes, which makes them appropriate for a wide variety of operating conditions and applications.

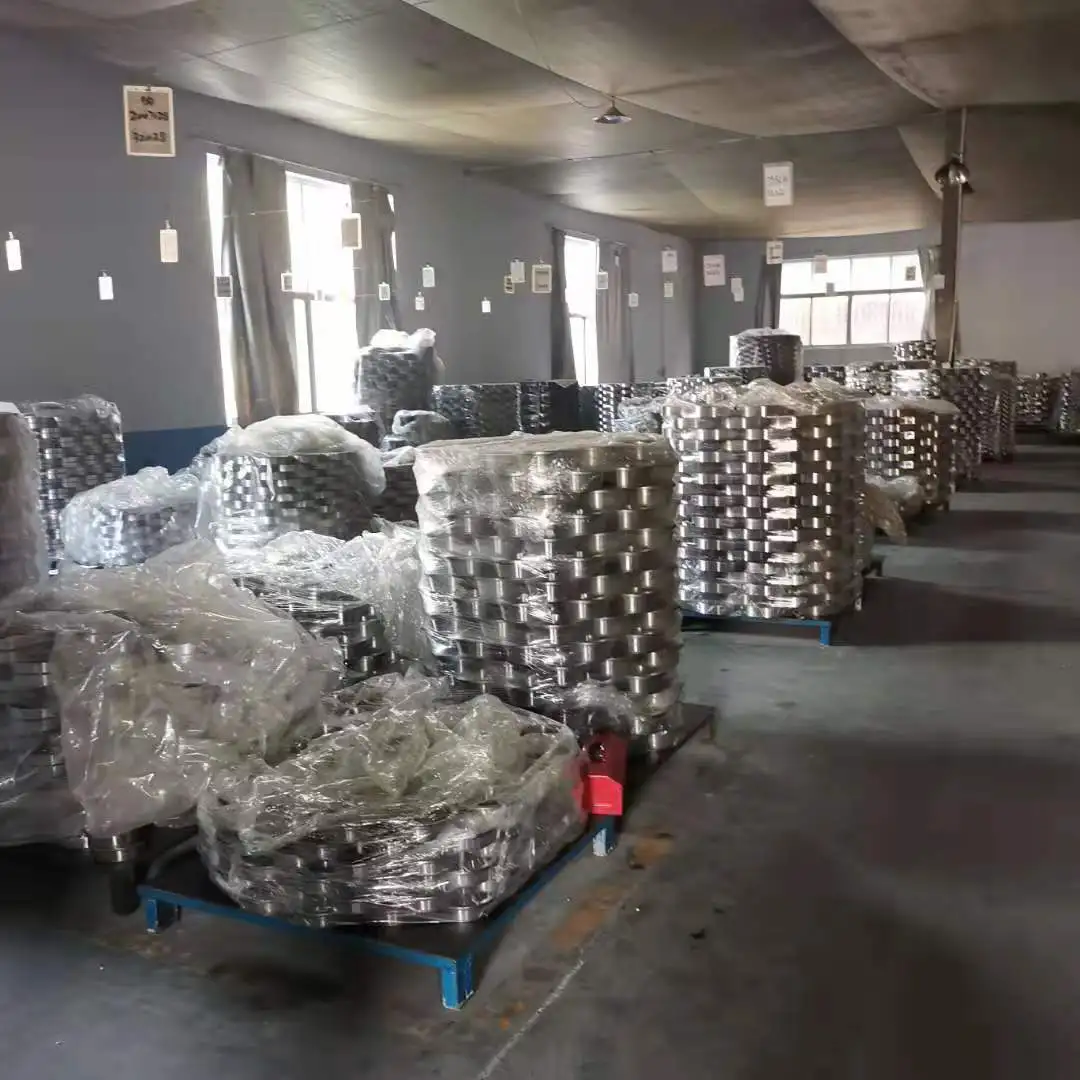

Packing&Shipping


Tube packing, cartons+pallets, singal box

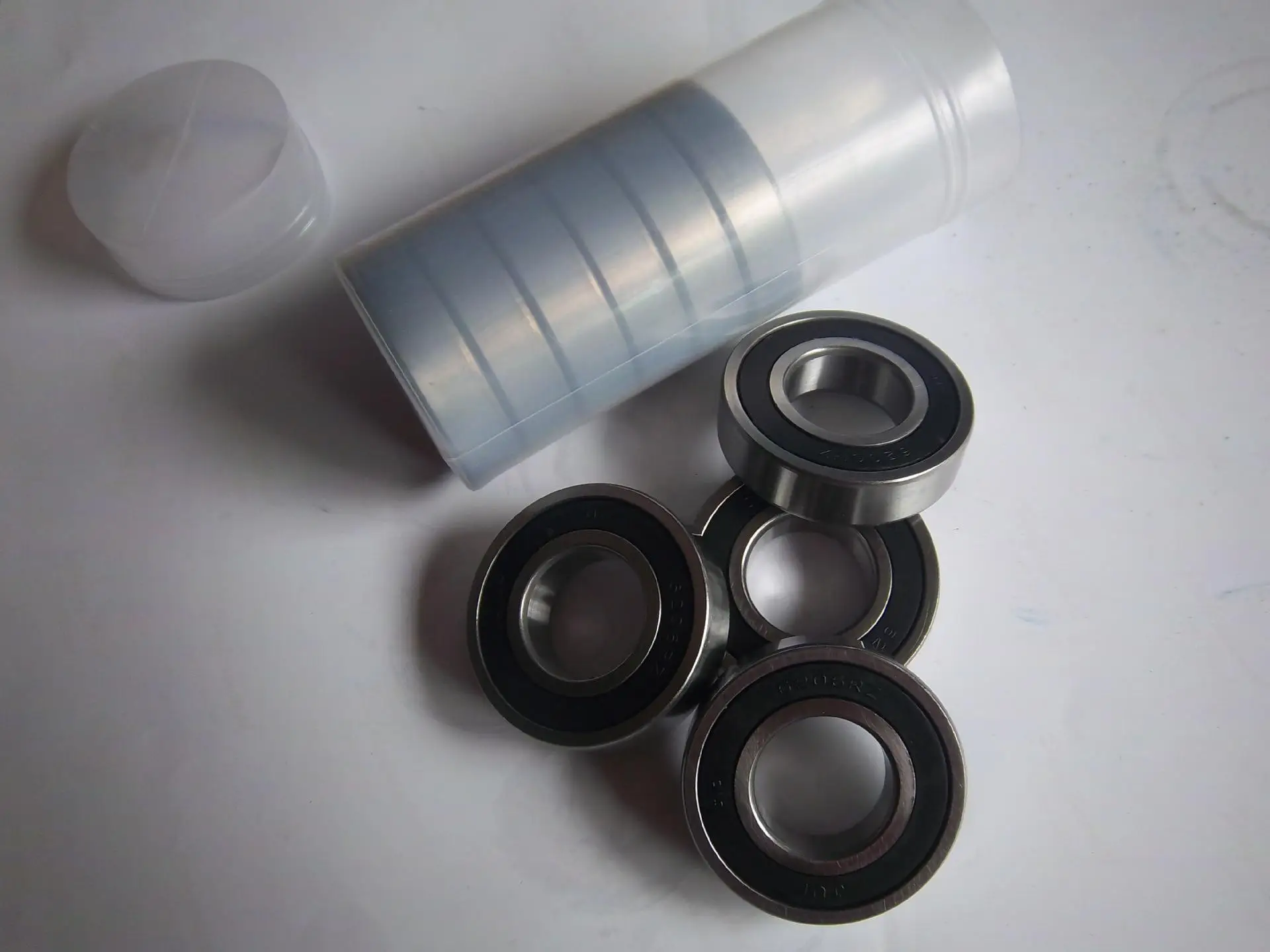

TUBE PACK

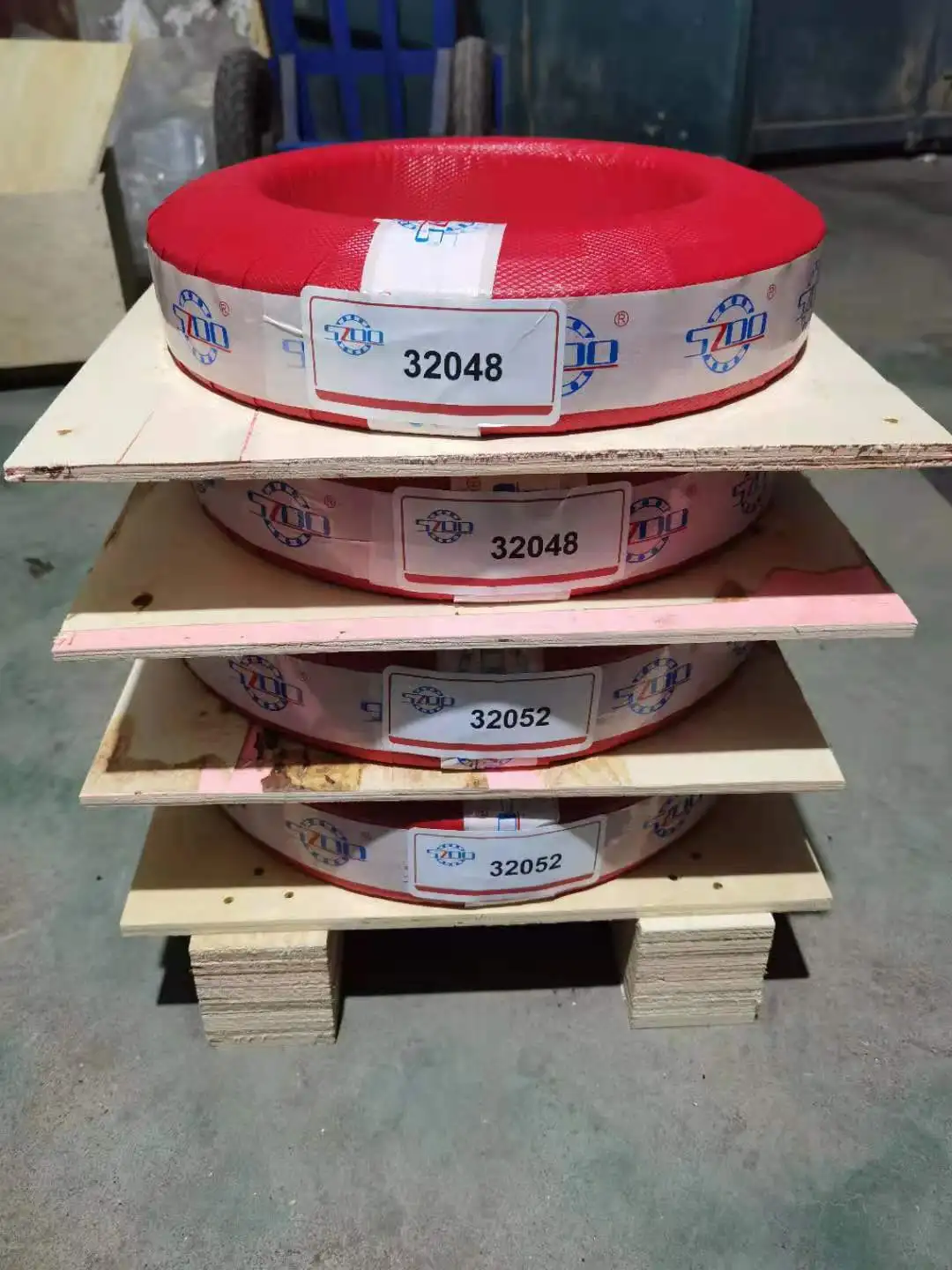

CARTONS+PALLETS

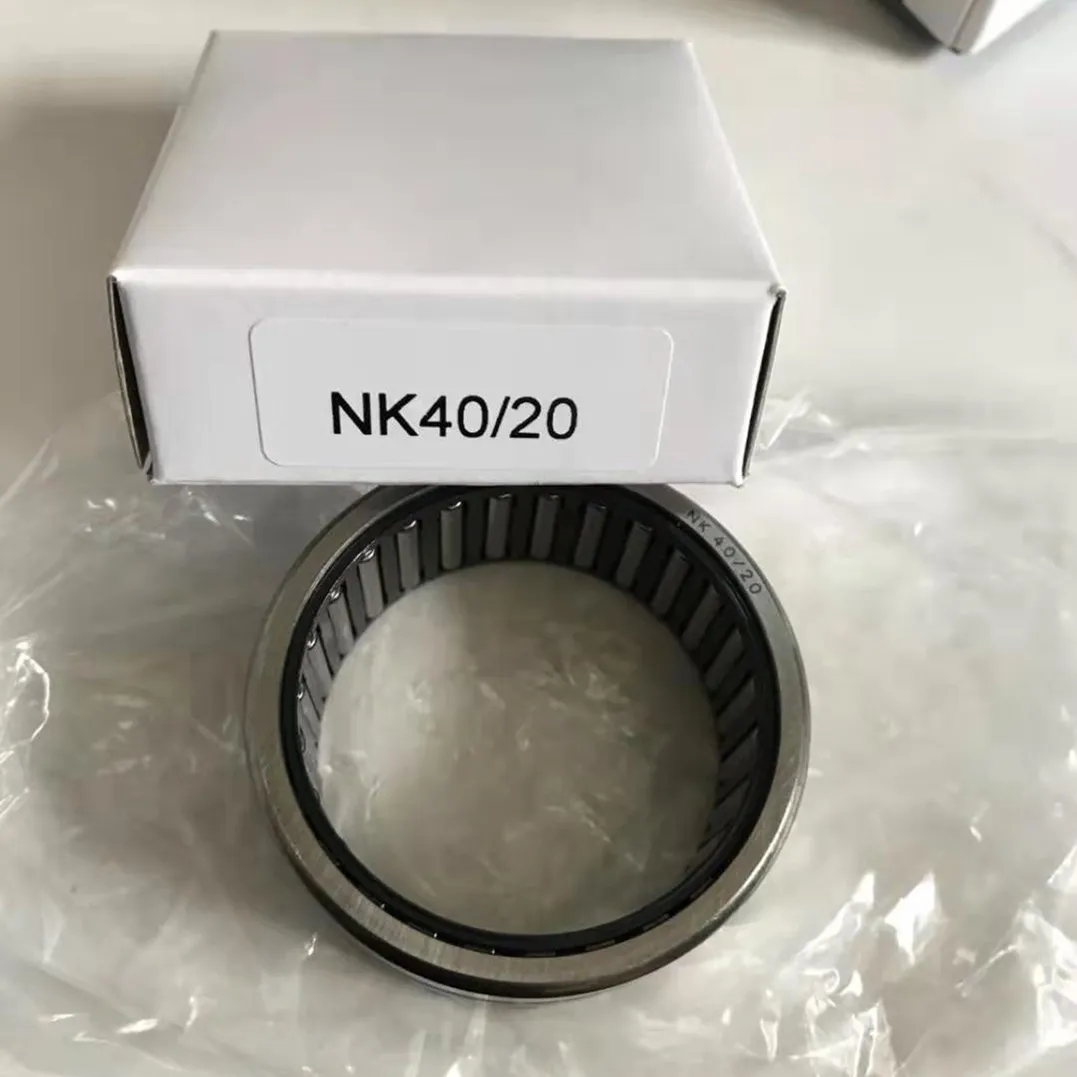

SINGAL BOX+CARTONS+PALLETS

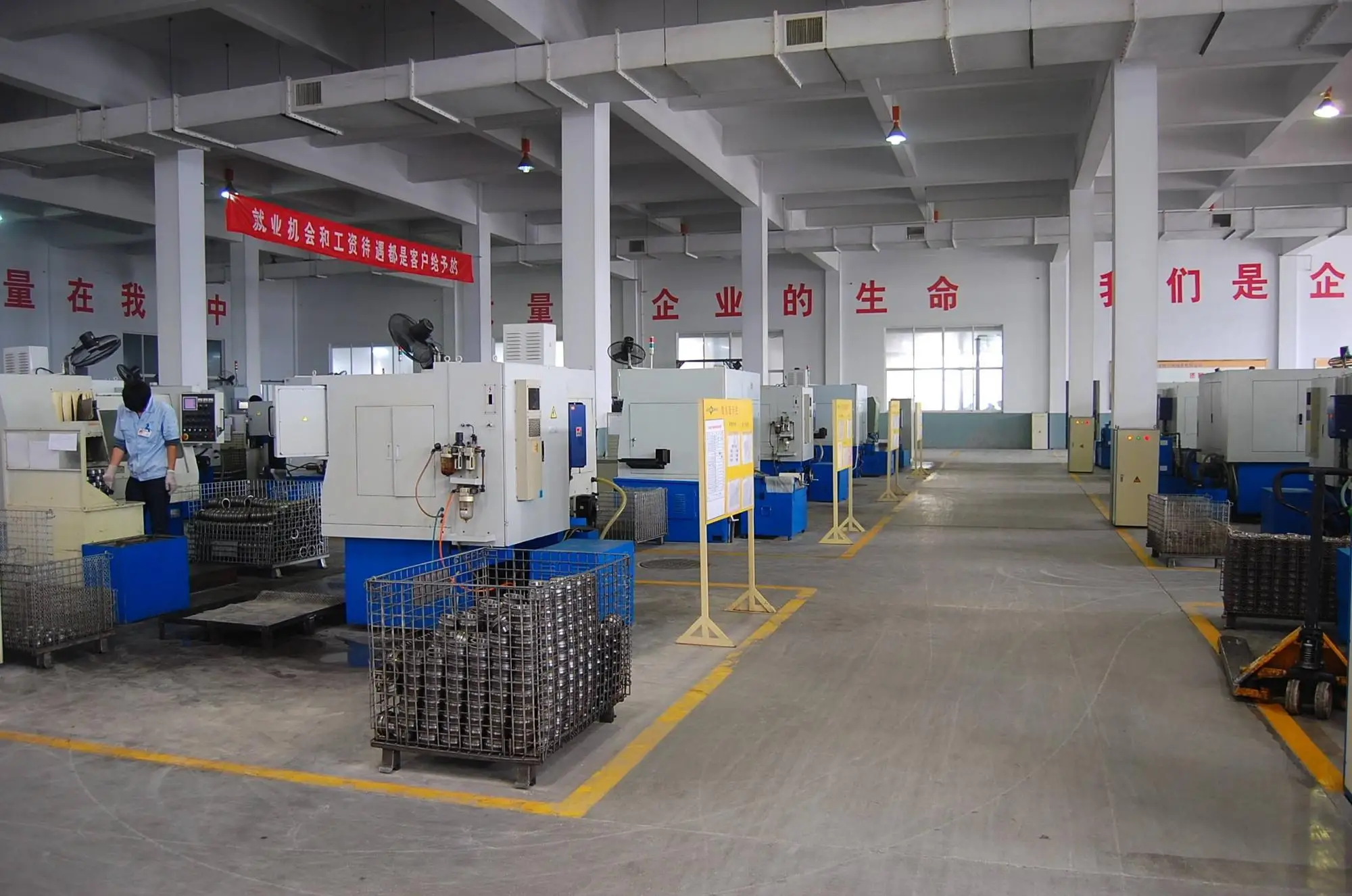

Company Introduction




                                                                       Trustworthy brand

Every product is carefully inspected
Behind every product is the sweat of all employees
Every product is the pride of the company






FAQ


Q:What’s your after-sales service and warranty?
A: We promise to bear the following responsibility when defective product is found:
1.12 months warranty from the first day of receiving goods;
2. Replacements would be sent with goods of your next order;
3. Refund for defective products if customers require.

Q:Do you accept ODM&OEM orders?
A: Yes, we provide ODM&OEM services to worldwide customers, we are able to customize housings in different styles, and sizes in different brands, we also customize circuit board & packaging box as per your requirements.

Q:What’s the MOQ?
A: MOQ is 10pcs for standardized products; for customized products, MOQ should be negotiated in advance. There is no MOQ for sample orders.

Q:How long is the lead time?
A: The lead time for sample orders is 3-5 days, for bulk orders is 5-15 days.

Q:Do you offer free samples?
A: Yes we offer free samples to distributors and wholesalers, however customers should bear freight.

Q:How to place orders?
A: 1. Email us the model, brand and quantity, consignee information, shipping way and payment terms;
2. Proforma Invoice made and sent to you;
3. Complete Payment after confirming the PI;
4. Confirm Payment and arrange production.


We Recommend

New Arrivals

New products from manufacturers at wholesale prices

0.198 s.
