Hardware equipment medical food grade stainless steel high viscosity sauce conveying cam rotor homogenizing pump
- Category: >>>
- Supplier: Guangzhou PM Technology Co. Ltd.
Share on (1600683346550):
Product Overview
Description
Product Overview

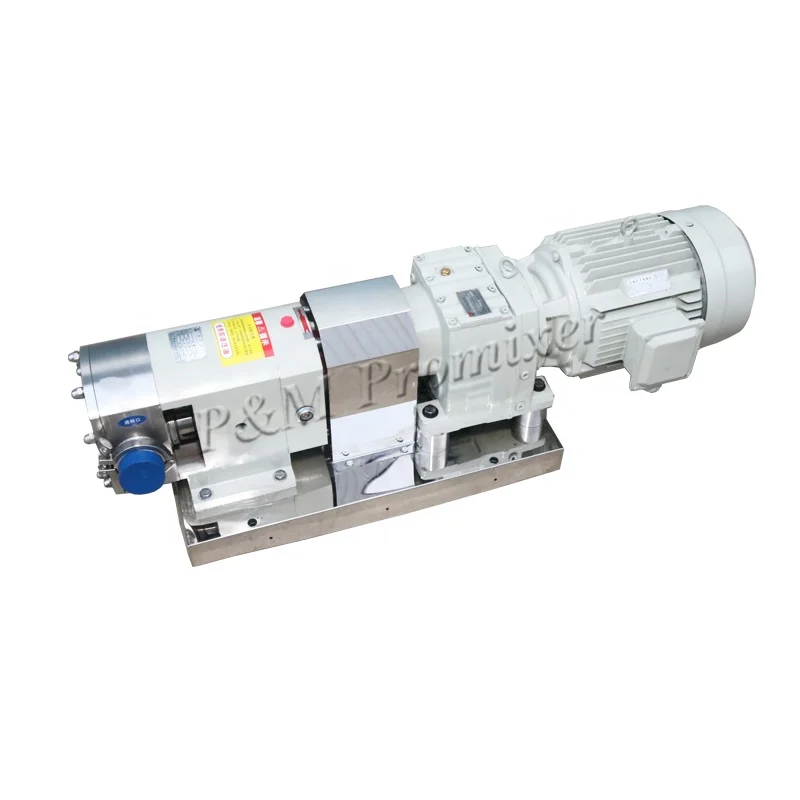

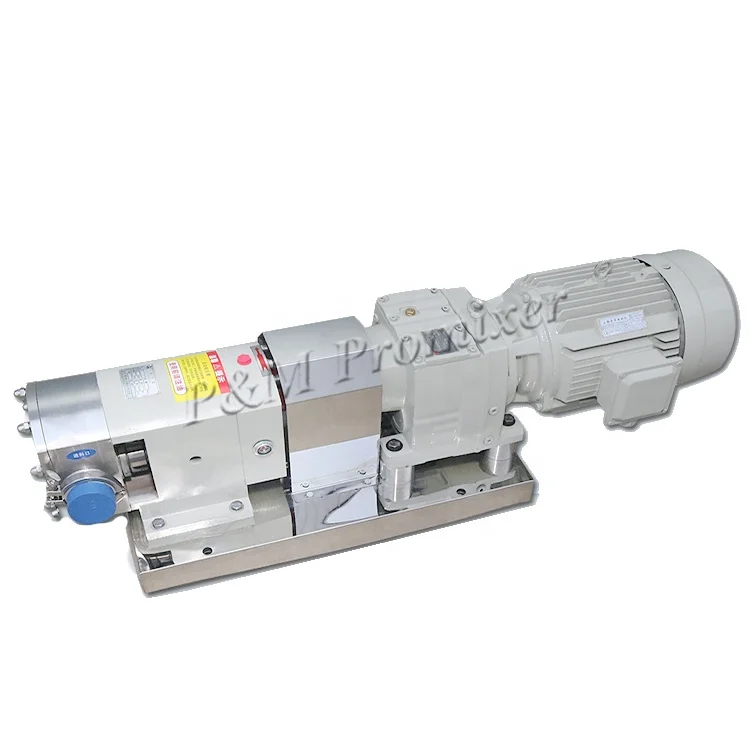

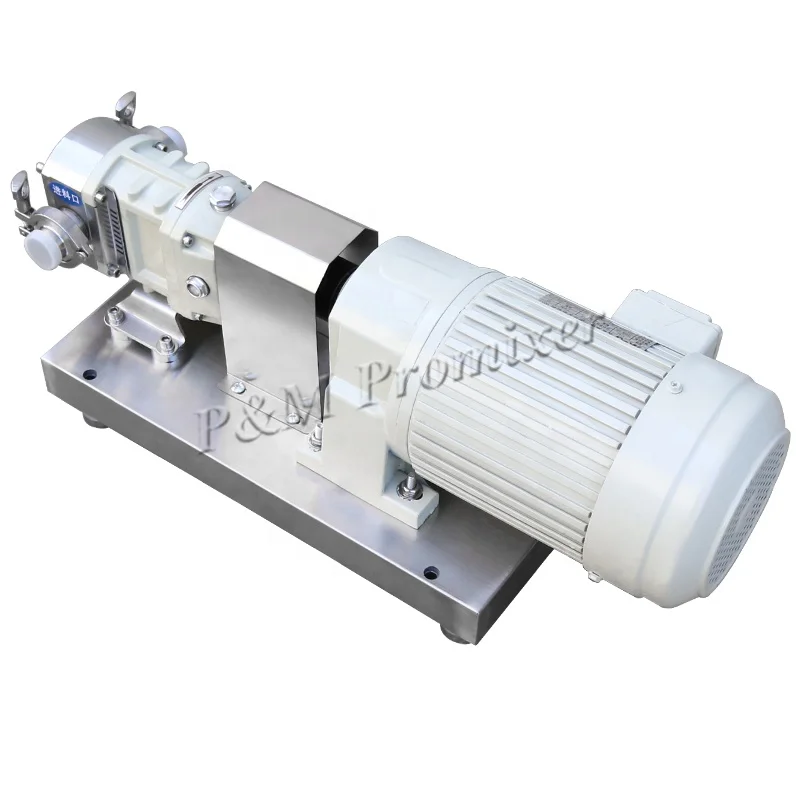

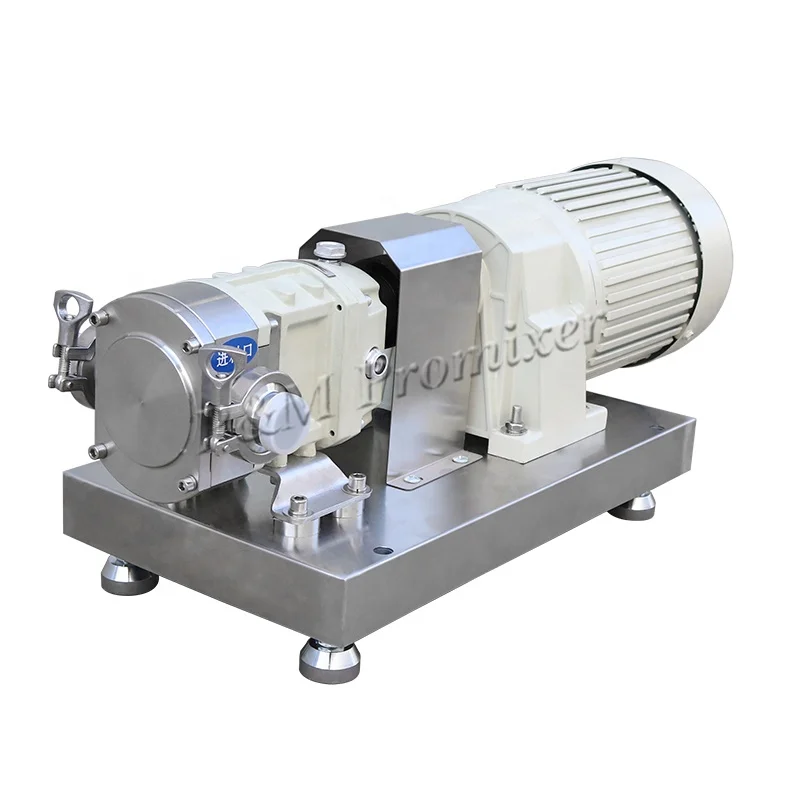

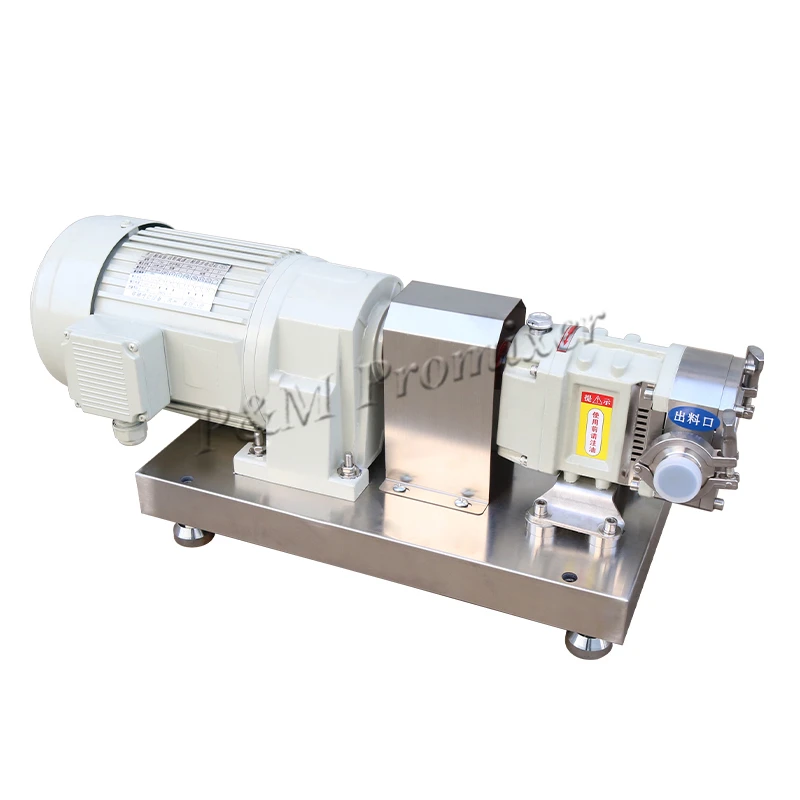

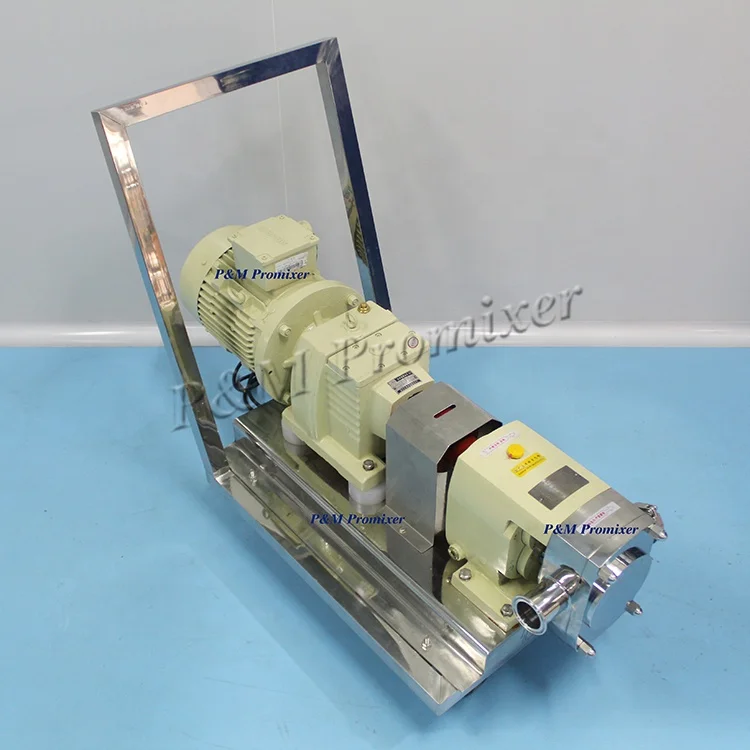

Hardware equipment medical food grade stainless steel high-viscosity sauce conveying cam rotor homogenizing pump
The stainless steel rotor pump introduces advanced foreign technology. After improvement, it not only has the commoncharacteristics of the original rotor pump (gear pump, lobe pump, screw pump, etc.), but also has the characteristics of
transporting high-viscosity colloidal materials. Therefore, we call this pump It is a colloid delivery pump. This series of pumps not only have the same uses and characteristics as other rotor pumps, but also have unique uses, and are especially suitable for conveying high-viscosity colloidal materials. Such as toothpaste, cosmetics, paste-like food, plaster, grease, ink, paint,chemical fiber slurry and other materials.
Features:
1. All parts in contact with the medium (materials) are made of stainless steel (materials SUS304, AIS316, 316L), which are in full compliance with sanitary standards.
2. Suitable temperature -30℃ to +180℃.
3. High pressure, long distance and high resistance for quantitative conveying.
4. The speed is low, generally between 200rpm and 600rpm. The materials conveyed by it maintain the original quality without any physical and chemical reactions.
5.There is no contact between the rotor and the rotor, and there is no wear and tear after long-term use, and the operation is stable, so the noise is low.
6. The assembly and disassembly are simple and easy, convenient to clean, and keep hygienic and clean.
PRODUCT SPECIFICATIONS
The below parameter is for reference only.
It can be customized according to clients' requirement.
Type | Size (mm) | Discharge Capacity per 100r (L) | Speed Range (rpm) | Flow (L/H) | Motor Power (kW) |
TP-0.75 | 25 | 6 | 200-500 | 650-1600 | 0.75 |
TP-15 | 32 | 8 | 200-500 | 850-2160 | 1.5 |
TP-2.2 | 38 | 12 | 200-500 | 1300-3200 | 2.2 |
TP-3 | 38 | 20 | 200-500 | 2100-5400 | 3 |
TP-4 | 42 | 30 | 200-400 | 3200-6400 | 4 |
TP-5 | 42 | 36 | 200-400 | 3800-7600 | 5 |
TP-5.5 | 50 | 52 | 200-400 | 5600-11000 | 5.5 |
TP-7 | 62 | 66 | 200-400 | 7100-14000 | 7 |
TP-7.5 | 75 | 78 | 200-400 | 9000-18000 | 7.5 |
TP-11 | 75 | 100 | 200-400 | 11000-22000 | 11 |
TP-15 | 100 | 135 | 200-400 | 15000-30000 | 15 |
TP-18.5 | 100 | 160 | 200-400 | 17000-34000 | 18.5 |
TP-22 | 125 | 200 | 200-400 | 21600-43000 | 22 |

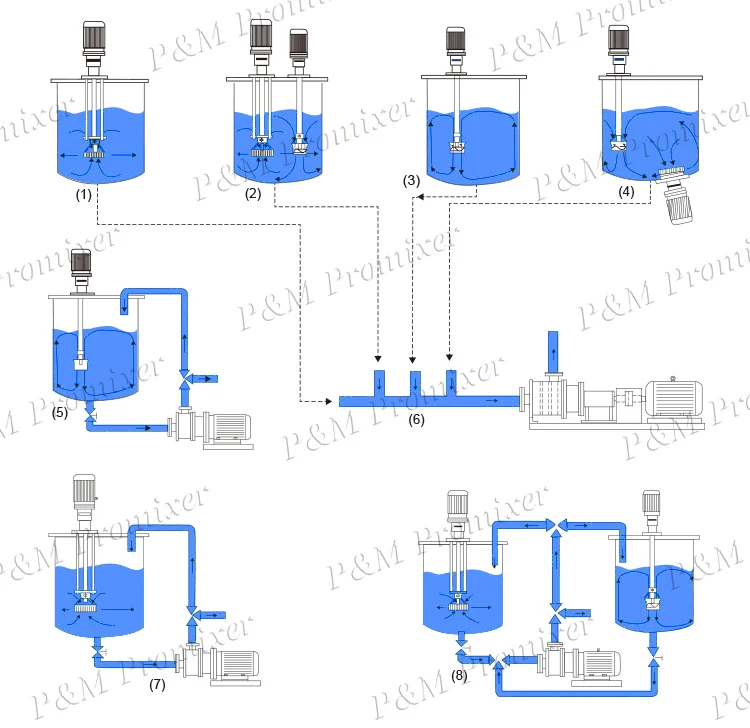

Practical application of rotor pump
Our equipment has CE certification, American UL certification, product quality certificate, stainless steel material certificate and pressure vessel certificate, etc.
Cooperation partner
Our Advantages
Company Profile
P&M Promixer is a comprehensive enterprise integrating of production, sales, trade, after sales and others,With market partner in Europe to provide the advanced European technology and after-sales service. The products include Vacuum Emulsifying Mixer, Liquid Washing Mixer, RO Water Treatment, Cream & Liquid Filling machine.Our company provides top-ranking professional project installation experience and management experience. By holding the work attitude of keeping improving, we provide users with good after-sales service and meet customer requirements.
The strict workshop site management, 6S location management and various operation rules for safe production have become driving force for the development of our enterprise. We are continuously intensifying the research, development and innovation of core technology, pursuing prominence and keeping improving, ensuring the excellent performance of every single product by advancedproduction equipment, strict quality control and precise production and inspection procedures.
Exquisite technology provides customers with cutting-edge products. As a supplier of overall solutions, we provide diversified stand-alone equipment, process automation, production process control, MES execution management and data collection, production data analysis and online reports, etc. The industry provides integrated solutions for digital factories such as online M2M and M2B.
In the past and in the future, P&M Promixer will continue to participate in exhibitions around the world, bringing you more
newproducts, new technologies and overall solutions for specific industries in various fields.
Product packaging
We have a variety of packaging methods for customers to choose: vacuum wood packing, ordinary wood packing, frame packing, etc.,to meet the different needs of customers
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
The long-term export trade has enabled our team to have rich experience in loading cabinets: high cabinets, low cabinets, open top cabinets, flat cabinets, etc., can be easily completed
Customer praise
FAQ
Q1. Are you factory or trade company?
A1: We are factory with more than 30 years production experience. Factory inspection andcustomized is acceptable.
Q2. What would be the after-sales service?
A2: We provided 2-year free warranty which base on the quality problem, and lifetime free after-sales consultant. We set up Spain office and Tunis service team in Europe and Africa, provide convenient service for our customers.
Q3. How to ensure the quality?
A3: FAT is acceptable, including CE, IQ, OQ, PQ
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
certificate. The complete operation video, manual, circuit diagram will be sent before shipment.
Q4. Do you provide installation
service?
service?
A4: The single unit machine has finished the installation before shipment, can be used directly. The production line will
arrange engineer to install and operator training on site.
arrange engineer to install and operator training on site.
