Wholesale price 500 1000 Kg Copper Sulfate Powder Amino Acid Fertilizer Big Aluminium Jumbo Bag Packing Machines

Product Overview

Description

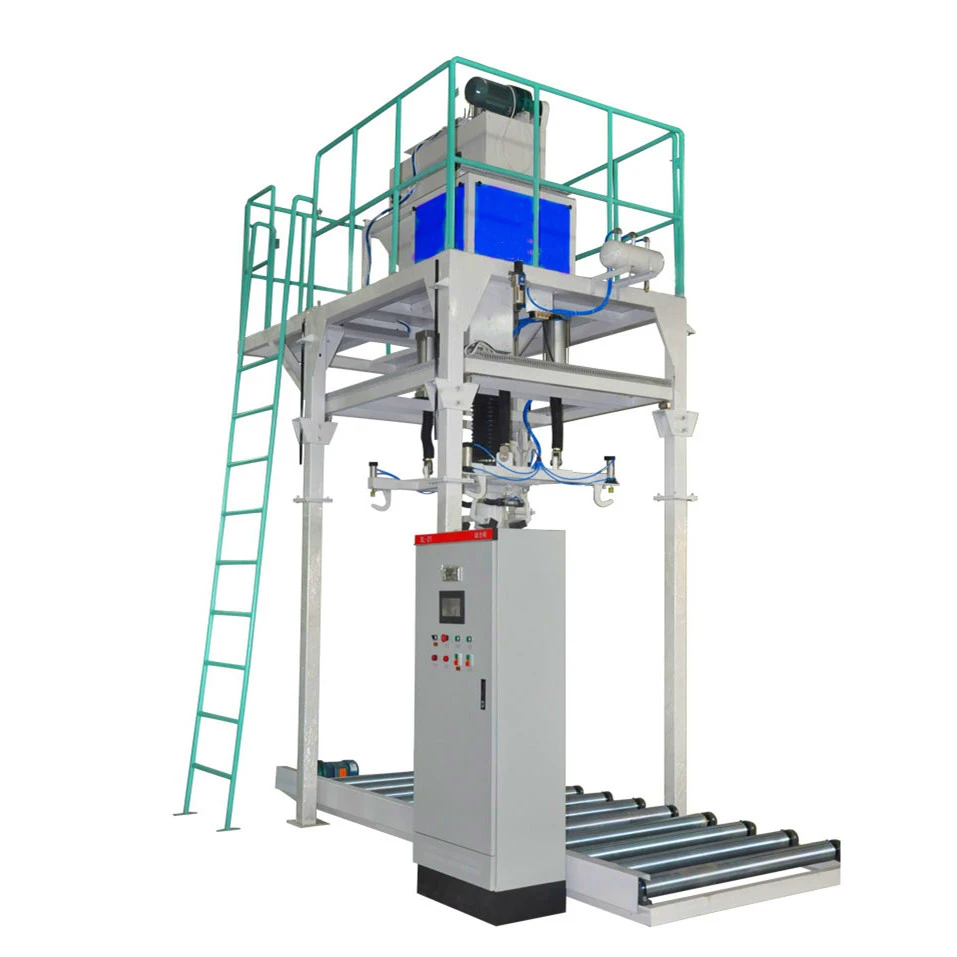

500kg/1000kg/1500kg/2000kg jumbo bag weighing filling machine, ton bag packing machine, bulk bag bagging machine, FIBC bags packaging machine





The ton bag packing machine application materials:

Our packaging machines are widely used in feed, fertilizer, grain, chemical industry, building materials, starch, food, rubber and plastics, hardware, minerals,covering more than 20 industries, more than 3,000 kinds of materials.It can suit different type of top open mouth bags such as woven bags, sacks, kraft paper bags, plastic bags etc, and bag top closed by sewing or heat sealing



The ton bag filling machine technical parameter:

Item	DCS-50Z/1T	DCS-50L/1T	DCS-50P/1T
Application materials	granule materials	powder materials	Mix, flake, block, irregular materials
Weighing range	300-2000kg/big bag or customized
Scale interval	100g
Feeding type	gravity feeder	screw feeder	belt feeder
Precision	±0.1% based on your materials characteristics
Capacity	10-15bags/hour
System	PLC system and 10" full touch screen HMI
Air source	0.5-0.8Mpa
Dimension (L*W*Hmm)	1840*2240*4200mm	1840*2240*4200mm	4000*1200*3800mm
Power	1kw	3.7kw	1.5kw
Voltage	single/three phase AC220V/AC380V/50HZ
Heavy duty conveyor	to conveying the full mateials big bag out of the packing machine
Working environment	(-10℃~40℃)
Relative humidity	≤90%RH non condensation
Machine materials	product contact parts SS304/full Q235 carbon steel with anti-rust painting

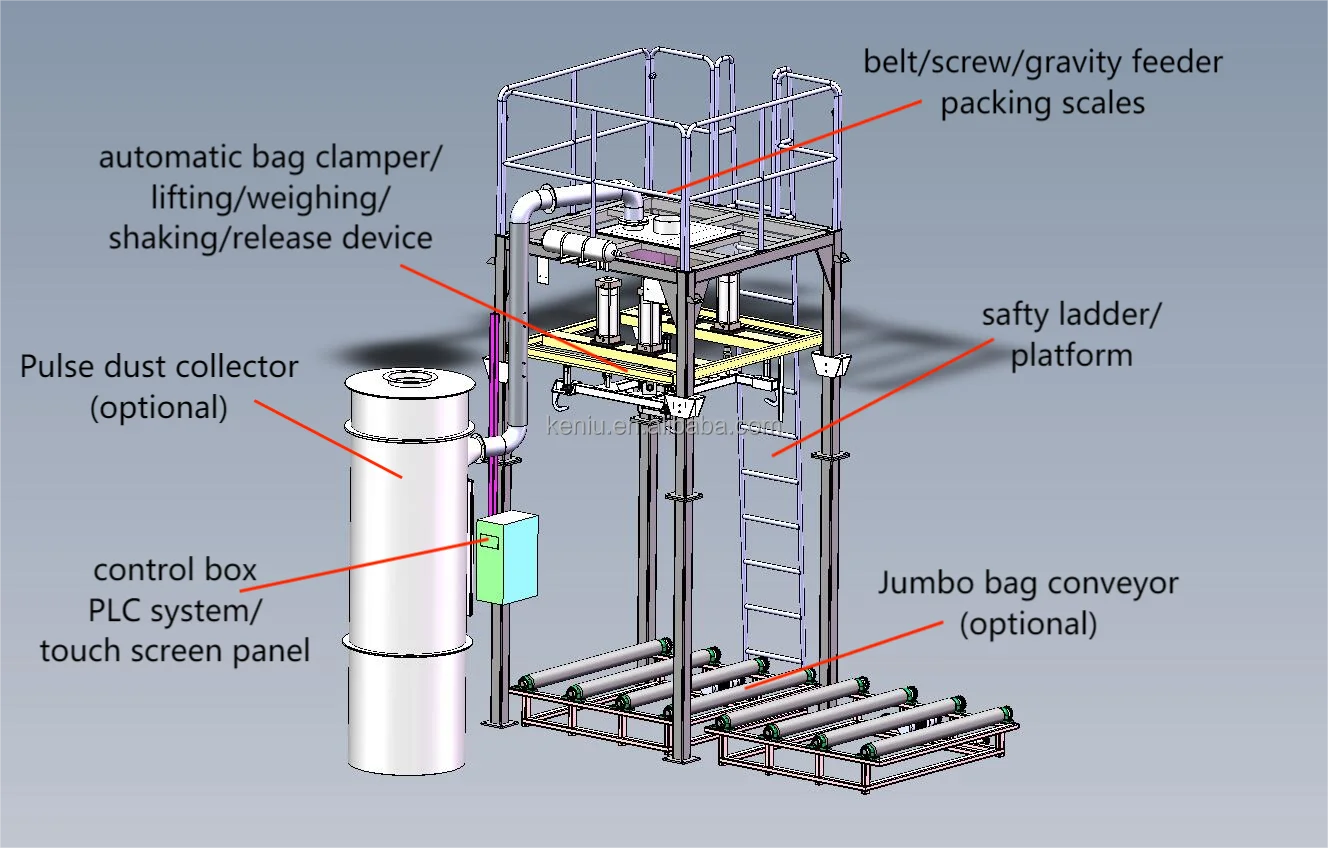

Matching equipment	jumbo bag conveyor, dust collector, materials loading conveyor

Feature:

1, The bagging machine adopt integrated instrument, color touch screen operation interface, automatic measurement, automatic weight calibration, packaging process display and monitoring functions, more simple and convenient operation

2, The packing machine use of Mettler Toledo/Keli/AVIC load cell (weighing sensor), high precision, fast speed.

3. The packaging unit parts are made of well-known brands such as AirTAC air cylinders and solenoid valves, electrical components of Schneider/Omron brand, etc., with strong stability and longer service life

4, The packing machine is equipped with automatic sewing machine head/heat sealing machine, sealing more quickly and tidy.

 Jiangxi Keniu Machinery Co., Ltd. has been focusing on the production, research and development and sales of packaging machinery for 15 years. We can provide you with one-stop packaging solutions, from drawing design to production to after-sales installation and debugging. Our products have been sold to more than 80 overseas countries and regions, to provide customers with convenient packaging equipment, and widely accepted and praised by customers. Our sales/after sales team will 24hours online, if you have any questions about packaging, please feel free to contact us.

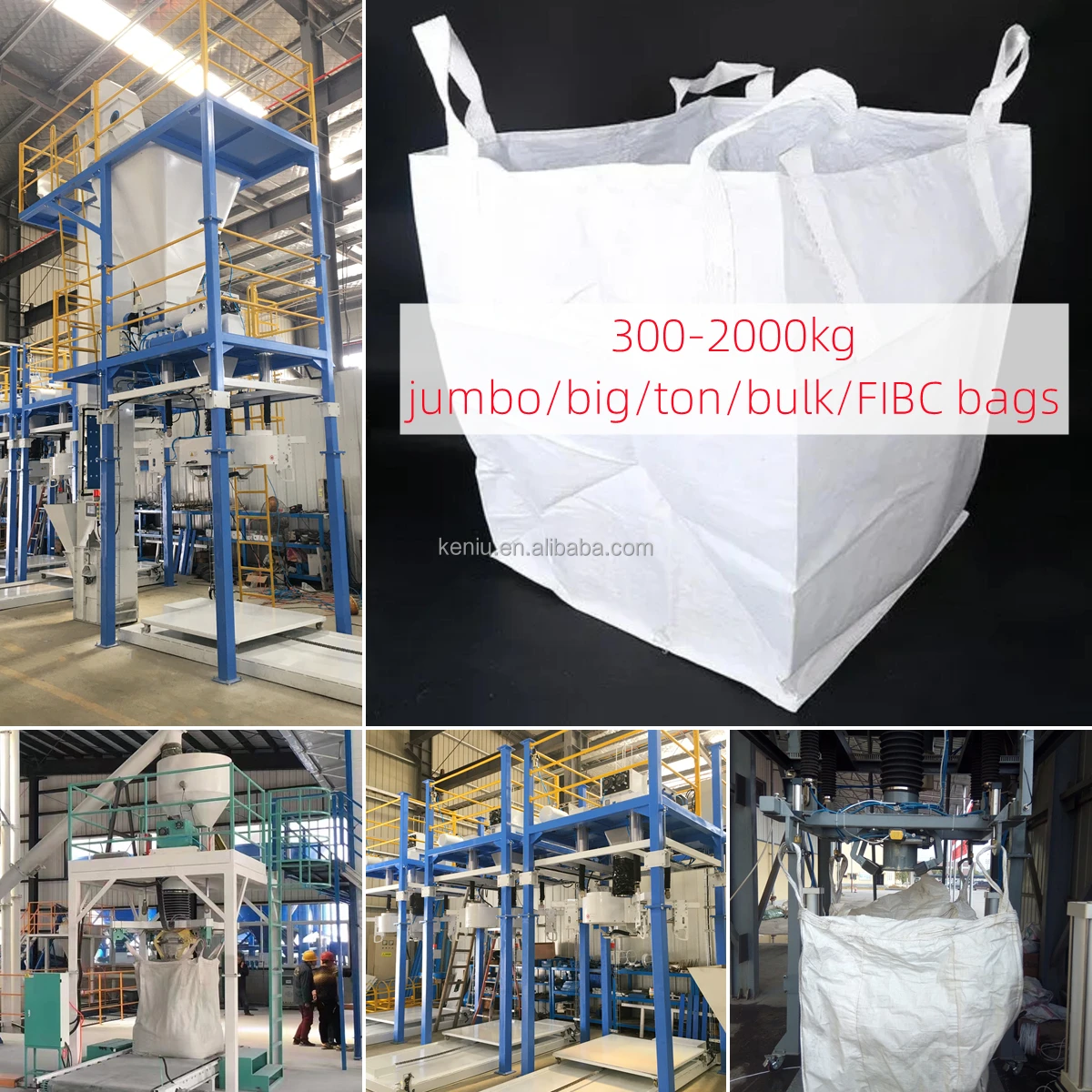

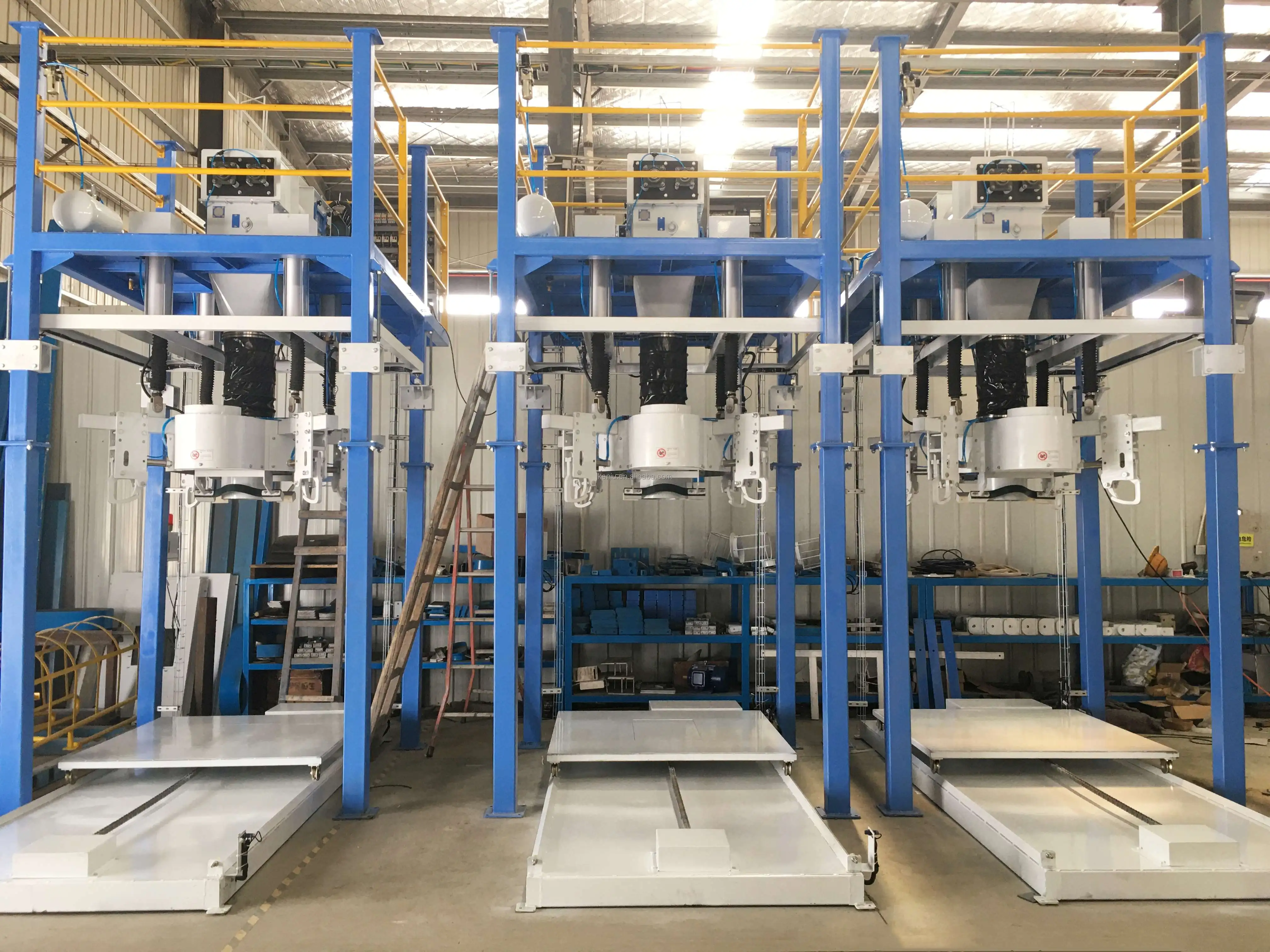

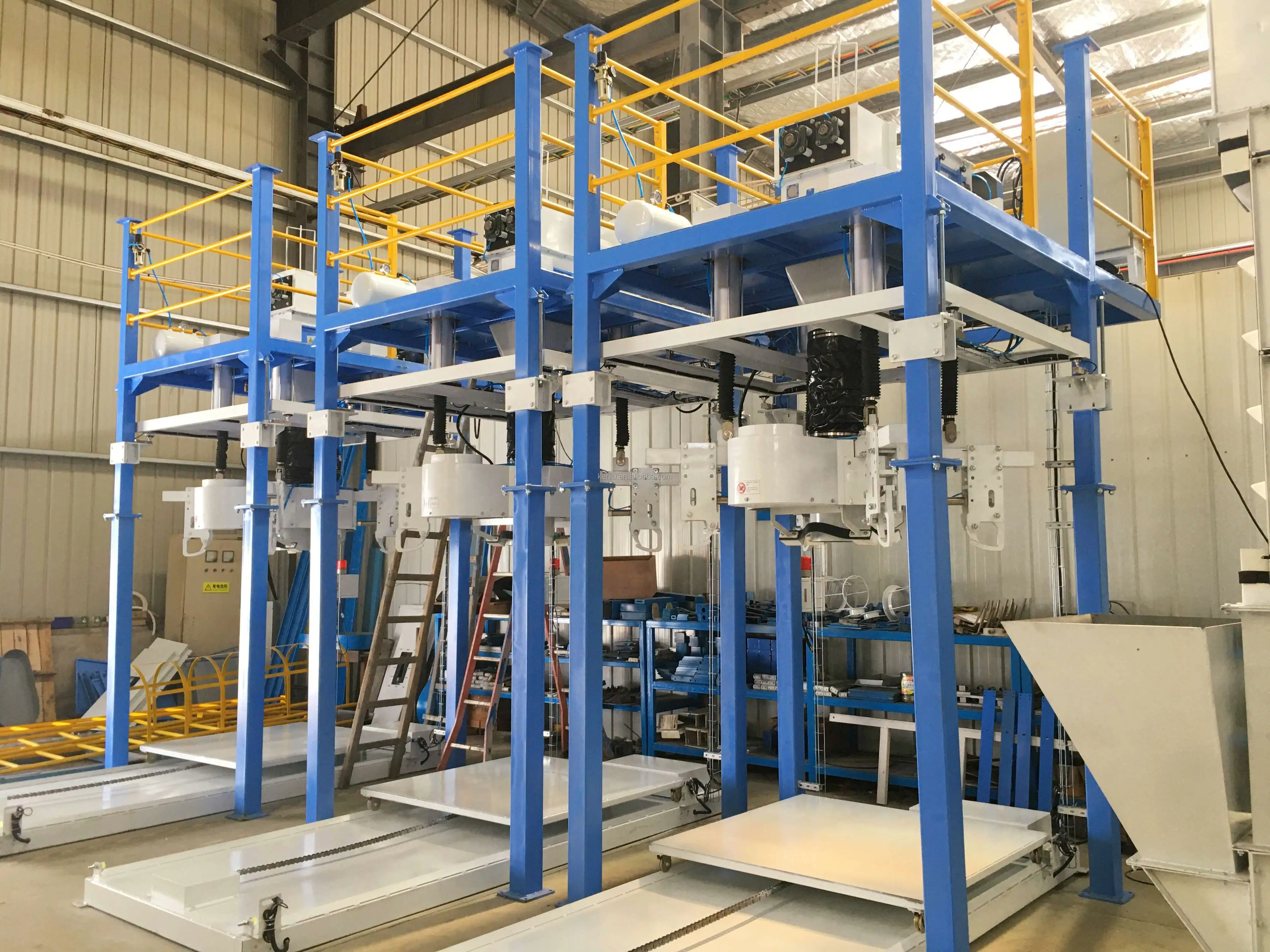

Packing bagging machine successful cases:



The packaging machine equipment will be installed and debugged in the factory before being sent to you, and then the whole set packing machine will be packed into a large export wooden box and then into the container. There is no need for much installation when you receive the equipment

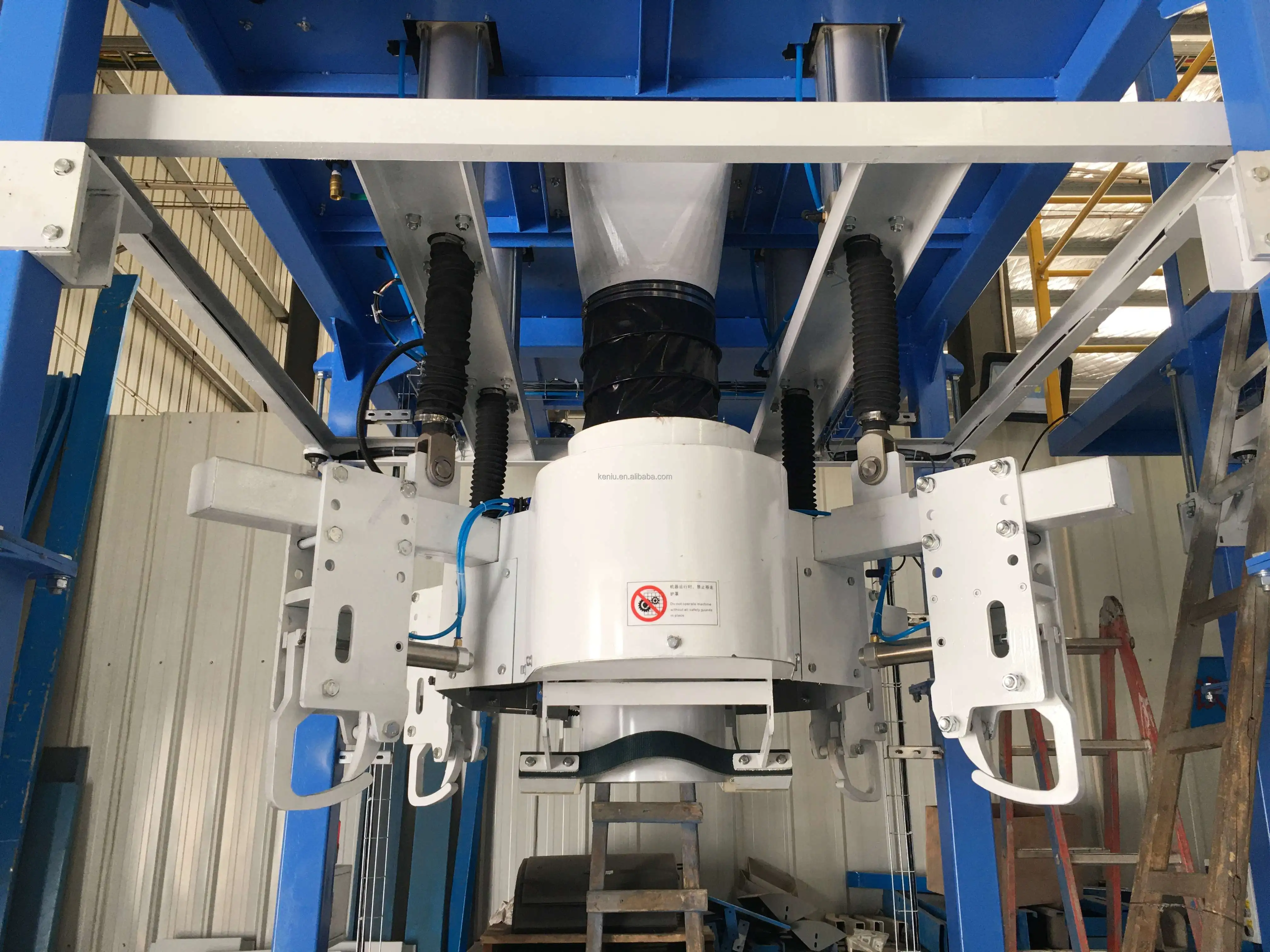

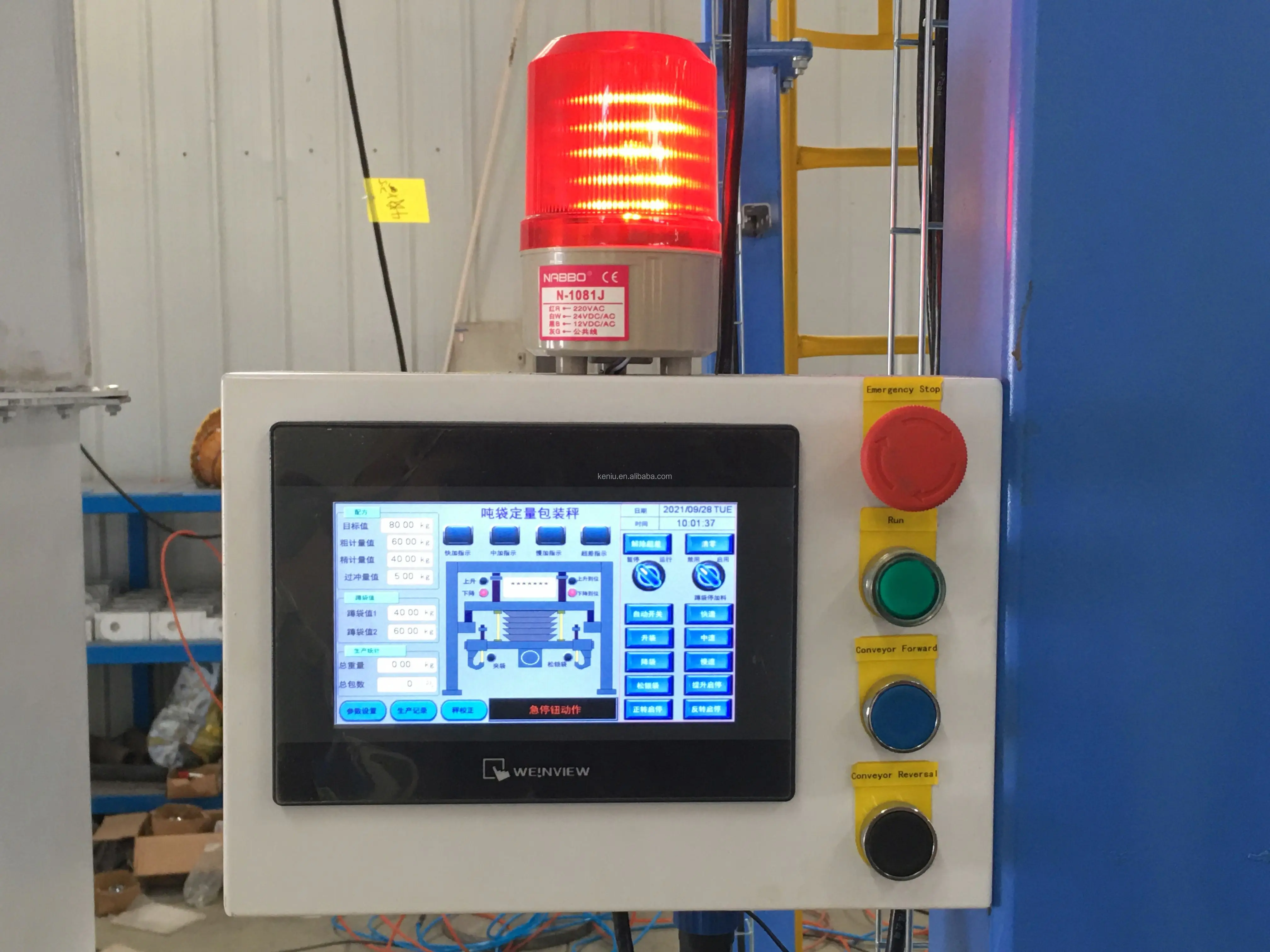

Integrated instrument, touch screen interface, automatic measurement, automatic calibration scale, weighing process monitoring, production data display and storage, easy to operate	The packing machine adopts AirTAC cylinder and solenoid valve, running smoothly, clamping the bag tighter, not easy to drop the bag, strong stability, long service life
The packing machine use of Mettler Toledo/Keli/AVIC load cell (weighing sensor), high precision, fast speed.	Packaging machine adopts Schneider /CHINT/Omron brand electrical components, more safe, more stable, longer service life



Depending on the industry, we can customize the equipment for you and provide complete packaging solutions from drawing design to installation and after-sales service

"WE STILL HAVE MORE MODELS/NEW DESIGN"

We can provide you one-stop packaging machinery, such as 5-10kg semi-automatic open mouth bag packaging machine, fully automatic packaging machine, automatic high-postion stacking machine, fully automatic robot palletizer, ton/jumbo/big bag packaging machine, sewing machine, heat sealing machine, sachet packaging machine, FFS heavy weight roll film packaging machine, stretch film wrapping machine, multi-lane liquid packaging machine, sealer & shrinkable packaging machine, automatic carton sealer, automatic strapping machine etc matching equipment.



 Q: Can your packing machine be customized according to our requirements?

Answer: Yes, of course. We can make customized production according to your requirements, such as color, configuration, logo and so on.



Q: Can you provide after-sales service for installation?

Answer: Yes. Packaging equipment before sent to you will installation and commissioning in our factory to make sure that all components work stable, then the whole device packed in the wooden case/container, when you received the equipment do not need a lot of installation and debugging, at the same time, we will provide the corresponding image/video/manual and online phone call if you have any questions.

If you need to send engineers to the local installation, commissioning and training staff, we can also provide.



Q: What is the production time of your packing machine

Answer: The production time of the standard packaging machine is about 15-20 days. Please confirm with us the specific production time.



Q: How long is the warranty on your packing machine?

A: We will provide a one-year warranty. If there is any problem with the equipment during the warranty period, we will provide free replacement. If the warranty is exceeded, the damaged spare parts will be provided to you at the cost price. At the same time, our packaging machine adopts brand components such as Schneider, AirTAC, etc., more stable and long life time, so please do not worry about the quality, you can trust us.
