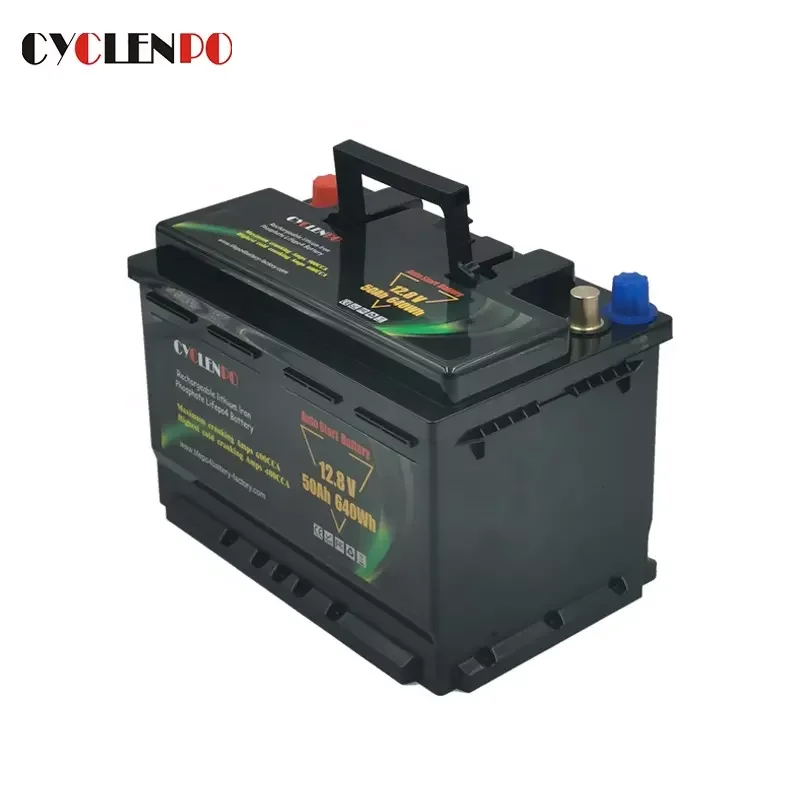

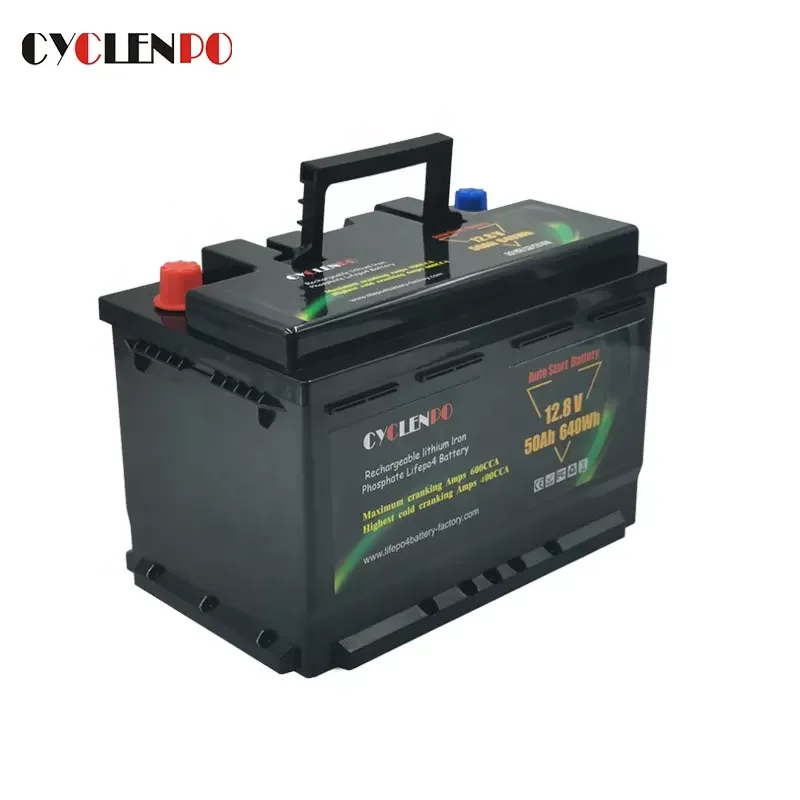

Factory 12v 50ah auto start lithium ion car battery
- Category: >>>
- Supplier: Shenzhen Cyclen Technology Co. Ltd.
Share on (1600683482929):
Product Overview
Description
Product Description
Factory supply 400CCA lifepo4 auto start 12v 50ah lithium ion car battery
Normal Performance | ||||
Item | General Parameter | Remark | ||
Model | IFR 3.2V 50AH | Single | ||
Casing material for single cell | Prismatic cells | 1S4P | ||
Standard capacity（0.2C 5 A） | 50Ah | |||
Rated voltage | 12.8V | Work voltage：3.20V | ||
Max.Charge voltage | 14.4V | Single Ave. charge Voltage 3.6V | ||
Cut-off voltage | 10.5V | Single Ave. Discharge Voltage 2.5V | ||
Standard charge current | 10A | 0.2C (can be adjusted ) | ||
charging Time | About 5hrs | |||
Max Continuous discharge current | 100A | 2C | ||
Max Cranking Current | 600A | 12C 2seconds | ||
Battery dimension | 279±1*175±1*189±1mm | Max dimension | ||
Total weight（Approx.) | About 6.5kg | Each box weight, 1pcs / box | ||
Impedance（Max, at 1000Hz.） | ≤ 8mΩ | Between the positive and negative | ||
High cold cranking Amps | 400 CCA | -20℃ | ||
Battery case material | ABS | |||
Standard | -20℃～55℃ | |||
discharge | -20℃～65℃ | |||
storage | -40℃～55℃ | |||
Integrated With BMS
Higher safety performance. BMS provide over current,
over voltage, over temperature, short circuit protection.
No fire hazard.
LiFePO4 Prismatic Cells
About 1/3 lighter in weight compared with lead acid batteries. More than 3000 cycle life and start your car more times repeatable
Quick start-off. Capable of high current (we offer
300CCA-1000CCA ) to meet different vehicles' need.
After testing, within 5 minutes after starting, the battery charging current is close to 0A, and the idling fuel consumption of the car is reduced by more than 10%.
It's recommended to choose a battery that exceeds the recommended power for your engine. Make sure the cranking amps are sufficiant for your motor.If you need more information, please contact us
