Product Overview
Description
wdm EDFA fiber CATV 1550 optical amplifier
PTA5102e
Product Description

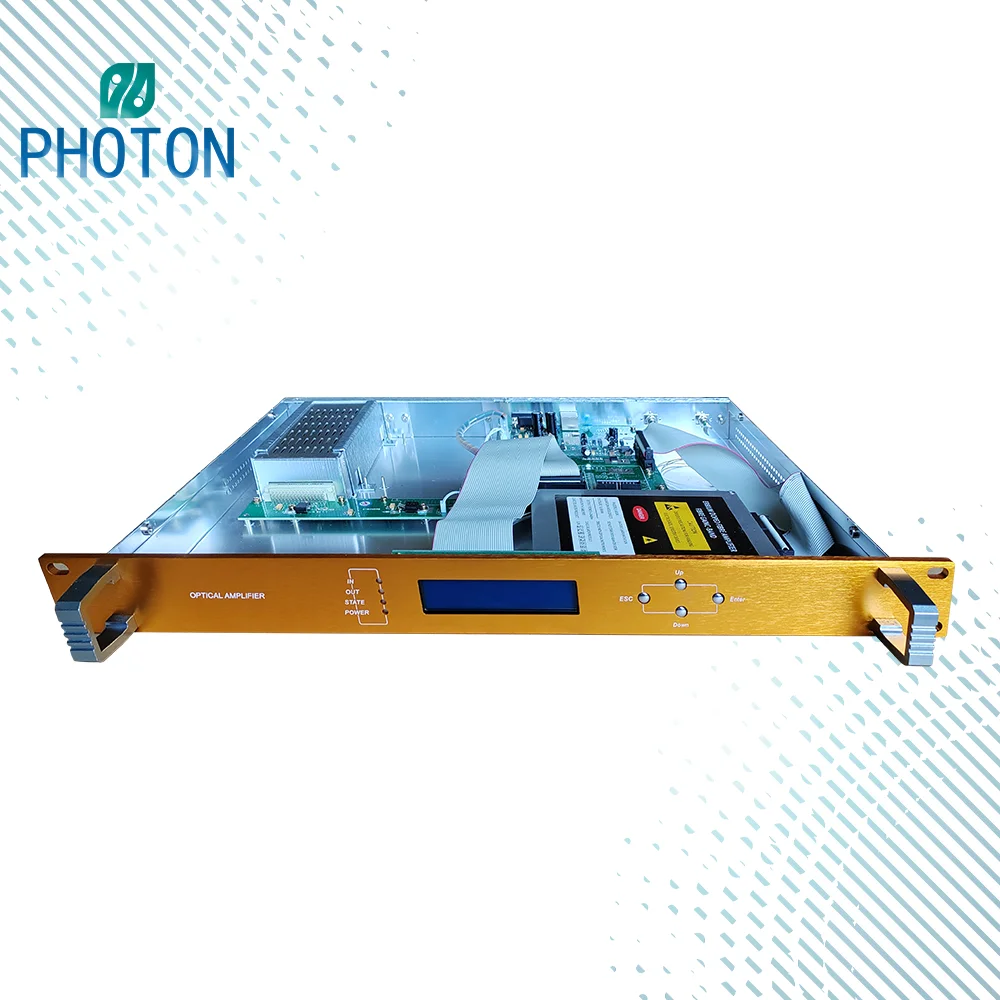

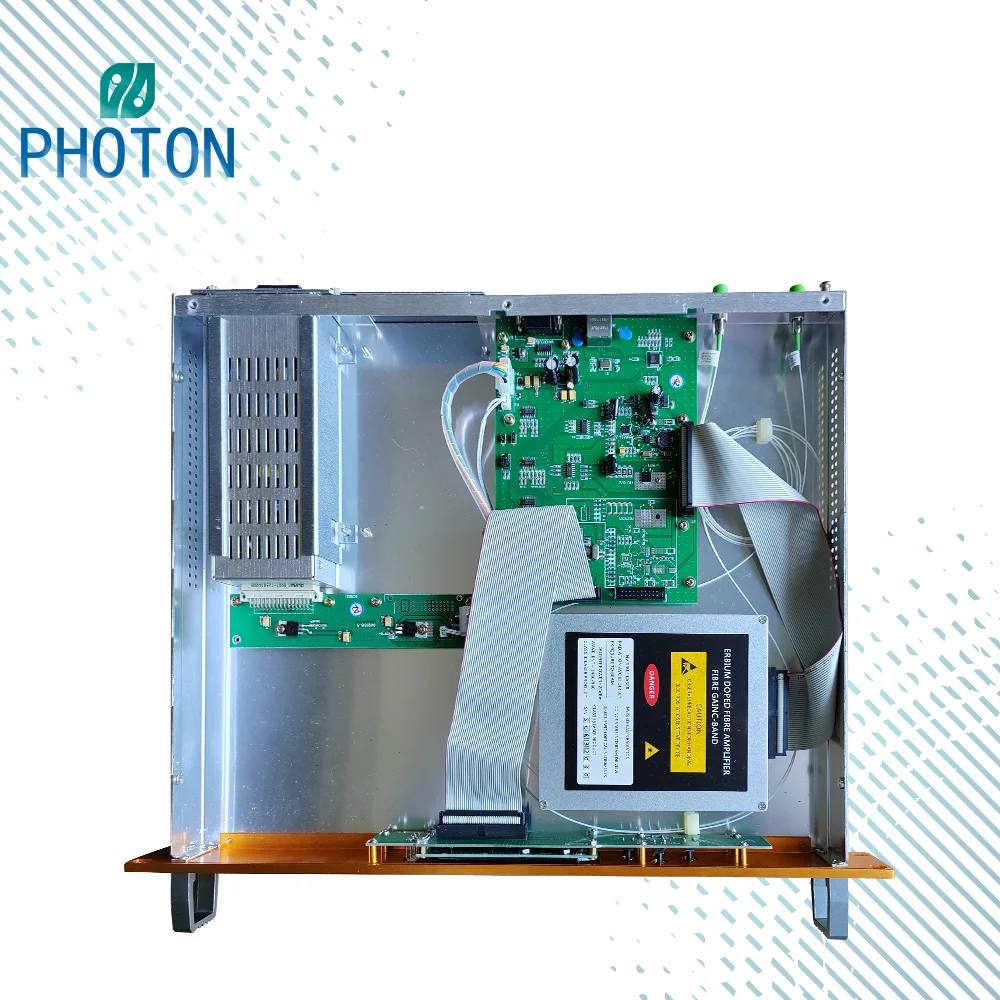

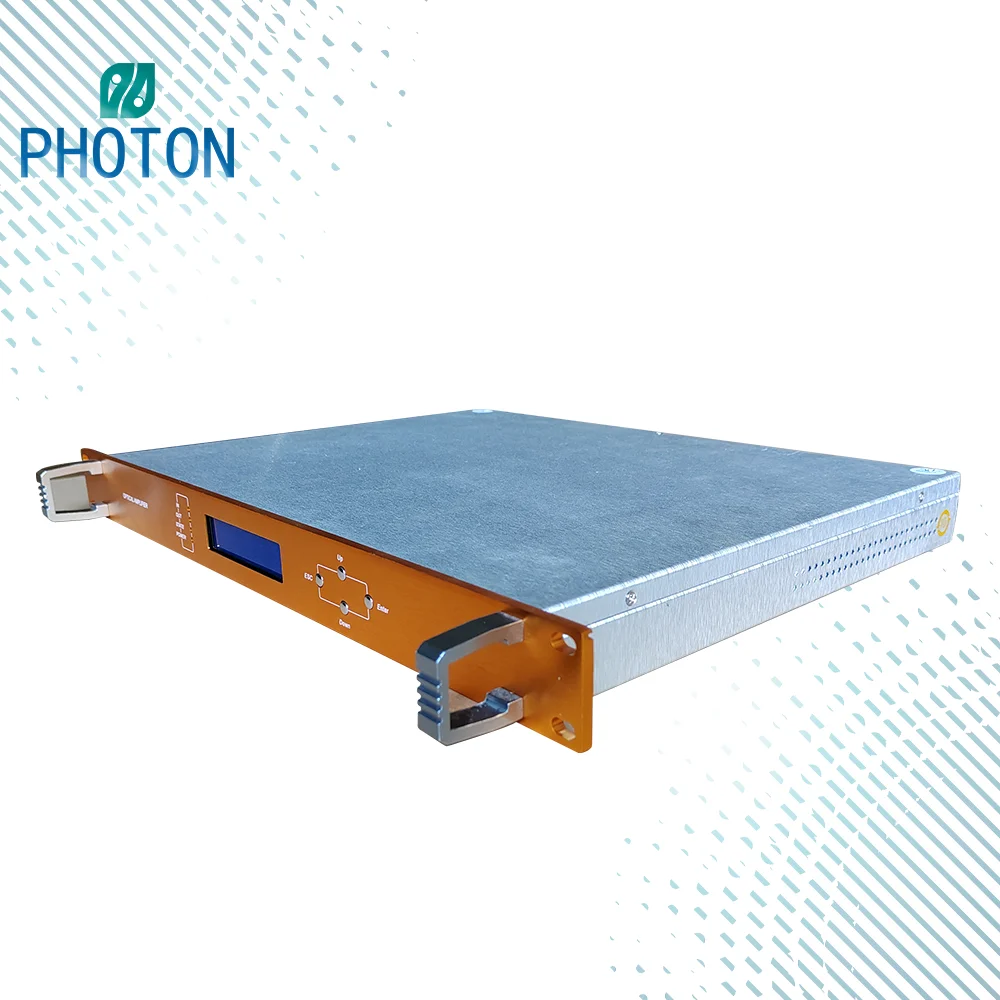

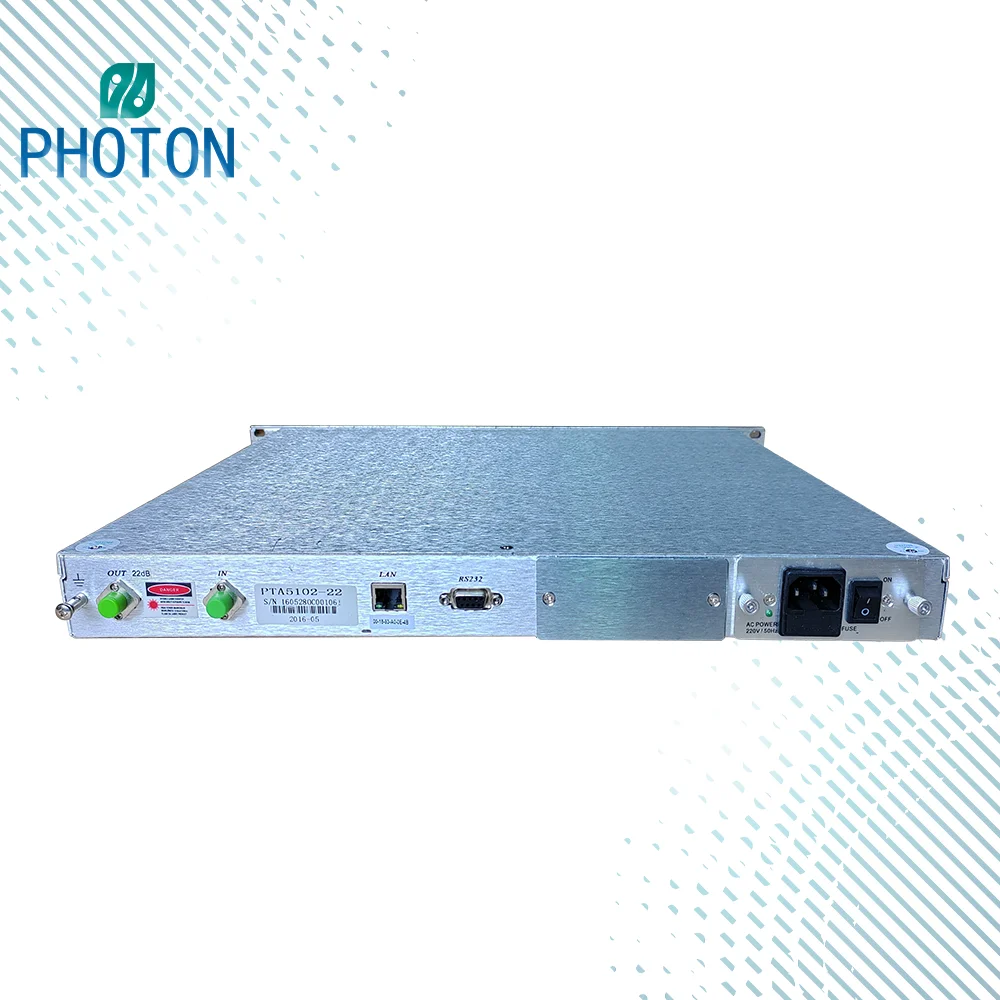

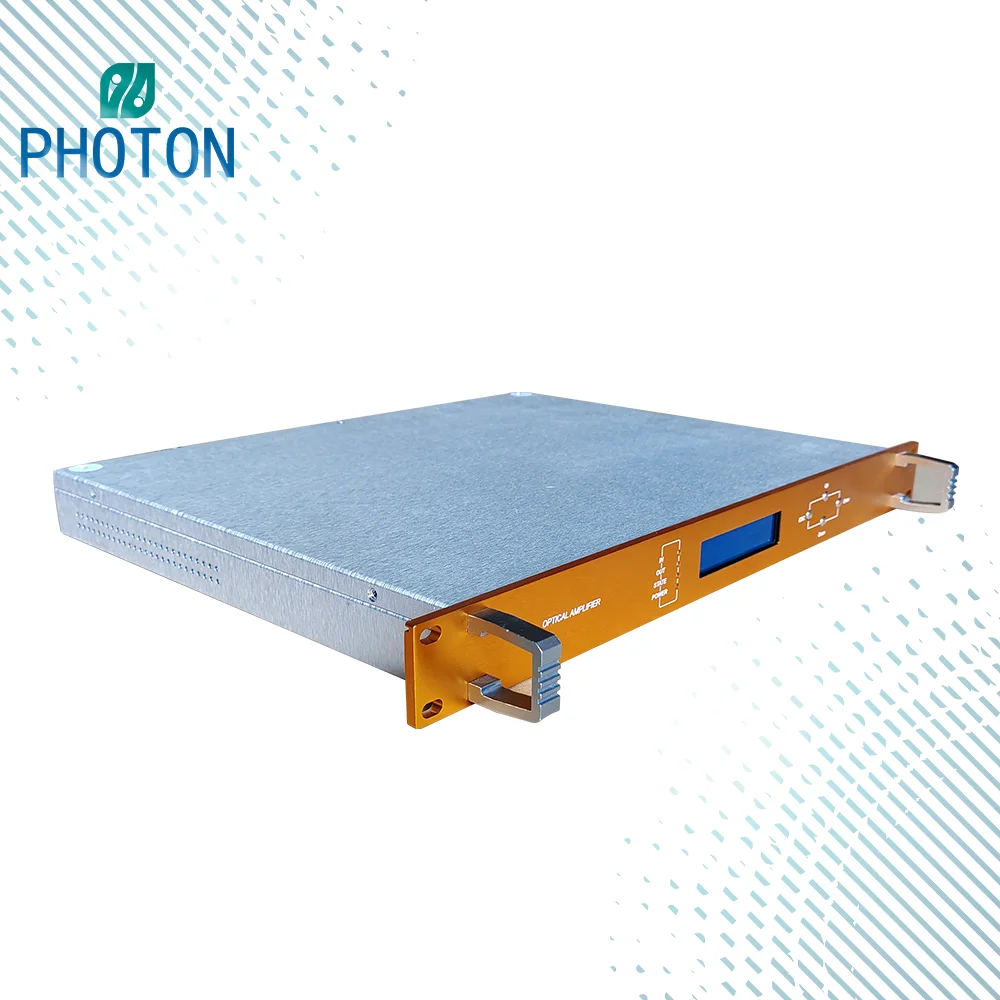

The PTA5102E Series Erbium Doped Fiber Amplifiers (EDFA) are designed for use in CATV application. It is optimized for 1550nm wavelength and is packaged in a convenient 1U 19” rack housing. The product offering is flexible enough to perform all the requirements of CATV applications. Optical Power adjustable is flexible for network link loss budget. The PTA5102E series EDFA also provide monitors and associated alarms for all vital characteristics. The status of the unit can monitored either from the VFD front panel display or remotely via ethernet based-SNMP with the PTN9210 management platform.
Features
l Full Functionality 1U EDFA
l Output powers from 14~,26dBm
l Output power adjustable -3~0dB
l Wide input dynamic range
l High Isolated input & output
l Low NF: Typical<5.5dB@ 6dBm input
l Low power consumption
l Front Panel Key Switch for pump on/off control
l AC 100V-260V or DC –48V(optional)
l Automatic Power Control (APC) or Automatic Current Control (ACC)

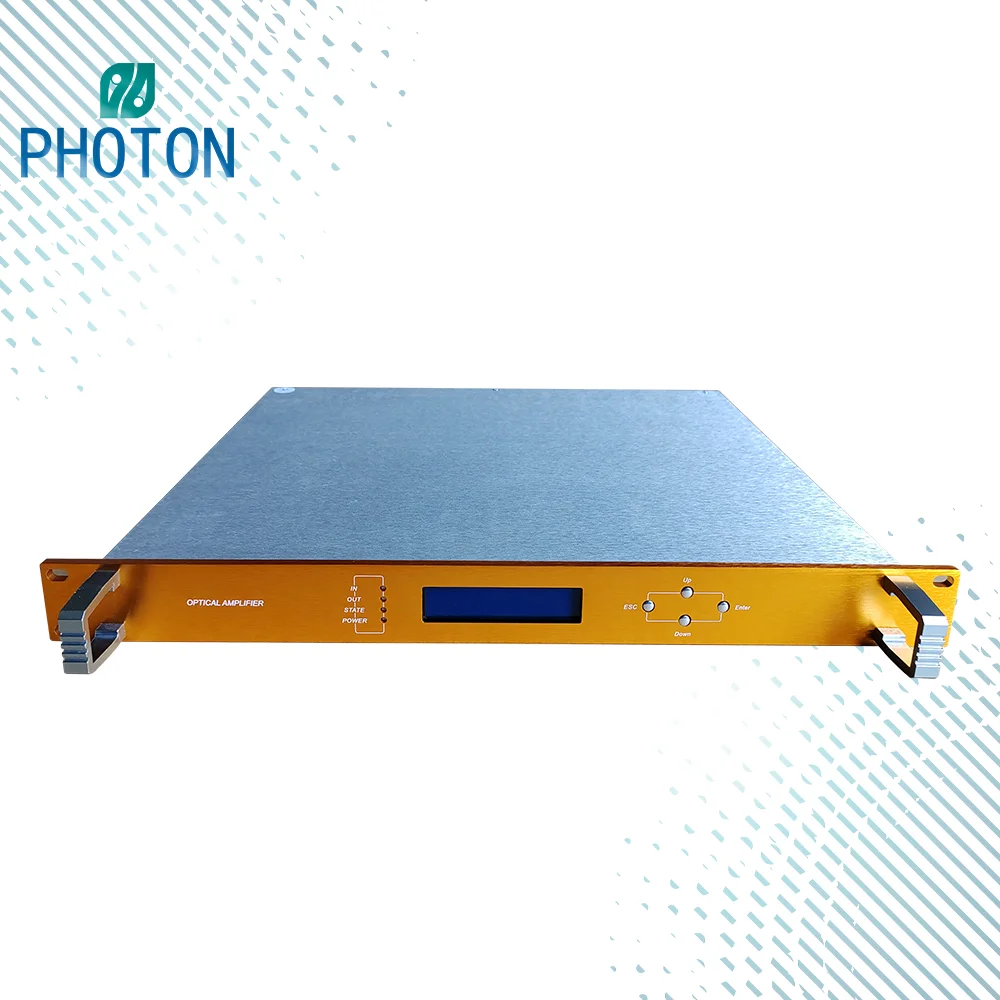

l VFD Panel Status Indicator for local monitor
l Remote management via SNMP (Ethernet Interface)
relate product
| 1ge+wifi | 1ge+1fe+wifi+catv | 1ge | 4ge+wifi+pots AC onu | WDM MINI NODE |
 |  |  |  |  |
 |  |  |  |  |
| 4 Port Epon OLT | 8 Ports Epon OLT | Gpon OLT 4 ports | Gpon oLT 8 Ports | WDM EDFA 8 Ports |

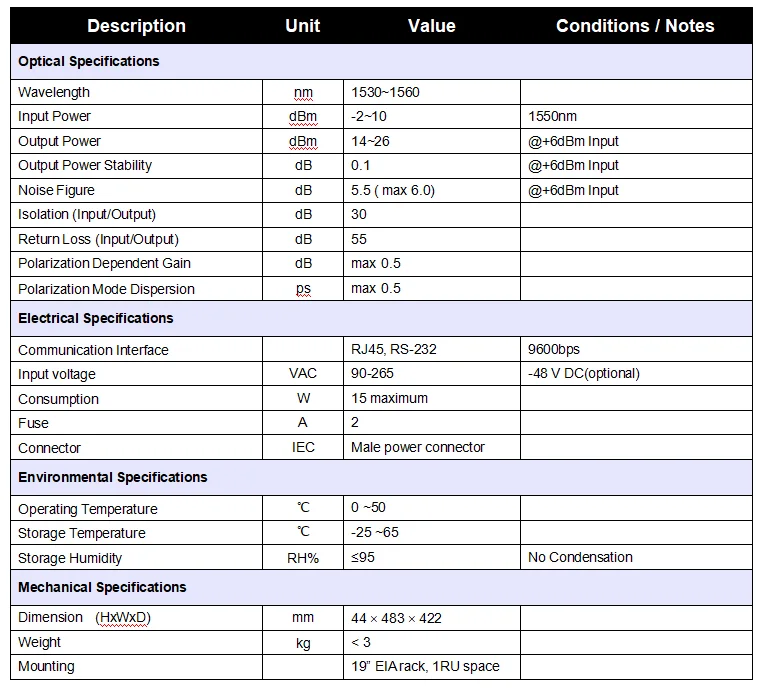

Specification
Packaging & Shipping
1.Shippmet: by sea, by plane;
2.We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS .
Our Services
1. Technical support: Professional technical team, all of our engineers can speak English, they will help you solve problems directly and Efficient.
2. OEM&ODM: We can help you to design and put your good idea into products.
3. Delivery time: We always ready to ship.
4. Warranty:1-years warranty.
5.After-sale:online service support for 365 days a year and 7x24 hours a week.
