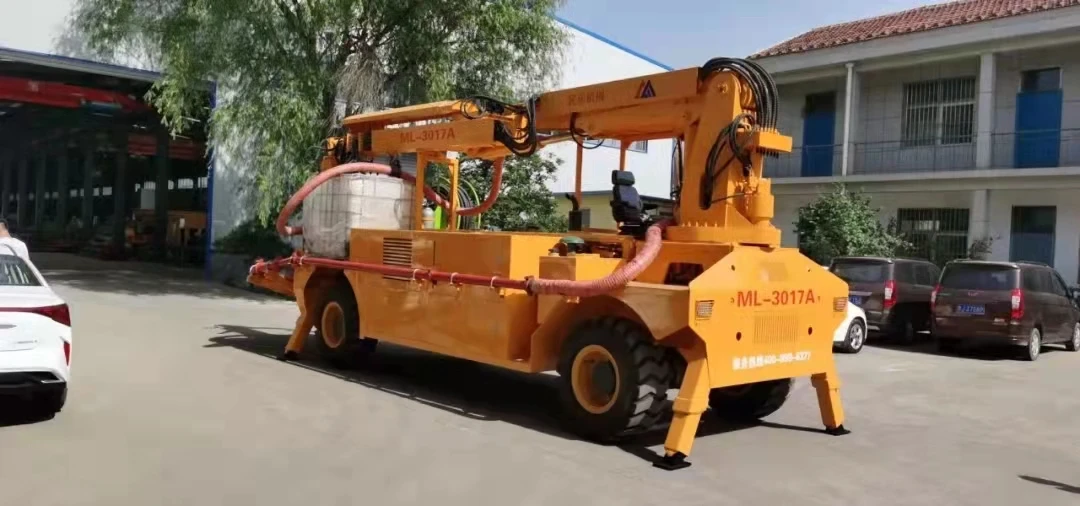

2022 hot sale Robot shotcrete machine shotcrete robot
- Category: >>>
- Supplier: Taian Minle Machine Manufacture Co. Ltd.
Share on (1600683554041):
Product Overview
Description
2022 hot sale Robot shotcrete machine shotcrete robot
Spray truck
Overall parameters | Item | Unit | Technical Parameters | |
Total quality | Kg | 15200 | ||
Dimensions (L × W × H) | mm | 7900*2500*3200 | ||
Chassis parameters | Engine
| Model |
| YCD4T33T6-115 |
Rated power | Kw/rpm | 85kw/2400rpm | ||
Emission Standards |
| Non-Road State III | ||
Drive method |
| Hydrostatic transmission, four-wheel drive | ||
Steering method |
| Four-wheel steering, two-way driving | ||
Brake system |
| Oil brake | ||
Gradeability | % | > 40 | ||
Turning radius | m | 6 | ||
Travel speed km / h | km/h | >17(Two gears) | ||

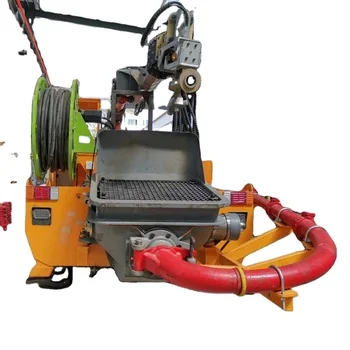

Pumping system | Power | Kw | 55 | |
Maximum displacement | m3/h | 30 | ||
Aggregate size | mm | 0-10,not exceed 16 | ||
Concrete slump | cm | 120-200 | ||
Concrete delivery pressure | MPa | 7.5 | ||
Concrete cylinder bore × stroke | mm | φ180x1000 | ||
Hopper volume | m3 | 0.35 | ||
Feeding height of hopper | m | 1.5 | ||
Robot parameters | Maximum Working range | Up | m | 15 |
Forward | m | 13 | ||
Width | m | 26 | ||
Boom swing angle | ° | 270° | ||
Boom pitch range | ° | 0- 70 ° | ||
Forearm pitch range | ° | 0- 70 ° | ||
Forearm telescopic range | m | 2x2.2 | ||
Nozzle seat axial rotation range | ° | 360 | ||
Nozzle seat axial swing range | ° | 240 | ||
Nozzle deflection angle x brushing |
| 8°x360°No intermittent brushing | ||
Operation method |
| Remote control | ||
Conveying pipe diameter | mm | 90 | ||
Accelerator pump | Model |
| SN02-24 | |
Type |
| Screw | ||
Drive method |
| Hydraulic motor + electric ratio | ||
Maximum metering capacity | L/h | 800 | ||
Maximum delivery pressure | Bar | 24 | ||
Electrical system | Operating voltage | V | 380/50Hz | |
Control method |
| Construction machinery dedicated controller + professional industrial control screen display | ||
Cable specifications, length | m | (3*35+1)x80 | ||
Cable reel drive mode |
| Hydraulic | ||

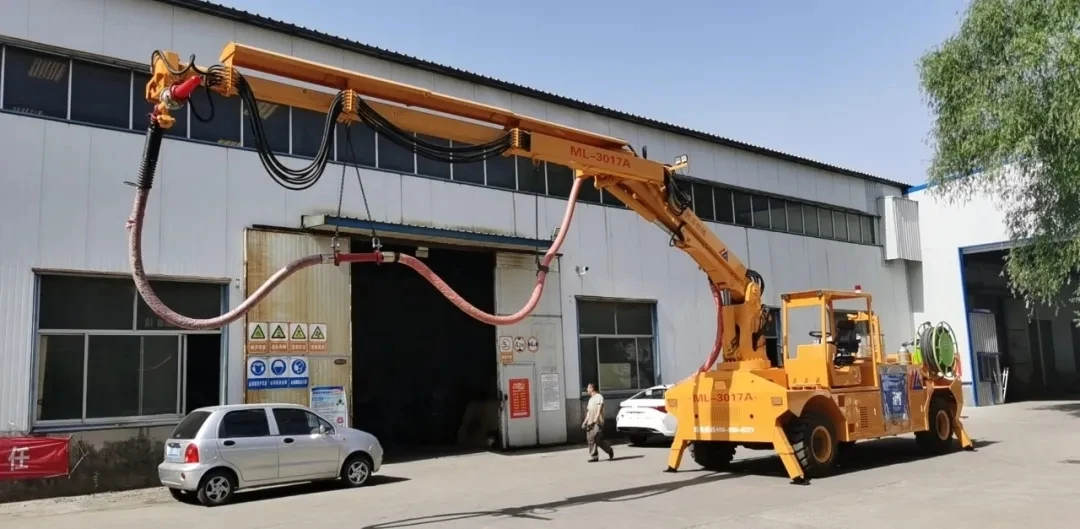

The ML-3017A concrete wet spraying trolley designed and produced by our company is an advanced, reliable and intelligent wet spraying trolley that is continuously upgraded and optimized in combination with the advantages of domestic and foreign products. It has a full range of functions, a wide range of application, and stable and reliable performance. , Large spraying capacity, high operating efficiency, good spraying effect, flexible and convenient control, and strong self-ability. It is widely used in tunnels, culverts, subways, slopes and other projects.
Main technical features:

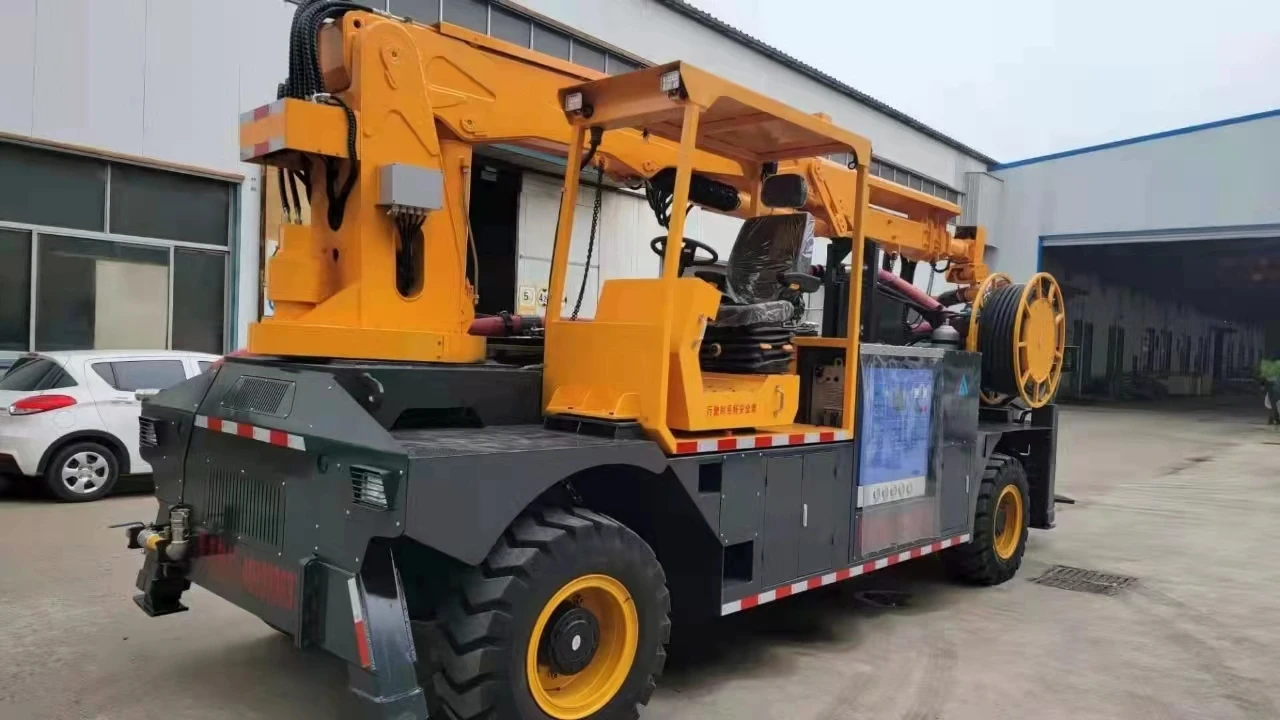

1. Use special off-road chassis, four-wheel drive, four-wheel braking, four-wheel steering (crab, centripetal, front wheel, rear wheel four steering modes), good mobility, small turning radius, suitable for narrow and complex Traffic conditions. Open cab with wide view and two-way driving. It adopts the imported axles of Carraro, Italy, and adopts the hydrostatic system for walking, and the main pump and motor of the Italian PMP.
2. The robot has a large spray range, many degrees of freedom, flexible remote control operation, good spray flatness, less rebound, high spray efficiency, good construction quality, stable structure, safe and reliable, and smooth movement.
3. The accelerating agent adding system adopts screw pump, which has large flow, long life and good reliability. According to the preset ratio, the amount of admixture is automatically consistent with the concrete pumping output, and can be monitored and adjusted in real time through the industrial control screen or remote control.
4. The electrical system is reliable and durable. The components are imported from domestic and foreign famous brand products, and all spray operations can be operated by one person on the remote control. It adopts wireless remote control, which is convenient and flexible. It is equipped with a lead cable of 80m, which is retracted by a cable drum driven by a hydraulic motor.
5. The motor is driven during normal spray construction. In the event of power interruption, the power of the diesel engine can also be used to make the pumping system work for a short time, and the injection robot can collect and release the robot and clean the pump at a slow speed.
Robot arm Advantages
MINLE ML-3017A truck mounted shotcrete pump is an advanced, reliable and intelligent wet shotcrete machine. truck mounted wet shotcrete machine that is continuously upgraded and optimized in combination with the advantages of domestic and foreign products. With Large spraying capacity, high operating efficiency, good spraying effect, flexible and convenient control, strong self-ability, it widely used in tunnels, culverts, subways, slopes and other projects.
Advantages:
1. A dedicated off-road chassis, four-wheel drive, four-wheel braking, four-wheel steering (crab, centripetal, front, and rear wheels are four steering modes), good maneuverability, small turning radius, suitable for narrow and complex road conditions.
Open cab with wide view and two-way driving. It adopts the imported carro axle of Italy Carraro, the hydrostatic system is used for walking, and the main pump and motor of PMP travel in Italy.
2. The manipulator has a large spray range, many degrees of freedom, flexible remote control operation, good spray flatness, less rebound, high spray efficiency, good construction quality, stable structure, safe and reliable, and smooth movement.
3.The accelerating agent adding system adopts screw pump, which has large flow, long life and good reliability. According to the preset ratio, the amount of admixture is automatically consistent with the concrete pumping output, and can be monitored and adjusted in real time through the industrial control screen or remote control.
4.The electrical system is reliable and durable. Components are imported from domestic and foreign famous brand products.
All spray operations can be operated by one person on the remote control.
5.It adopts wireless remote control, which is convenient and flexible. It is equipped with a lead cable of 80m, which is retracted by a cable drum driven by a hydraulic motor.
It is driven by a motor during normal spray construction. In the case of power interruption, the power of the diesel engine can also be used to make the pumping system work for a short time, and the injection robot can realize various operations such as collecting and releasing the robot and cleaning the pump at a slow speed.
Product information
Production process
Our Services
Packaging & Shipping
Please note:
Concrete trailer pumps: 1*20'GP can load one set with 100m pipe.
Concrete mixer pumps: 1*40'HQ can load two sets with 200m pipe.
