Product Overview
Description
Competitive price OEM 1.3"---23.8" IPS LCD module
Product Description

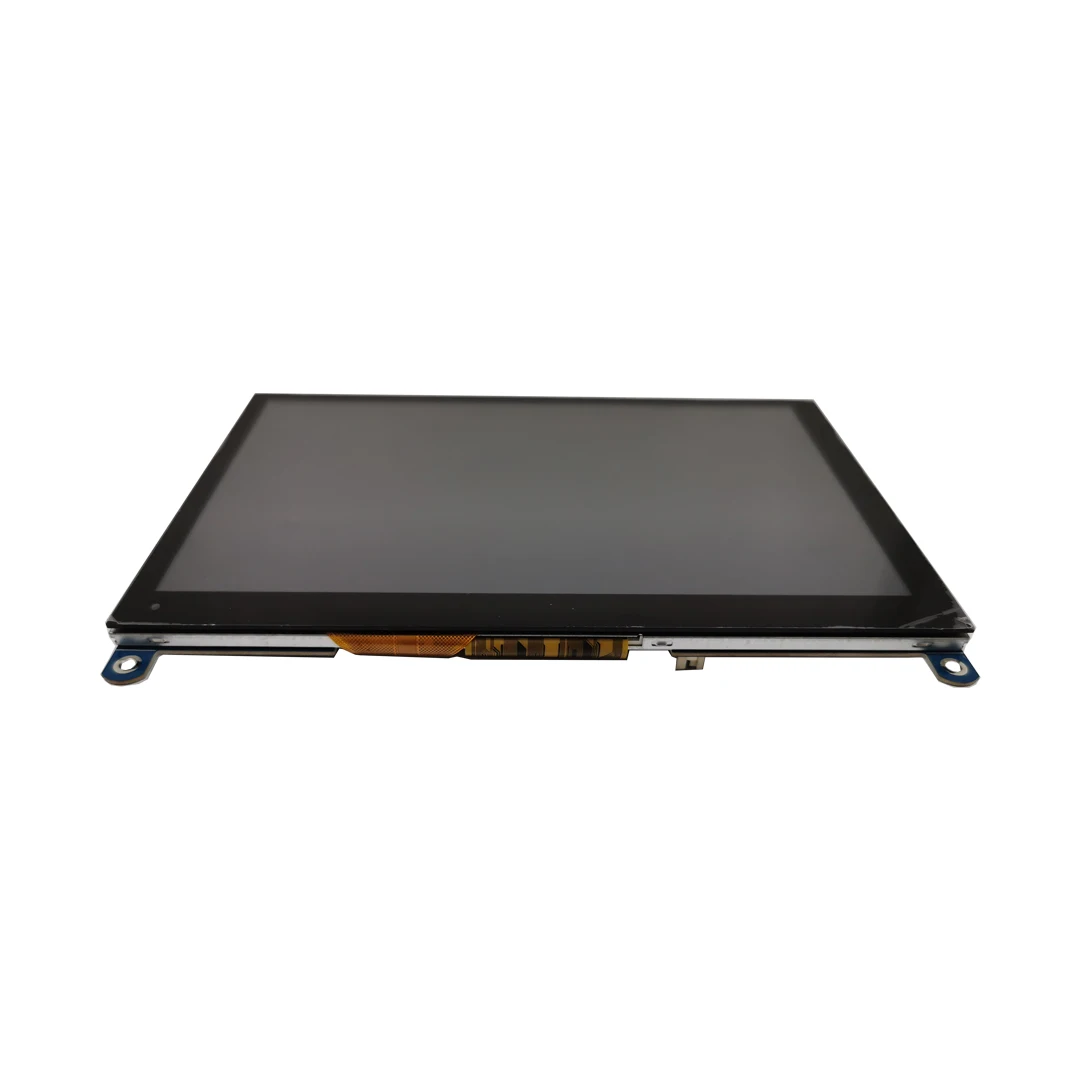

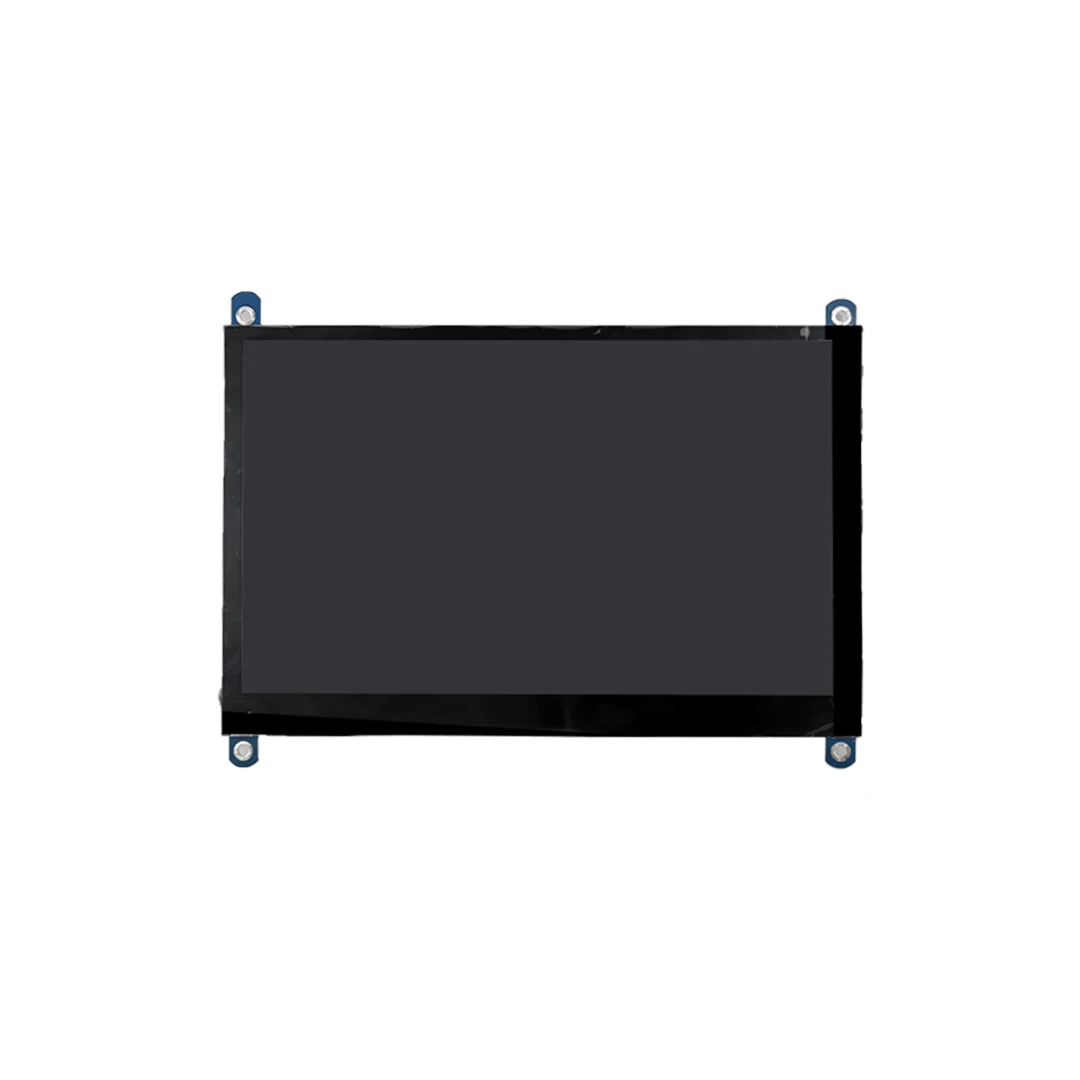

DuoBond 7 inch 1280*768 Pixel HDMI Interface With CTP LCD module

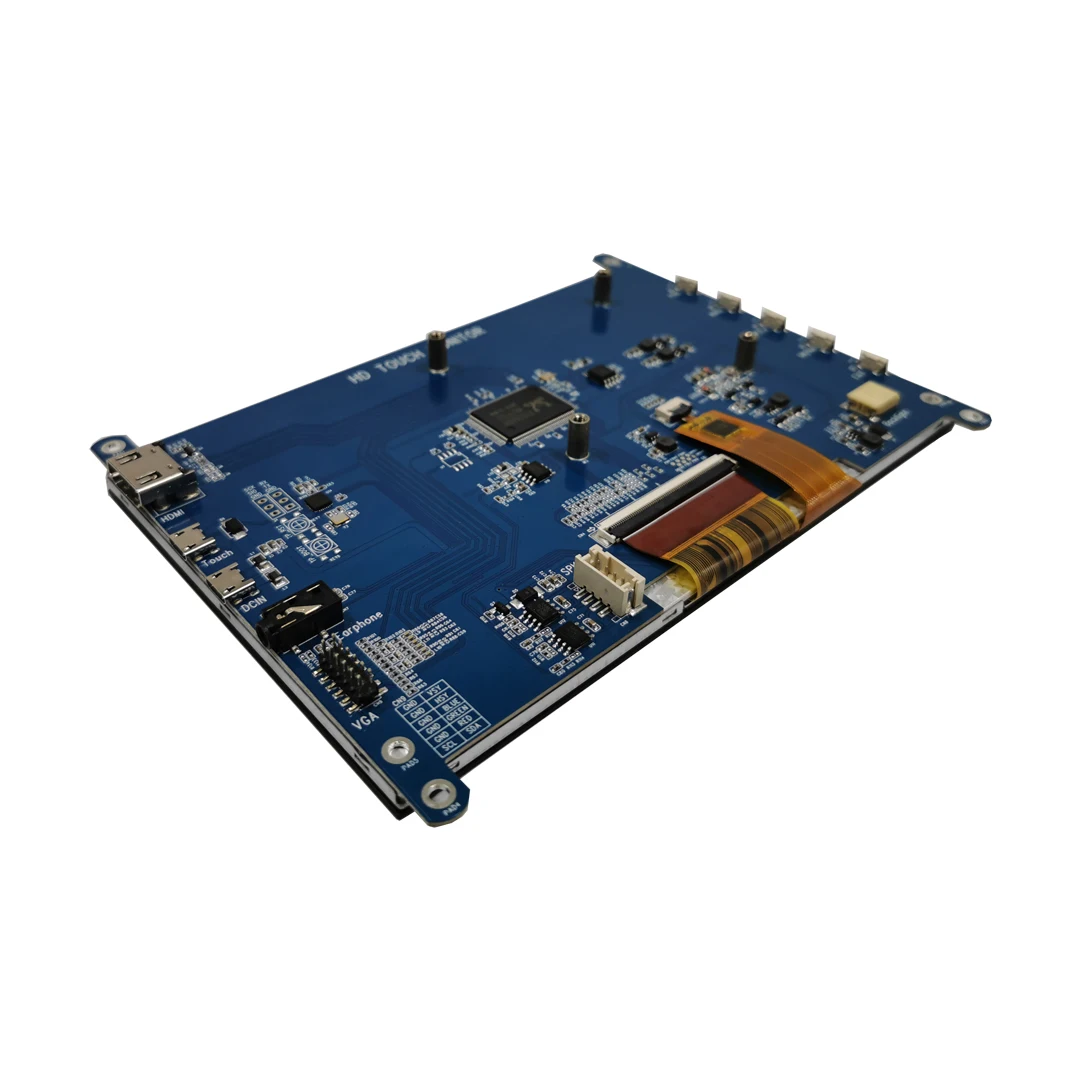

Description: This is a 7 inch LCD display with capacitive touch panel and driver board assembly. It has advantages of high
contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience. All these LOD displays are original new with Grade A+ condition. If you need customized products similar to this one, please feel fre to contact us!
contrast, wide color gamut, and wide viewing angle, which make it able to bring vivid and delicate visual experience. All these LOD displays are original new with Grade A+ condition. If you need customized products similar to this one, please feel fre to contact us!
Features:
1.7 inch LCD, 1280x768 resolution
2. It support 1280x768 Pixel with landscape mode by default.

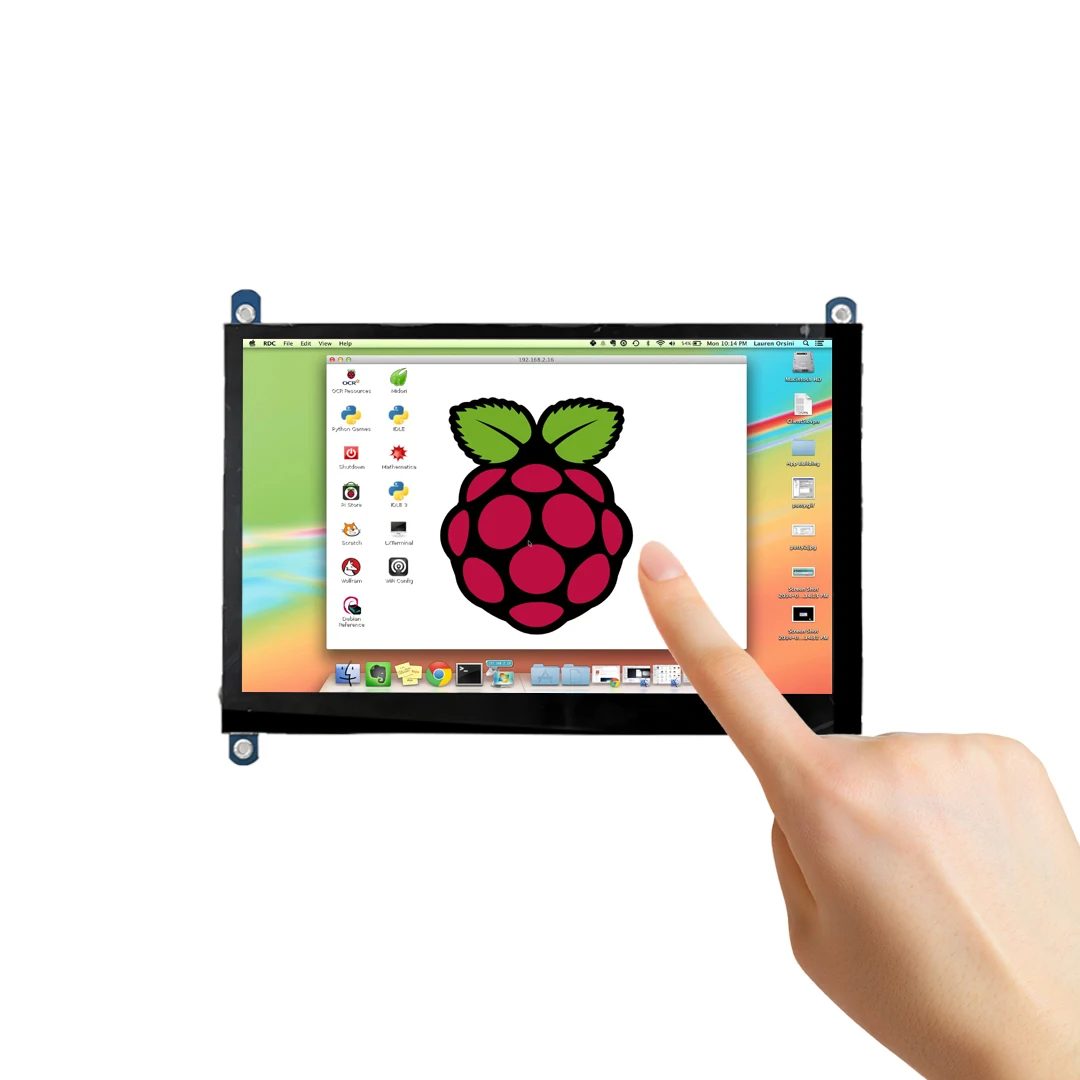

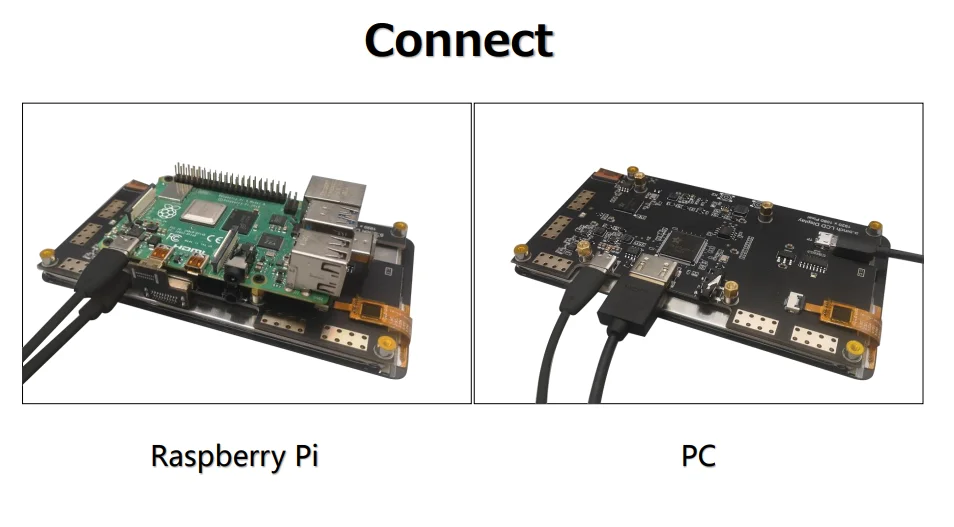

3. Supports popular mini PCs such as Raspberry Pi, as well as general desktop computers. It's compatible with Raspberry Pi, TV BOX, GAME BOX, PC/Notebook.
4. When works as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free

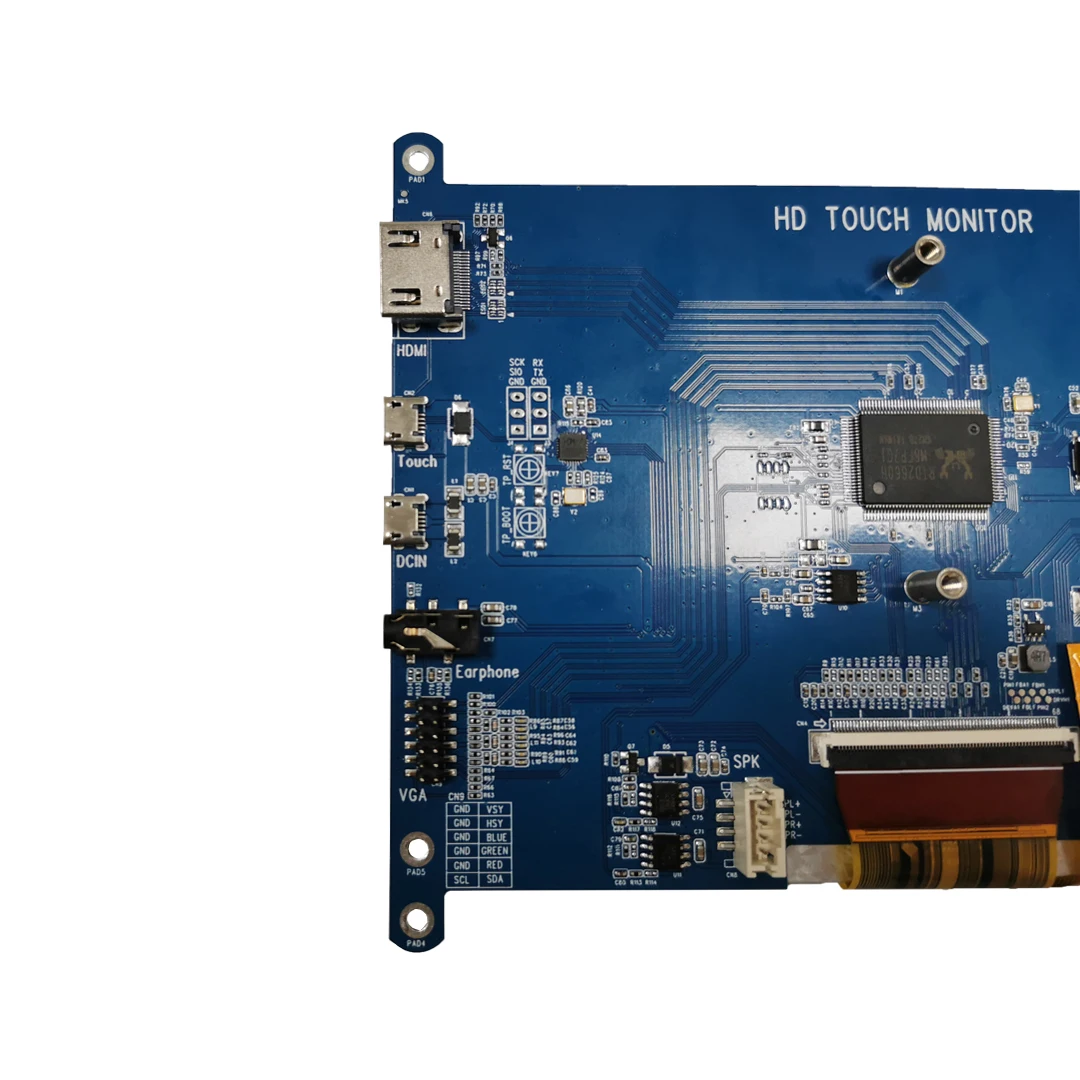

6. 3.5mm audio jack, supports HDMI audio output

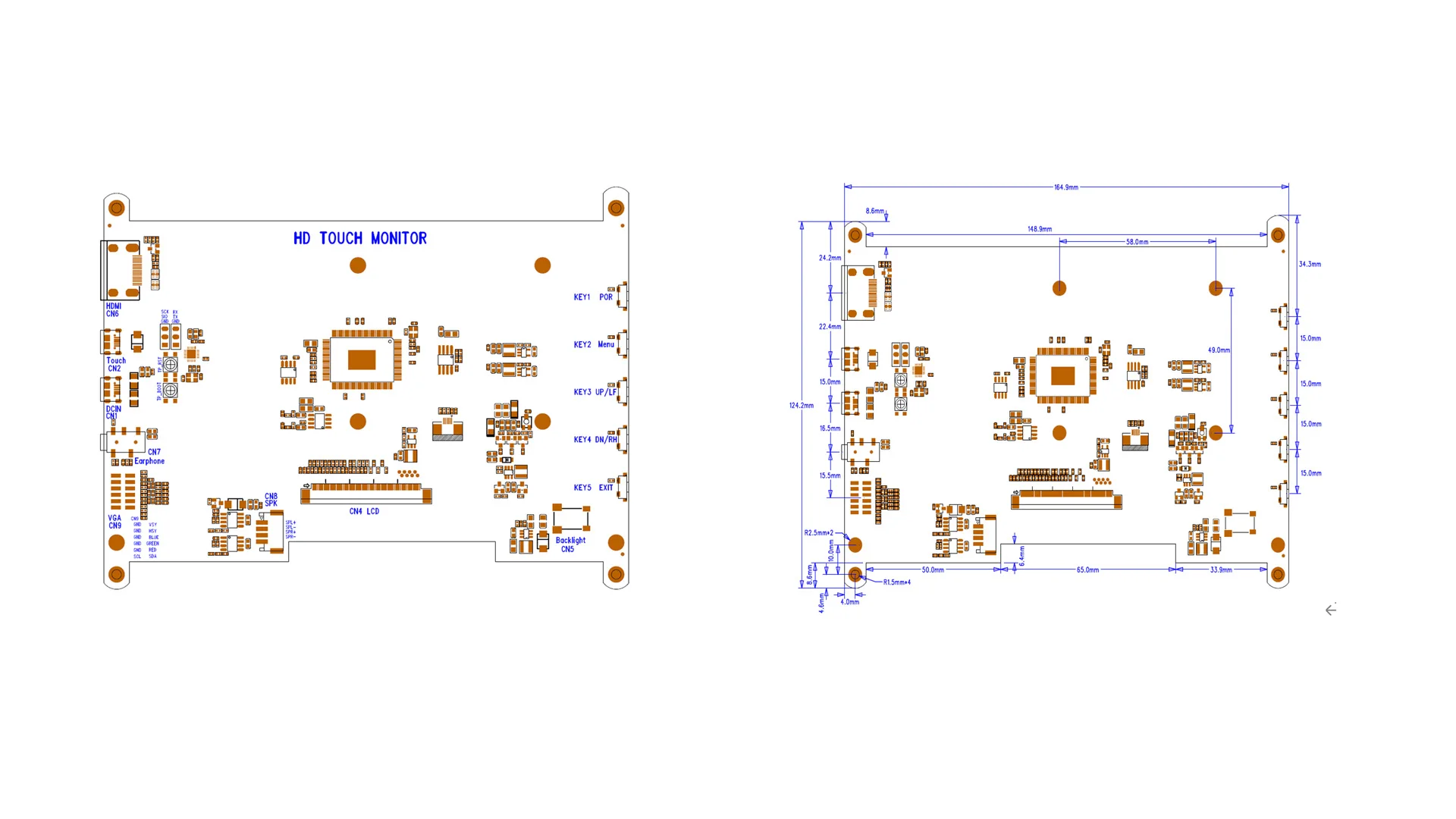

7. M2.5 screw holes for easy mounting
8. Favorable price and stable supply ability.
(The full set not include Raspberry Pi. All items are mentioned in the following packing list.)
1.7 inch LCD, 1280x768 resolution
2. It support 1280x768 Pixel with landscape mode by default.
3. Supports popular mini PCs such as Raspberry Pi, as well as general desktop computers. It's compatible with Raspberry Pi, TV BOX, GAME BOX, PC/Notebook.
4. When works as a computer monitor, supports Windows 10/8.1/8/7, five-points touch, and driver free
6. 3.5mm audio jack, supports HDMI audio output
7. M2.5 screw holes for easy mounting
8. Favorable price and stable supply ability.
(The full set not include Raspberry Pi. All items are mentioned in the following packing list.)
Specification
item | value |
Display Size | 7 inch |
Place of Origin | China |
Model Number | HDMI Interface With CTP |
Resolution | 1280*768 |
Viewing Angle | IPS 80/80/80/80 |
Touch Type | capacitive touch |
Touch Points | Five Points |
Touch interface | USB |
Touch panel | Tempered |
Audio Output | 3.5mm Earphone jack |
Related Products
Size | Module No. | Resolution | Outline Dimension (mm) | Active Area (mm) | Interface | Viewing angle (Typ.) |
1.33" | DBT133QH002S | 240 x 240 | 26.85(W) x 29.55(H) x 1.92(T) | 23.4(H) x 23.4(W) | MCU | 80/80/80/80 |
1.44" | DBT144QQ046S | 128 x 128 | 27.9(W) x 32.64(H) x 2.25(T) | 25.49(H) x 26.49(W) | MCU | 70/70/65/60 |
1.77" | DBT177QA002S | 128 x 160 | 38.0(W) x 32.36(H) x 2.6(T) | 26.5(H) x 25.0(W) | SPI | 45/45/45/20 |
2" | DBT020QV035S | 240 × 320 | 51.8(H) x 36.2(W) x 2.45(T) | 40.55(H) x 30.6(W) | MPU | 80/80/80/80 |
2.31" | DBT231QA015S | 320 x 240 | 47.55 (W) x 55.2(H) x 2.8 (T) | 35.06(H) × 46.75(W) | RGB | 70/70/70/60 |
2.31" | DBT231QA033S | 320 x 240 | 45.8(W) x 51(H) x 2.5(T) | 35.06(H) x 46.75(W) | SPI | 70/70/70/60 |
2.4" | DBT024QV161S | 240 x 320 | 42.72 (W) x 60.26(H) x 2.2 (T) | 36.72(W) ×48.96 (H) | MPU | 70/70/70/60 |
2.4" | DBT024QV169S | 240 x 320 | 42.72 (W) x 60.26(H) x 2.3(T) | 36.72(W) × 48.96 (H) | SPI | 80/80/80/80 |
2.4" | DBT024QV181S | 240 × 320 | 60.26(W) x 42.72(H) x 2.25 (T) | 48.96(H) × 36.72(W) | SPI | 80/80/80/80 |
2.8" | DBT028QV049T | 240 × 320 | 69.2(W) x 50(H) x 3.6(T) | 57.6(H) x 43.20(W) | MPU | 70/60/70/70 |
3" | DBT030QA041S-B1 | 360 x 640 | 74.51(W) x 42.64(H) x 2.45(T) | 57.6(H) x 43.20(W) | MIPI | 80/80/80/80 |
3.5" | DBT035HV078S-B1 | 320 × 480 | 55.26(W) x 84.69(H) x 2.4(T) | 48.96(W) x 73.44(H) | MCU | 70/70/60/60 |
4" | DBT400WV090T | 480 × 800 | 113.4(W) x 60.24(H) x 3.36(T) | 86.4(H) x 51.84(W) | MIPI | 80/80/80/80 |
4.3" | DBT043HIV40R08 | 800 x 480 | 105.5(W)x67.2(H)x3.36(T) | 95.04(H) x 53.86(W) | LVDs | 80/80/80/80 |
7" | DBC070AIE40L05 | 720 x 720 | 150(W) x 150(H) x 4.5(T) | 125.82(H) x 125.82(W) | LVDs | 80/80/80/80 |
7" | DBT700AT9309 | 800 x 480 | 165(W) x 104.44(H) x 5.7(T) | 152.4(H) x 91.44(W) | TTL | 80/80/80/80 |
7" | DBT070TN83 | 800 x 480 | 165(W) x 104.44(H) x 5.7(T) | 152.4(H) x 91.44(W) | TTL | 80/80/80/80 |
7" | DBT070AIV30L8-B | 800 x 480 | 170.0(W) x 106.30(H) x 6.60(T) | 152.40(H) x 91.44(W) | LVDS | 80/80/80/80 |
7" | DBT070HTA40L9 | 1024 x 600 | 165.0(W) x 104.0(H) x 5.05(T) | 153.6(H) x 86.64(W) | TTL | 70/70/60/70 |
7" | DBT070BIU40M5 | 1200 x 1920 | 100.30(W)x162.10(H)x2.45(T) | 94.5(H) x 151.2(W) | MIPI | 80/80/80/80 |
7" | LQ070M1SX01 | 1200 x 1920 | 99.7(W) x 159.85(H) x 1.725(T) | 94.5(H) x 151.2(W) | MIPI | 80/80/80/80 |
7" | TM070JDHG30-00 | 1280 x 800 | 161(W) x 107(H) x 3.35(T) | 149.76(H) x 93.6(W) | LVDS | 88/88/88/88 |
7.3" | DBT073TEN40L05 | 1200 x 280 | 192.20(W) x 54.00(H) x 4.80(T) | 180(H) x 42(W) | LVDS | 70/70/60/70 |
8.8" | DBC088HIX60L01 | 768 x 768 | 176.85(W) x 176.85(H) x 1.29(T) | 158.4(H) x 158.4(W) | LVDS | 85/85/85/85 |
9" | DBT090CTV50R9 | 800 x 480 | 211.1(W) × 126.5(H) × 5.9(T) | 198(H) × 111.696(W) | TTL | 70/70/50/70 |
10.1" | DBT101IIE40L0 | 1280 x 800 | 229.46(W) x 149.1(H) x 4.5(T) | 216.96(H) x 135.6(W) | LVDS | 85/85/85/85 |
10.1" | DBT101BIU40L12 | 1920 x 1080 | 229.91(W) x 135.74(H) x 2.8(T) | 125.71(W) x 223.48(H) | LVDS | 85/85/85/85 |
10.4" | DBT104IIX30L5 | 1024 x 768 | 215.4(W) x 161.8(H) x6.5(T) | 210.4(H) x 157.8(W) | LVDS | 88/88/88/88 |
11.6" | DBT116BIU30E12 | 1920 x 1080 | 268(W) x 158(H) x 3.0(T) | 256.32(H) x 144.18(W) | eDP | 85/85/85/85 |
15.6" | NV156FHM-N61 | 1920 x 1080 | 350.66(W) x 216.25(H) x 2.45(T) | 344.16(H) x 193.59(W) | eDP | 85/85/85/85 |
