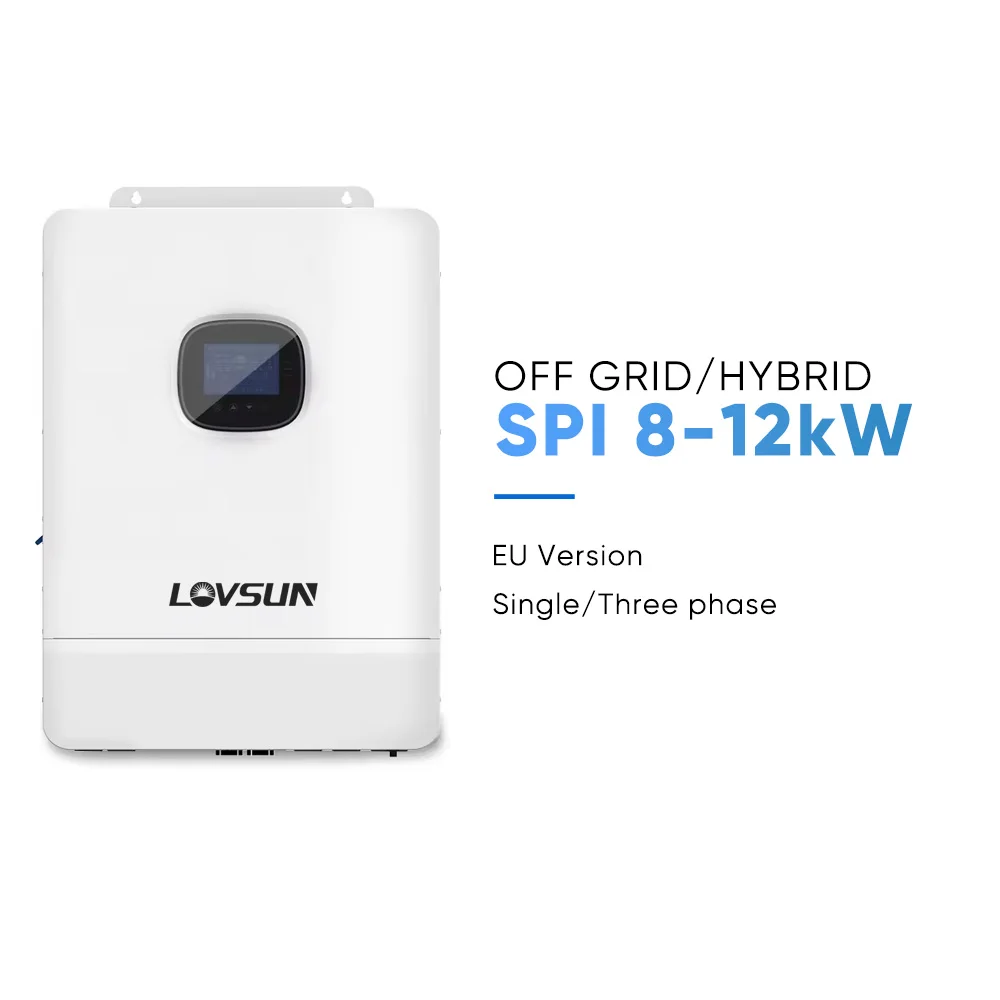

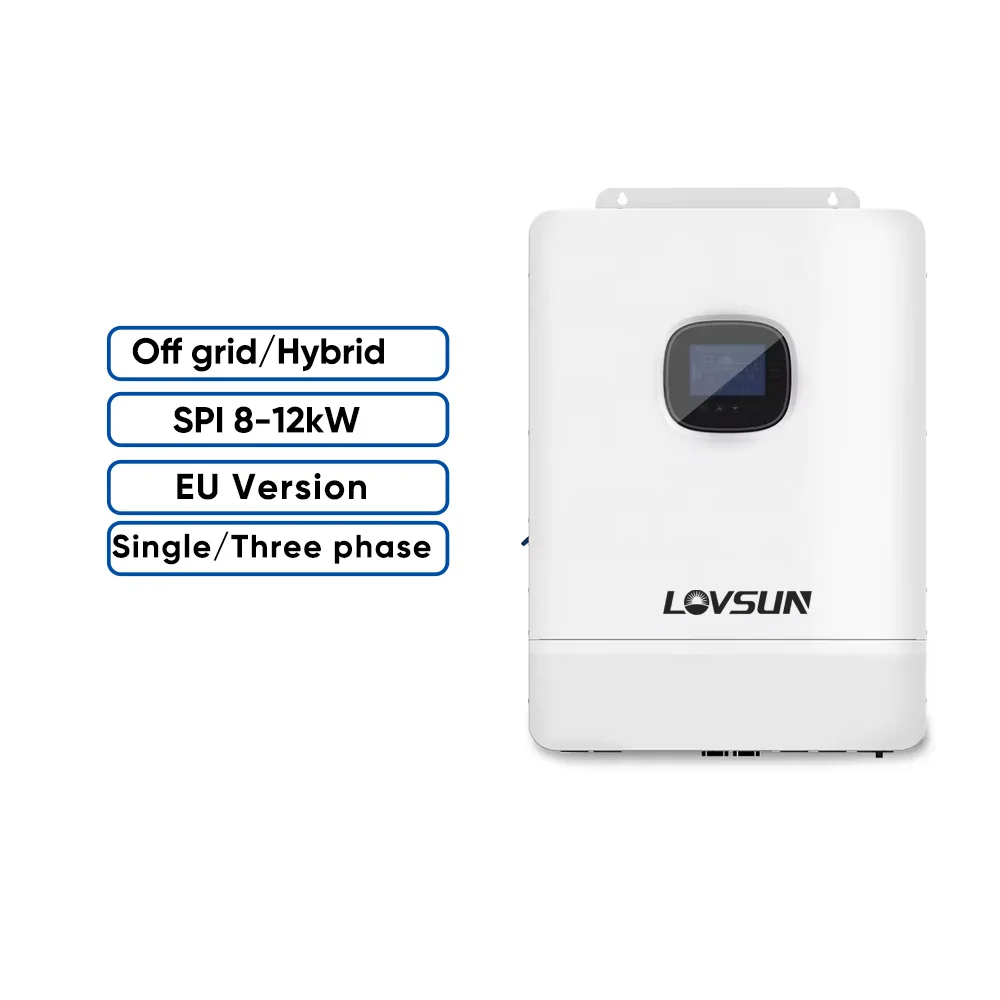

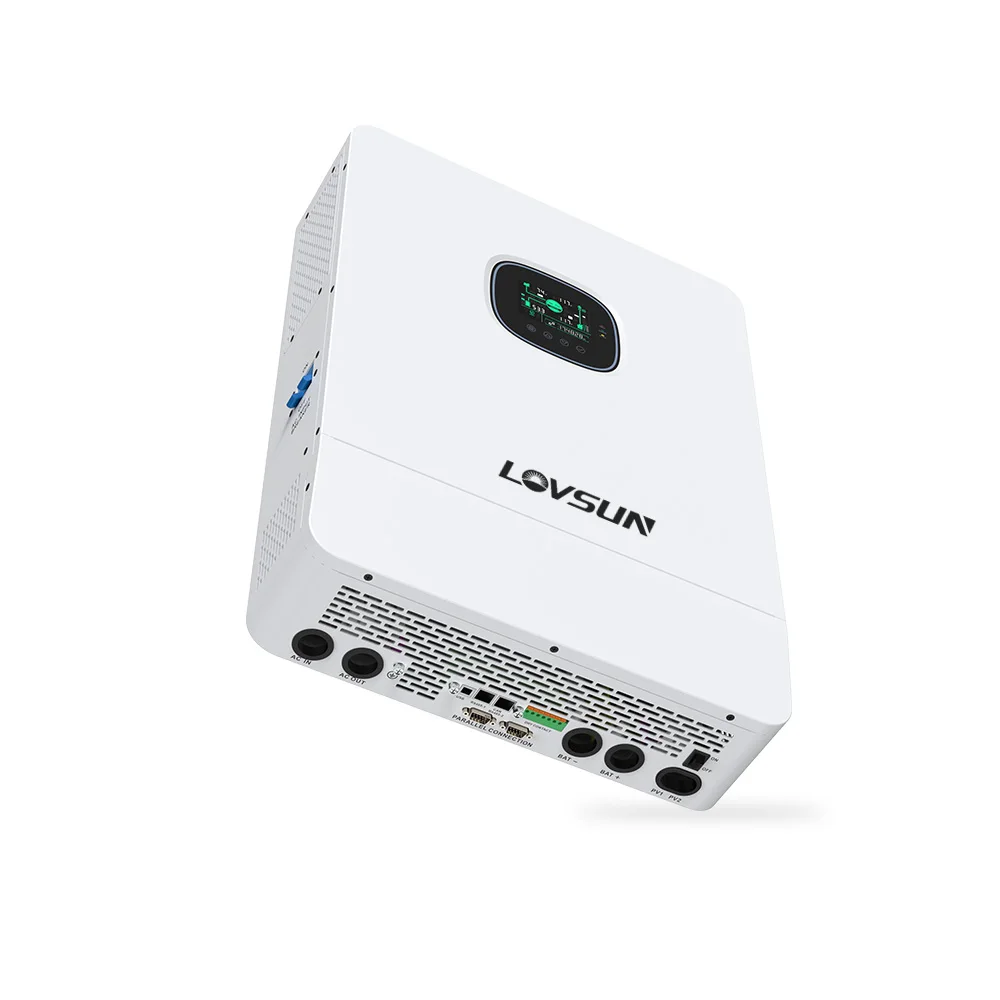

Lovsun off grid inverter 8kw 10kw 12kw single three phase SPI EU version hybrid charge inverter Off grid solar storage inverter
- Category: >>>
- Supplier: Lovsun Solar Energy Co.Ltd
Share on (1600683721198):
Product Overview
Description
Product Description
Feature
Product Detail
Model | SPI-8K-H3 | SPI-10K-H3 | SPI-12K-H3 | ||
Inverter Output | |||||
Rated Output Power | 8,000W | 10,000W | 12,000W | ||
Max.Peak Power | 16,000W | 20,000W | 24,000W | ||
Rated Output Voltage | 400Vac, three phase | ||||
Capacity of Motor Load | 5HP | 6HP | 6HP | ||
Rated Frequency | 50/60Hz | ||||
Output waveform | pure sine wave | ||||
Battery | |||||
Battery Types | Li-ion/Lead-Acid/User Defined | ||||
Rated Battery Voltage | 48Vdc | ||||
Voltage Range | 40-60Vdc | ||||
Max.PV charging current | 180A | 220A | 260A | ||
PV Input | |||||
Max. Input Power | 6,000W/6,000W | 7,500W/7,500W | 9,000W/9,000W | ||
Max. Input Current | 22A/22A | ||||
Max.Open-circuit voltage | 800Vdc/800Vdc | ||||
MPPT Operating voltage range | 200-650Vdc/200-650Vdc | ||||
Utility/Generator Input | |||||
Input voltage range | phase voltage170-280V, line voltage305-485V | ||||
Input Frequency range | 50/60Hz | ||||
General | |||||
Dimensions | 620*445*130mm | ||||
Weight | 27KG | ||||
Protection Degree | IP20, Indoor only | ||||
Cooling method | Air cooling | ||||
Communication | |||||
Internal Interface | RS485/CAN/USB/Dry contact | ||||
External Module | WI-FI/GPRS | ||||
Safety | IEC62109-1,IEC62109-2, UL1741 | ||||
EMC | EN61000-6-1, EN61000-6-3,FCC15 Class B | ||||
RoHS | Yes | ||||
