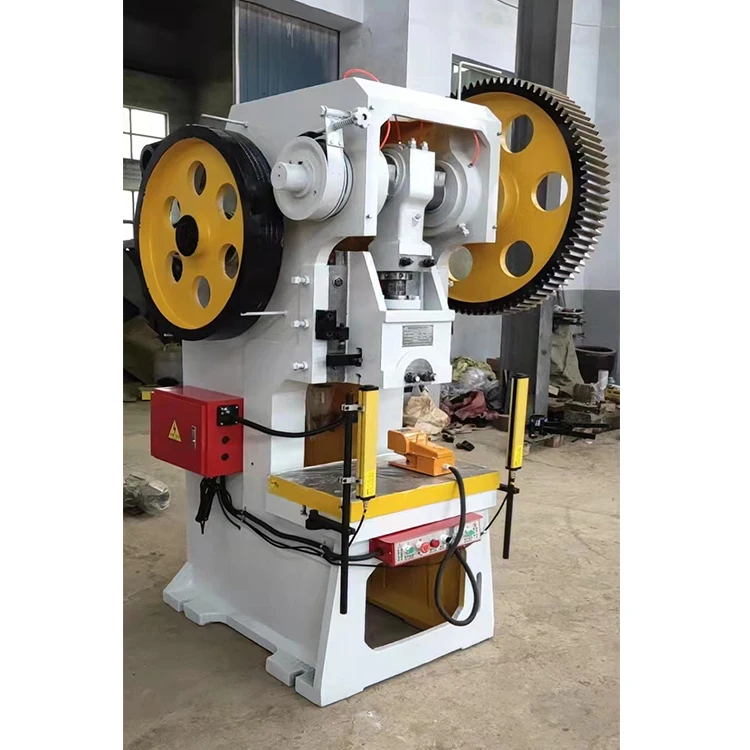

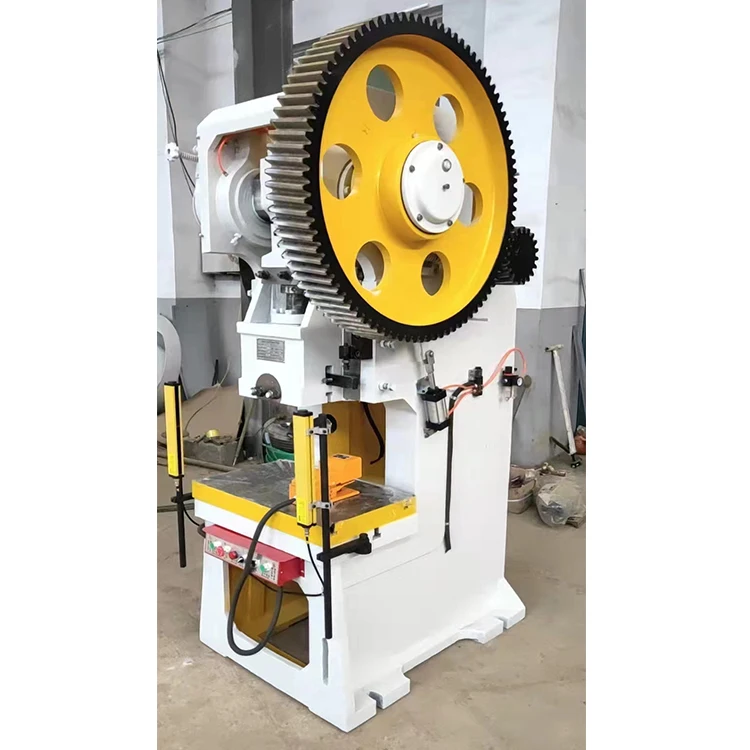

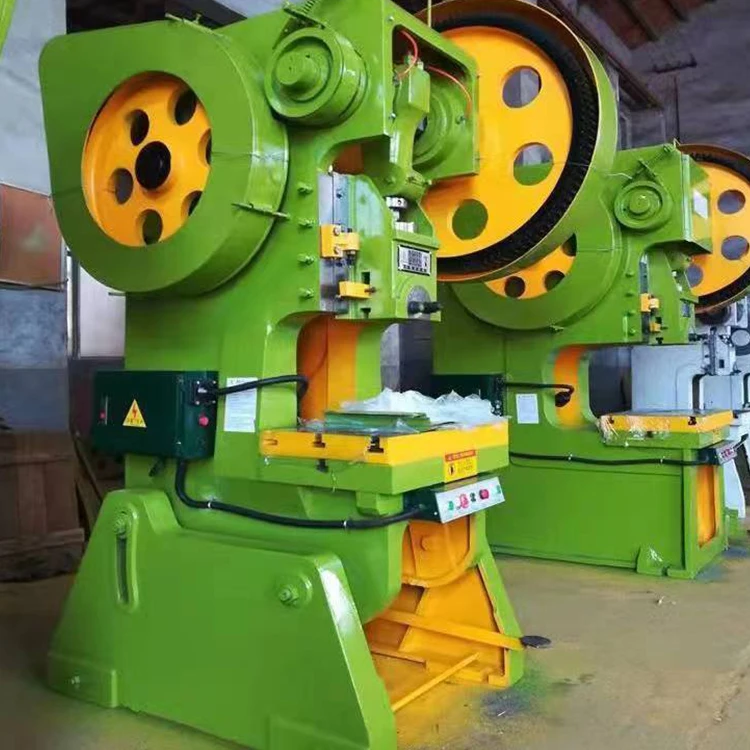

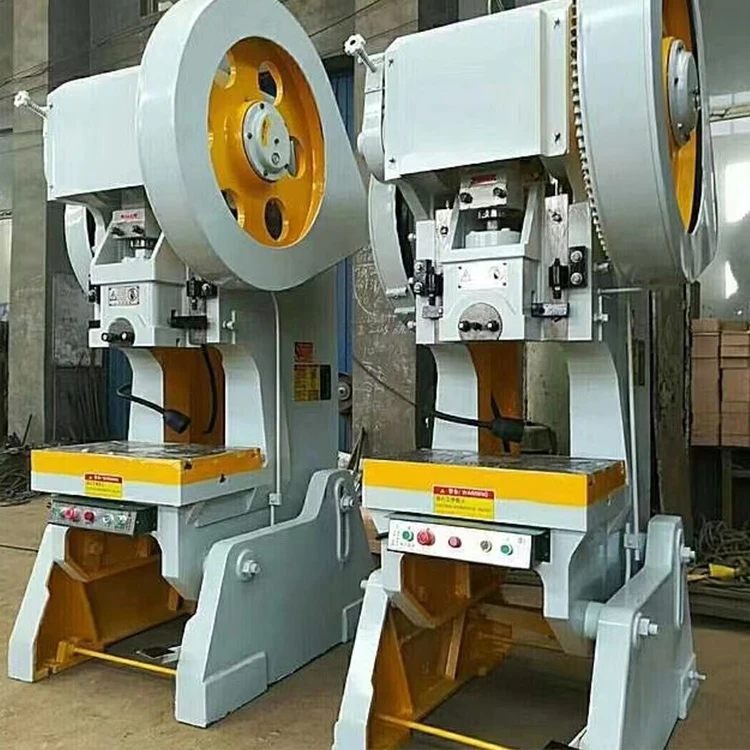

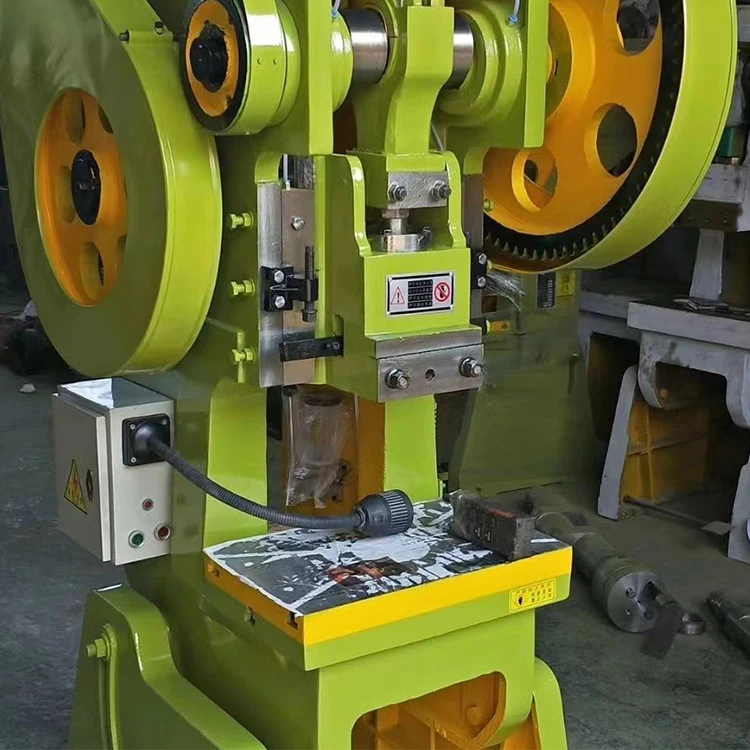

40T punching machine Steel hinge making automatic press production line foil container making machine
- Category: >>>
- Supplier: Henan Austing Machinery Co. Ltd.
Share on (1600683802902):
Product Overview
Description
Products Description
Instruction for punching machine

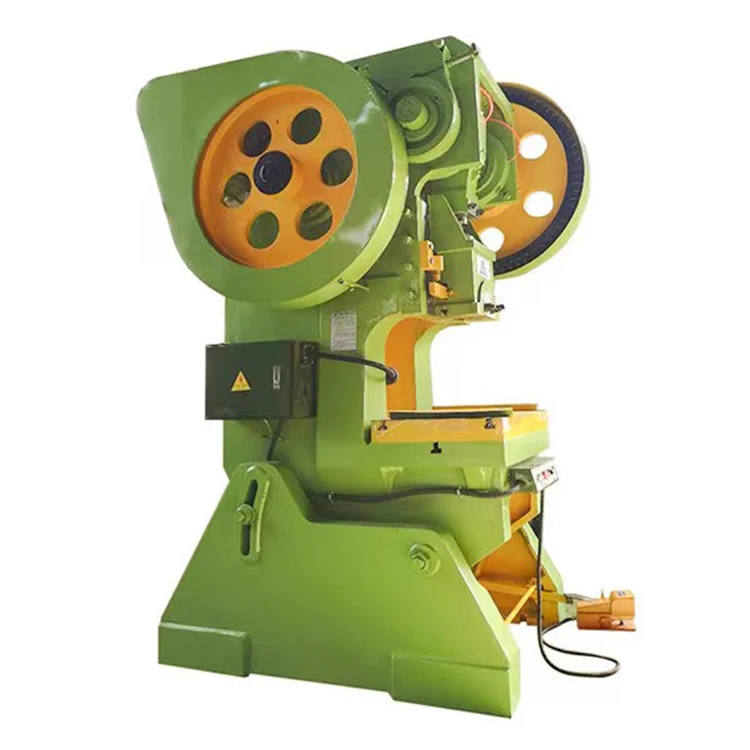

The body of the J23 inclinable punching machine can be tilted at an angle to facilitate the sliding down of the finished press or scrap from the die, and single or continuous strokes can be obtained by means of an electrically controlled press operating mechanism. When equipped with an automatic feed mechanism, semi-automatic continuous stamping is possible. The machine is novel in design, compact in structure, good in steel, easy to use, safe and reliable in operation and suitable for all kinds of cold pressing processes.
Features for punching machine
1. Its structure is simple, operation convenience, function credibility, the usage maintain convenience.
2. J23 series shut type list orders the pressure machine fuselage of airplane straight line form design, well balanced to be
subjected to dint, constant form, rigid and strong.
3. Extremely high closing height, pack the mold space big, slippery piece the piece six noodles direction, the accuracy is high stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type,
oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.
2. J23 series shut type list orders the pressure machine fuselage of airplane straight line form design, well balanced to be
subjected to dint, constant form, rigid and strong.
3. Extremely high closing height, pack the mold space big, slippery piece the piece six noodles direction, the accuracy is high stability good.
4. Outside support type especially the big machine do, exaltation the tool machine install stability, safety, inside place type,
oil road, electric circuit, beauty clean and net, have a safety, dependable type more,
5. The hand operation button the switch match pressure machine national security standard.
Specification
Item | Unit | J23-6.3T | J23-10T | J23-16T | J23-25T | J23-40T | J23-63T | J23-80T |
Nominal Force | KN | 63 | 100 | 160 | 250 | 400 | 630 | 800 |
Slide Stroke | mm | 35 | 50 | 60 | 70 | 100 | 100 | 115 |
Number of Stroke | Times/min | 150 | 140 | 100 | 70 | 50 | 50 | 45 |
Closed Height | mm | 200 | 200 | 250 | 290 | 380 | 380 | 410 |
Closed Height Adjustment | mm | 30 | 40 | 40 | 40 | 60 | 60 | 60 |
Throat Depth | mm | 130 | 130 | 180 | 200 | 250 | 280 | 280 |
Column Distance | mm | 160 | 170 | 200 | 230 | 320 | 350 | 360 |
Table Size Front and back | mm | 200 | 230 | 280 | 330 | 420 | 450 | 500 |
Table Size Left and right | mm | 350 | 370 | 450 | 530 | 640 | 700 | 750 |
Slide bottom size Front and back | mm | 140 | 100 | 130 | 170 | 190 | 220 | 250 |
Slide bottom size Left and right | mm | 140 | 145 | 180 | 200 | 250 | 310 | 300 |
Shouk Dimension Diameter | mm | 30 | 30 | 35 | 40 | 50 | 50 | 60 |
Shouk Dimension Depth | mm | 45 | 50 | 60 | 60 | 100 | 100 | 100 |
Thickness of table | mm | 30 | 30 | 40 | 45 | 70 | 80 | 90 |
Dimension Front and back | mm | 700 | 740 | 900 | 1000 | 1400 | 1500 | 1600 |
Dimension Left and right | mm | 550 | 600 | 780 | 830 | 1100 | 1200 | 1300 |
Dimension Height | mm | 1450 | 1500 | 1720 | 1950 | 2300 | 2400 | 2600 |
Motor Power | KW | 1.1 | 1.5 | 2.2 | 2.2 | 3 | 4 | 7.5 |
Weight | kg | 300 | 350 | 700 | 1100 | 2400 | 3100 | 4000 |
Packaging & Shipping

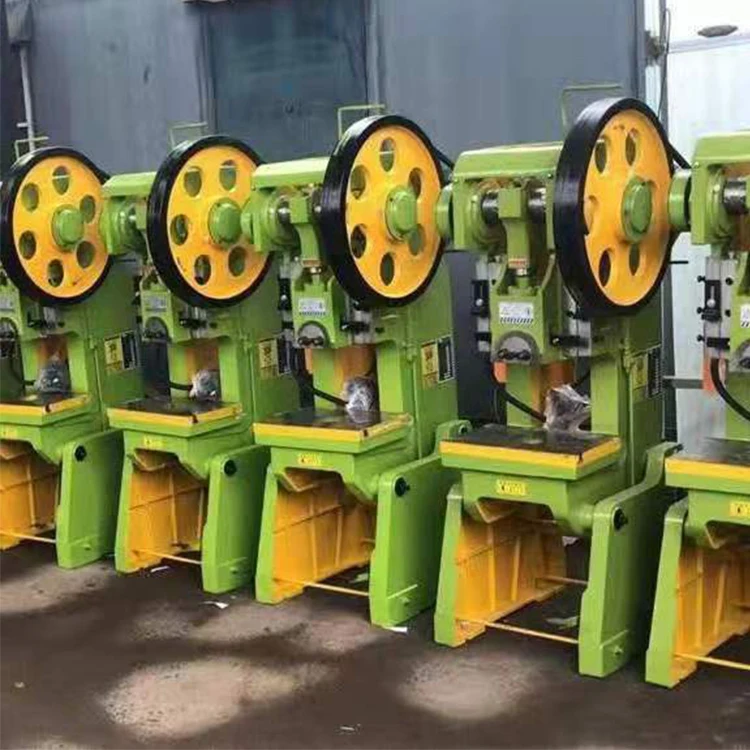

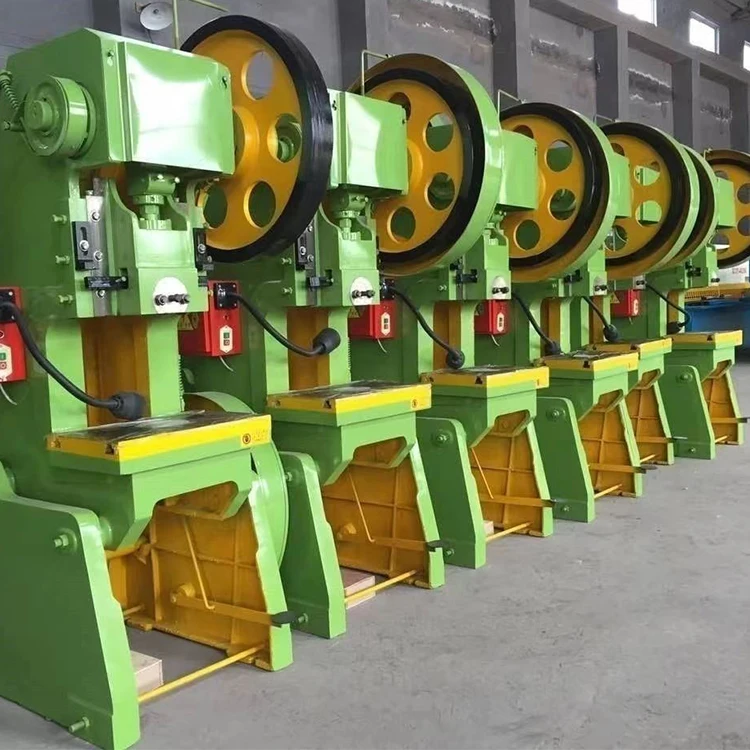

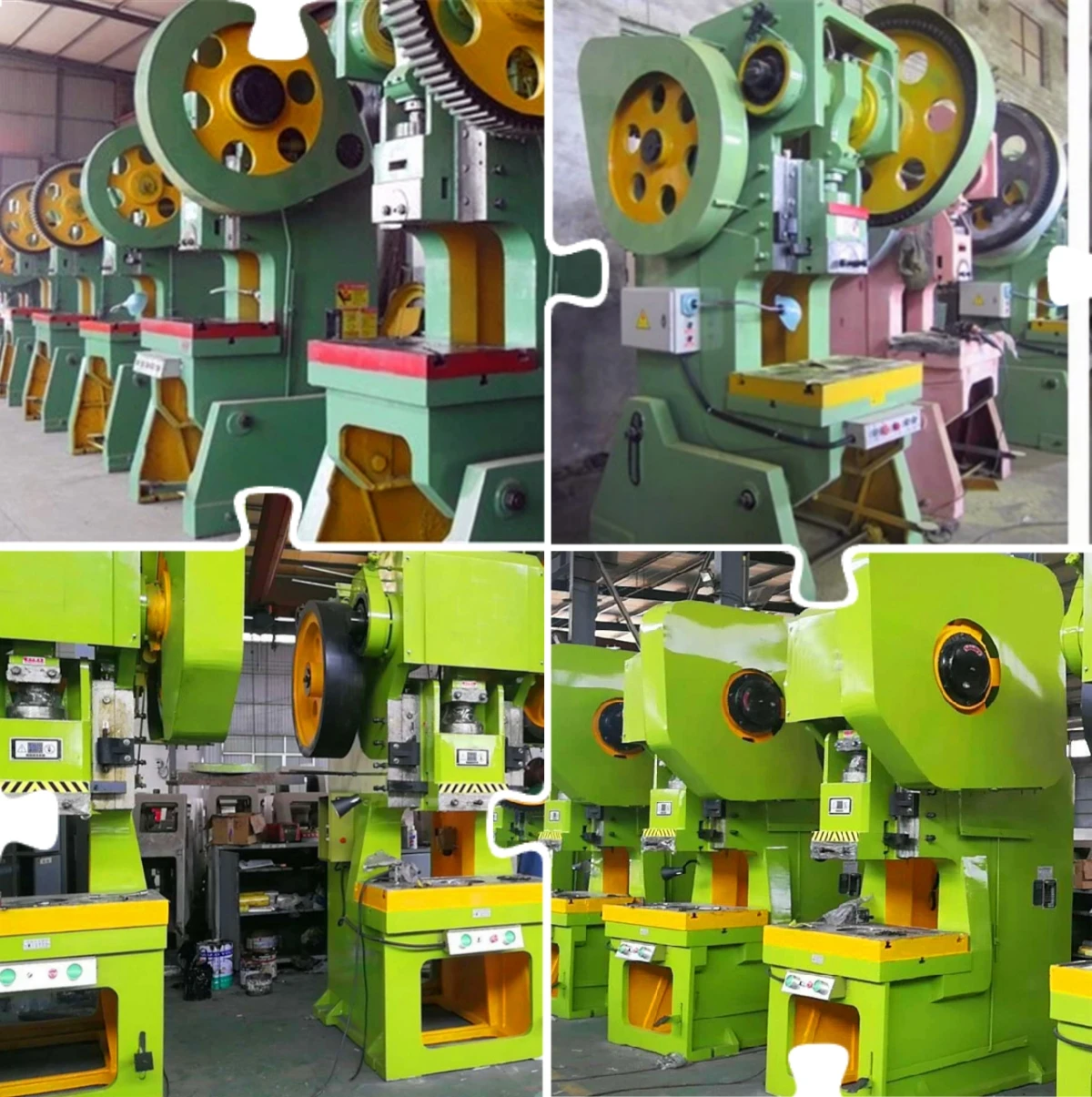

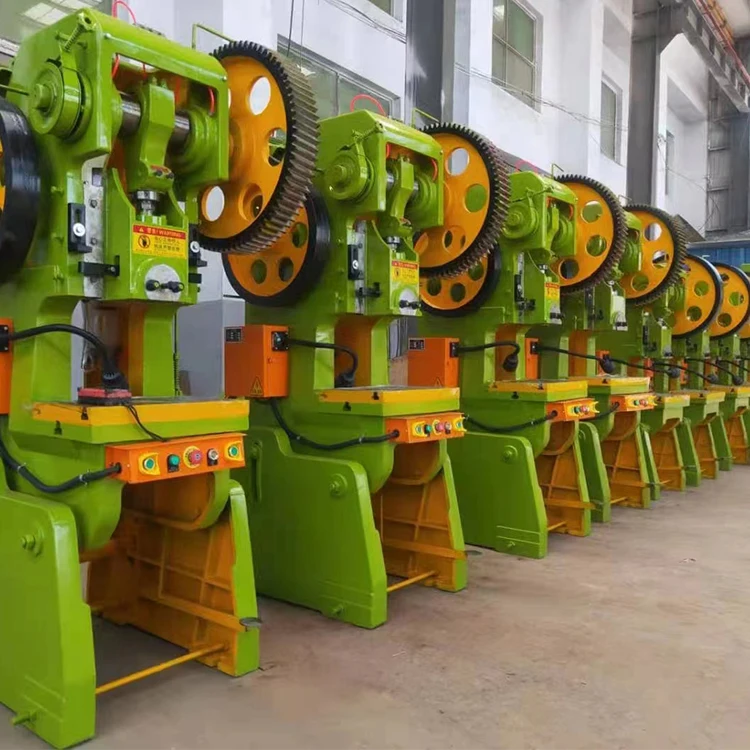

Workshop Overview
Why Choose Us

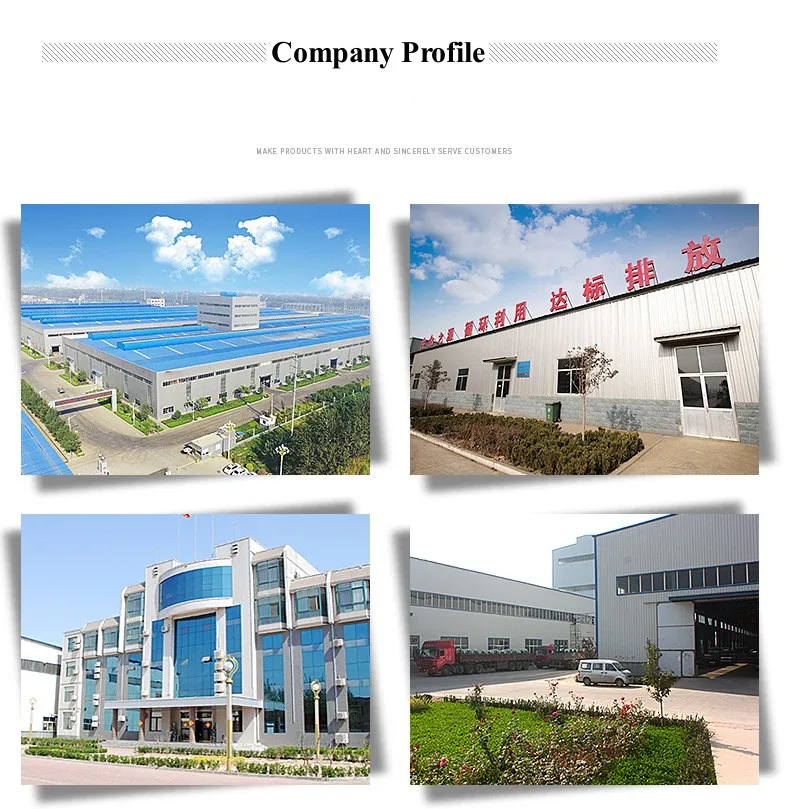

Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
A: We specialized in all kinds of machines ,such as Roll Forming Machine, CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Zhengzhou City , Henan Province, China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ; Irrevocable LC at sight
6: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
