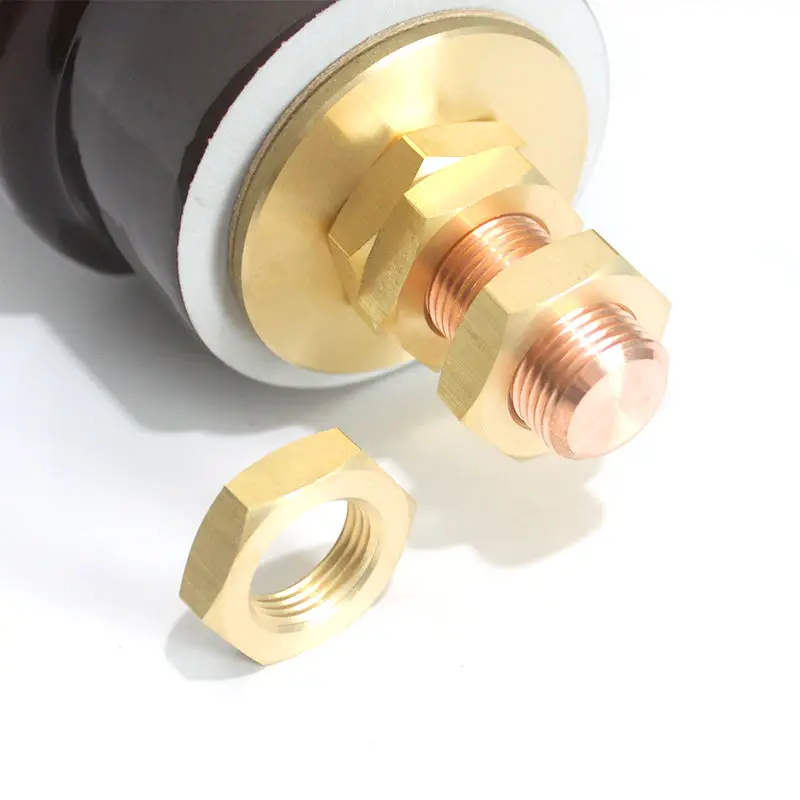

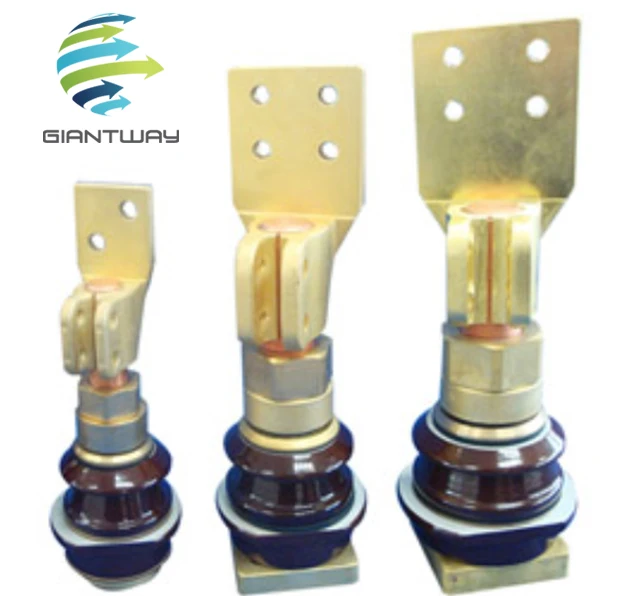

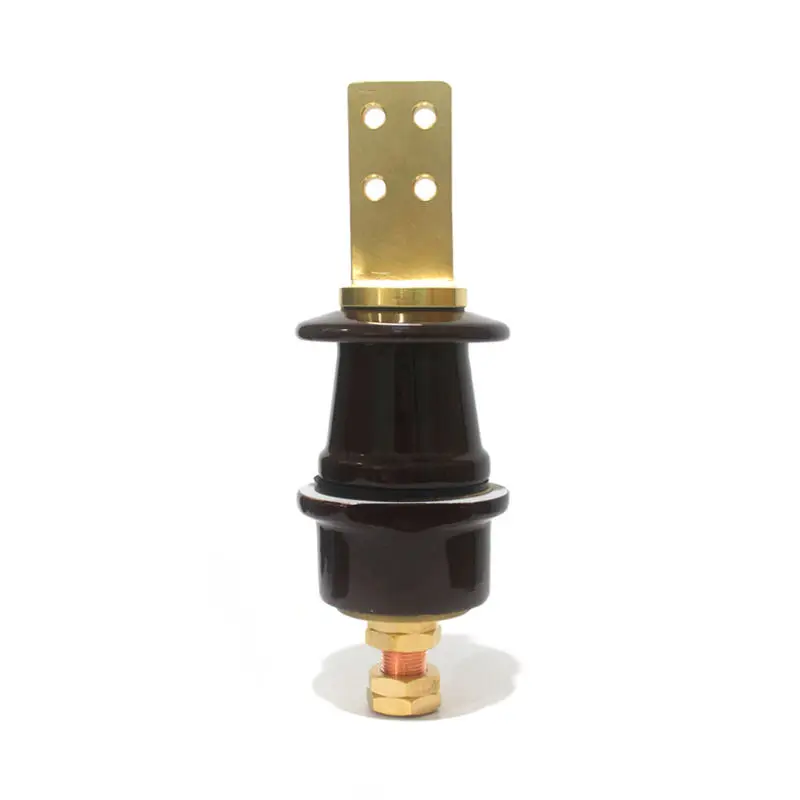

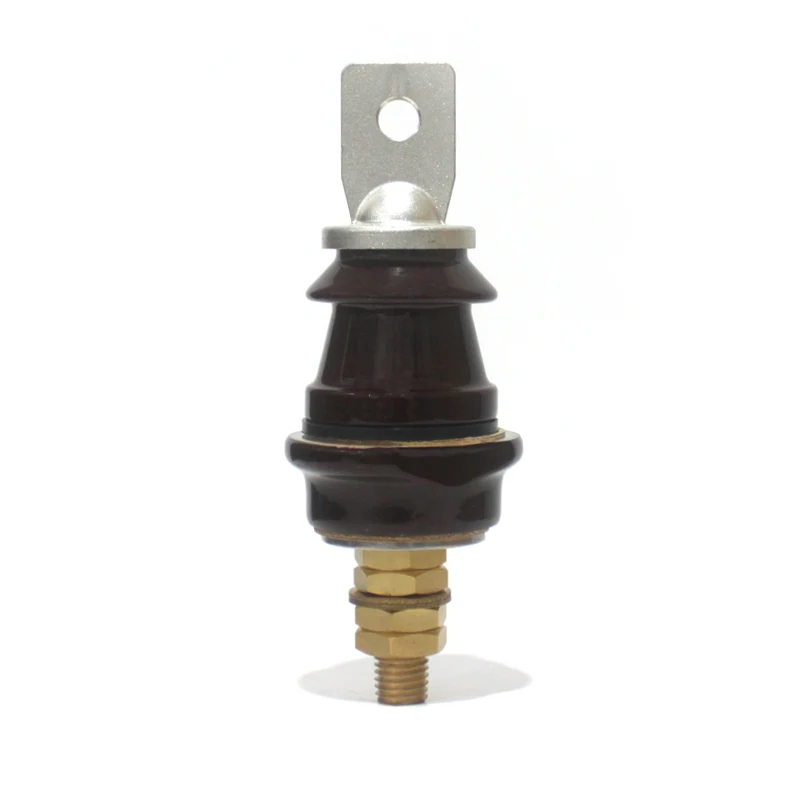

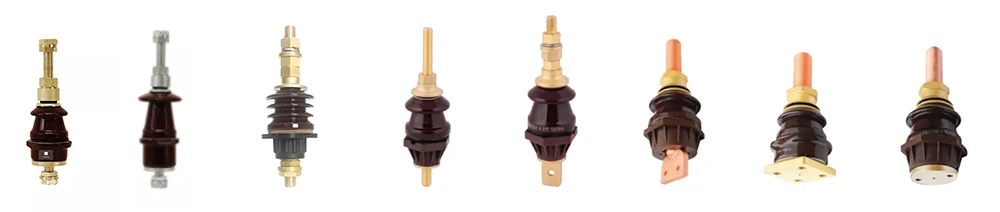

ANSI EN DIN Transformer Porcelain Insulator Bushing Brass High Voltage Low Voltage Transformer Bushing Porcelain Bushing
- Category: Electronic Accessories & Supplies >>>
- Supplier: Hangzhou,Giantway,Import,&export,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

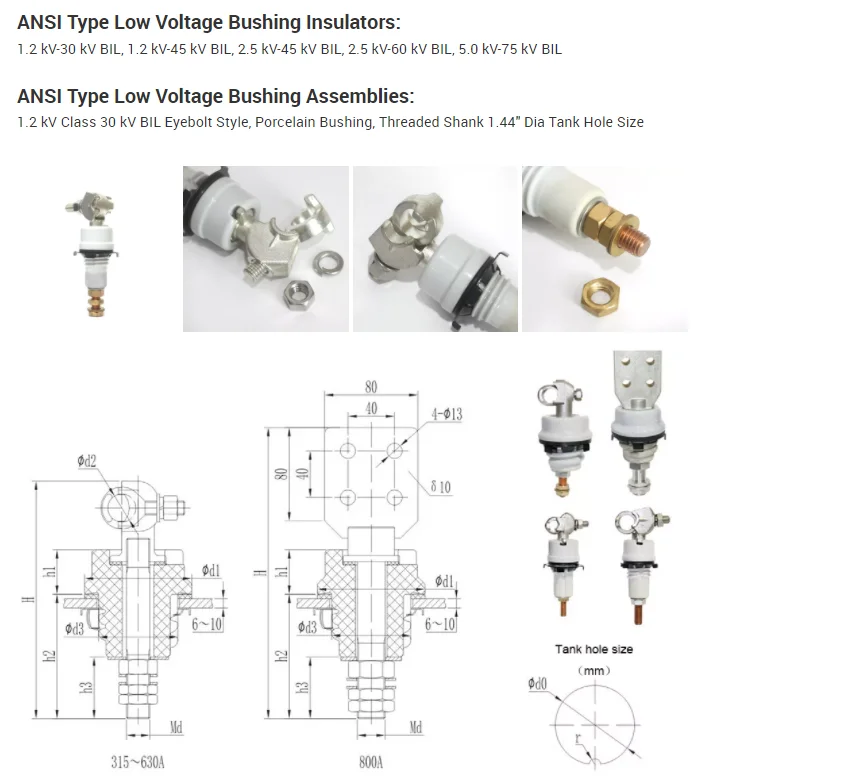

ANSI Type Low Voltage Bushing Insulators:
1.2 kV-30 kV BIL, 1.2 kV-45 kV BIL, 2.5 kV-45 kV BIL, 2.5 kV-60 kV BIL, 5.0 kV-75 kV BIL

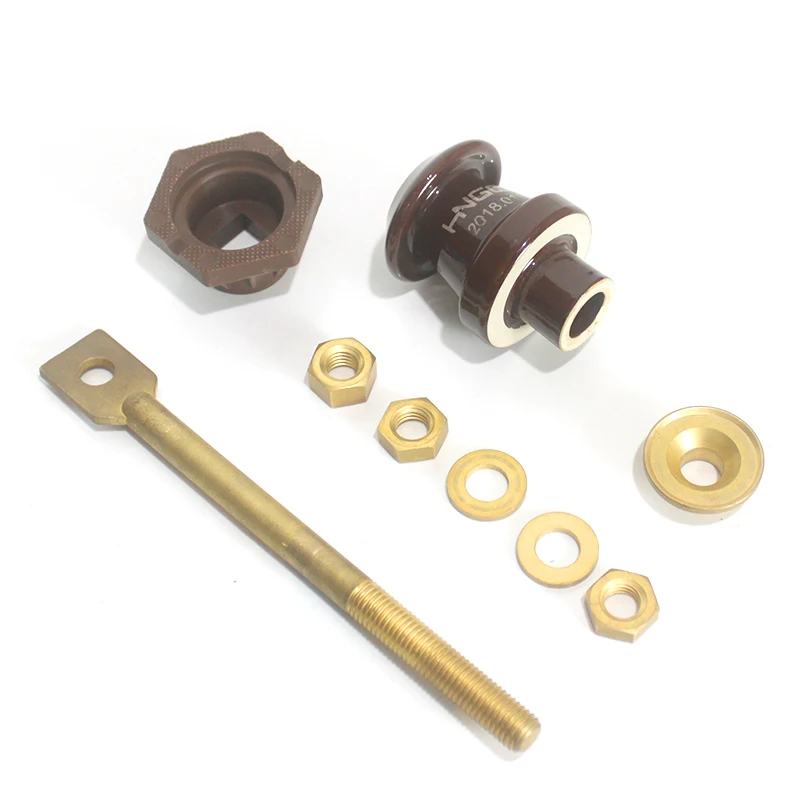

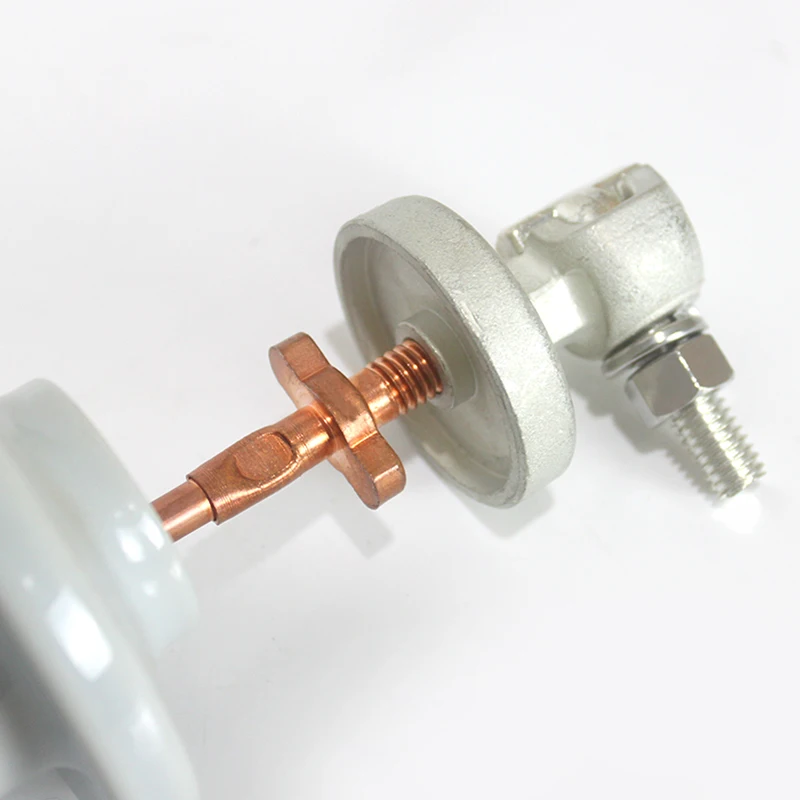

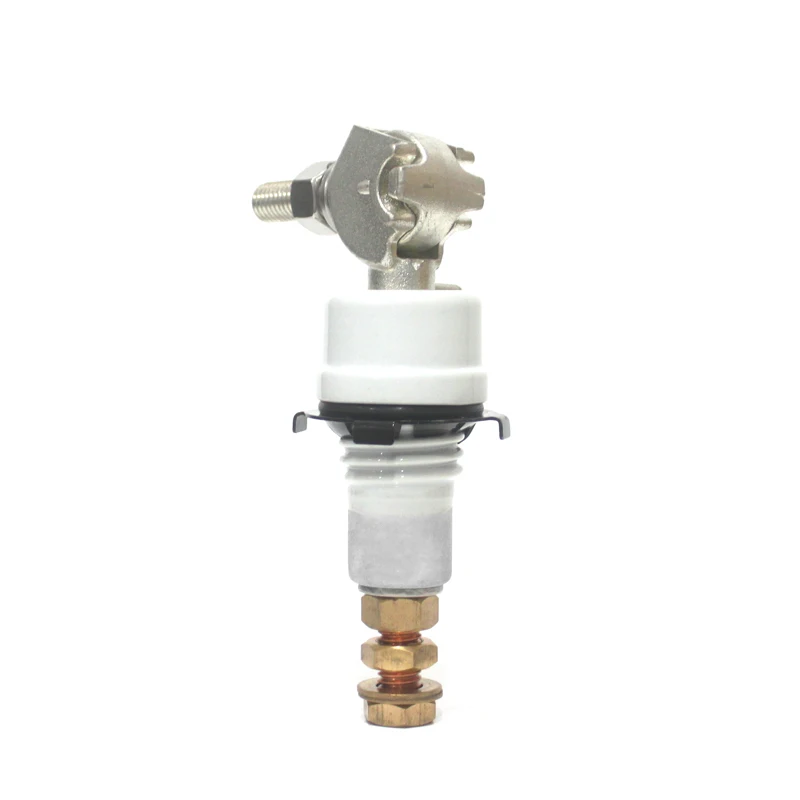

ANSI Type Low Voltage Bushing Assemblies:

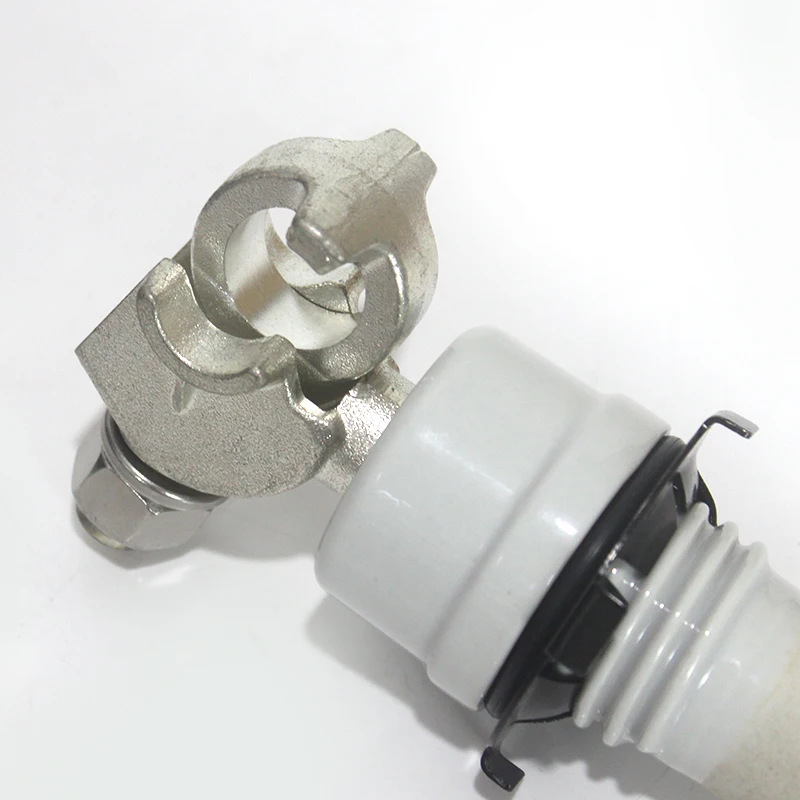

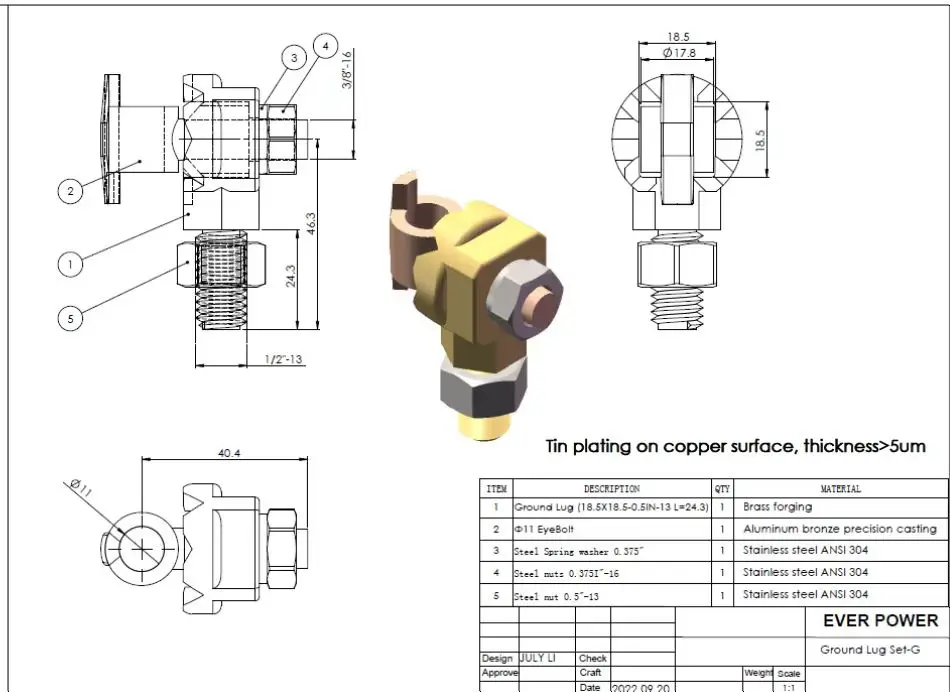

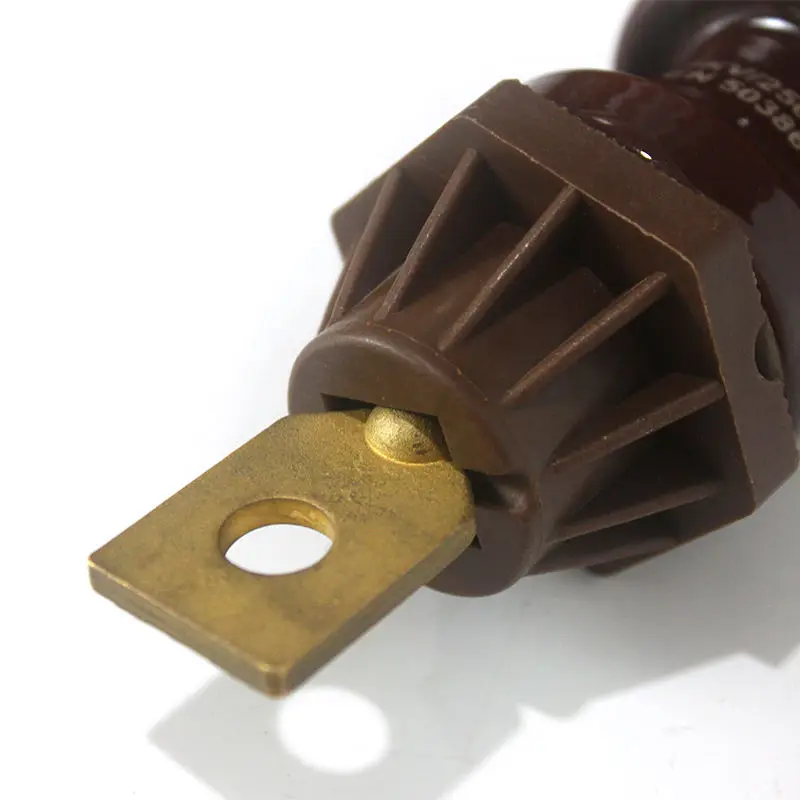

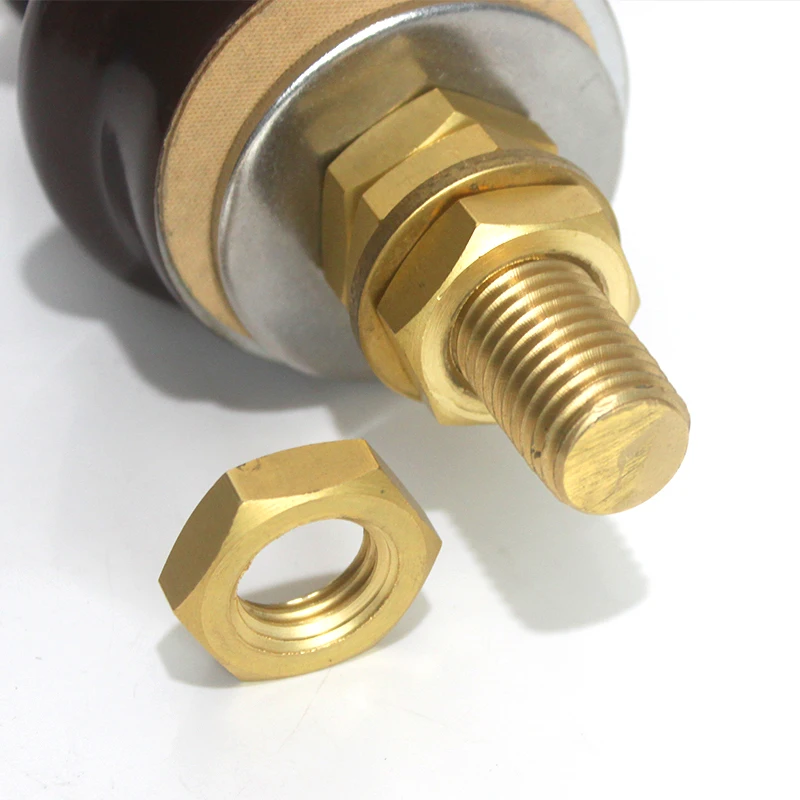

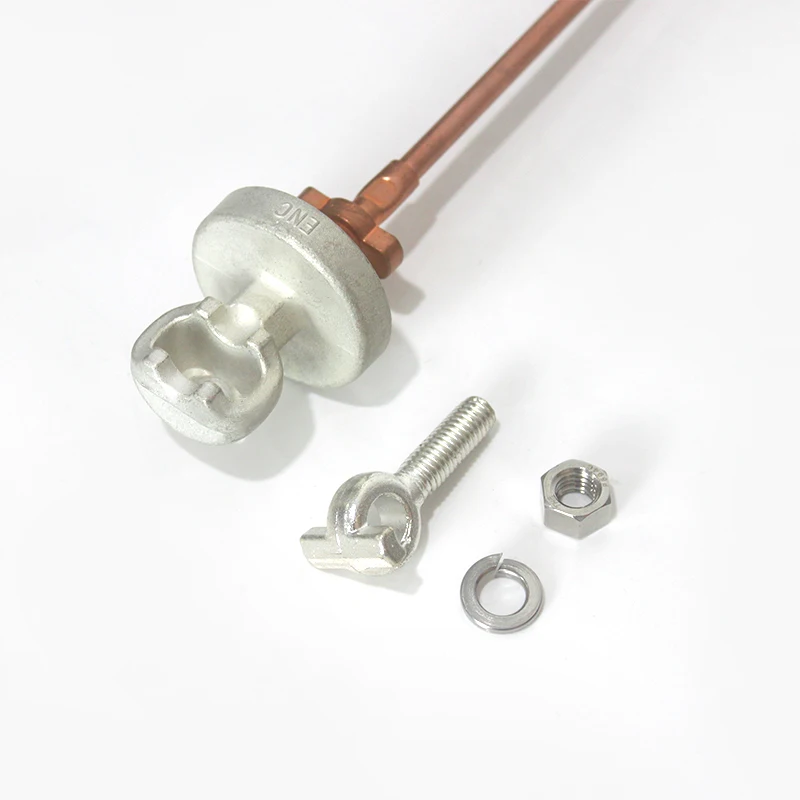

1.2 kV Class 30 kV BIL Eyebolt Style, Porcelain Bushing, Threaded Shank 1.44" Dia Tank Hole Size

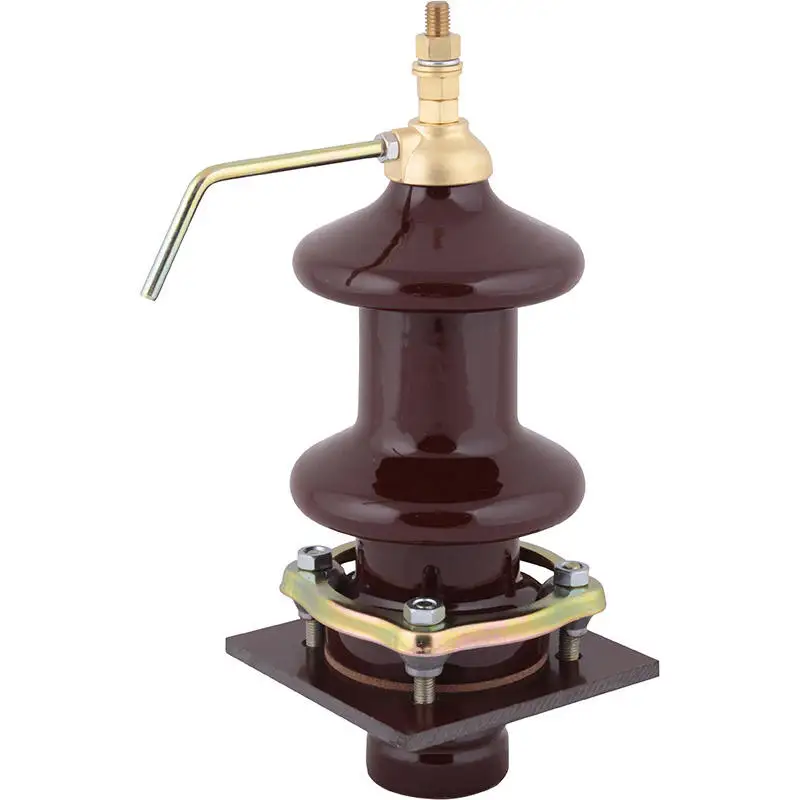

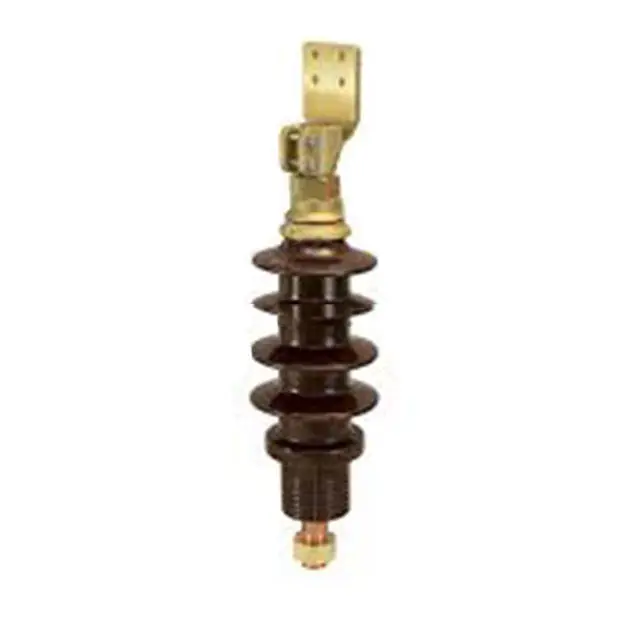

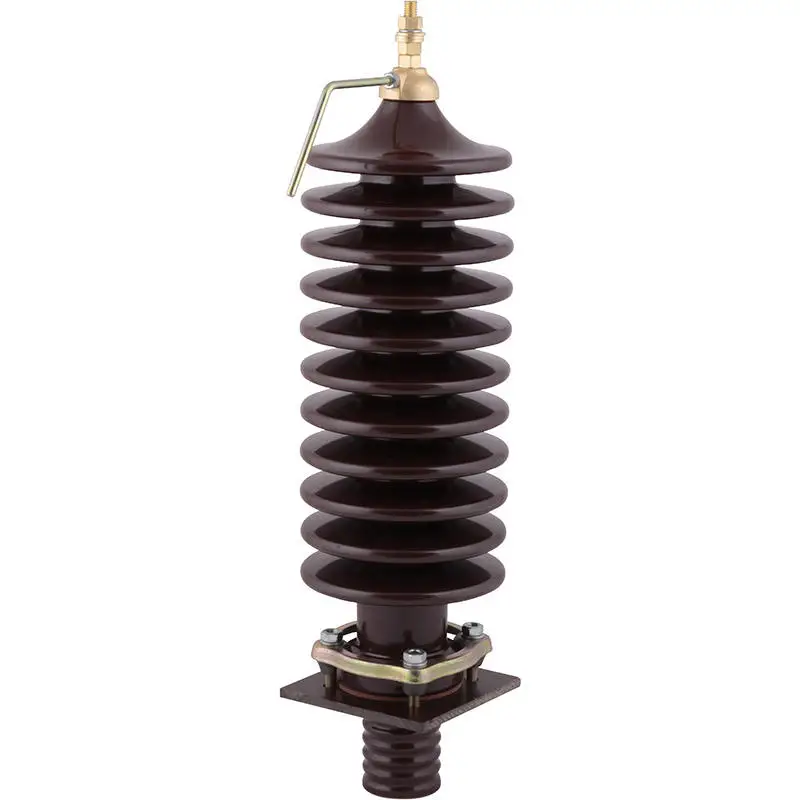

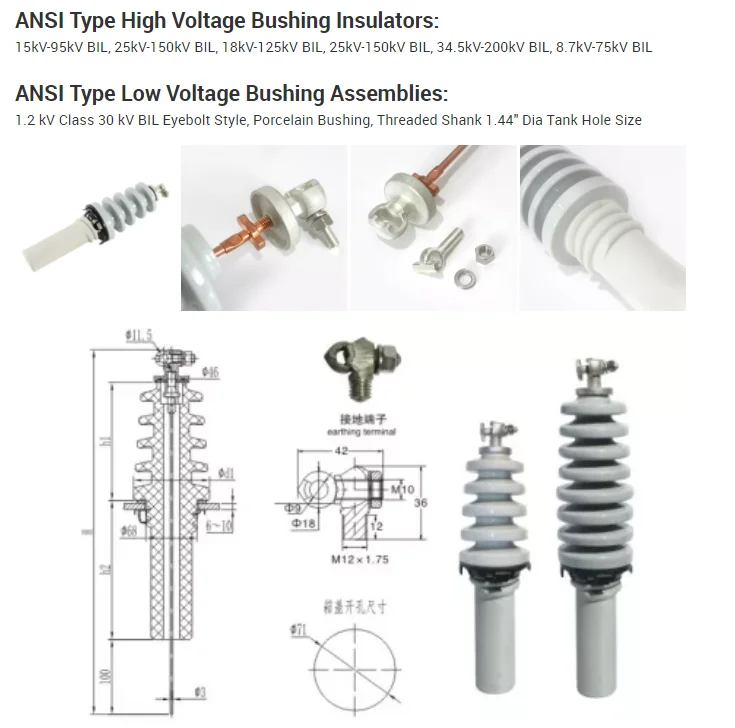

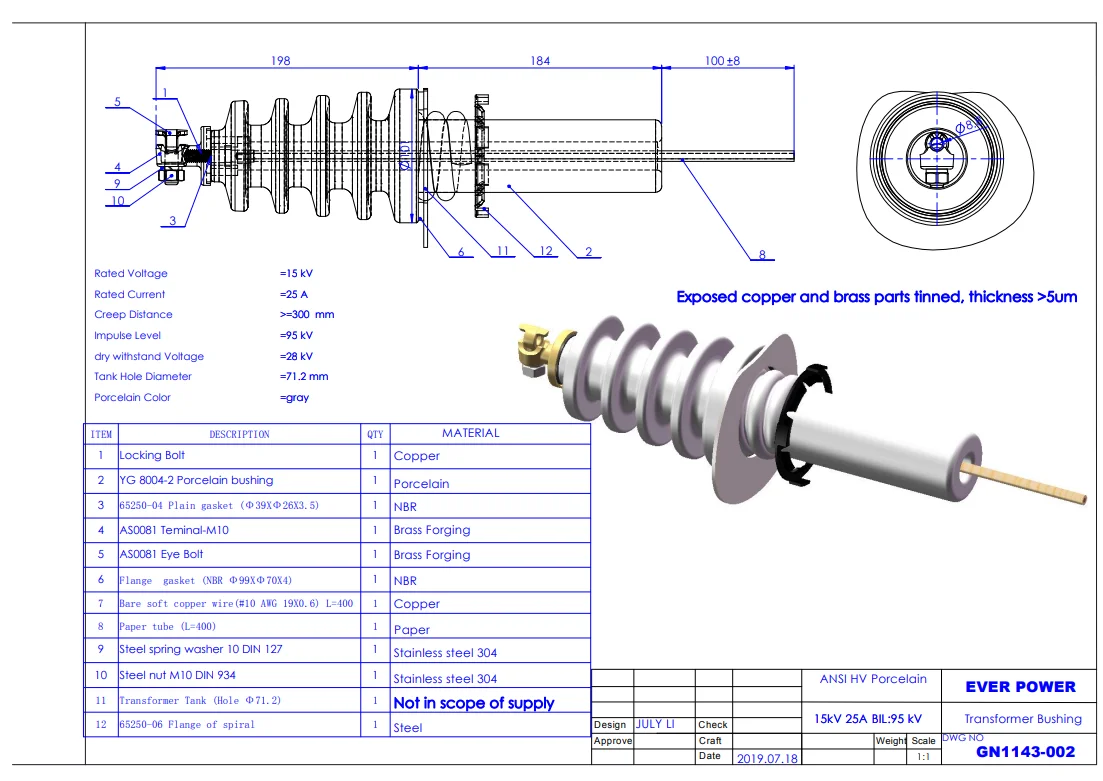

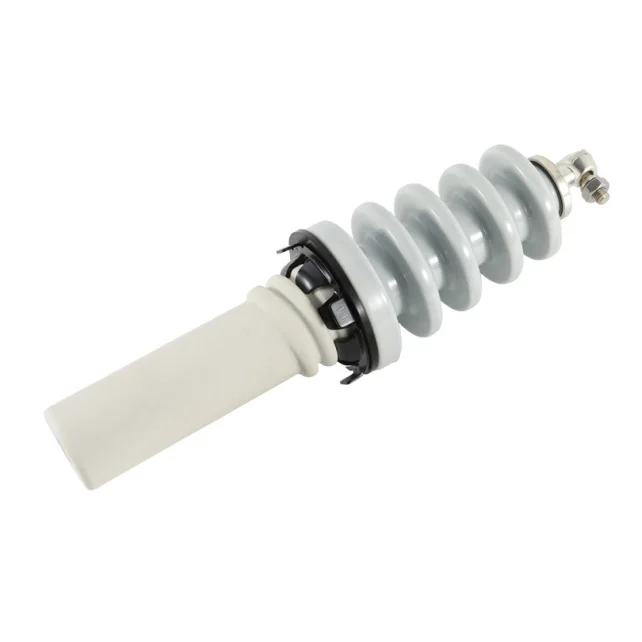

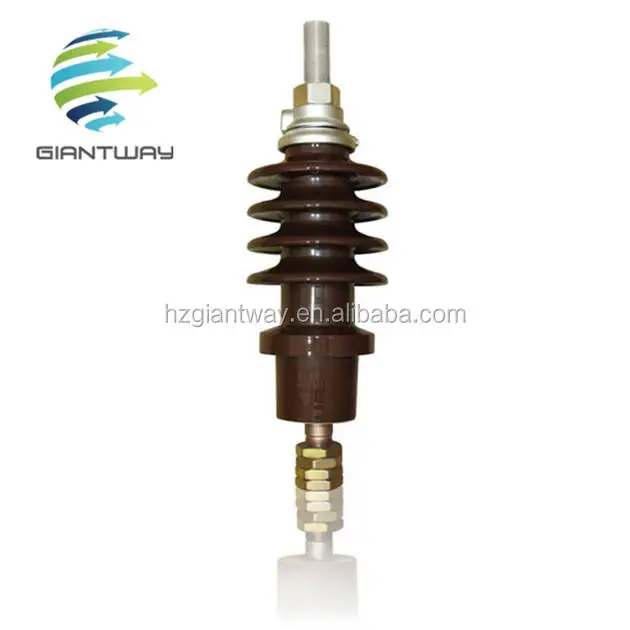

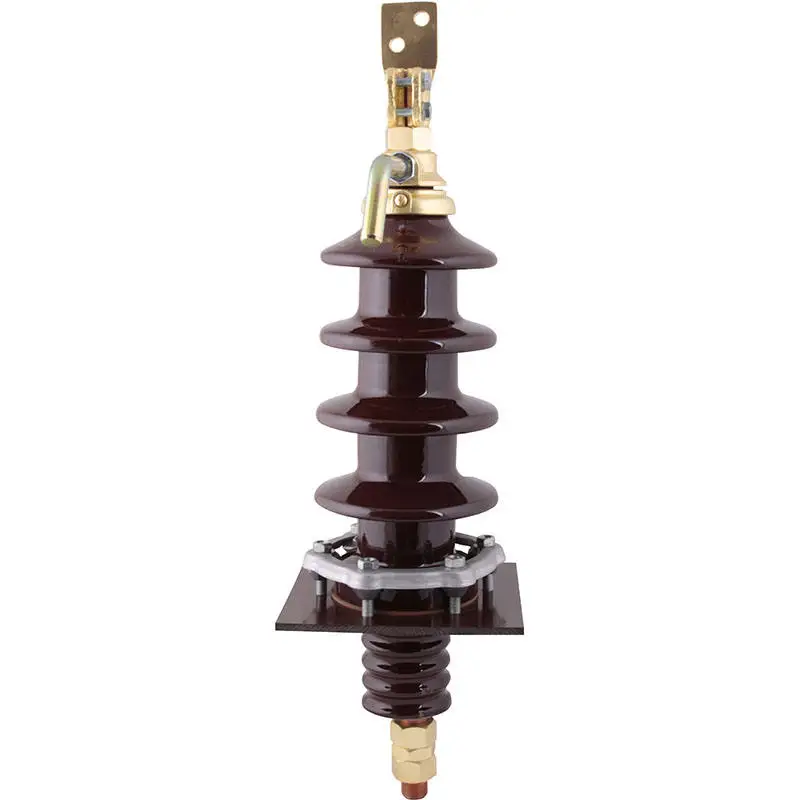

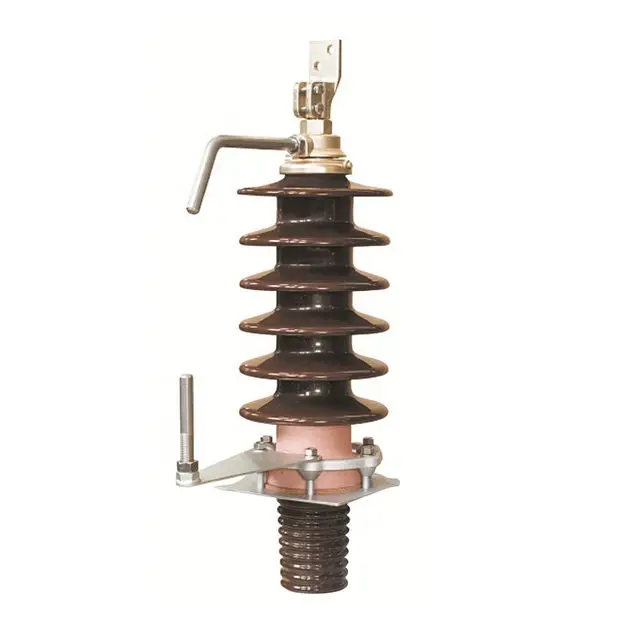

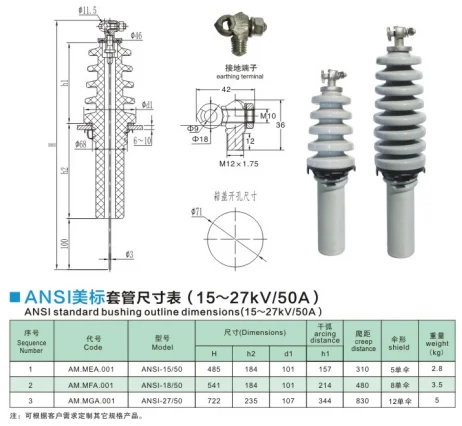

ANSI Type High Voltage Bushing Insulators:
15kV-95kV BIL, 25kV-150kV BIL, 18kV-125kV BIL, 25kV-150kV BIL, 34.5kV-200kV BIL, 8.7kV-75kV BIL
ANSI Type Low Voltage Bushing Assemblies:
1.2 kV Class 30 kV BIL Eyebolt Style, Porcelain Bushing, Threaded Shank 1.44" Dia Tank Hole Size
15kV-95kV BIL, 25kV-150kV BIL, 18kV-125kV BIL, 25kV-150kV BIL, 34.5kV-200kV BIL, 8.7kV-75kV BIL
ANSI Type Low Voltage Bushing Assemblies:
1.2 kV Class 30 kV BIL Eyebolt Style, Porcelain Bushing, Threaded Shank 1.44" Dia Tank Hole Size

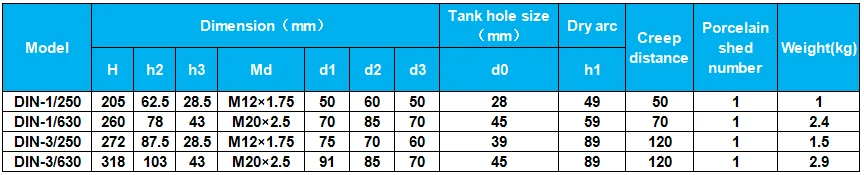

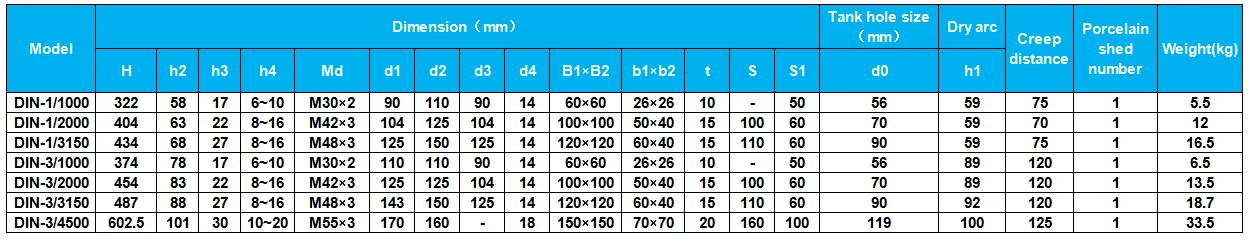

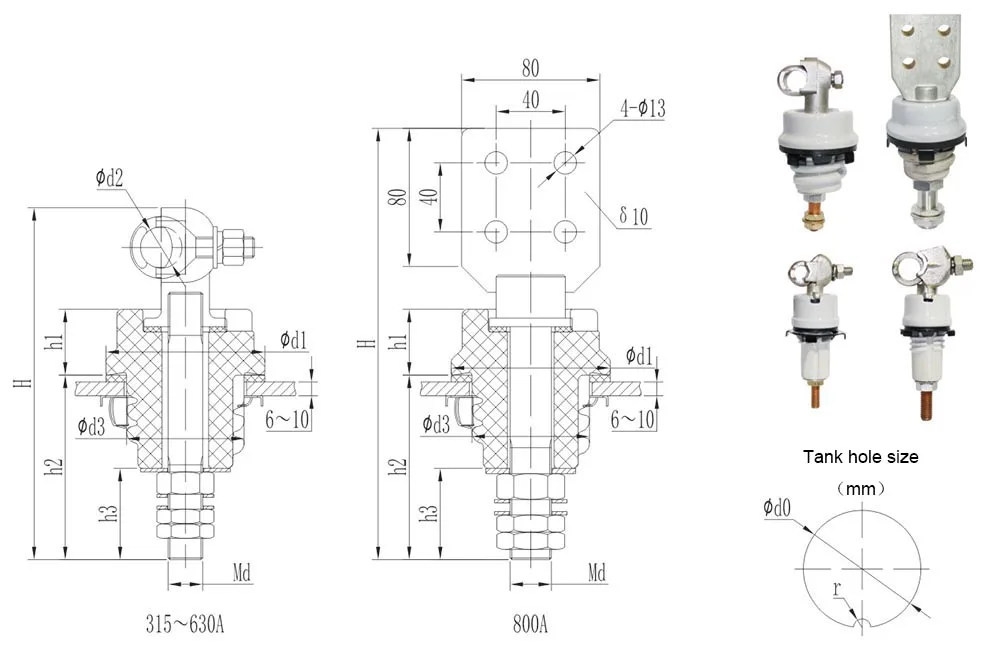

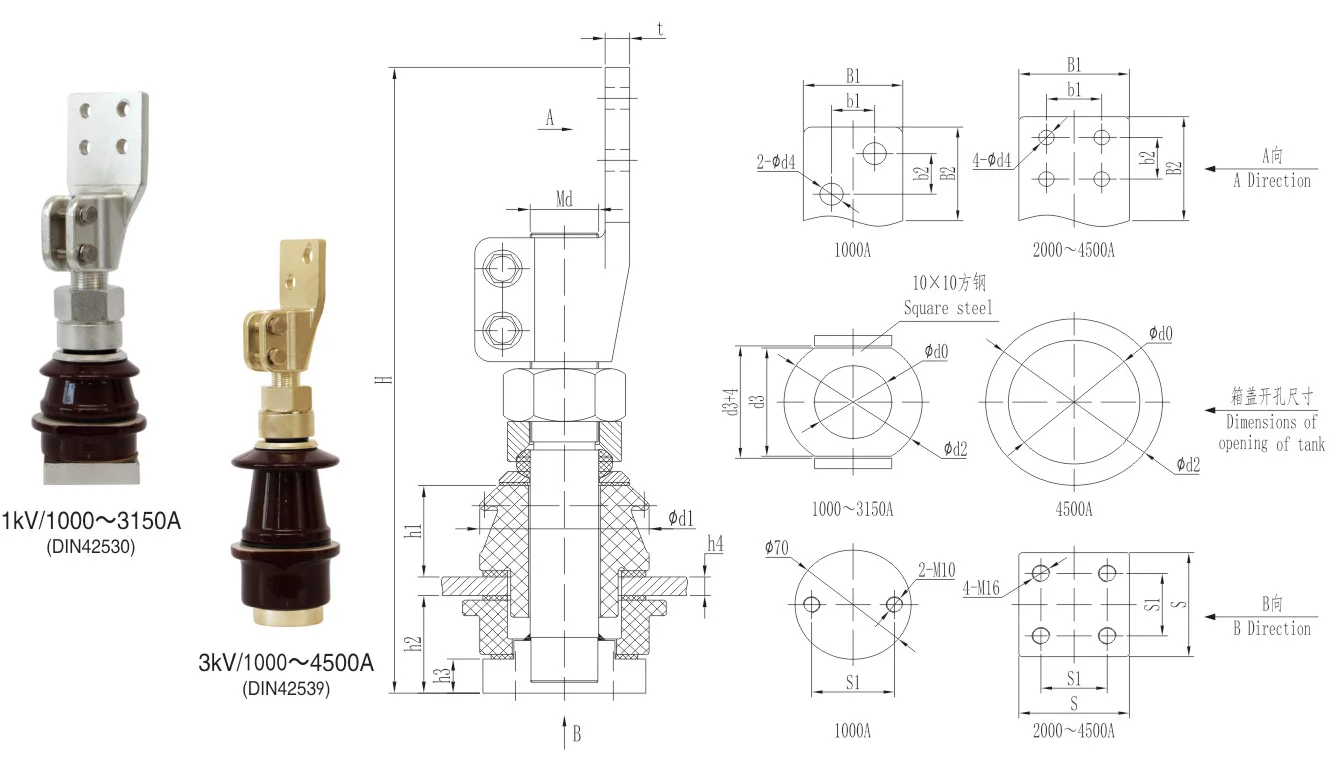

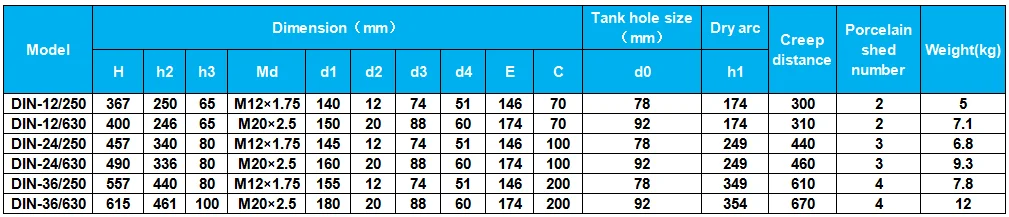

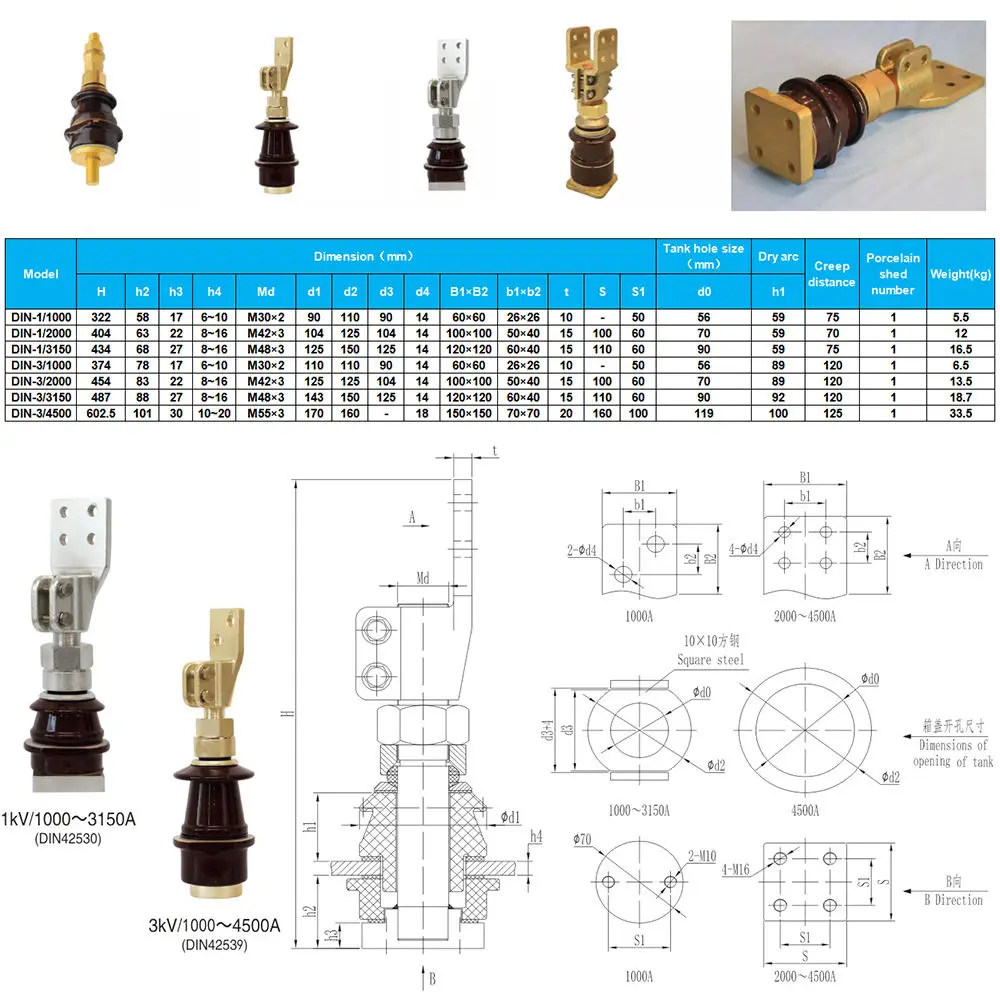

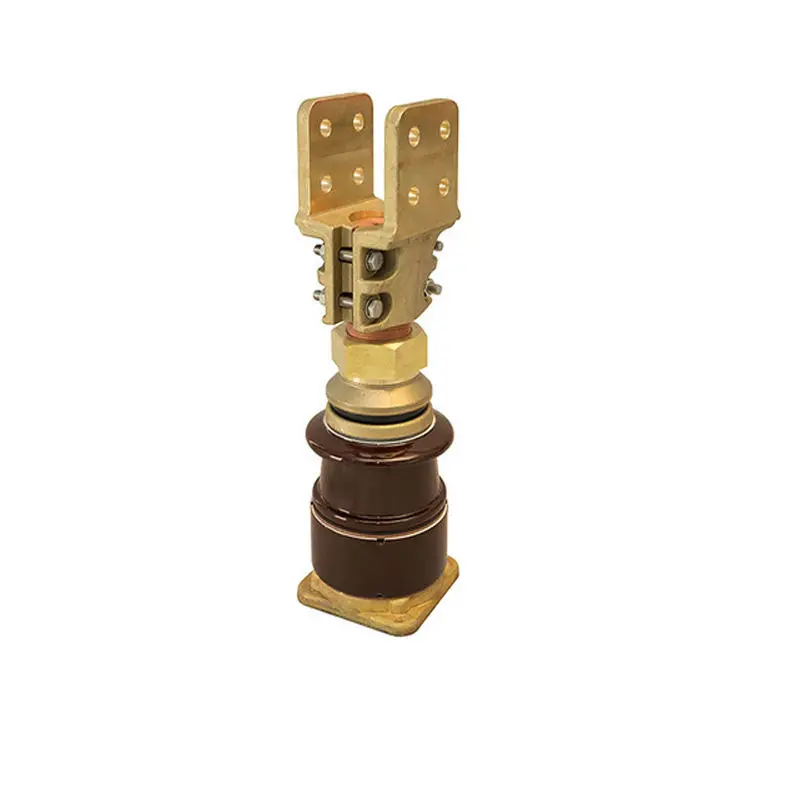

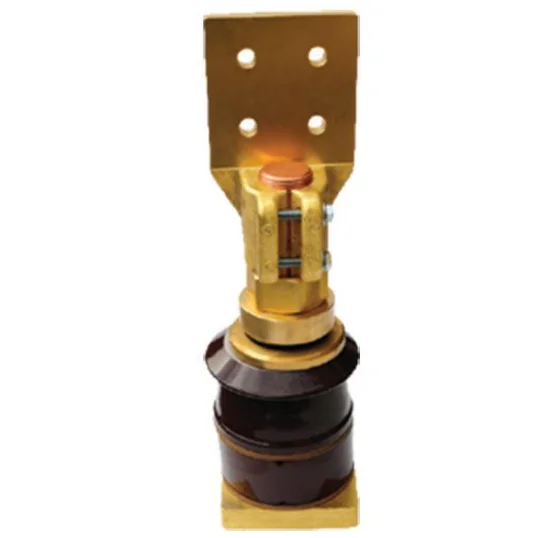

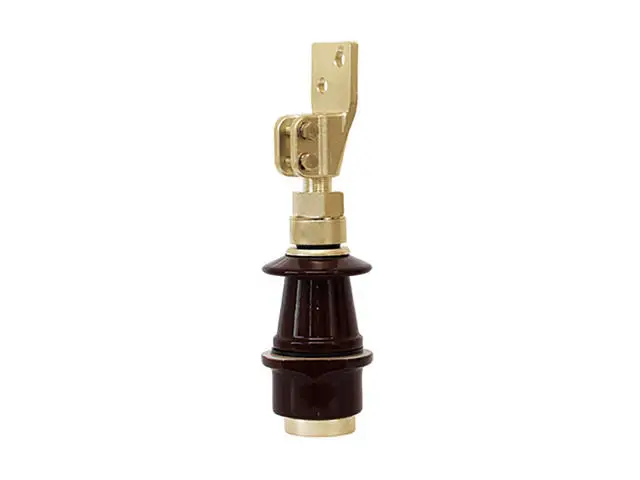

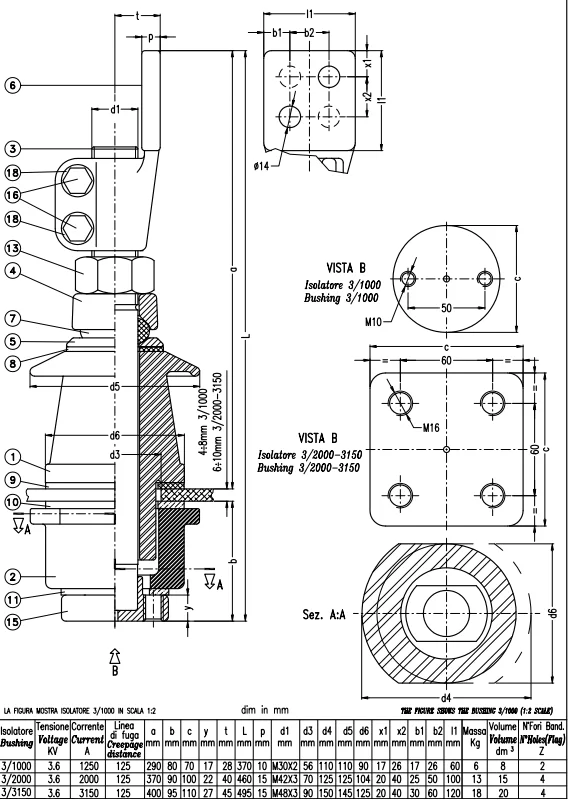

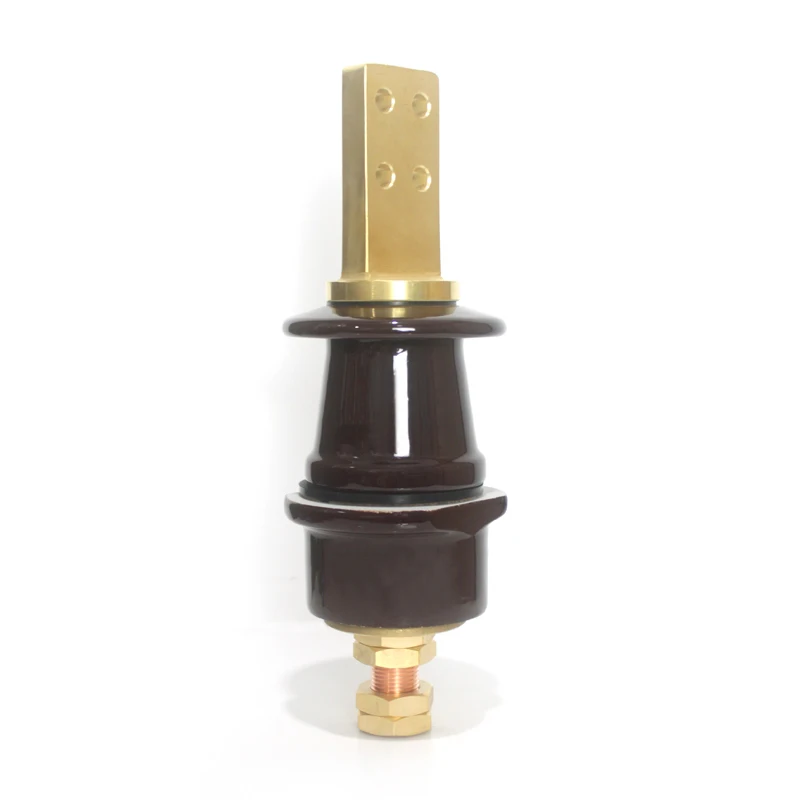

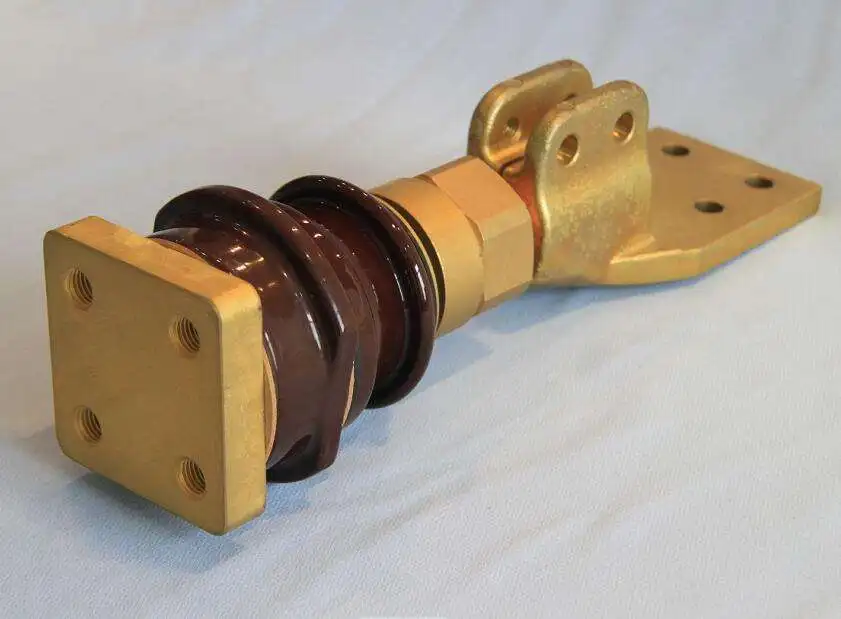

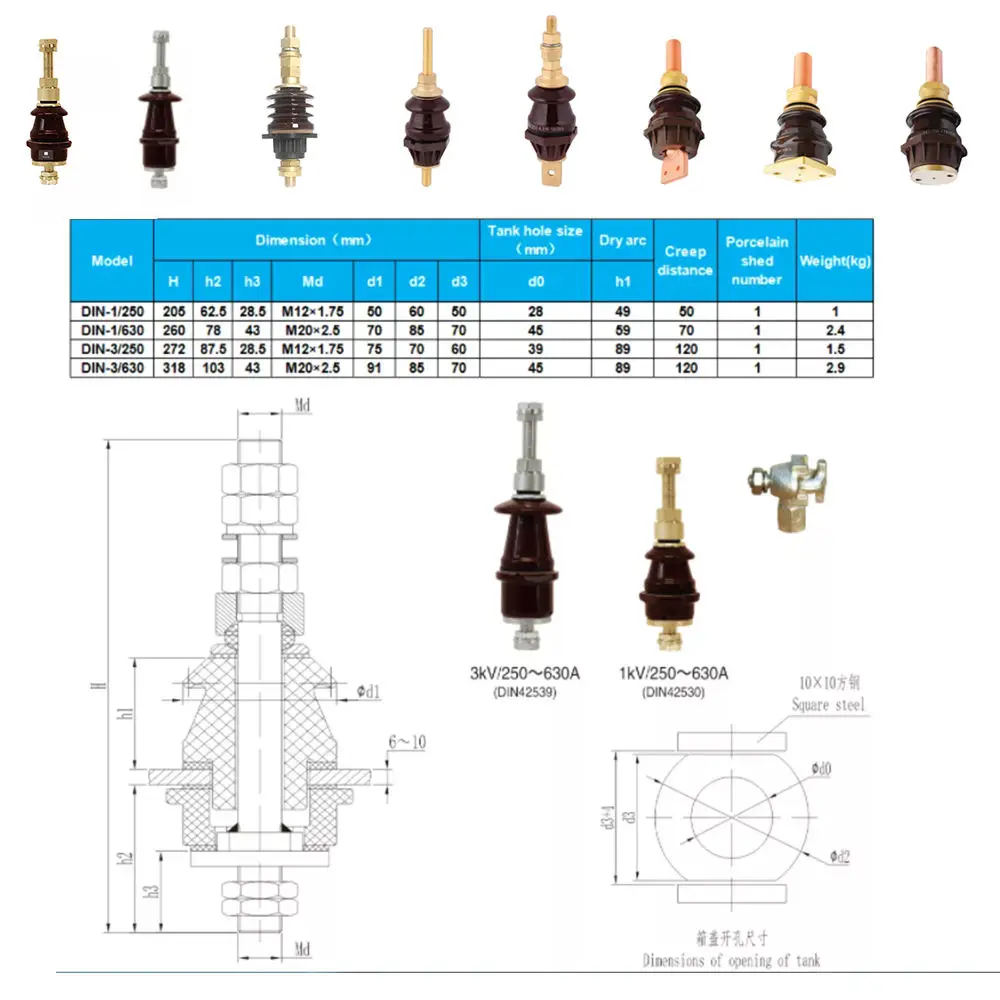

DIN and EN standard：

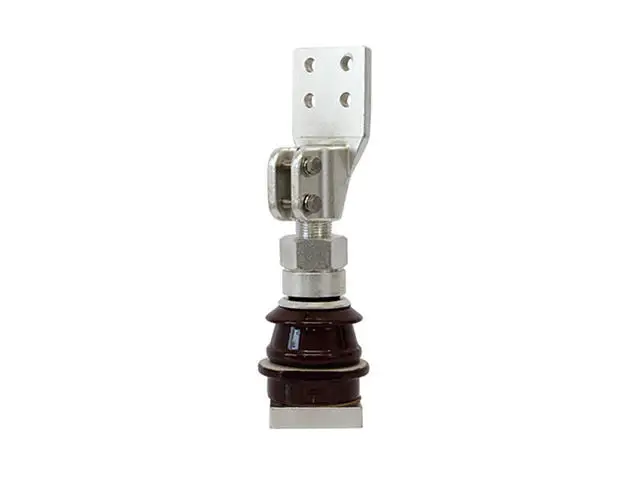

1KV/250A-630A 3KV/250A-630A 1KV/1000A-2000A-3150A
3KV/1000A-2000A-3150A 3KV/6500A 12KV-24KV-36KV/250A
12KV-24KV-36KV/630A 12KV-24KV-36KV/1000A-2000A-3150A
1KV/250A-630A 3KV/250A-630A 1KV/1000A-2000A-3150A
3KV/1000A-2000A-3150A 3KV/6500A 12KV-24KV-36KV/250A
12KV-24KV-36KV/630A 12KV-24KV-36KV/1000A-2000A-3150A
Specification
item | value |
Place of Origin | China |
Brand Name | HZGW |
Model Number | ANSI EN DIN Standard |
Type | Transformer Bushing |
Material | Porcelain, Brass |
Application | Low and high voltage |
Rated Voltage | 1-.36KV |
Standard | ANSI/EN/DIN/AS Standard |
Usage | Outdoor & Indoor |
Packing & Delivery

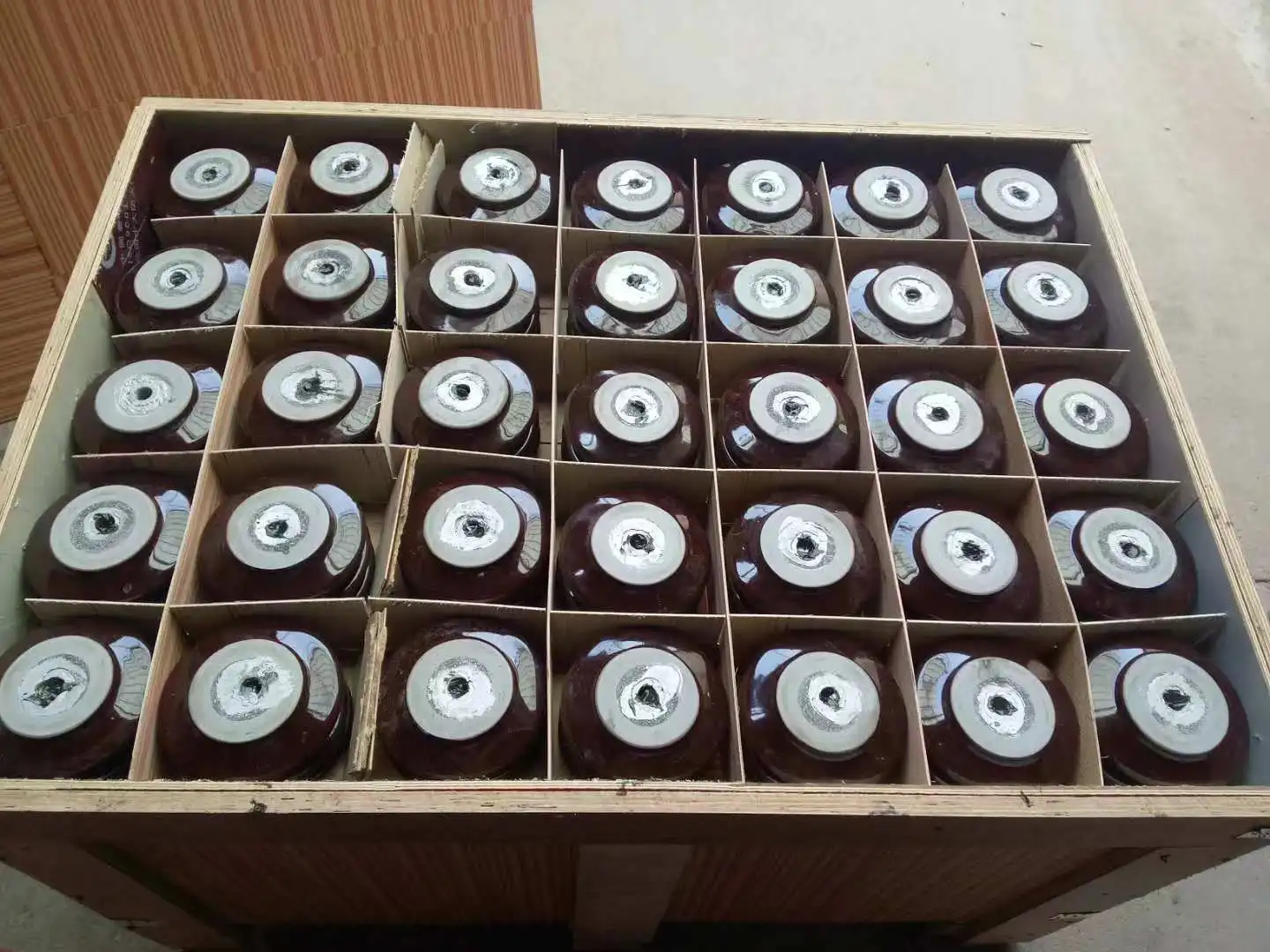

Standard exporting package suitable for long distance transporting
