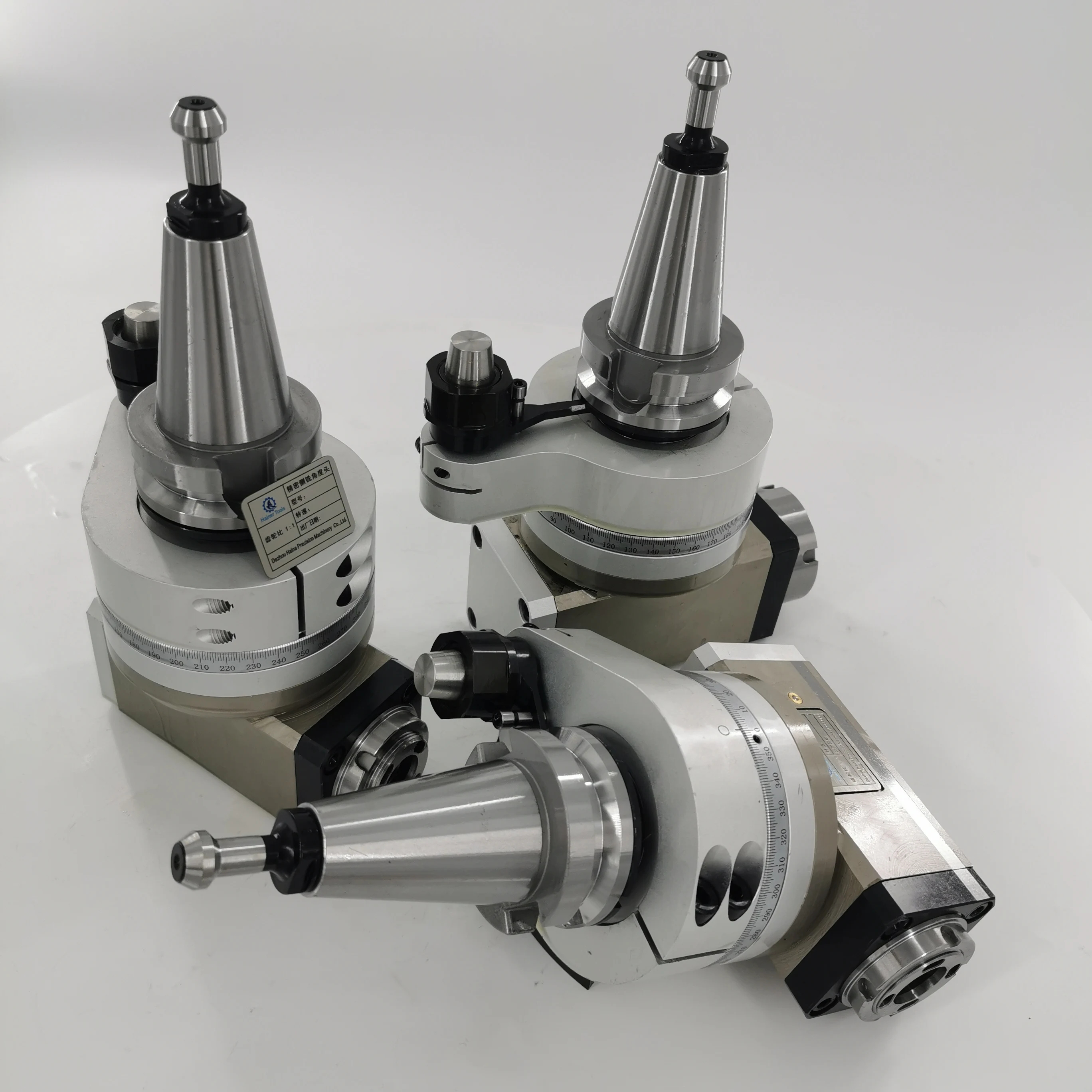

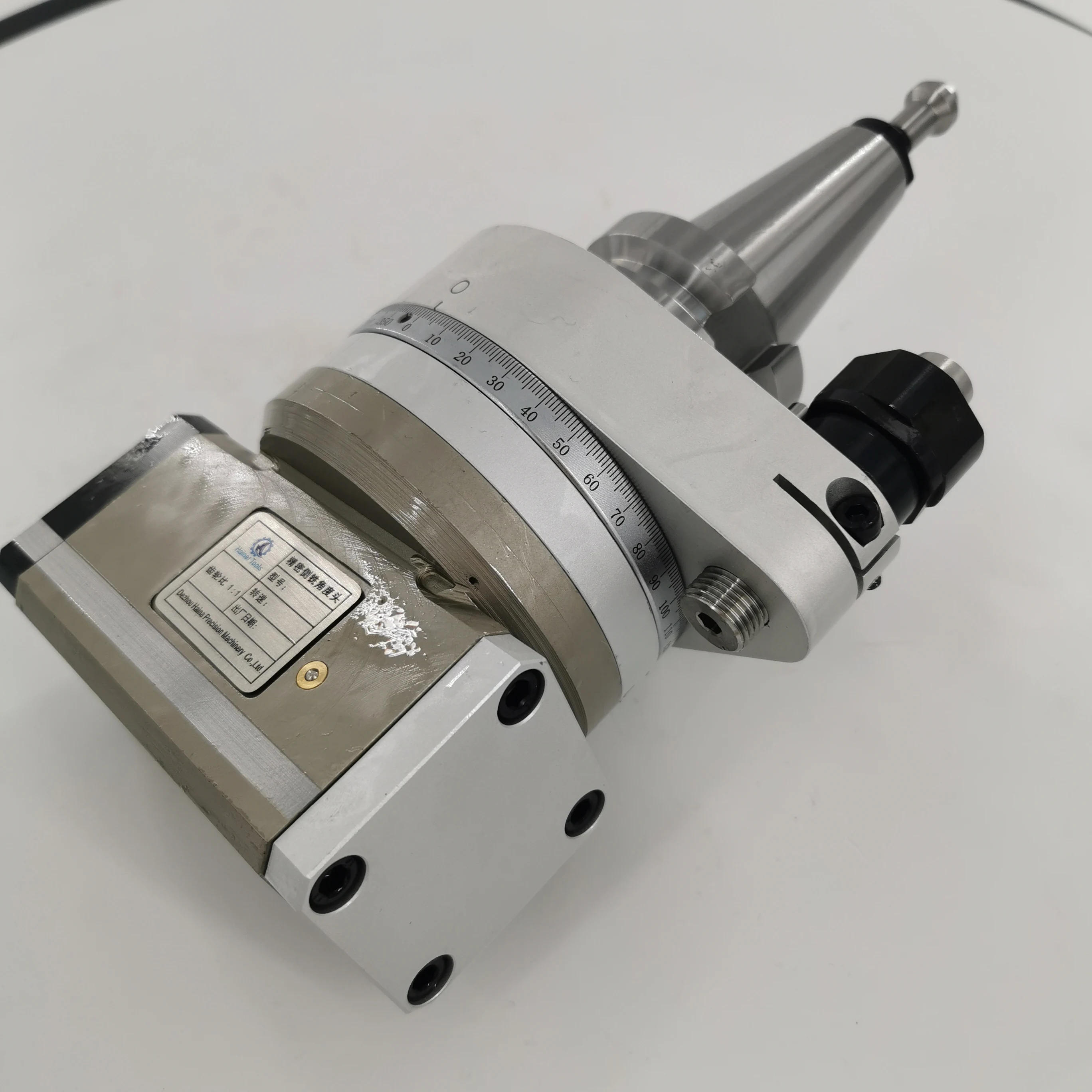

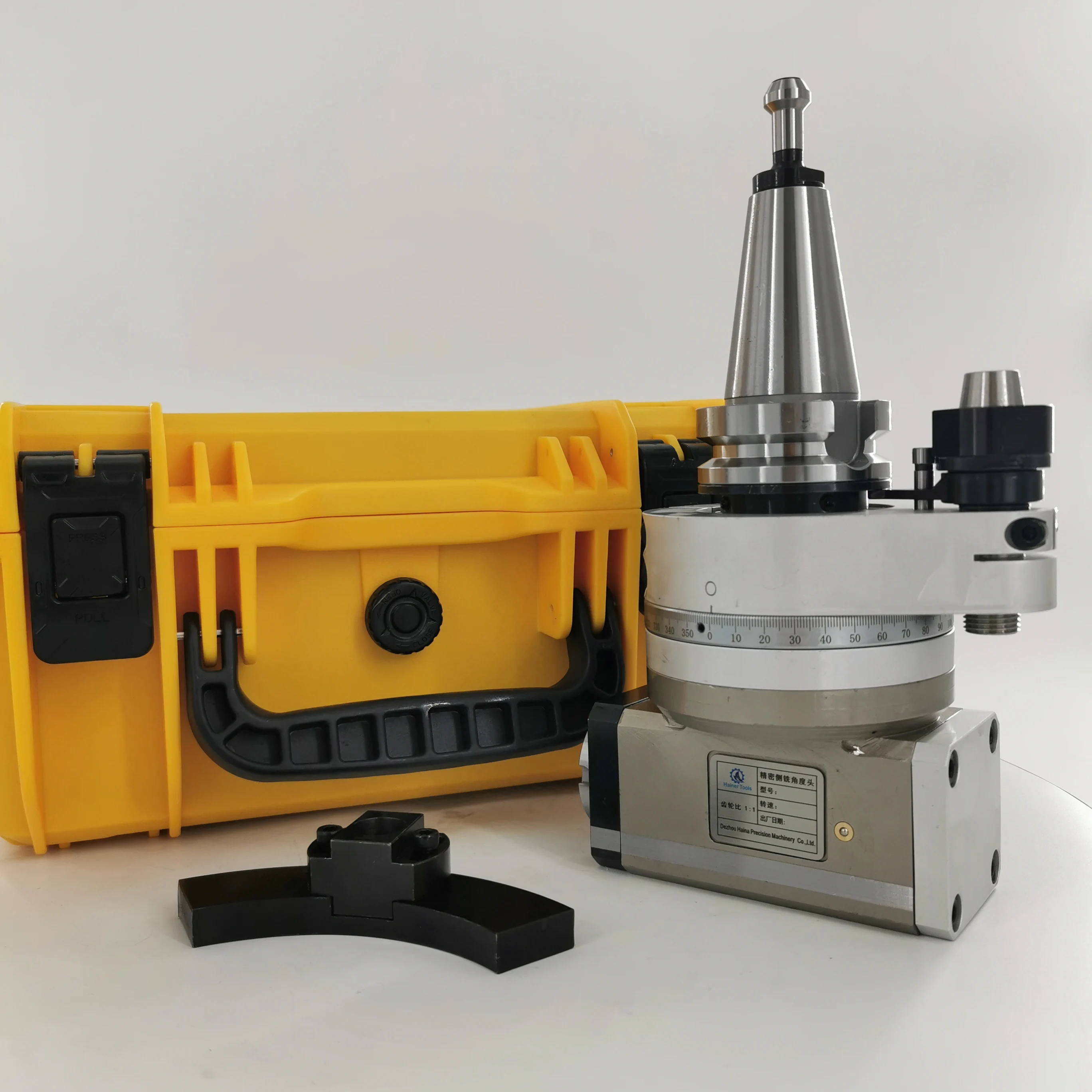

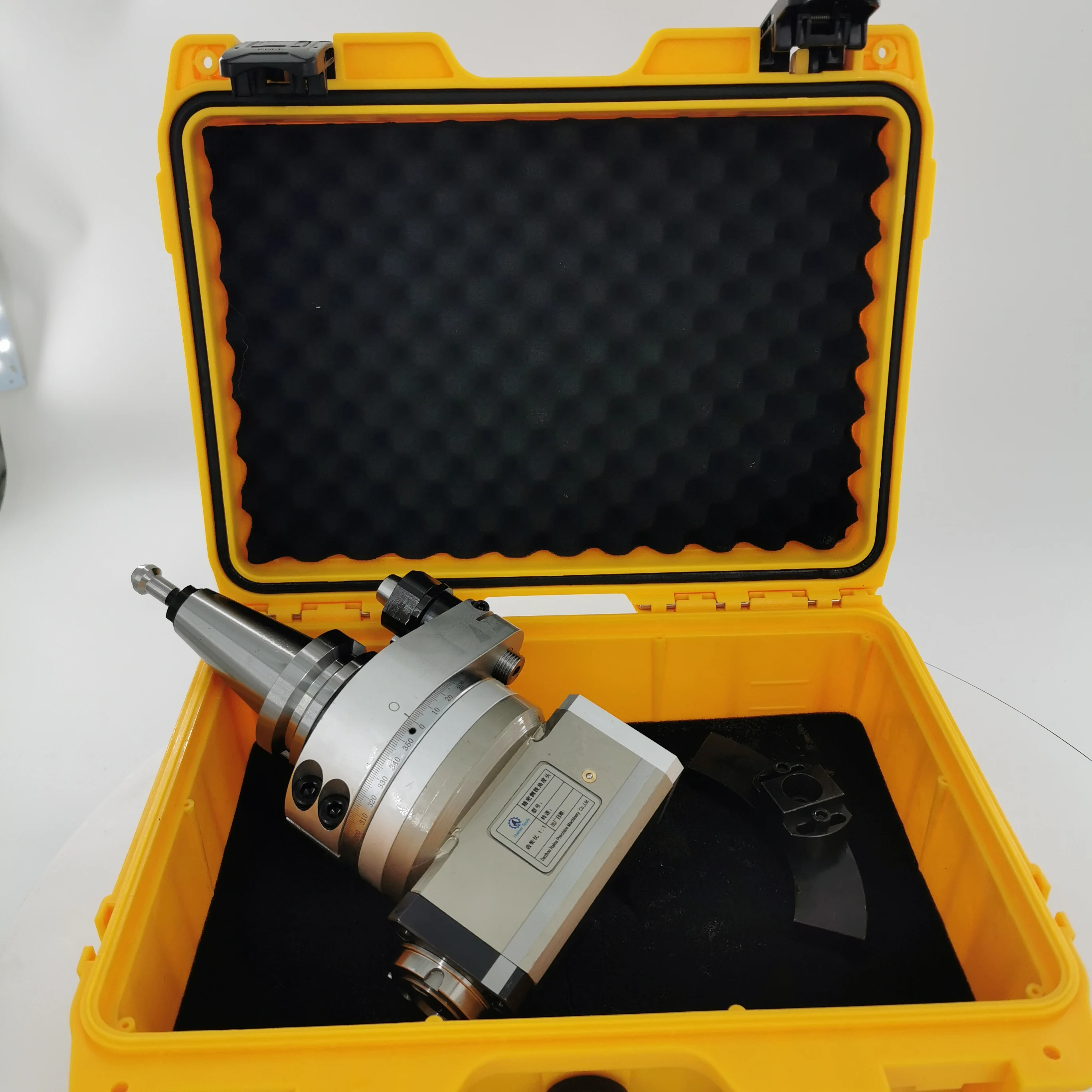

90 degree angle head BT40/50 ER right angle milling head for Machining Center

Product Overview

Description

^{90 degree angle head BT40/50 ER right angle milling head for Machining Center}

SPECIFICATIONS

1. The angularposition of spindle is 90° and process vertically.
2. Spindle chuck could rotate in 360° degree.Maximum speed up to 6000 rpm
3. High quality precision helical pinions keep steady running with longer life.
4. Run our of spindle chuck is within 0.02

5.Using NSK bearings, high speed without noise
6. According to  different machine devices, it is equipped with versatile coolant systems for customer to choose from:
(1) Coolant feed from the center and exhaust from cutting tool
(2) Coolant feed from the center and exhaust from the oil ball
(3) Coolant feed from the stop blockr and exhaust from cutting tool
(4) Coolant feed from the center and exhaust from the oil ball

Order No.	L	L1	L2	L3	S	Capacity	N.m	Collet
AHBT40-ER16-120	121	30.5	51	85	65	0.5-10	20	ER16
AHBT40-ER32-120	121	30.5	51	78	65	1~16	20	ER32
AHBT50-ER16-120	130	30.5	51	85	80	0.5-10	20	ER16
AHBT50-ER32-120	130	30.5	51	78	80	1~16	20	ER32
