CE ISO 3000C lab furnace for graphitization process support experiment & conducting trials
- Category: >>>
- Supplier: Zhuzhou Chenxin Induction Equipment Co. Ltd.
Share on (1600684339147):
Product Overview
Description
Product Description
CE ISO 3000C lab furnace for graphitization experiment & conducting trials
CX-GF- 20/30 VT is vertical top loading induction heating furnace with round hot zone shape. This model is ideal for various research applications and new materials development. Simple operation and easy maintenance process of this furnace, save time and budget in research projects. With maximum operating temperature of 3000 ℃, this model suitable for universities, research institutions and company for R&D.
Model | CX-GF 20/30 VT |
Configuration | Vertical, Top loading |
Max. Working Temperature | 3000 ℃ |
Continuous Working Temperature | ≥ 2850 ℃ |
Usable Space (mm) | Dia. * H: Φ200*300 |
Heating Power | ≤ 80 KW |
Frequency | 4000 Hz (auto-track) |
Ultimate Vacuum | 1.2 * 10-5Pa |
Optional High Vacuum | 1.2 * 10-3Pa |
Working Atmosphere | High Vacuum (Optional) / Vacuum / Inert Gas (Ar or N2) |
Supply Power | 3 N/PE, AC/380V, 50/60Hz (can be customized) |
Cooling Water Pressure | 1.5 - 2.5 bar |
Cooling Water Temperature | ≤ 28℃ |
Overall Dimension (L*W*H, mm) | Overall Dimension (L*W*H, mm) |
Weight (KG) | 1500 |
Main Application:

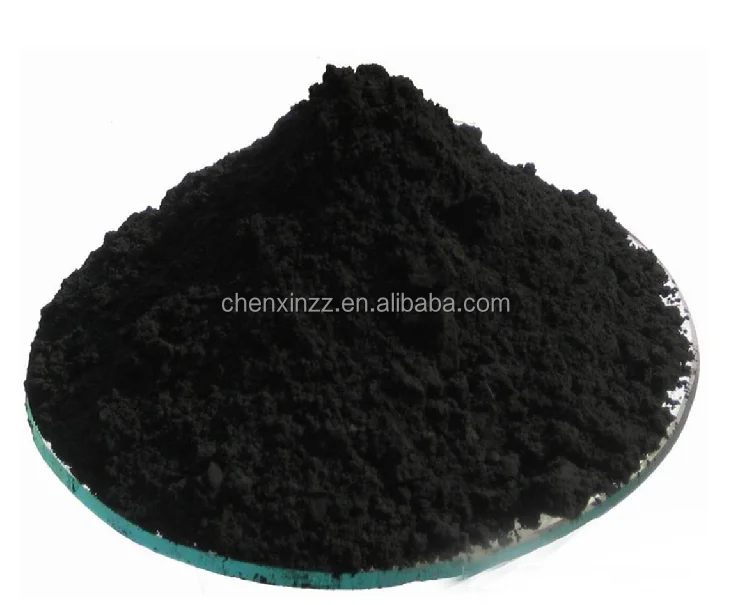

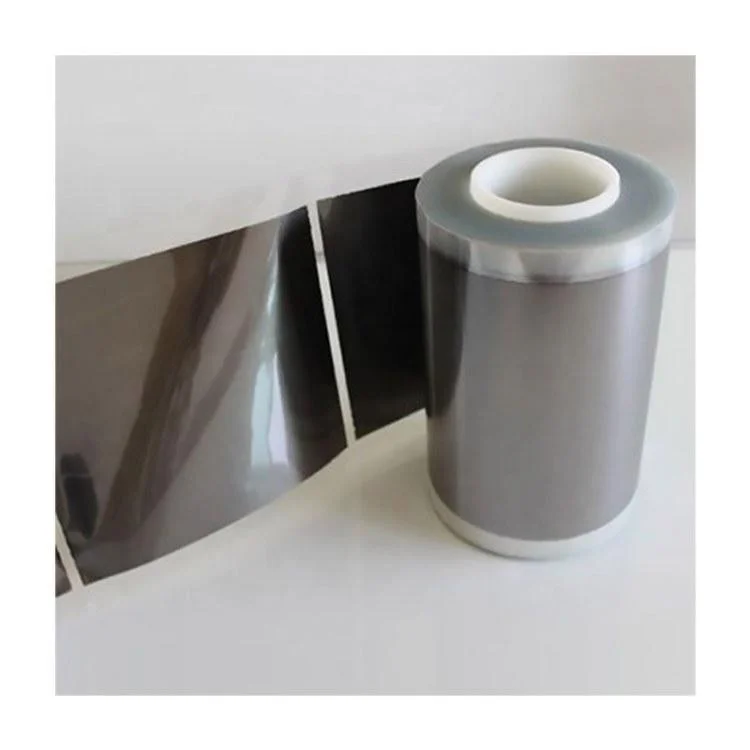

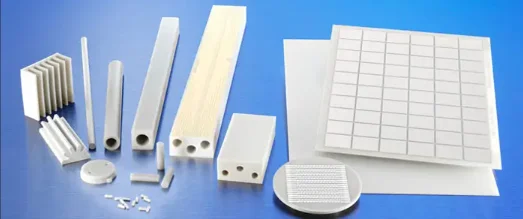

Carbonization and Graphitization treatment of carbon materials, like synthetic graphite film (Polyimide graphite flake and abbreviated PI film), carbon fiber, C/C composites, Graphene, Lithium battery anode materials, VGCF negative material, etc. Purification of Carbon Nanotube (CNT), Natural Flake Graphite, etc. Sintering of high temperature ceramics, other
materials which can be sintered or heated in graphite hot zone (carbon included environment).
materials which can be sintered or heated in graphite hot zone (carbon included environment).
During the R&D stage, you can send materials to us for heat treatment in our 3000℃ furnace to verify the process and material properties.

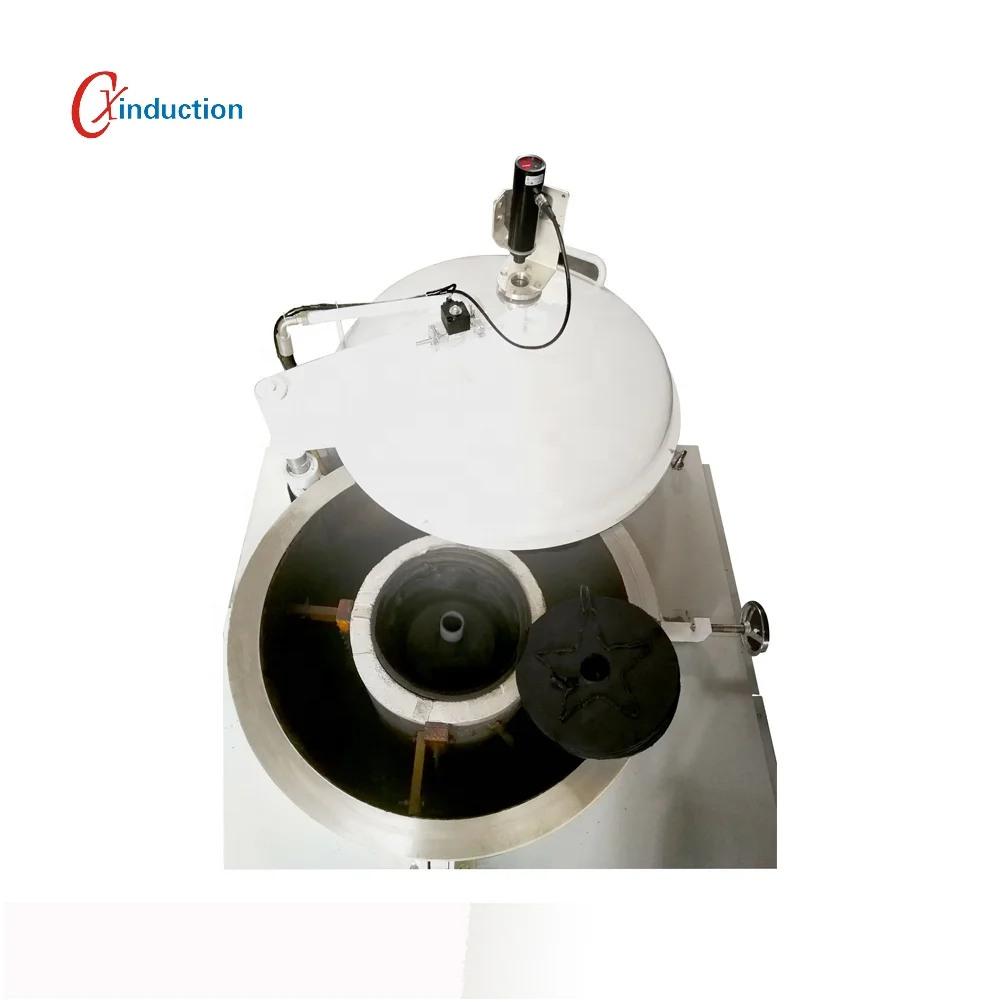

Furnace Structure
Lithium Ion battery
The application scenarios of lithium batteries will be more abundant in the future. And next 10 to 15 years will be its golden development period.
It's estimated that by 2025, the global demand for lithium batteries will reach 1223GWh.
In 2021, China's lithium-ion battery shipments reach 324GWh, a year-on-year increase of 106%. From January to February 2022,China's lithium-ion battery industry maintains a rapid growth trend, with shipments exceeding 82GWh.
From the perspective of lithium-ion battery output, according to data from the National Bureau of Statistics of China, the lithium-ion battery output in 2021 is 23.26 billion, a year-on-year increase of 22.4%, and from January to March 2022, lithium-ion battery output reaches 5.85 billion, a year-on-year increase of 14.5%.
It's estimated that by 2025, the global demand for lithium batteries will reach 1223GWh.
In 2021, China's lithium-ion battery shipments reach 324GWh, a year-on-year increase of 106%. From January to February 2022,China's lithium-ion battery industry maintains a rapid growth trend, with shipments exceeding 82GWh.
From the perspective of lithium-ion battery output, according to data from the National Bureau of Statistics of China, the lithium-ion battery output in 2021 is 23.26 billion, a year-on-year increase of 22.4%, and from January to March 2022, lithium-ion battery output reaches 5.85 billion, a year-on-year increase of 14.5%.
We(Zhuzhou Chenxin Induction Equipment Co.,LTD) have successfully provided the high temperature system to BYD & CATL for lithium battery experiments. Welcome to contact us for more details.
