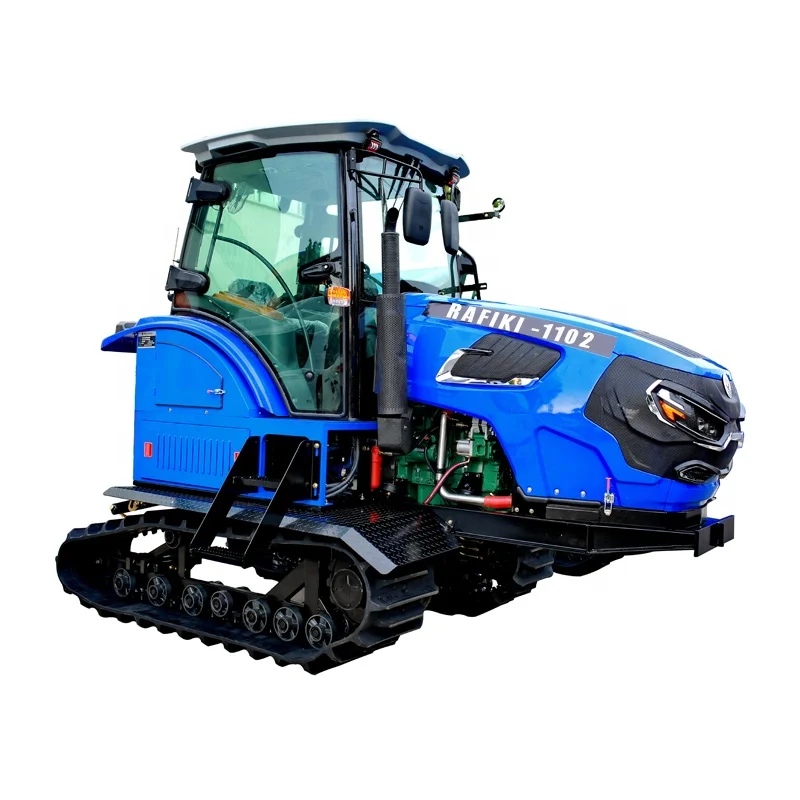

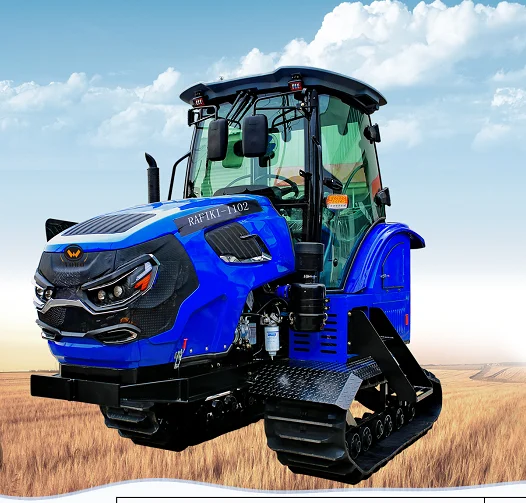

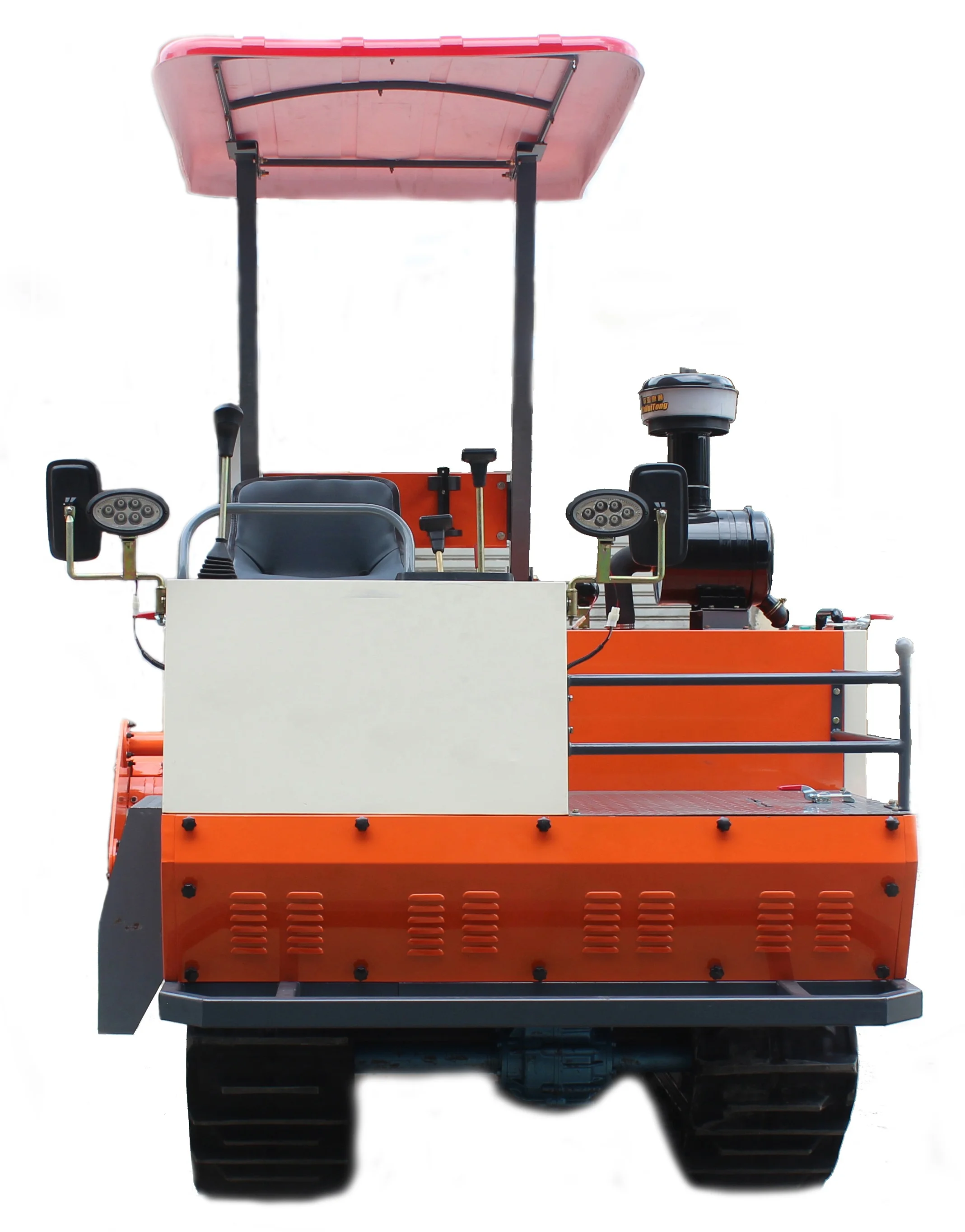

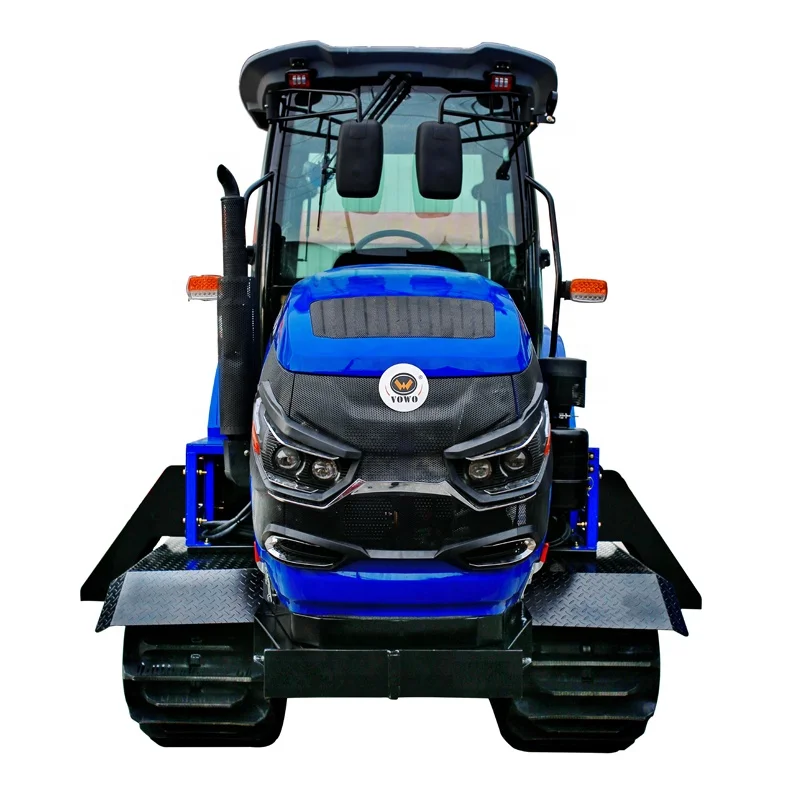

Agr Rubber Crawler self propelled rotary tiller Crawler rotary tiller crawler tractor

Product Overview

Description

   100HP Farm Mini Crawler self propelled rotary cultivator 210/250



Model	RAFIKI-210	RAFIKI-250
Type	Crawler self propelled	Crawler self propelled
Diamension	3800*2260*2800mm	3800*2730*2800mm
Weight	2100kg	2160kg
Working width	210cm	250cm
Gearshift number	Hydro-mechanical Continuously Variable	Hydro-mechanical Continuously Variable
Transfer method	Middle	Middle
Rotary model	IT225/IT245	IT225/IT245
Blades total	58/72pcs	66/76pcs
Blade roller spindle speed	280r/min	280r/min
Blade roller turning radius	225/245mm	225/245mm
Engine	74.5kw	74.5kw
	2600r/min	2600r/min
	1.0-1.3m/s	1.0-1.3m/s
	Low speed	Low speed
Turn left	1650mm	1650mm
Turn right	1650mm	1650mm
Crawler	90mm*52pitch*4450mm	90mm*52pitch*4450mm
Track	1200	1200


















1.We guarantee that the goods are made of the best materials and of first class workmanship, brand new, and comply in all respects with the quality and specifications and  performance as stipulated in Contract.



2.We can promise that send you parts that are not easily damaged at the time of shipment.



3. Our sales manager is online for 24 hours, when we get your needs we can give you timely reply and solutions.



1. Payment term: T/T
2. Delivery time:30 days
3. FOB or CIF , CFR
4. Others as customers' require



 Thank you for visiting our shop ,If you need more details, please feel free to contact us,thanks!
