fabric shrinkage and forming machine for knitted , silk and fiber fabric

Share on (1600684456597):


Price:$20,000.00

Quantity:


Product Overview

Description



Our Advantage








Fabric shrinking machine is in a certain temperature, humidity and pressure,fabric is the tension-free state, with the help of the fabric itself elastic shrinkage deformation ,textile and fiber penetration and swelling principle, eliminate the potential shrinkage of fabric, complete the shrinking work.




Stabilize shrinkage rate of fabric、 improve physical properties of fabric.
Improve fabric quality and dimensional stability: prevent finished garment deformation.
Convenient for production, improve efficiency: after shrinking processing, there is no need to consider the shrinkage of fabric in the process of cutting, sewing and ironing.
Increase the added value of garment and brand efficiency: after shrinking ,shrinkage rate of fabric is controlled within the national standard, fabric dimension will be stability, feeling better.
The shrinking machine is the necessary previous process machine with CAD/CAM automatic equipment.


Product Description


YILI Brand
Fabric Steam Relaxing and Heating Setting Machine






Steam humidification and heating.

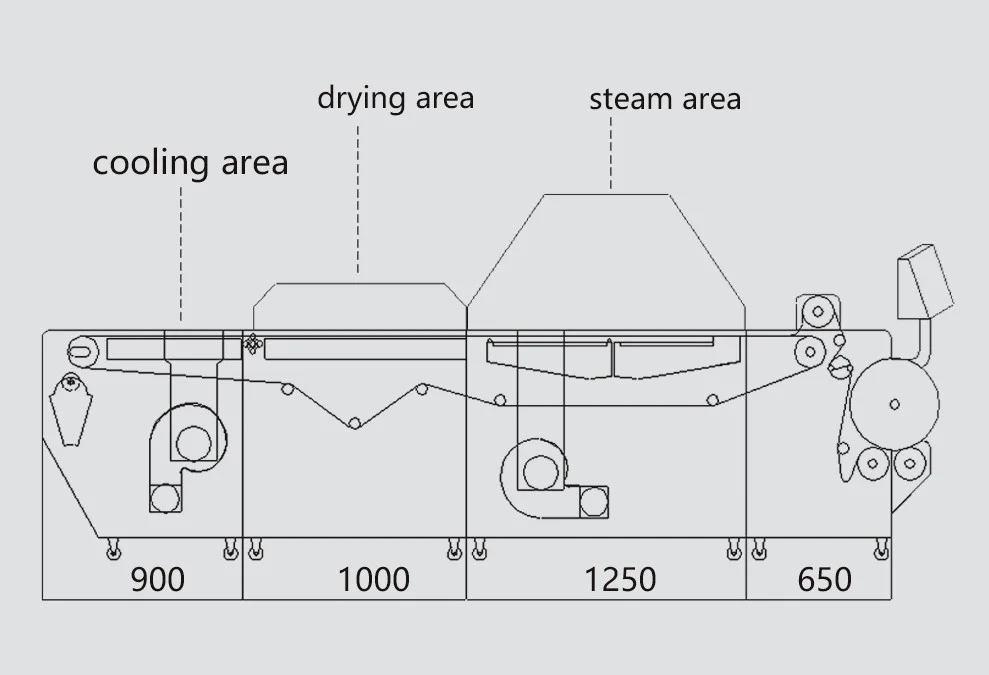

One drying chamber. Drying is mainly by steam heating, electric heating is auxiliary. Not only for save energy but also meet the temperature requirements of different fabric.
One strong cooling chamber, quickly cooling fabric, stabilize fabric size.
Vibration function allow the fiber to be fluffy naturally.
Spreading fabric 、Measurement、folding fabric.




Fully sealed unique design steam cover: no leakage of steam, reduce the steam consumption (save about 40% steam consumption than other type product), ensure no water dripping.
The steam cover is made of three layers of stainless steel,good heat preservation and thermal insulation effect.

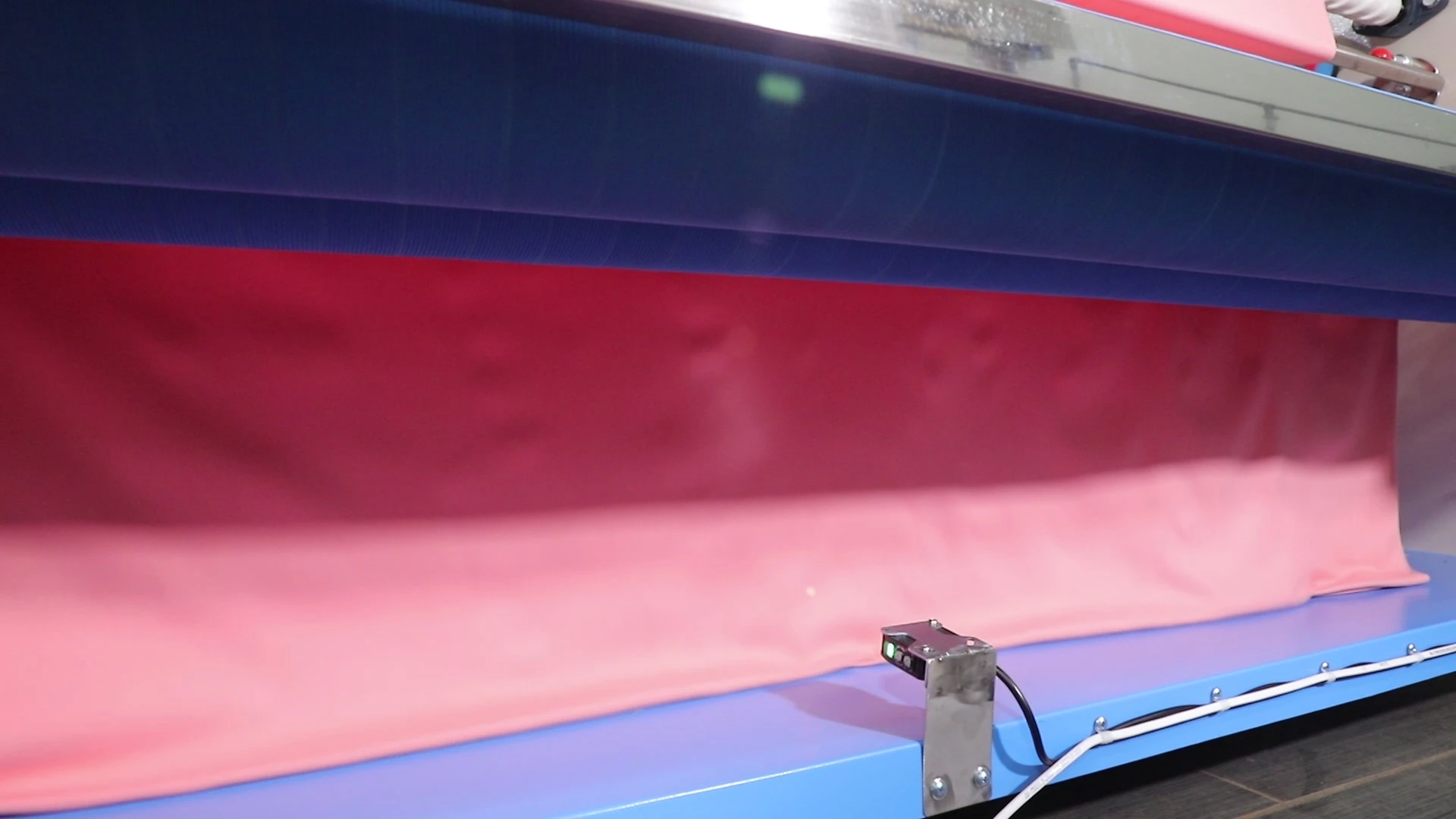

Electronic eye monitoring releasing fabric , make sure fabric is in the tension-free state.
Stepless Frequency Conversion Timing.
Equipped with original imported electrical appliances, stable performance,machine is durable .
Electronic eye automatically adjusts the mesh belt no need to worry about mesh belt running off, automatically stop working in case of failure.

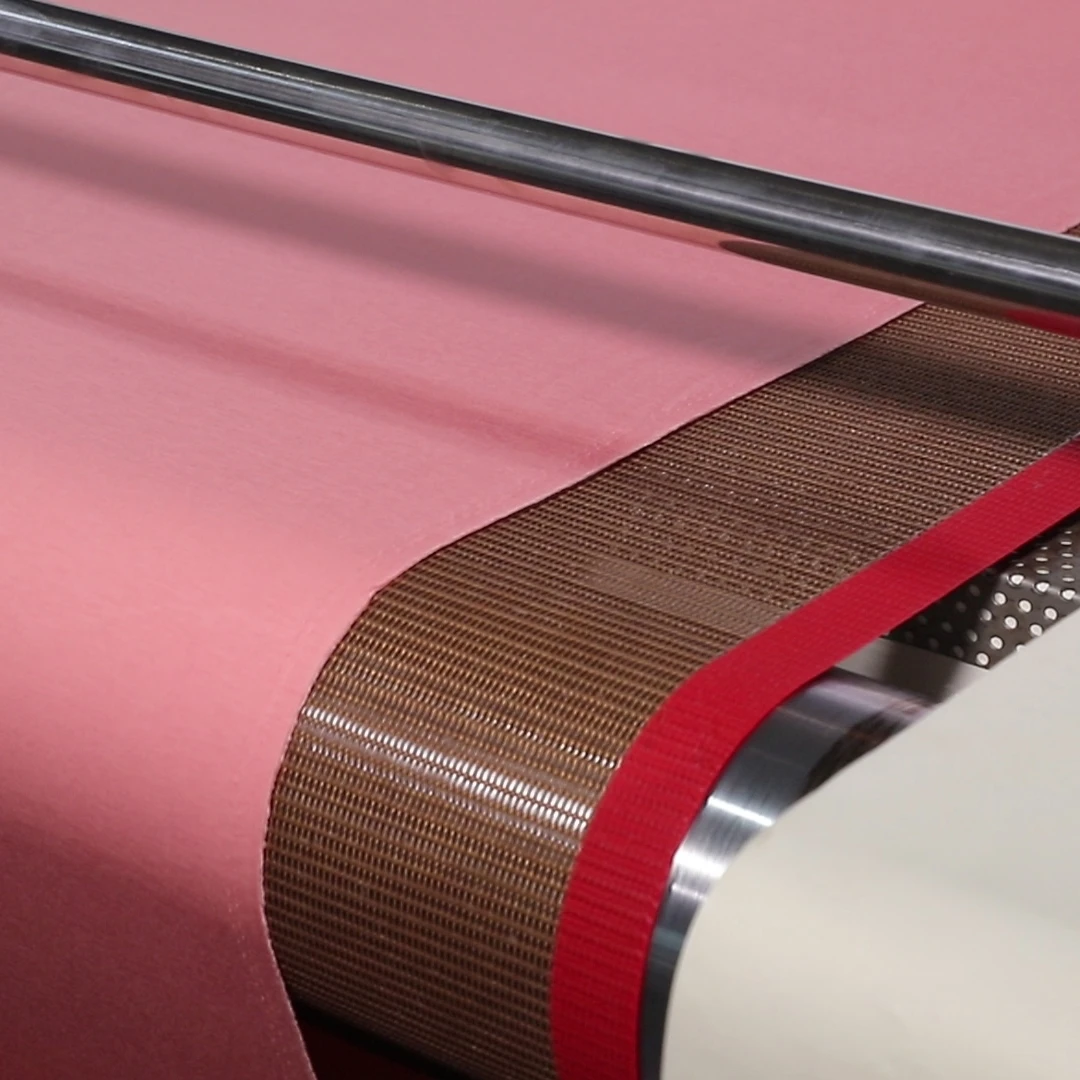

Use high temperature resistant Teflon mesh belt.




Model
YL-3800-A
Voltage&Frequency
AC 380V 50HZ
 Steam consumption
100kg/h
Steam pressure
0.4-0.7 Mpa
Maximum roll fabric diameter
40cm
Maximum working width
2100mm
Working speed
Adjustable,0-20m/min
Drying temperature
Adjustable,≤200 ℃
Drying heating power
6KW/12KW
Total Power
9KW/15KW
Boundary dimension
4000*2610*1650mm








Knit and woven ,a variety of general fabric.
