Water Flow Meter Sensor Ultrasonic Flow Meter Tds 100F Dn40 Ultrasonic Heat Meter With Flange
- Category: >>>
- Supplier: Dalian Zhuochuan Technology Co. Ltd.
Share on (1600684744286):
Product Overview
Description
Type | Ultrasonic flowmeter |
Sensor type | External sensor/Plug in sensor/Bracket sensor |
Accuracy | 土1% |
Velocity range | 0 ~±10 m / s, forward and backward measurement |
Pipe diameter | DN15~DN6000 |
Fluid temperature | -30°C-160°C |
Fluid type | Water, sea water, sewage, acid-base liquid, alcohol, beer, oil, etc. can conduct ultrasonic single uniform liquid |
Pipe material | Steel, stainless steel, cast iron, copper, PVC, aluminum, glass fiber reinforced plastic and other dense pipes are allowed to have lining |
Signal out | 1 Channel 4 ~ - 20mA current output impedance 0 ~ 1K, accuracy 0.1% |
One channel OCT pulse output pulse width 6 ~ 1000ms | |
One way relay output | |

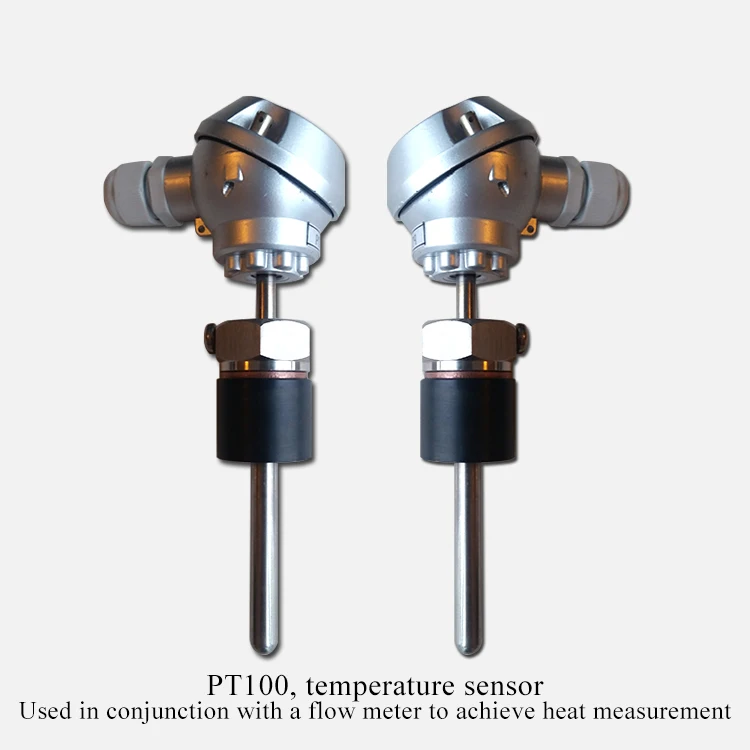

Signal input | Three 4 ~ 20mA current input can be used as data collector to connect three wire PT100 platinum resistance to realize heat measurement |
Communication interface | Isolate RS485 serial interface and support Modbus protocol |
Data storage | SD card regularly stores the set parameters and measurement results (optional) |
Power supply mode | DC8 ~ 36V or AC85 - 264V |
