Cystoscope NP 3X (Child type), Urological surgical instruments

Share on (1600684798233):


Price:

Quantity:


Product Overview

Description

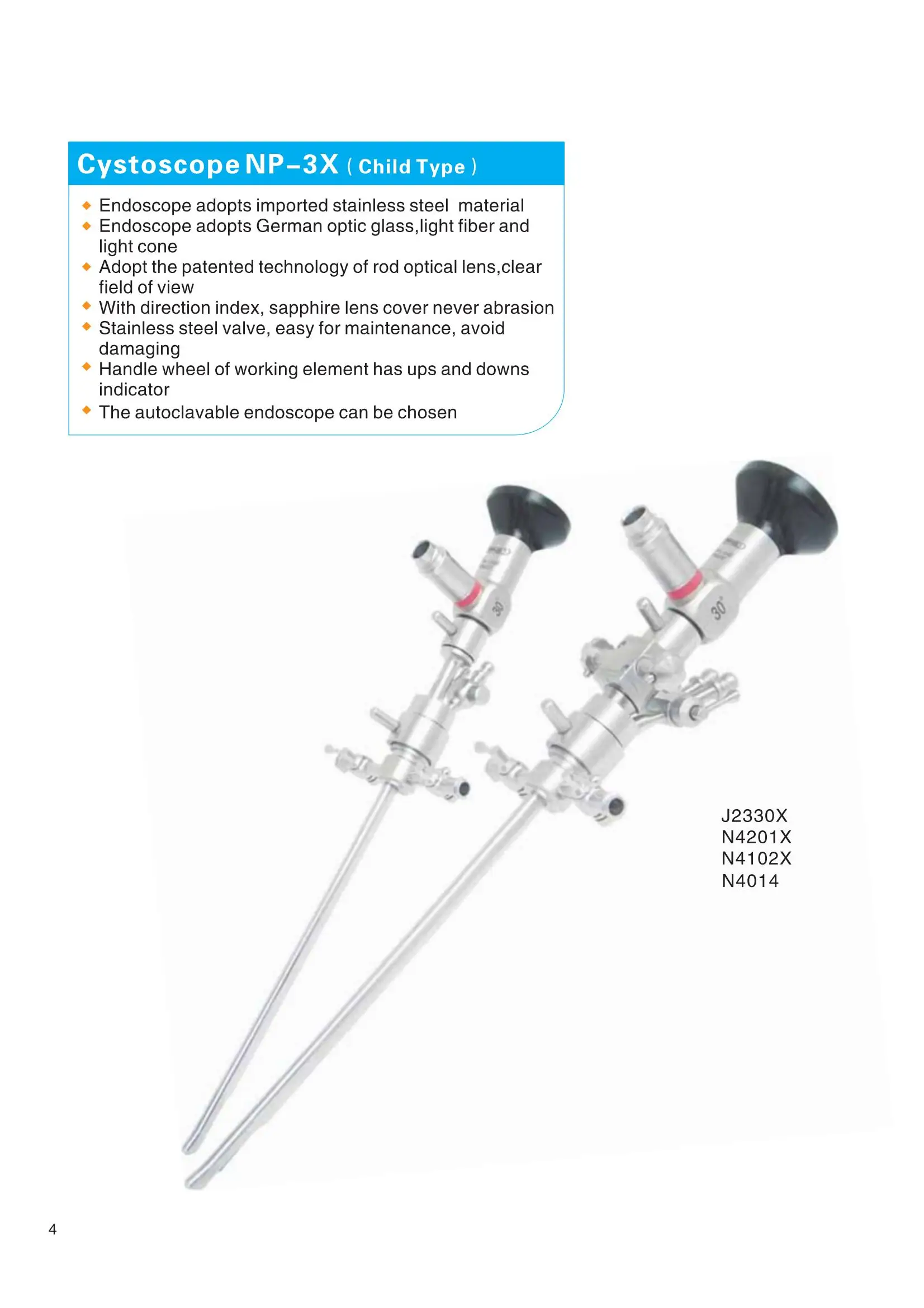

Cystoscope NP-3X


Specification: CHILD TYPE





Product description








1.Can connect with STORZ products
2.Adopt high quality stainless steel material
3.Endoscope can stand of temperature of 134°C/273° F for sterilization
4.Endoscope adopts German optic glass,light fiber and light cone
5.With direction index
6.Sapphire cover for lens,never abrasion
7.New optic system,clear field of view
8.Free maintenance valve

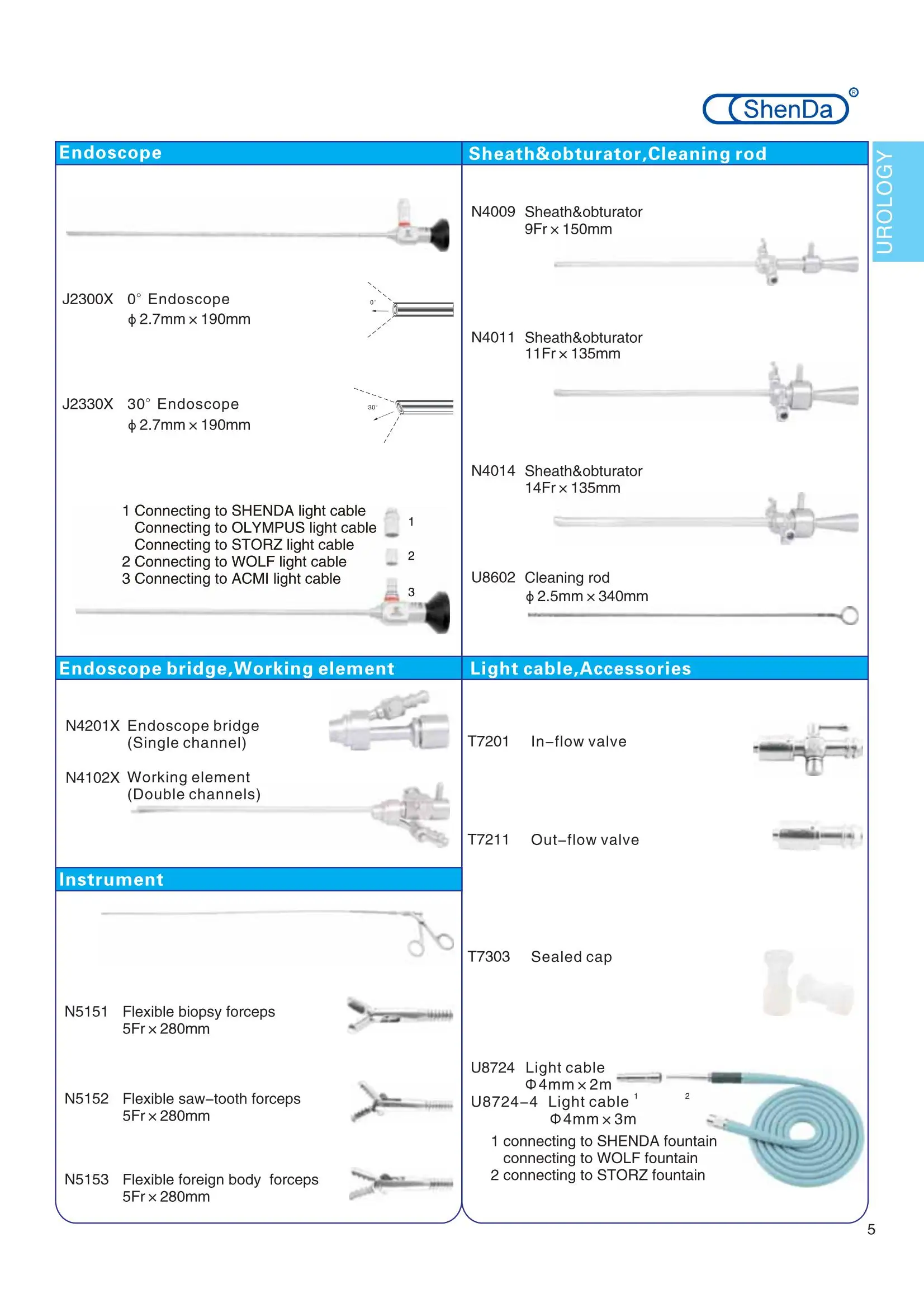

Cystoscope NP-3X(Child type)
NOCodeNameSpecificationQuantity
1J2300XCystoscope0°,2.7mmx190mm1
2J2330XCystoscope 30°,2.7mmx190mm1
3N4009Sheath&obturator9Frx150mm1
4N4011Sheath&obturator11Frx135mm1
5N4014Sheath&obturator14Frx135mm1
6N4102XWorking elementDouble channels1
7N4201XEndoscope bridge  Single channel1
8N5151Flexible biopsy forceps5Frx280mm1
9N5152Flexible saw-tooth forceps5Frx280mm1
10N5153Flexible foreign body forceps5Frx280mm1
11U8602Cleanning rod2.5x340mm1
12T7201In-flow valve 1
13T7211Out-flow valve 1
14U8724Light cable4mmx2m1
15T7303Sealed cap 10
16U9111GL-100L LED Light source30W,Colour temperature:6500K,Illumination:500000LX1
17SD-618Colour mini camera(CCD)Luxury type(static state)1
18U9523QB-1 Perfusion pump for endoscope          1
19N6406Coagulation electrode6Frx455mm, disposable1
20 U8412BHF cord3m1
21U9331Intelligent HF ElectrotomeDouble electrode1
22Samsung19# MonitorSMT-19341
23U9820Trolley5 layers1
