Теплостойкая кордиеритовая/многослойная огнеупорная подложка, инфракрасная сотовая керамическая пластина фильтра для очистки воздуха

Теплостойкая кордиеритовая/многослойная огнеупорная подложка, инфракрасная сотовая керамическая пластина фильтра для очистки воздуха

Category: Ceramics >>>
Supplier: Pingxiang,Bestn,Chemical,Packing,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

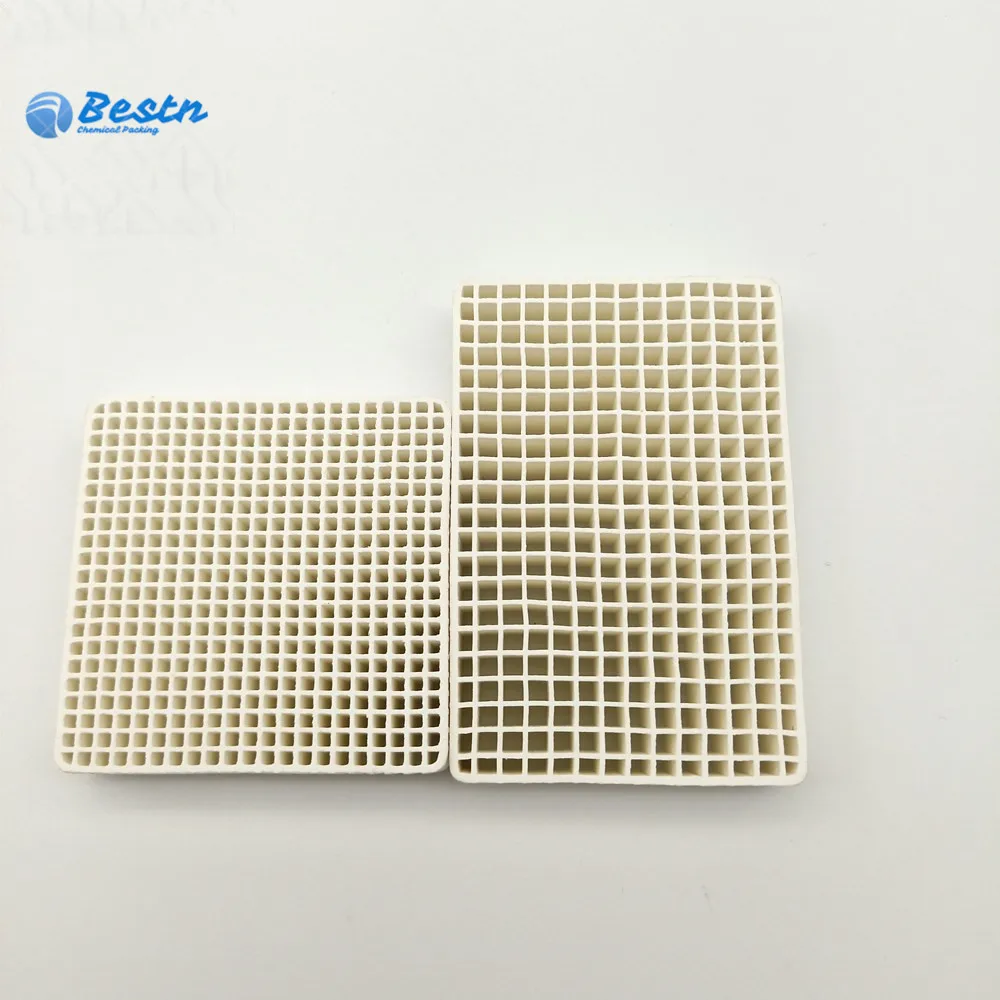

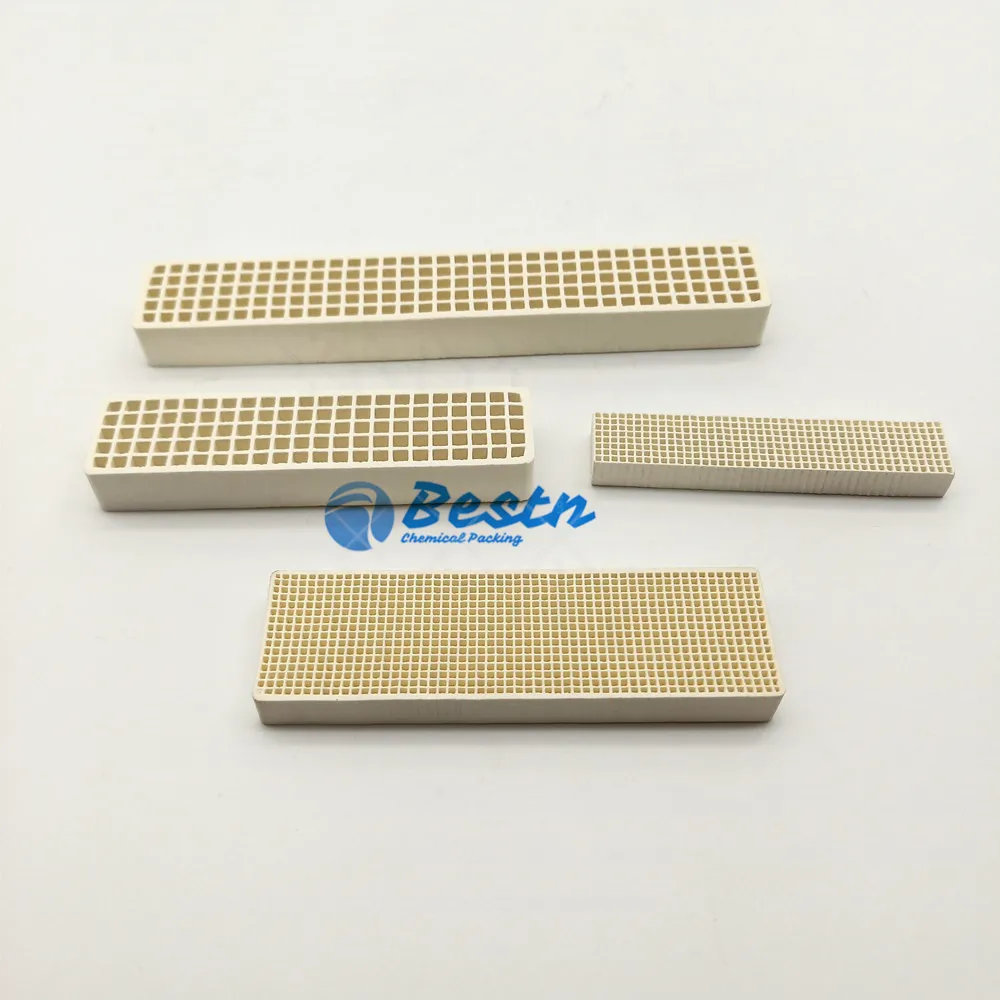

Honeycomb ceramic filter plates are widely used for filtering molten metal in metallurgy and casting industries. Mullite (cordierite) ceramic materials are used, with high-quality and high-density straight hole meshes, so that the products have the characteristics of high heat shock resistance and high sintering temperature resistance. The straight hole design ensures the balance between flow and strength, effectively removes impurities and slag particles, etc., and greatly improves the mechanical properties, surface quality and product qualification rate of castings.

Specification

Item			Cordierite honeycomb ceramic filter plate	Mullite honeycomb ceramic filter plate
Chemical composition	Si02(%)	≥50%	≥34.5%
		A1202 (%)	≥34.5%	≥55%
		MgO (%)	≥12.5%	≥6.8%
		Other(%)	≤3.5%	≤3.5%
Operating temperature			≤1300℃	≤1480℃
Physical parameters	Opening ratio	40-60%
		Compressive strength	4.5	6.5
		Water absorption	≥20%	≥12%
Size	Circular	Φ20-143mm (≥143mm Need customization）
		Square	20-150mm(≥150mm Need customization）
		Thickness	≥7.7mm
Aperture	Mesh number	≤400CPSI
Aperture		mm	≥1mm

Advantages

Application

Honeycomb ceramic filter pieces are widely used for filtering molten metal in metallurgy and casting industries, such as filtering and casting of metal liquid, coating precious metal electronic smoke filter pieces with acidizing catalyst photocatalyst for deodorization and VoC treatment, air purifier filter pieces, lampblack machine filter pieces, and flue gas filtering.

Packing & Delivery

Package Type	Container Load Capacity			Delivery time	Quality Insurance	Payment Terms
Package Type		20 GP	40 GP	Delivery time	Quality Insurance	Payment Terms
Ton bag	20 m3	40 m3	Within 7-14 days	Chinese National Standard; Offer quality assurance as request.	T/T, L/C, Paypal, West Union
Plastic bag	20 m3	40 m3
Paper box	20 m3	40 m3
Wooden box	20 m3	40 m3

About us

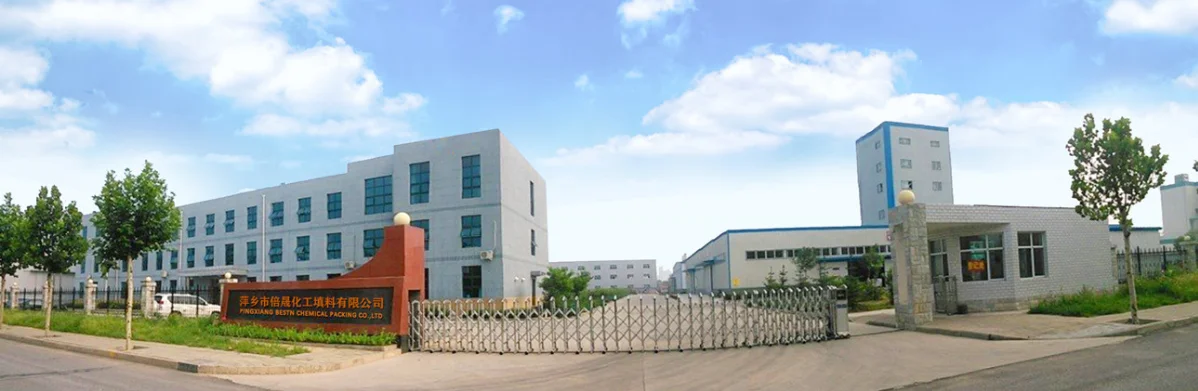

Company Profile

Pingxiang Bestn Chemical Packing Co., Ltd was established in 2007, It is a professional manufacturer and exporter that has more than 10 years experience in Chemical Packing. We are located in Hi-Tech Industrial Park, Development area, Pingxiang city, Jiangxi Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.Our main products are molecular sieve, activated alumina, ceramic ball, honeycomb ceramics, Plastic lamella clarifiers, MBBR Media, random and structured chemical packing in ceramic, plastic and metal material, can be used in all types of petrochemical chemical processes and environmental application.Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received ISO9001: 2008 certificate, SGS report, etc. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching seven Continents.Since its foundation, our company keeps living up to the belief of "honest selling, best quality, people-orientation and benefits to customers" We are doing everything to offer our customers with best services and best products. We promise that we will be responsible all the way to the end once our services begin.If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with you, also warmly welcome to visit our factory.
