Промышленный датчик расстояния 20 м, высокоточный датчик дальности лазера с коротким диапазоном
- Category: Laser Rangefinders >>>
- Supplier: Chengdu,JRT,Meter,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Our Advantages
1. JRT module responds quickly with high accuracy and long range measuring.
2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China.
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multi-functional.
4. Voltage can be changed by power converter LDO.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
2. We have been in this laser line for over 18 years, leading supplier of laser distance meter modules in China.
3. 30m, 40m, 60m, 80m, 100m, 120m, 150m, each distance can be multi-functional.
4. Voltage can be changed by power converter LDO.
5. Operating temperature -10 ℃~50 ℃ can be customized.
6. Analog can be customized.
Products Description
Model | C5B |
Measurement range | 0.03~20m |
Measurement accuracy | +/-1mm |
Resolution | 1mm |
Measurement time | 0.4~4s |
Laser class | Class II |
Laser type | 620~690nm,<1mW |

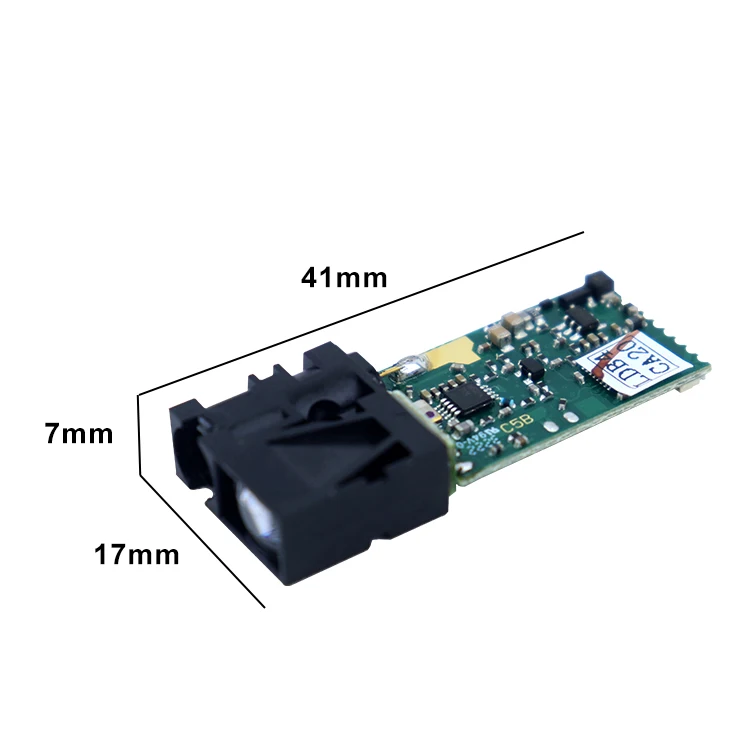

Size | 41*17*7mm |
Weight | 4g |
Frequency | 3Hz |
Voltage | DC2.0~3.3V |
Working temperature | 0~40℃ |
Storage temperature | -25~60℃ |
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm± 50PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. 20m to choose from, 40m indoor in good conditions.
4. Operating temperature -10 ℃~50 ℃ can be customized
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. 20m to choose from, 40m indoor in good conditions.
4. Operating temperature -10 ℃~50 ℃ can be customized

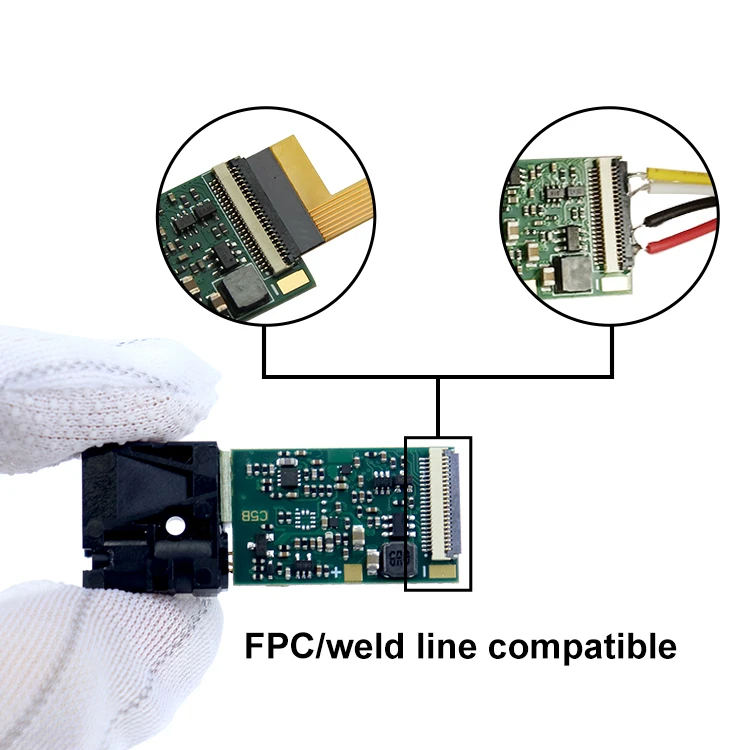

Details Images
Recommend Products
Company Profile
Packaging&Shipping
Certifications
FAQ
1: Are you factory or wholesaler or trading company?
We're the one of three leading manufacturers in China, production capacity up 10000 units/day.
2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.
3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.
5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.
After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
We're the one of three leading manufacturers in China, production capacity up 10000 units/day.
2: What’s the delivery time after an order placed for this Laser Distance Module?
Our standard delivery is 3 days if we have stock, otherwise we will let you know in time, usually we manufacture 5000pcs a day.
3: What’s the MOQ?
Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
4: What’s the warranty of the laser sensor?
All our products have one year guarantee and a life-time after sales service.
5: Can I have a sample for testing?
Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
6:Can you offer customized service?
Yes, we can offer customized service. If your laser measurement project has other requirements, please contact us.
After-sale service
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
