Multi function Ck1120 Swiss Type Cnc Lathe Machine With CE Servo Motor
- Category: >>>
- Supplier: Suzhou Goodmolds Optics Co. Ltd.
Share on (1600684956465):
Product Overview
Description
Product Description

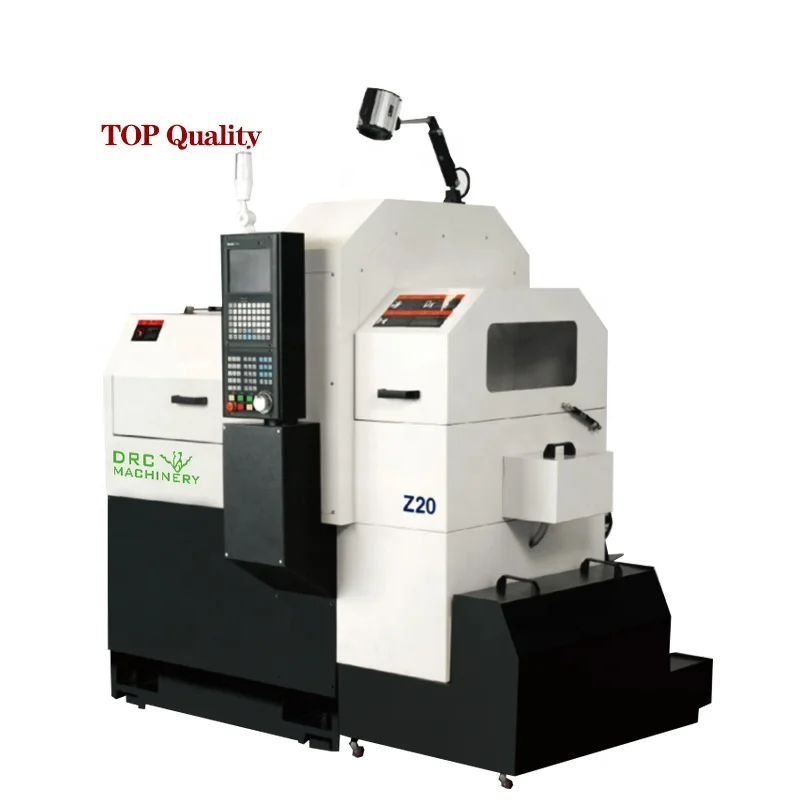

Multi-function Ck1120 Swiss Type Cnc Lathe Machine With CE Servo Motor
The Z20 CNC automatic lathe has a novel concept, and has the characteristics of rapid tool change, high precision and high efficiency. According to the needs of parts processing, the side power head can be selected to realize the automatic production of drilling and milling. It has both the high-efficiency processing performance of automatic lathes and the advantages of simple operation of CNC lathes. It is a new type of machine tool that integrates CNC lathes and automatic lathes.
·Reasonable layout, compact appearance and small footprint.
·Fixed guide bushes and movable guide bushes can also be used according to production requirements.
·It is an ideal equipment for batch processing of small shaft parts, medical equipment, electronic connectors, miniature components, glasses, clocks and various hardware accessories.

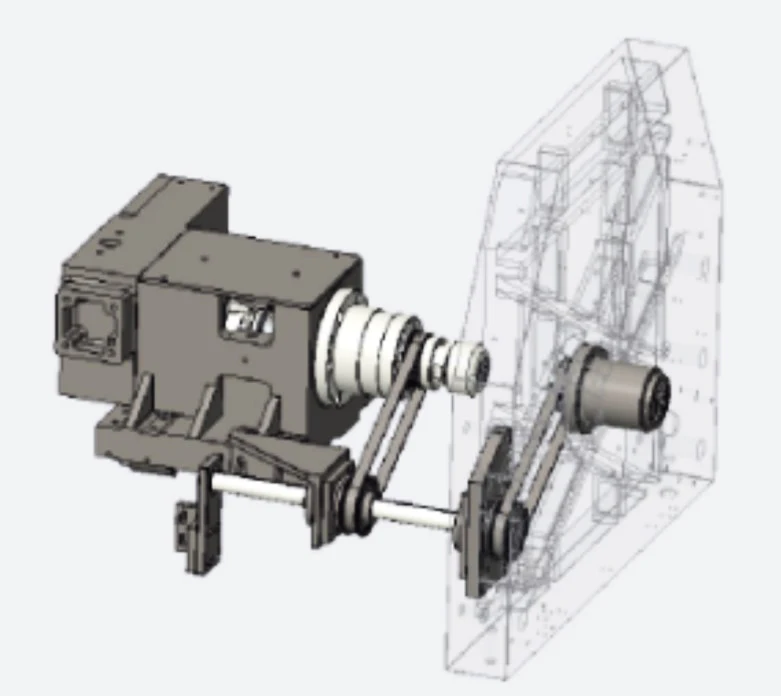

The unique design without guide sleeve can solve the common problem of the machine, and the tail material is 120m~180mm long. After using the design without guide sleeve, the length of the tail material and the tail material of the knife machine can be made equal, reducing the waste of raw materials. . Since it can be processed without a guide bush, the ellipse phenomenon of the workpiece outer diameter caused by the bending of the material is greatly improved.

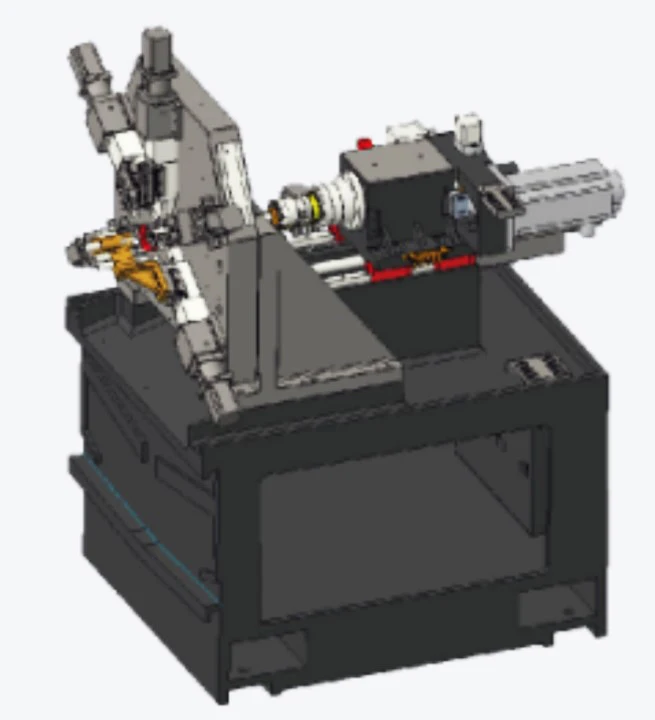

·Selected high-quality resin sand, integral casting of the base bed, strict aging treatment, has the best rigidity, excellent shock absorption performance and toughness, which can ensure the stability of the machine.
·Reasonable layout, compact appearance and small footprint.
·Fixed guide bushes and movable guide bushes can also be used according to production requirements.
·It is an ideal equipment for batch processing of small shaft parts, medical equipment, electronic connectors, miniature components, glasses, clocks and various hardware accessories.
The unique design without guide sleeve can solve the common problem of the machine, and the tail material is 120m~180mm long. After using the design without guide sleeve, the length of the tail material and the tail material of the knife machine can be made equal, reducing the waste of raw materials. . Since it can be processed without a guide bush, the ellipse phenomenon of the workpiece outer diameter caused by the bending of the material is greatly improved.
·Selected high-quality resin sand, integral casting of the base bed, strict aging treatment, has the best rigidity, excellent shock absorption performance and toughness, which can ensure the stability of the machine.
Swiss CNC lathe CK1120 main features:
High rigidity casting bed;
High precision spindle bearing;
Bed guideways industively hardened.

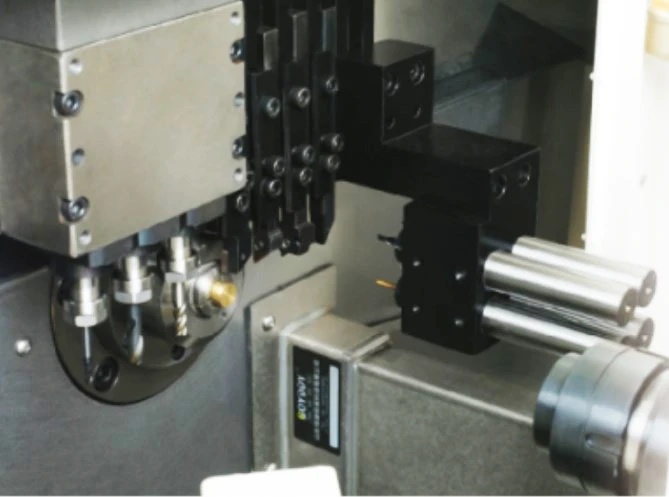

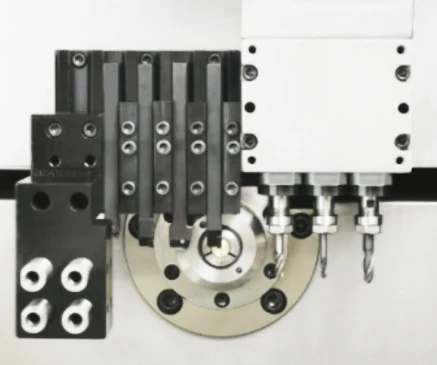

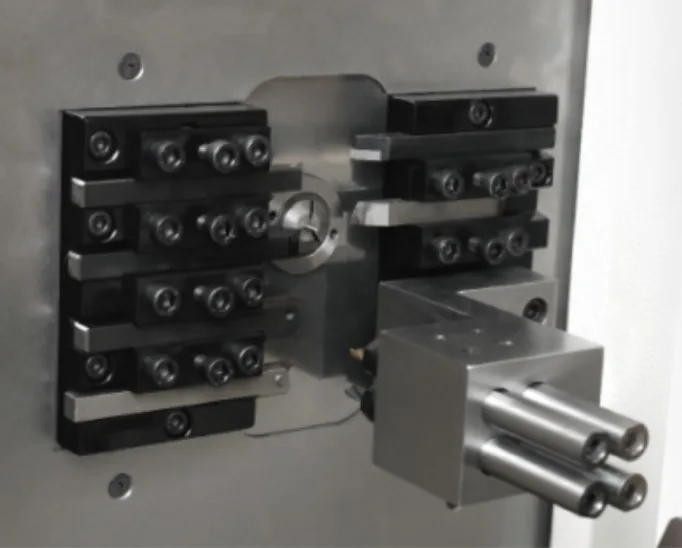

The number of tools is large, and the tool exchange is fast.
It can process all kinds of ultra-slender parts.

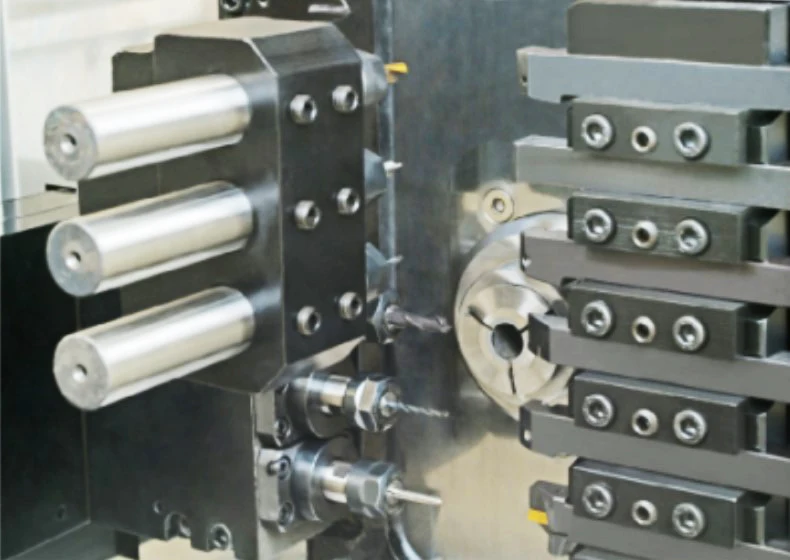

The power head meets the needs of turning and milling compound processing.
Reasonable layout, compact appearance and less floor space.
High rigidity casting bed;
High precision spindle bearing;
Bed guideways industively hardened.
The number of tools is large, and the tool exchange is fast.
It can process all kinds of ultra-slender parts.
The power head meets the needs of turning and milling compound processing.
Reasonable layout, compact appearance and less floor space.
Specification
Project | Model | Z20 |
Total Input Power | 8.2kW | |
CNC System | Domestic | YZ180 |
Min Setting Value | 0.001mm | |
X Axis Pulse Equivalent | 0.0005mm | |
Y Axis Pulse Equivalent | 0.001mm | |
Z Axis Pulse Equivalent | 0.001mm | |
Max Programming size | ±9999.999mm | |
Cutting Speed | 1--4000mm/min | |
X Axis Fast Feed Rate | 15000mm/min | |
Z Axis Fast Feed Rate | 20000mm/min | |
Spindle | Max Bar Diameter | Ø20mm |
Spindle Hole Diameter | Ø21mm | |
The height of spindle center from ground | 1060mm | |
Rotating Speed | 0-5000r/min | |
Power | 5KW | |
Stroke | X Axis Stroke | 120mm |
Z Axis Stroke | 300mm | |
X Axis Servo Motor Power | 0.4KW | |
Z Axis Servo Motor Power | 1KW | |
Slide guide mode | Linear Guide Rail |
