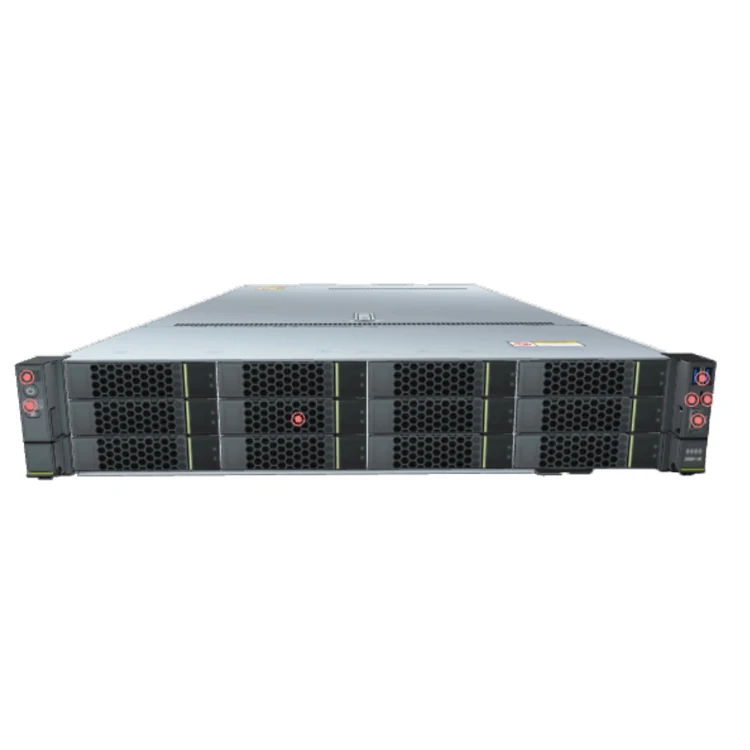

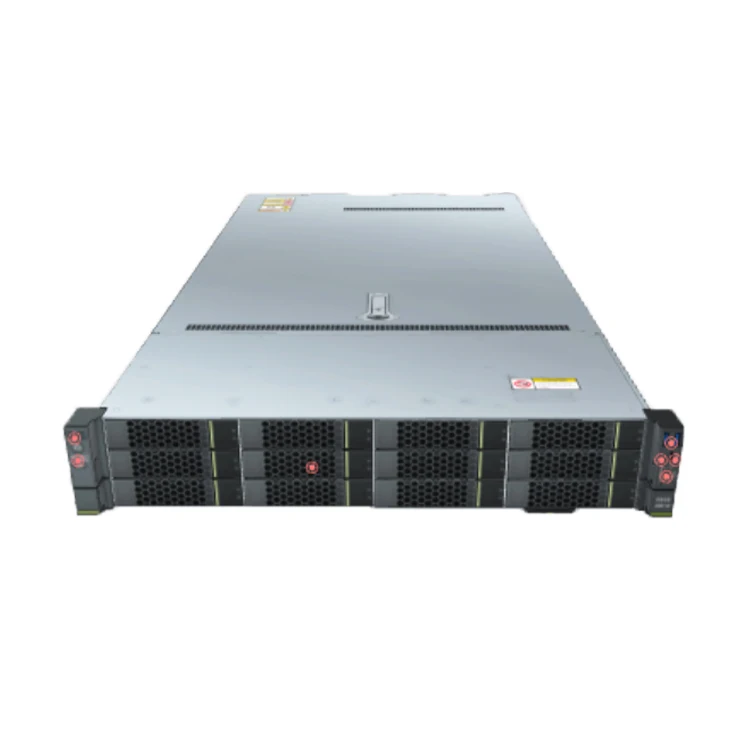

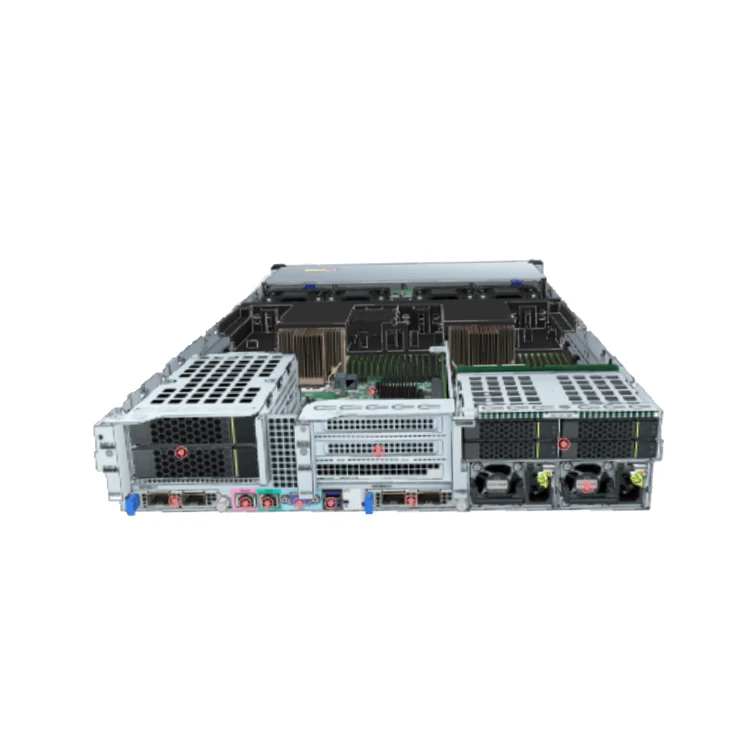

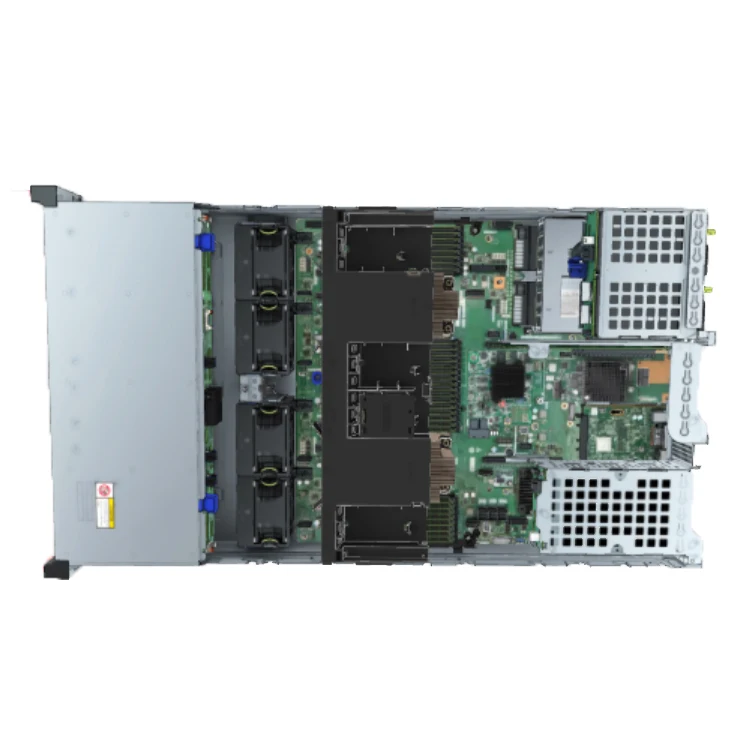

Серверная полка FusionServer 2288H V6 2U 4316 CPU 20C 2,30 ГГц 19In 2288HV6 для

Form Factor

2U Rack Server

Maxim Processor

One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W

RAM

16/32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s

Drive bays

Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
• Dual M.2 SSDs

Storage controllers

Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level
migration, drive roaming, self-diagnosis, and remote web-based configuration

I/O & Ports

LOM: 2 x 10GE + 2 x GE ports

Power supplies

• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC)
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Height X Width X Depth

Chassis with 3.5-inch drives: 86.1 mm x 447 mm x 790 mm
Chassis with 2.5-inch drives: 86.1 mm x 447 mm x 790 mm

Rail

Optional rail

Weight

30.0kg
