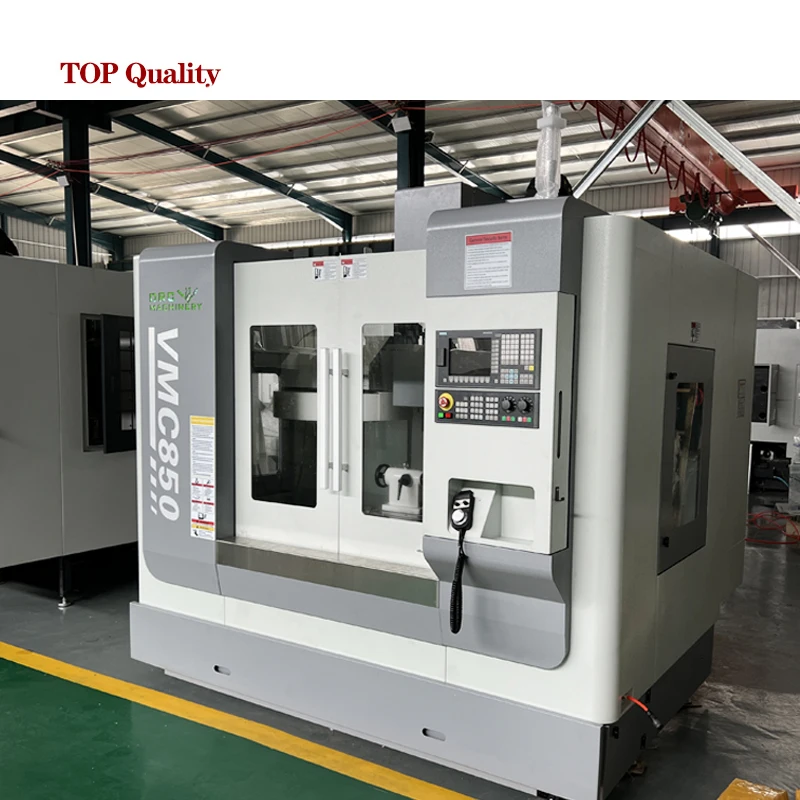

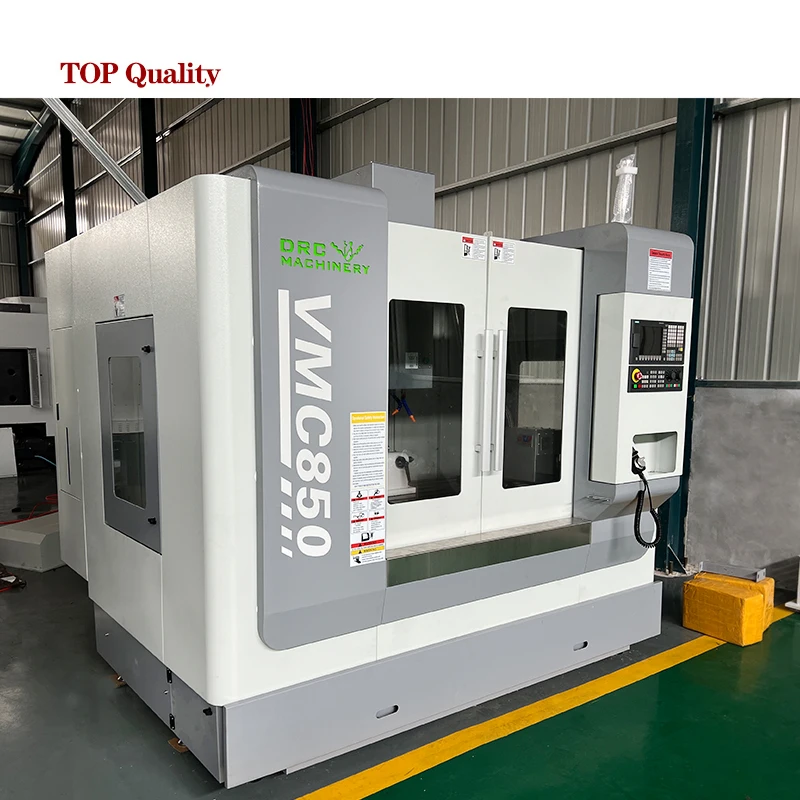

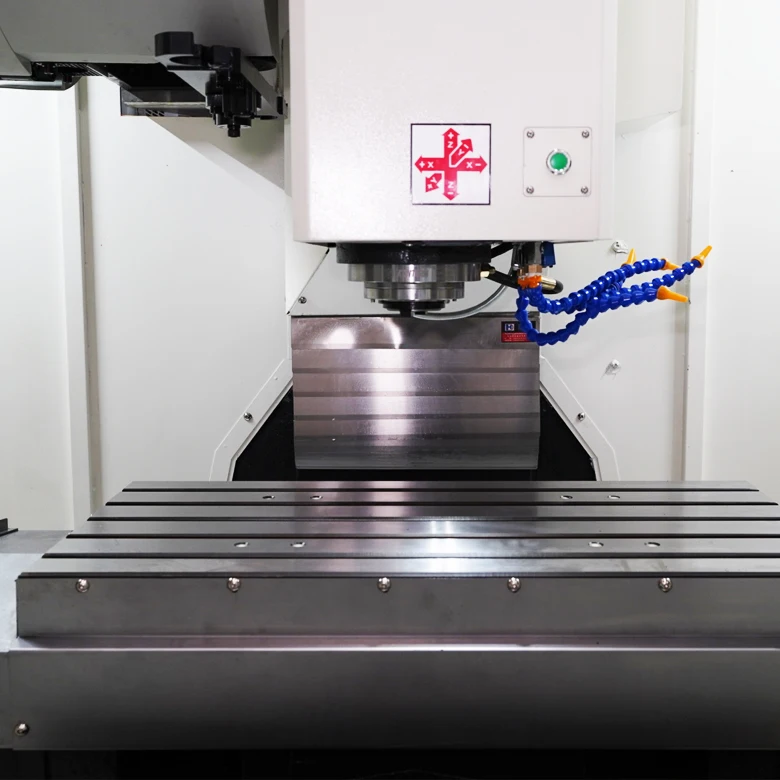

Chinese Cnc Machining Centers Vmc850 3 Axis Vertical Machining Center Price Cnc Milling Machine Center
- Category: >>>
- Supplier: Suzhou Goodmolds Optics Co. Ltd.
Share on (1600685072011):
Product Overview
Description
Product Description
Chinese Cnc Machining Centers Vmc850 3 Axis Vertical Machining Center Price Cnc Milling Machine Center
Vertical Machining Center Main Characteristics:
1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.
1. The major machine components apply finest gray cast iron which are of good shock resistance. All the casts have been done with aging treatment twice, in order to eliminate the internal residual stresses. So that, our machine can work with high rigidity and good shock resistance for heavy cutting and intermittent cutting.
2. Key components are designed with CAD software, in this way, the optimal structure can be analyzed out by computer, which ensure the good intensity, rigidity and thermal stability.
3. The joint face of components are manually polished well, which guarantees the effective contacting area.
Specification
Model | VMC 850 ( GSK25i system) |
Travel parameters of 3 axis | |
X /Y/Zaxis travel | 800/500/500mm |
Spindle face to table distance | 120-620mm |
Distance between spindle center and column guide surface | 520mm |
Worktable parameters | |
Worktable size | 1000×550mm |
Maximum load bearing of worktable | 600kg |
T Shot | 5×18×90mm |
Feeding parameters | |
X/Y/Z axis rapid movement rate | 36/36/36 m/min |
Feed moving velocity X, Y, Z | 1-12m/min |
Spindle parameters | |
Main shaft connection | Belt |
Spindle taper | BT40-140 |
Range of spindle speed | 10000rpm(Optional:12000 ) |
Spindle motor power | (Alternating current servo)7.5kW |
ATC paremeters | |
ATC capacity | 24qty |
Maximum tool size | Φ120mm(tool from a distance) |
Maximum tool weight | 8kg |
Precision | |
PositionaI accuracy(JIS standard) | ±0.008/300mm |
Repeated positioning accuracy(JIS standard) | ±0.005mm |
Shape and weight | |
Machine size | 2800×2360×2450mm |
Weight | 5600kg |
Standard accessories | |
GSK 25i CNC System | Bt40-150-10000rpm belt spindle |
Machine tool lighting working lamp | Centralized automatic feed lubrication system |
Spindles clean the air | Spindle taper: BT40 |
Chip liquid system | Tricolor warning light |
10.4 "display | Separate handwheel |
Servo transformer | RS232 interface |
Foundation gasket and adjusting bolt | Three ball type linear guide rail |
Random technical document | Electrical cabinet cold and heat exchanger |
