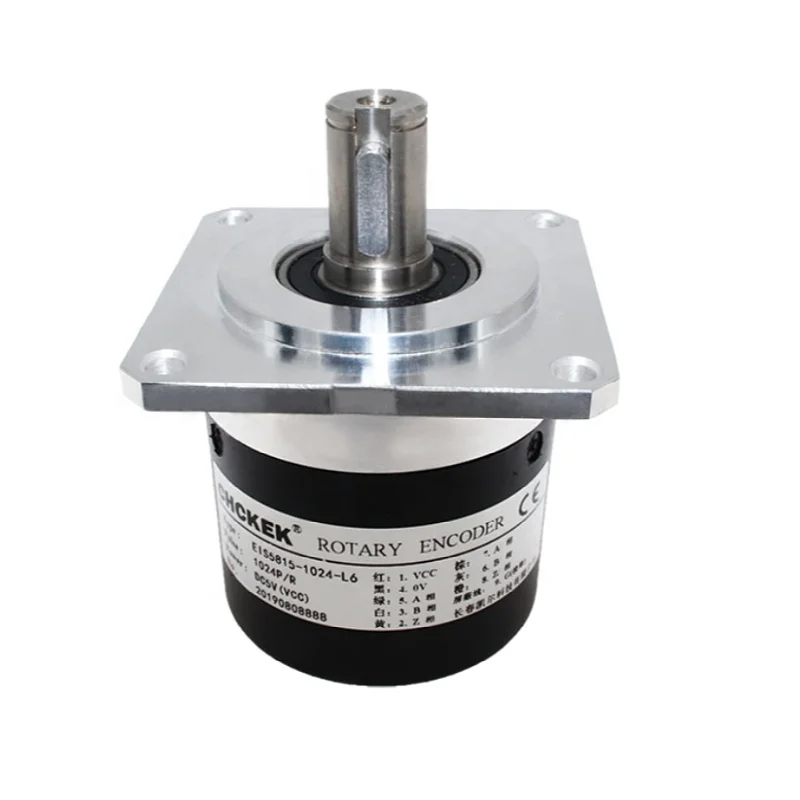

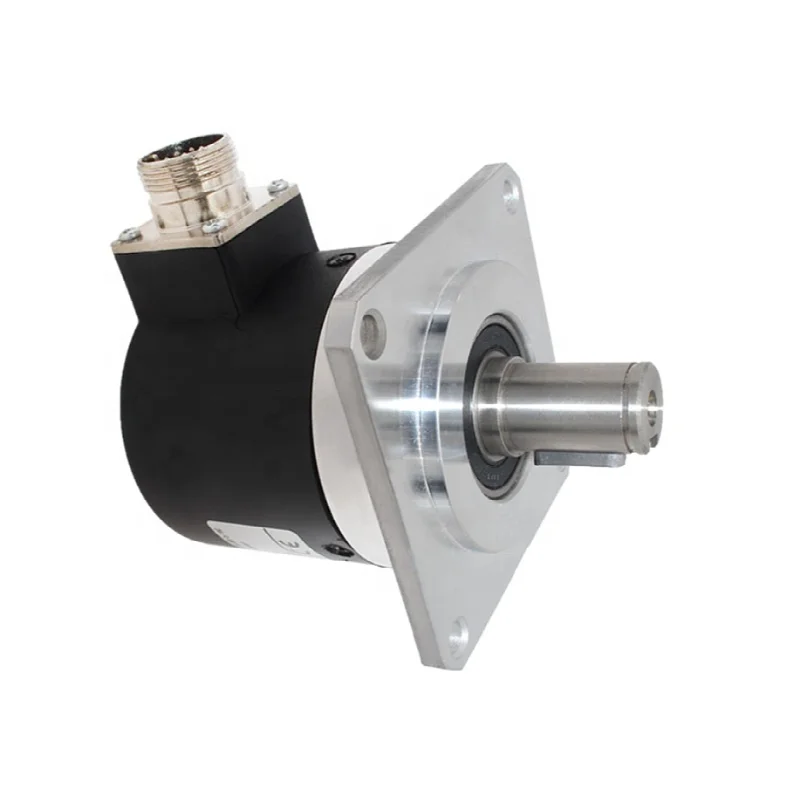

Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder
Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder

Absolute Optical Up To 5000Rmp Motor Speed 2500 Ppr Shaft Solid Npn Open Collector Encoders Sensor Incremental Rotary Encoder

Share on (1600685255366):


Price:$36.00 - $40.00

Quantity:


Product Overview

Description



Products Description


Our main products include photoelectric sensors, light curtain sensors, pull wire displacement sensors, photoelectric switches, proximity switches, color coded sensors, inductive sensors, capacitive sensors, capacitive level meters, magnetic sensors, tension sensors and encoders, incremental encoders, magnetic encoders, photoelectric encoders, pull wire encoders, absolute encoders, etc.
Widely used in textile machinery, stone machinery, wood machinery, packaging machinery, CNC machine tools, motors, construction machinery, elevator door control, industrial automation, etc.
We have a variety of resolutions and output interfaces, welcome to choose!


Product number：EIS58 solid encode


Output pulse
≤5000PPR
Induction principle
photoelectric type
Supply voltage
5VDC± 5%/8-30 V DC±5%
Current consumption
≤125mA
Response frequency
0-100kHz
Output mode
NPN open collector/voltage output/complementary output/drive output
Shaft diameter
∅15mm
Protection class
IP53
Max. speed
5000RPM
Maximum axle load
40N Axial, 80N Radial
Starting torque
<0.005n.m
Anti-shock
49m/s2 (2G)
 Impact resistance
980m/s2 (100G)
Working temperature
-20℃~+75℃
Storage temperature
-30℃~+85℃
Weight Approx.
about 340G (Without line)

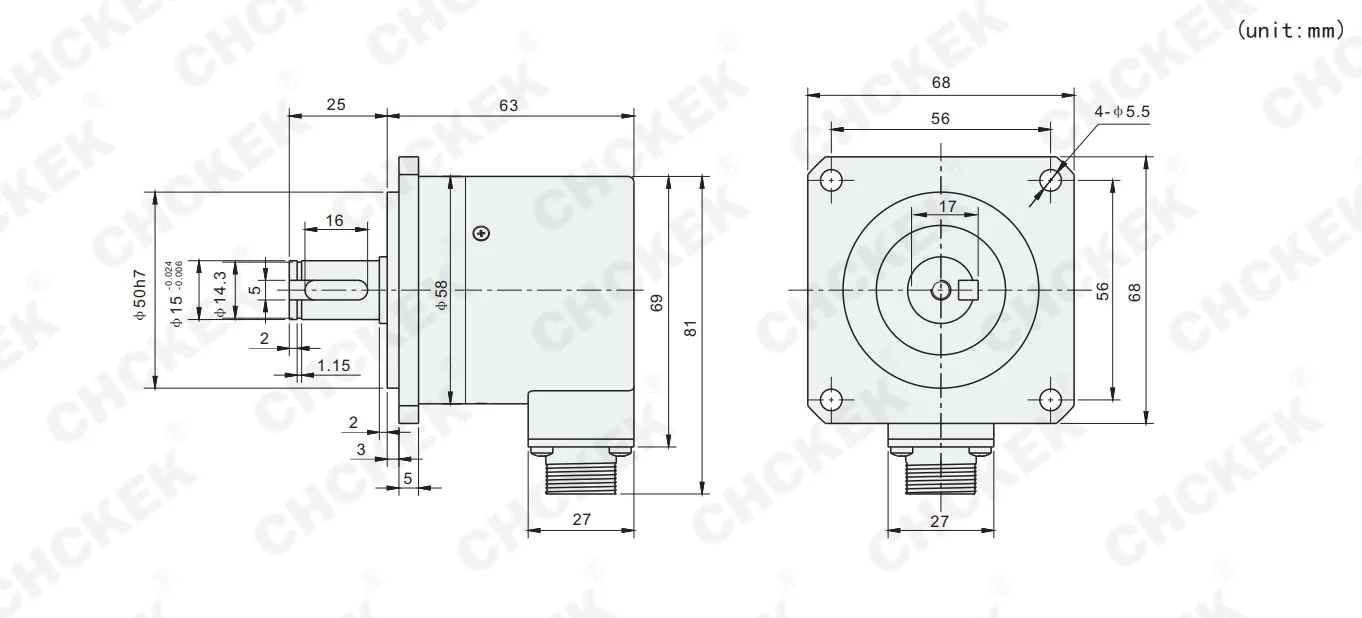

Mechanical drawings

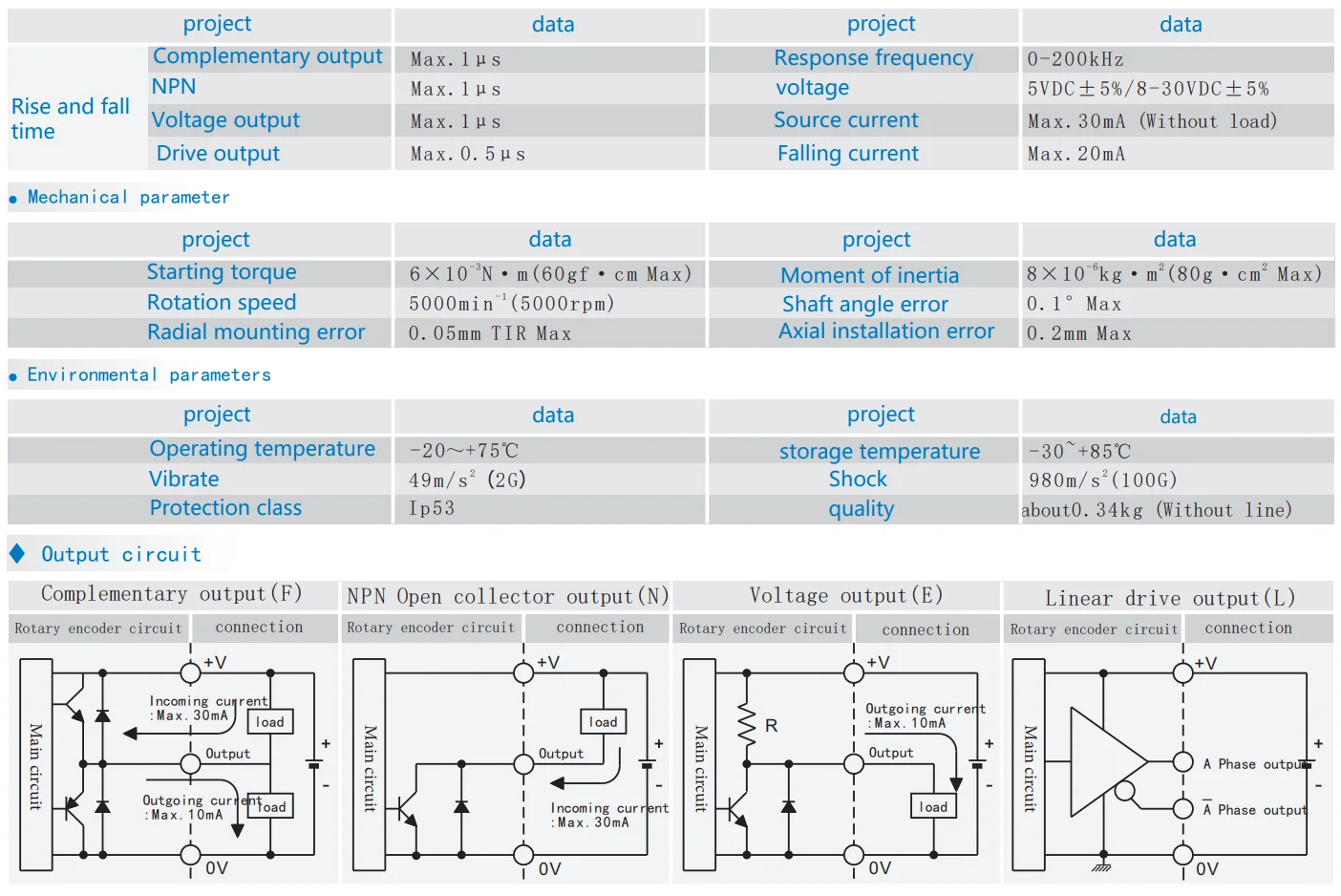

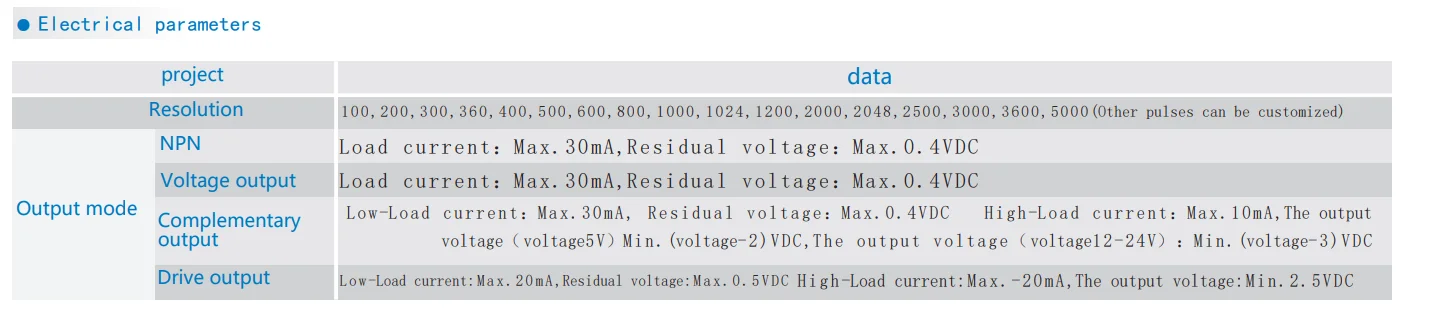

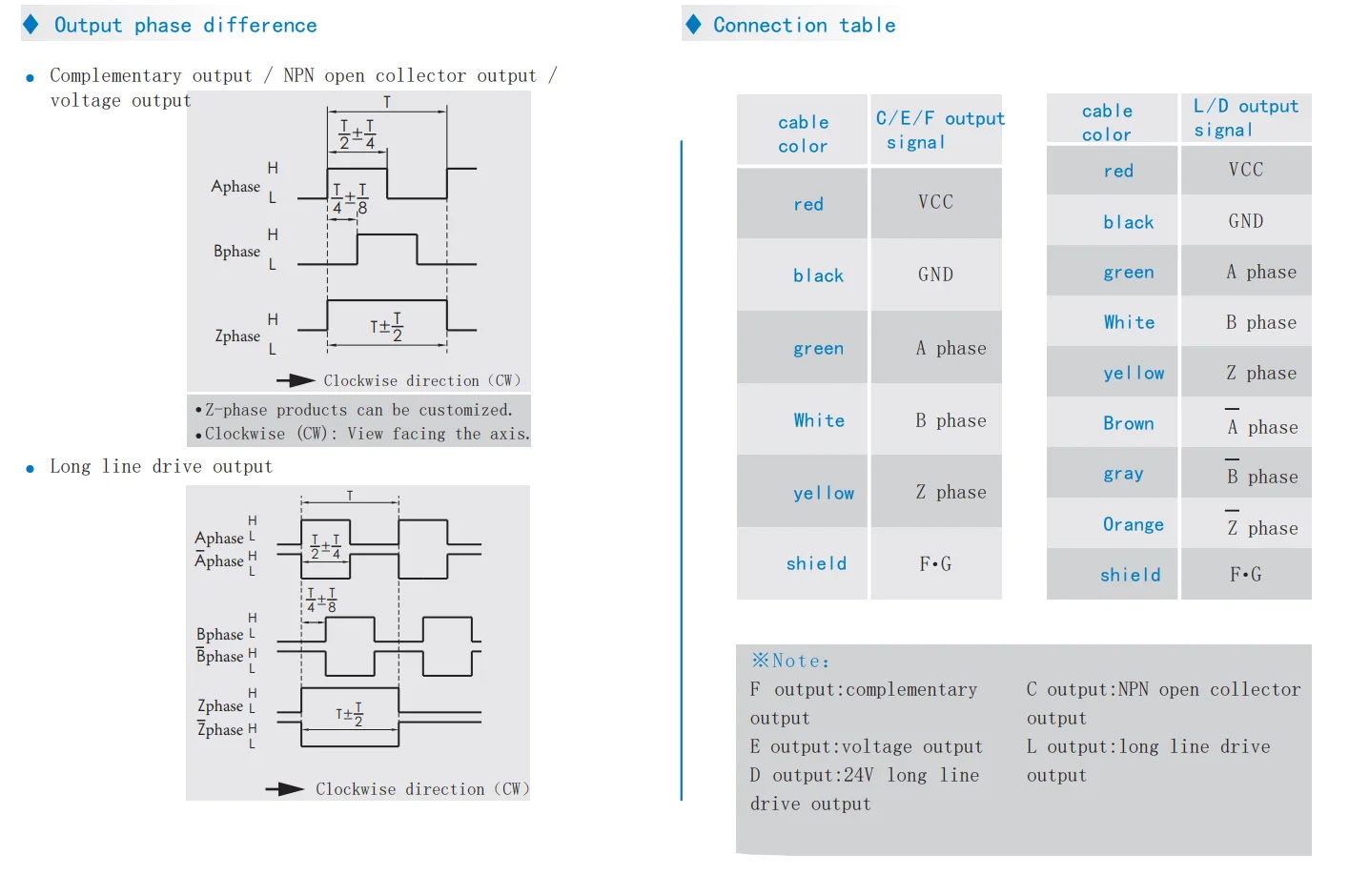

Technical parameters








Wiring Method


Wiring Table


Wire Color
Red
black
yellow
green
white
Orchid
RS485
VCC
GND
TXD+
TXD-
RS422
VCC
GND
TXD+
TXD-
RXD+
RXD-
SSI
VCC
GND
DATA+
DATA-
CLR+
CLR-
CAN
VCC
GND
CANH
CANL

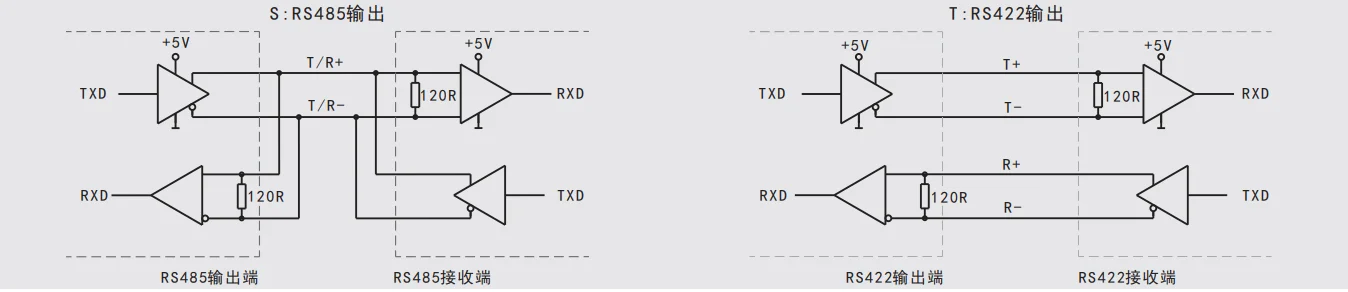

Output interface schematic

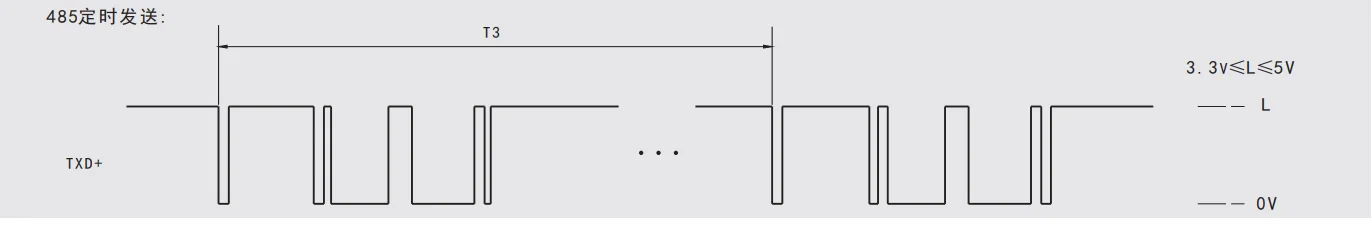

Communication Timing Diagram

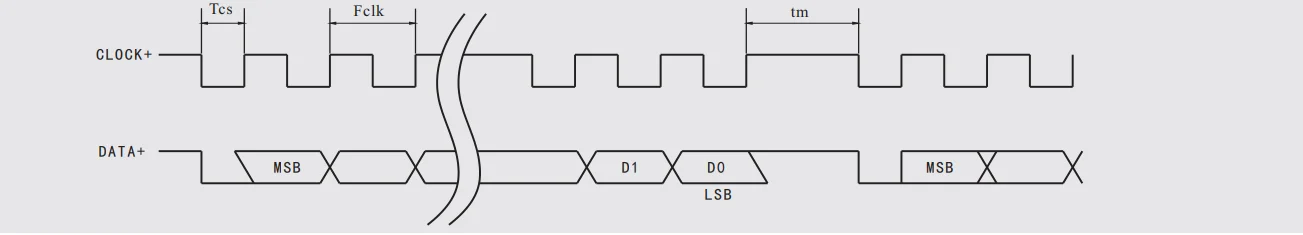

SSI Timing

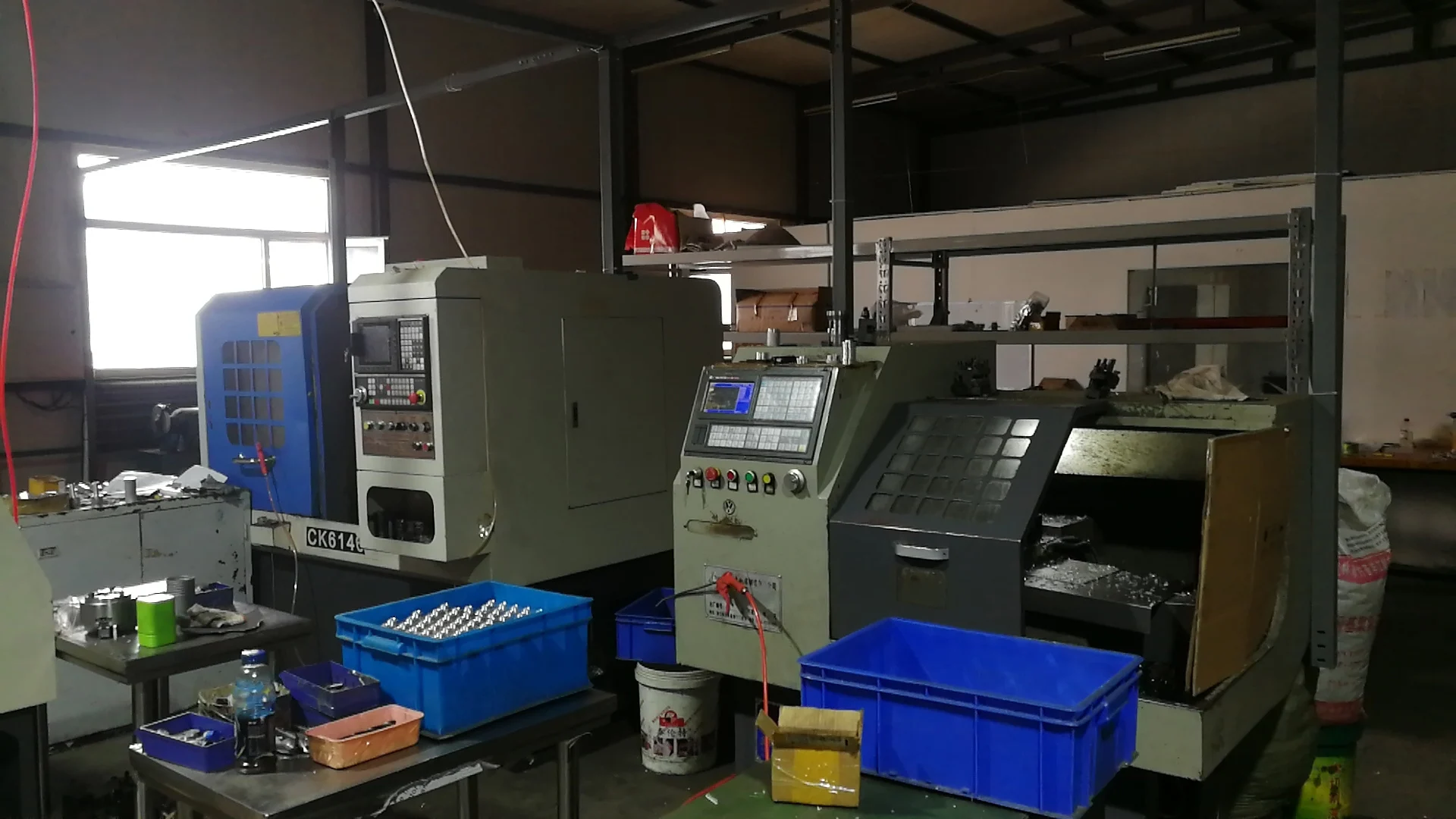

Our Company
