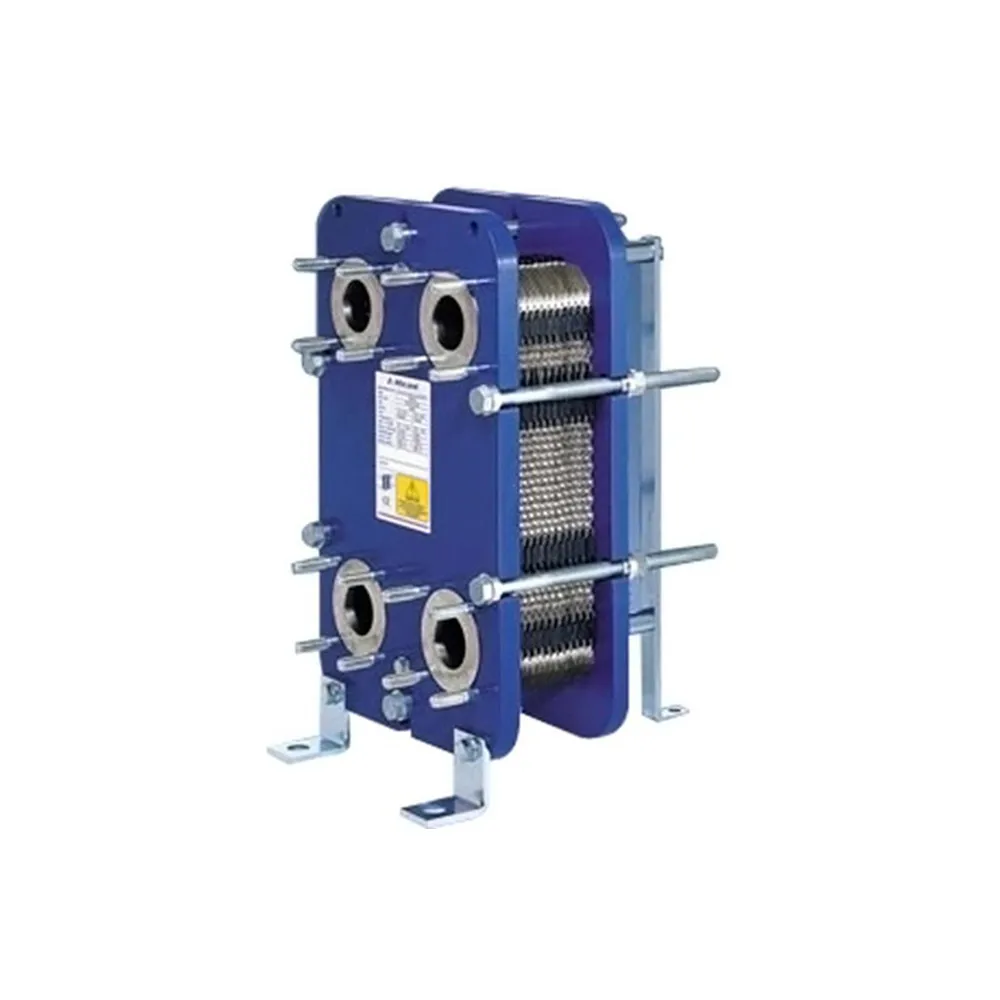

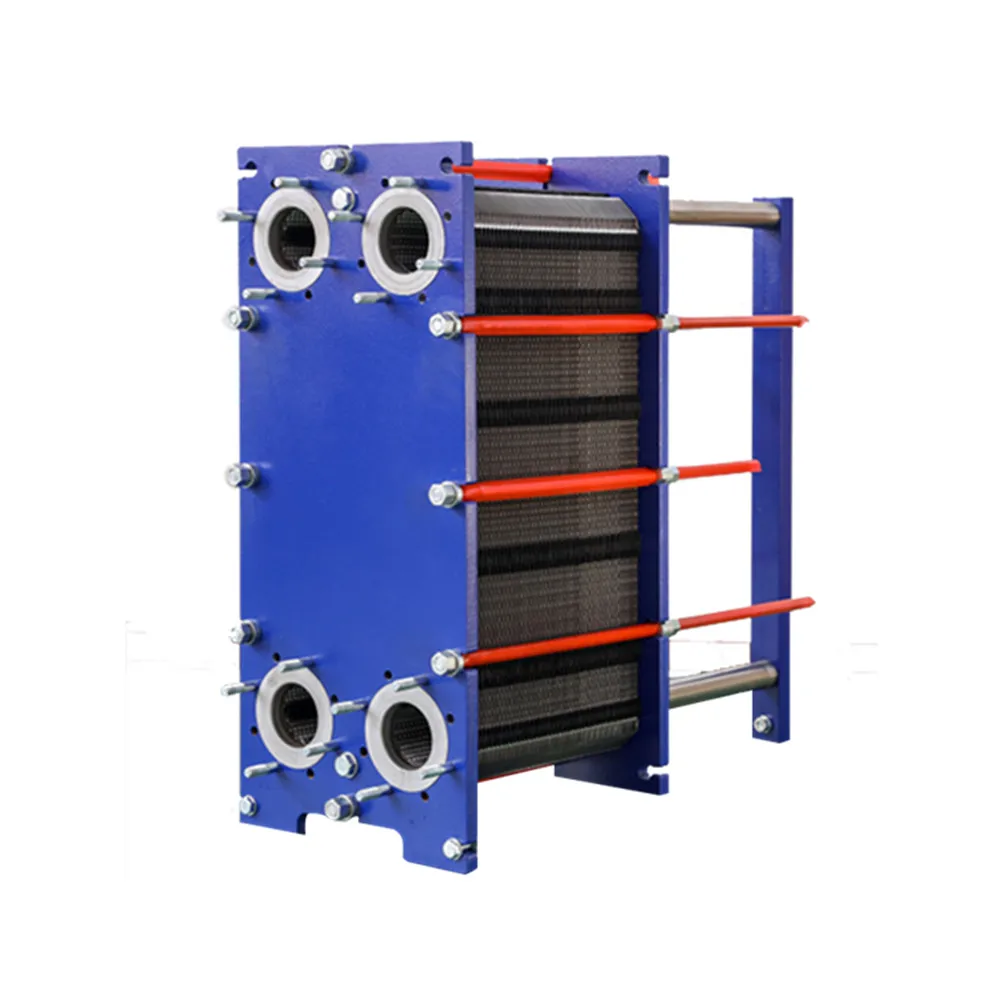

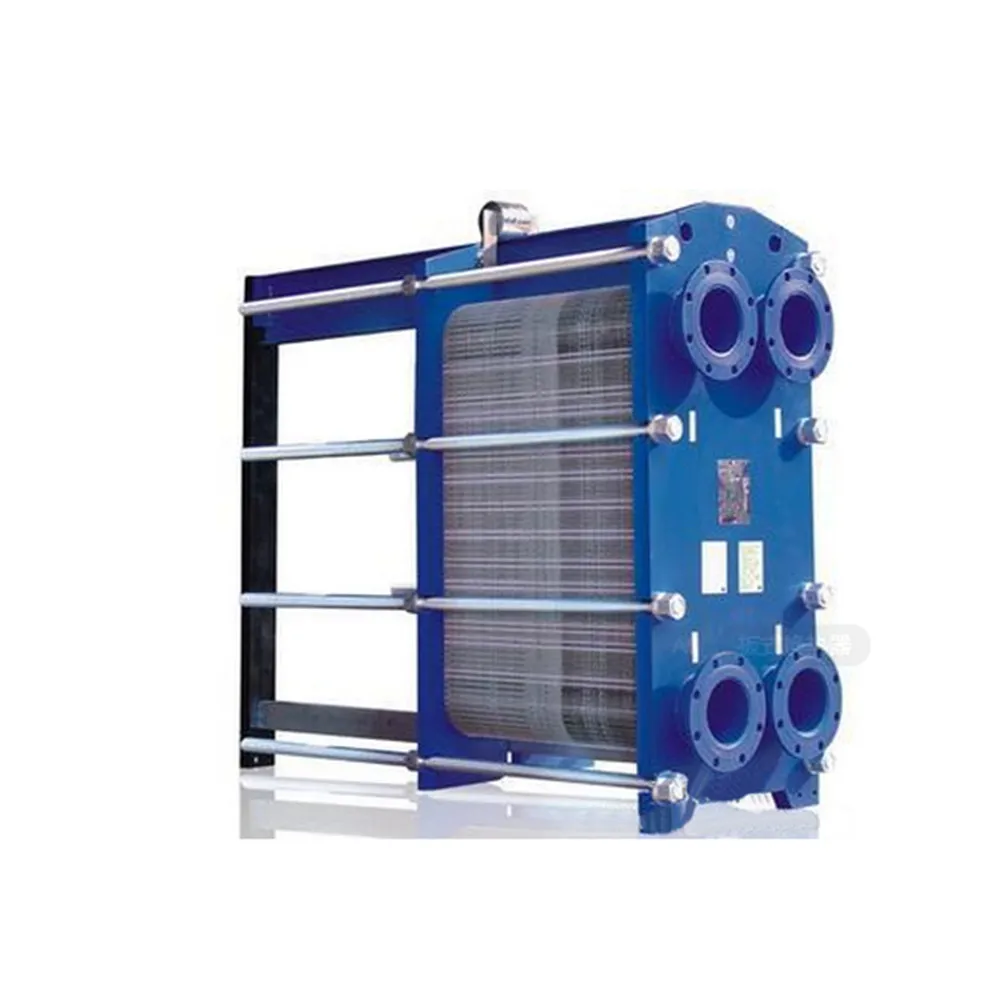

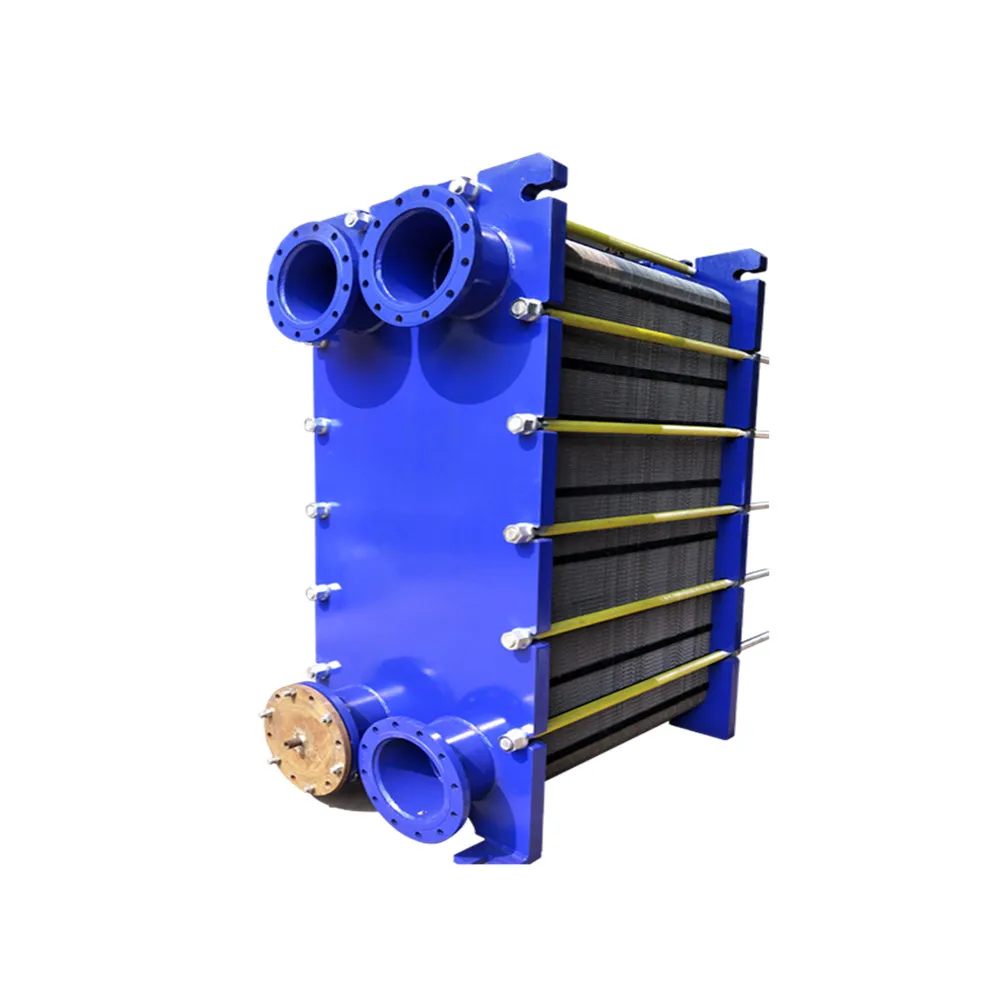

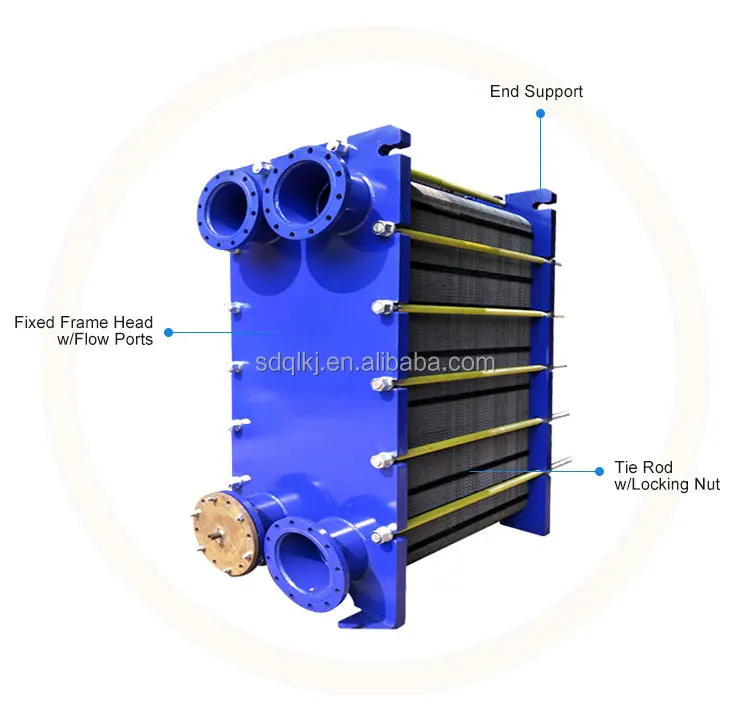

dismountable stainless steel plate heat exchanger with gasket
- Category: >>>
- Supplier: Shandong Qinglei Environmental Science And Technology Co. Ltd.
Share on (1600685267751):
Product Overview
Description
Specification
Plate heat exchanger is an ideal equipment for liquid-liquid and liquid-gas heat exchange. It has advantages of high thermal efficiency, small heat loss, compact structure, small covering area, convenient installation and washing, wide range of application and long service life etc. As a high-efficiency and energy-saving product, plate heat exchangers have been widely used in various industrial fields such as mining, metallurgy, petroleum, chemical industry, machinery, textile, papermaking, shipbuilding, and marine development.
Specification for plate heat exchanger | ||
Material | 304, 316,316L, titanium. | |
Design Temperature | -40℃-180℃ | |
Design Pressure | 0.6-2.5Mpa | |
Thickness of Plate | 0.4-1.15mm | |
Assembly Surface | ≤3800m² | |
Diameter of port hole | DN32-DN500 | |
Area of single plate | 0.03-3.65m² | |
Plate | ||
Material | Application | |
304,304L,316,316L | A fluid with a low chloride ion content | |
Ta1 | Solutions with high chloride ions such as seawater | |
Hastelloy | Chlorinating acids, such as sulfuric acid, mixed acids | |
Ta9 | Reducing acids, such as hypochlorous acid | |
Rs-2 | Strong acids, such as concentrated sulfuric acid, nitric acid, etc. | |
sealing gasket | ||||
Material | Working Temperature | Working Enviroment | ||
EPDM | -50°C ~180°C | Water, general organic and inorganic acids, alkalis and chemical media | ||
NBR | -20°C ~110°C | Water, oil, aldehyde and general corrosive medium | ||
Rubber for food and medicine | 20°C ~120°C | Food,pharmaceutical materials | ||
FKM | 0°C ~180°C | Organic solutions, acids, bases, alcohols, oils, etc. | ||
LDR | -40°C ~100°C | Alkali and some acids | ||
Silicone Rubber | -65°C ~230°C | Some oils, alcohol | ||
Company Profile

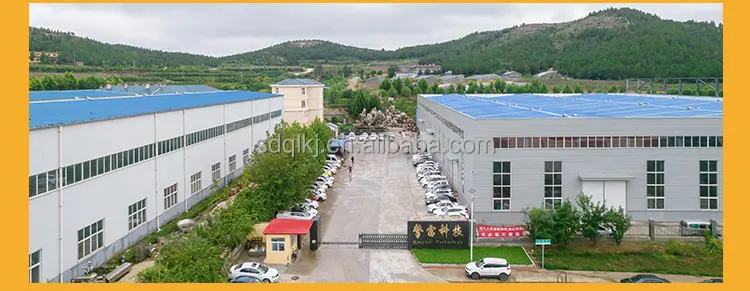

Shandong Qinglei Environmental Technology Co., Ltd., located in Jinan, Shandong province, is a manufacturer and trader

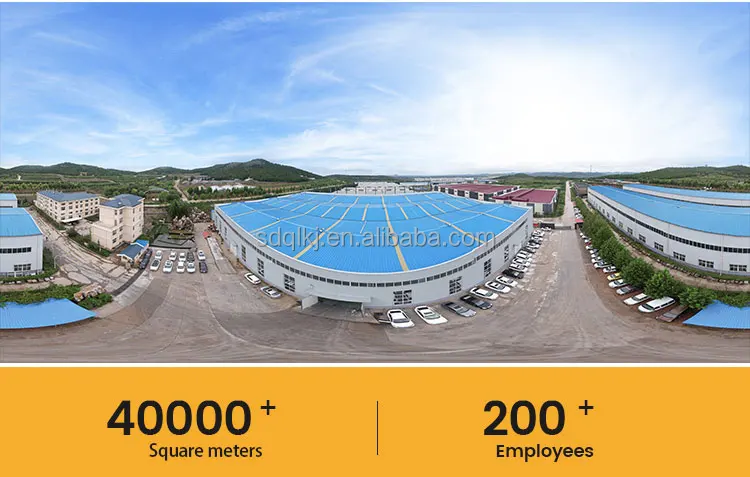

specializing in research, development and production of heat exchange equipment ,storage and non-standard equipment.It was listed on the New Third Board in February 2019, stock code: 873193.Our company covers an area of 40,000 square meters, with more than 200 workers. Our main products are spiral wound tube heat exchanger, tubular heat exchager, plate heat exchanger, storage tank,reactor ,non-standard pressure vessel and vacuum frying machine.
specializing in research, development and production of heat exchange equipment ,storage and non-standard equipment.It was listed on the New Third Board in February 2019, stock code: 873193.Our company covers an area of 40,000 square meters, with more than 200 workers. Our main products are spiral wound tube heat exchanger, tubular heat exchager, plate heat exchanger, storage tank,reactor ,non-standard pressure vessel and vacuum frying machine.
FAQ
Q1.Are you manufacturer or trading company?
A1: We are professional heat exchanger equipment and non-standard pressure vessel manufacturer in China.
Q2.How could we confirm the details of the products?
A2: Qinglei will provide the detailed drawings for you to confirm.
Q3. How long the warranty will be?
A3: 1 Year warranty.
Q4.What information needed if I want a quotation?
A4:Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity or any requirements in size.
A1: We are professional heat exchanger equipment and non-standard pressure vessel manufacturer in China.
Q2.How could we confirm the details of the products?
A2: Qinglei will provide the detailed drawings for you to confirm.
Q3. How long the warranty will be?
A3: 1 Year warranty.
Q4.What information needed if I want a quotation?
A4:Please advise us the Type of heat exchangers, Material , Heat Exchanger Capacity, Water Flow, Water Temperature in and out Refrigrant Freon Type, Quantity or any requirements in size.
