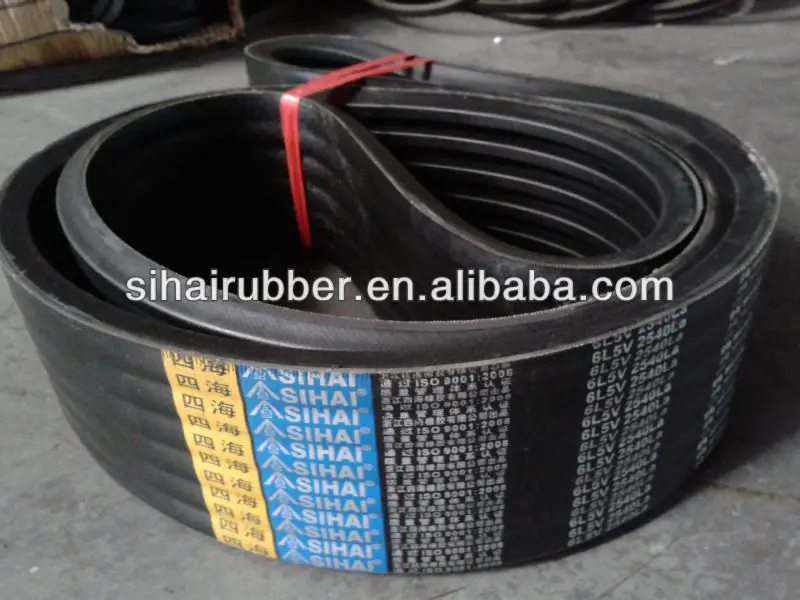

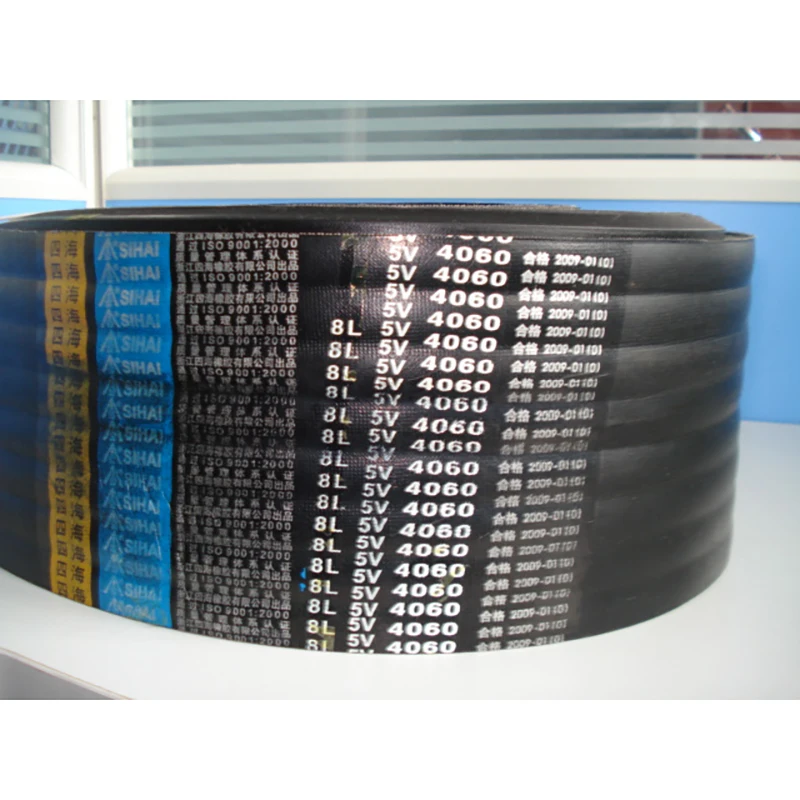

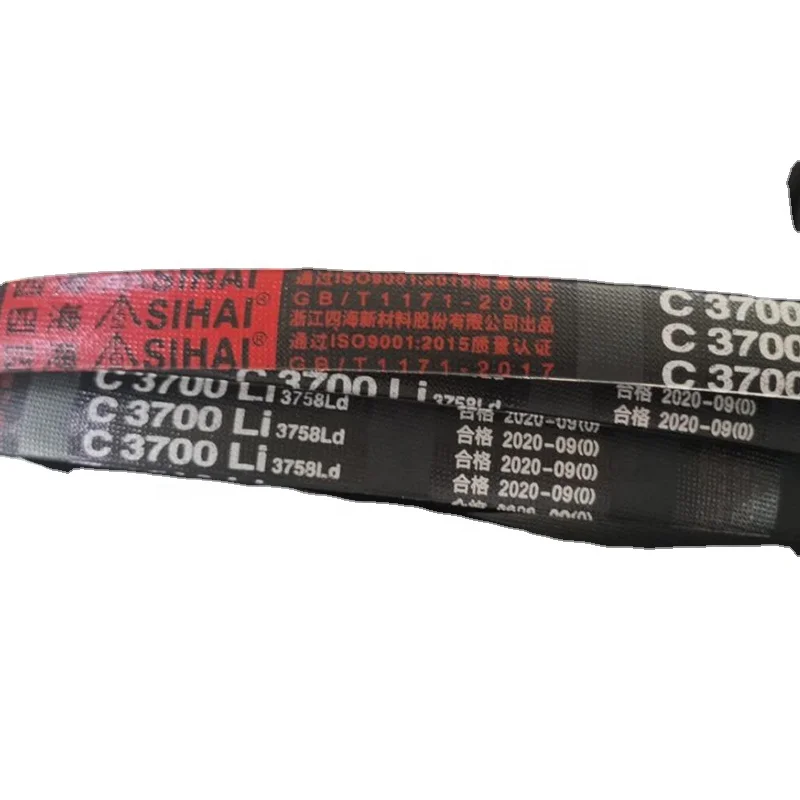

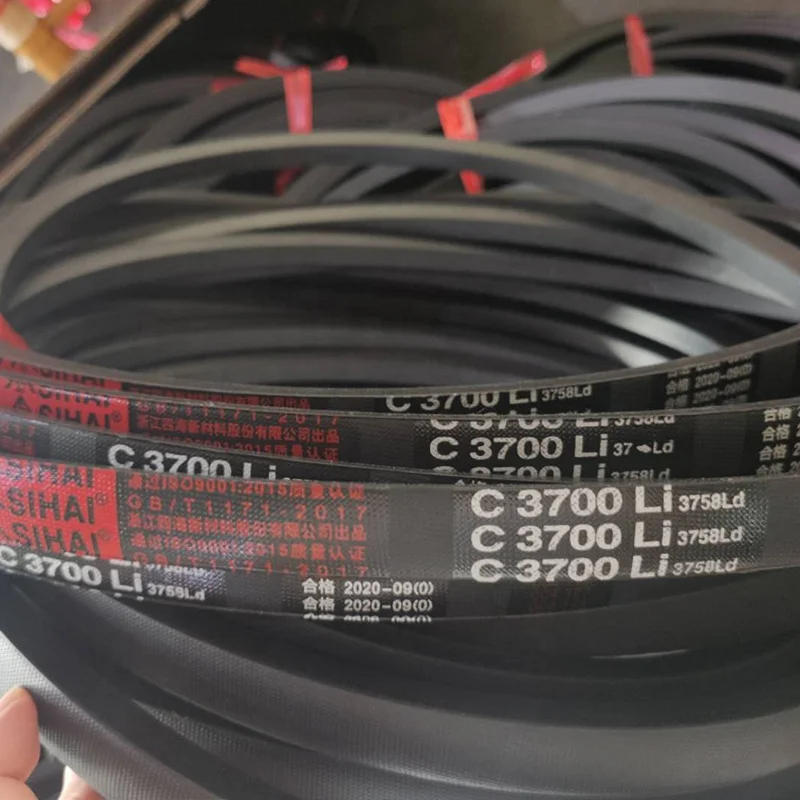

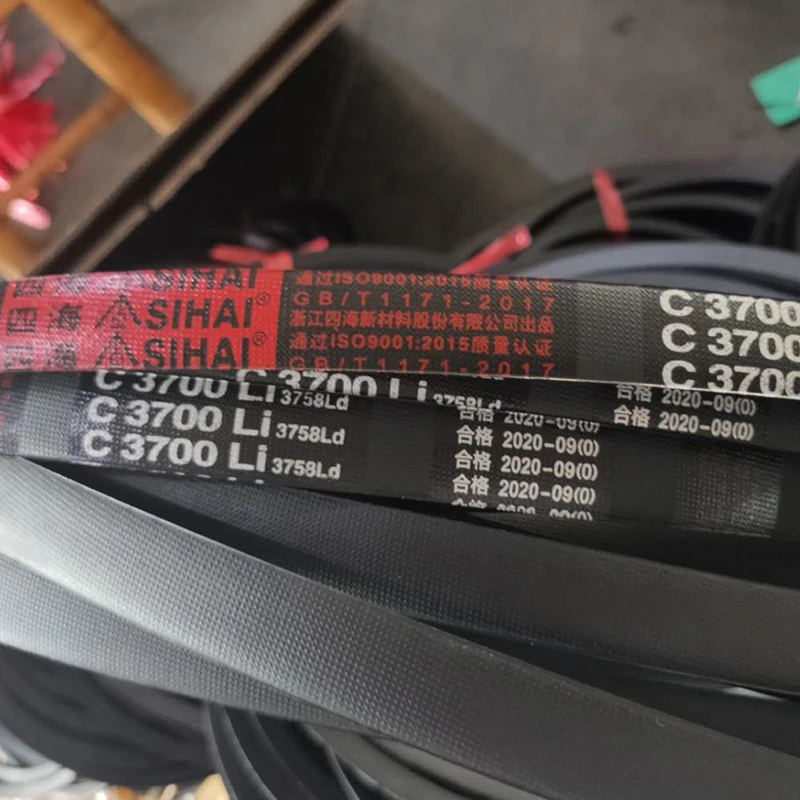

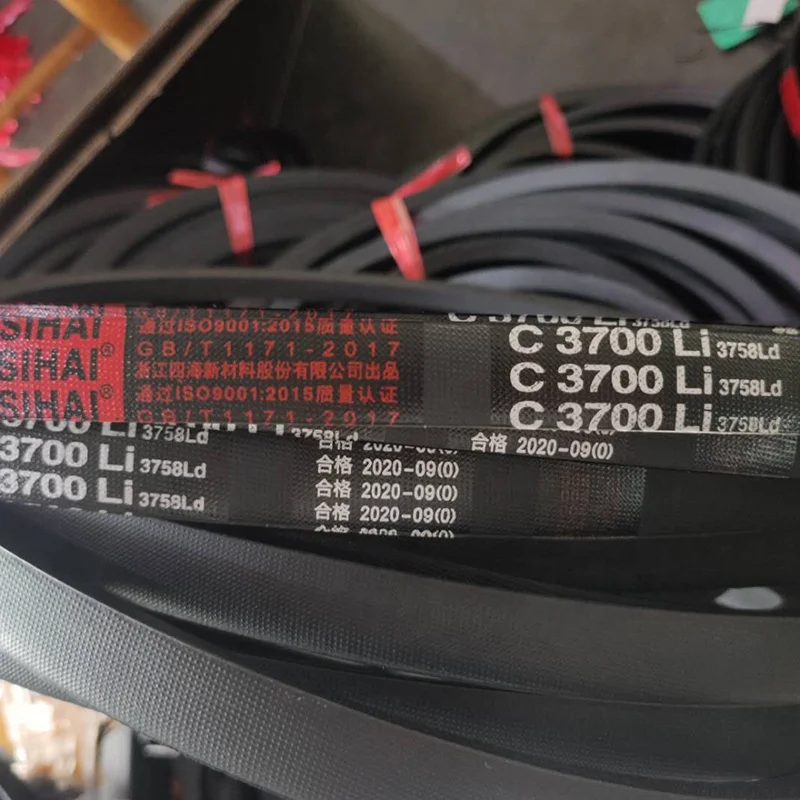

Factory Industrial Rubber Belt Power Transmission V Belt
- Category: >>>
- Supplier: Zhejiang Sihai New Materials Co. Ltd.
Share on (1600685288581):
Product Overview
Description
Product Details
Product Name: v-belt, wrapped v-belt, rubber v-belt
Structure:V-belt is made up of Fabric, Tension Member, Insulation Section and compression layer.
Using:Classical V-belt is used widely in power transmission of mechanical equipments driven by electric motors and diesel engines.
Features:
1.High tensile strength and low elongation using our specially treated polyester cord.
2.Maximum adhesion between the tension members and the insulation section of the belt.
3.Excellent flexibility.
4.Oil & heat resistance,static conductivity.
5.Uniform quality and true dimensional stability through modem production facilities.
6.Longer belt life.
7.No slip/constant grip
Size:
Production Type | Top Width | Pitch Width | Height | Angle |
O(Z) | 10 | 8.5 | 6 | 40° |
A | 13 | 11.0 | 8 | 40° |
B | 17 | 14.0 | 11 | 40° |
C | 22 | 19.0 | 14 | 40° |
D | 32 | 27.0 | 19 | 40° |
E | 38 | 32.0 | 23 | 40° |
Production Type | Top Width | Height | Angle |
HAA | 13 | 6 | 40° |
HBB | 17 | 8 | 40° |
HCC | 22 | 11 | 40° |
Production Type | Top Width | Height | Angle |
AJ | 13.6 | 10 | 40° |
BJ | 17.0 | 13 | 40° |
CJ | 22.4 | 16 | 40° |
DJ | 32.8 | 21.5 | 40° |
Type | Tensile-Strength KN ≥ | Reference Force Extension %≤ | Adhesive Strength Of The Cord (KN/m)≥ | Adhesive Strength Between Cloth And TopRubber(KN/m)≥ |
Z | 2.0 | 7.0 | 13.0 | _ |
A | 3.0 | 17.0 | ||
B | 5.0 | 21.0 | 2.0 | |
C | 9.0 | 31.0 | ||
D | 15.0 | 31.0 | ||
E | 20.0 | 31.0 |
Application Scenarios
Company Profile
Certifications
Packaging Process
FAQ
Q1.Can I have a sample order for V belt？
Yes，we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2.What about the lead time?
(1)2--3days for sample
(2)20--30 days for mass production.If urgent,we have green channel.
Q3.Do you have any MOQ limit for V belt order?
Low MOQ,1pc for sample checking is available.
Q4.Is it OK to print my logo on V belt product?
Yes.Please inform us your logo or design before mass production.
Q5.How to guarantee your quality?
We are one of the top suppliers of International famous belt conpany over years.Excellent quality is well accepted.
