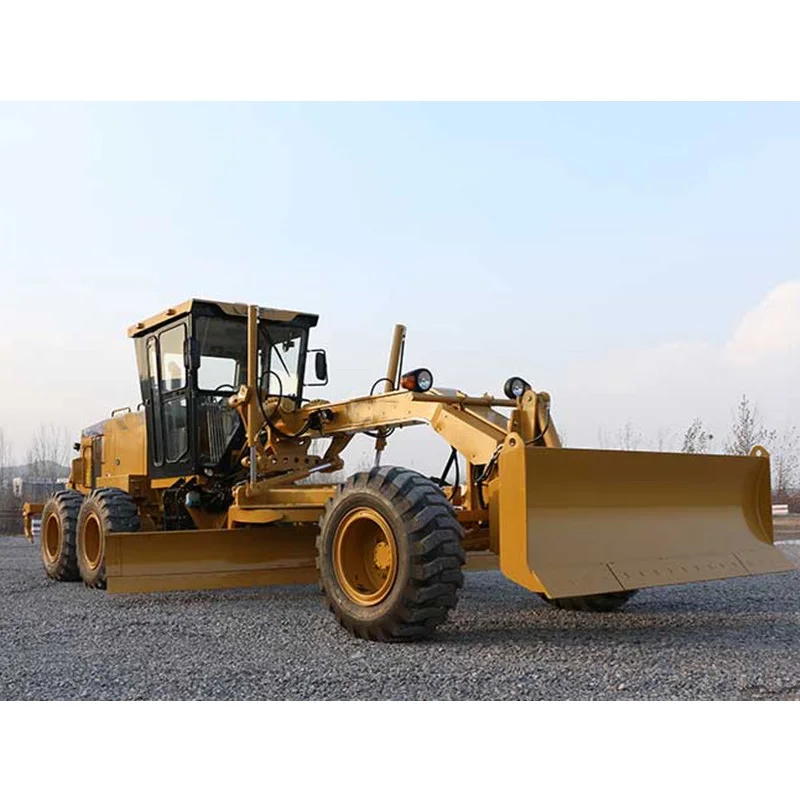

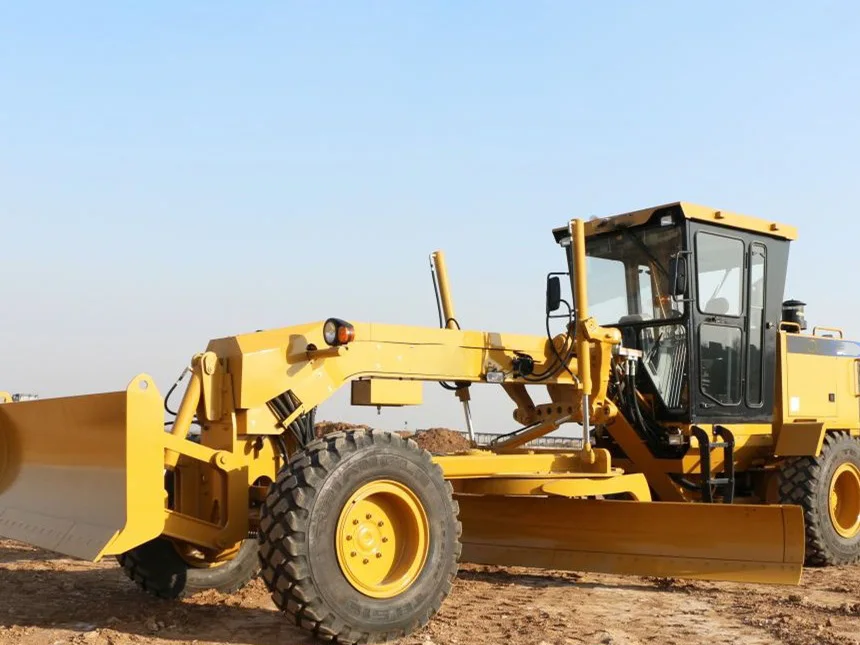

150HP Motor Grader SEM915
Products Description
Advantage
* Best-in-class Reliability and Durability
* Highly Efficient
* Outstanding Operator Comfort
* Highly Efficient
* Outstanding Operator Comfort
Application
* Municipal Construction
* Agriculture
* Water Conservancy / Hydropower
* Waste
* Forestry
* Agriculture
* Water Conservancy / Hydropower
* Waste
* Forestry
SEM Tandem Axle
* Leveraging Caterpillar designing and experience on MG tandem axle
* Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
* Less down time and reduced labor and service cost for maintenance and repairing
* Longer service interval for lubrication oil change
* Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
* Leveraging Caterpillar designing and experience on MG tandem axle
* Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
* Less down time and reduced labor and service cost for maintenance and repairing
* Longer service interval for lubrication oil change
* Leading in class manufacturing and quality control level, mandatory performance testing before delivering to MG assembly line
Control System
* 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
* Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
* The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
* Replaceable bushings reduce service time and cost
* 7 position link bar with electric over hydraulic control allows ease of operation from within the cab
* Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
* The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
* Replaceable bushings reduce service time and cost
Blade Float
* Standard blade float function allows blade to lower without hydraulic pressure for increased versatilityBlade float is engaged by pushing the left and right lift cylinder
* Controls all the way forward past the detent
* Provides protection for machine and pavement during snow removal and snow plowing
* Standard blade float function allows blade to lower without hydraulic pressure for increased versatilityBlade float is engaged by pushing the left and right lift cylinder
* Controls all the way forward past the detent
* Provides protection for machine and pavement during snow removal and snow plowing
Hydraulic System
* Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
* World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
* Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
* Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks
* Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
* World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
* Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
* Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks
Drawbar
* A-frame tubular design drawbar provides maximum strength and durability
* Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
* Easy removal of wear shims to adjust drawbar
* A-frame tubular design drawbar provides maximum strength and durability
* Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
* Easy removal of wear shims to adjust drawbar
Front Frame
* Flanged box section design removes welds from high stress areas, improving reliability and durability
* Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
* Hydraulic hose routing minimizes exposure to damage and provides quick access for service
* Maintenance-free bushings improve durability and reduce overall service cost
* Flanged box section design removes welds from high stress areas, improving reliability and durability
* Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
* Hydraulic hose routing minimizes exposure to damage and provides quick access for service
* Maintenance-free bushings improve durability and reduce overall service cost
Control Layout
* Short throw levers are efficiently spaced, allowing ease of multi-function control
* Short lever travel (40mm) with low lever effort reduces operator fatigue
* Short throw levers are efficiently spaced, allowing ease of multi-function control
* Short lever travel (40mm) with low lever effort reduces operator fatigue
Large Cab
* High performance dashboard with 3 levels alarming monition system
* Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
* Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort
* High performance dashboard with 3 levels alarming monition system
* Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
* Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort
Product Paramenters
Model | SEM915 | SEM917 | SEM919 |
Standard | 12,200kg | 13,500kg | 15,070kg |
Engine Manufacturer | SDEC (ShangHai Diesel) | SDEC (ShangHai Diesel) | SDEC (ShangHai Diesel) |
Engine Model | SC7H150G2B | SC7H170. 1G2B | SC9DK190.1G2 |
Rated Power | 110 @ 2,200kW @ RPM | 125 @ 2,200kN @ RPM | 140 @ 2,200kW @ RPM |
Emission | Tier 2 | Tier 2 | Tier 2 |
Blade Width, Standard | 3,059(10')mm(Ft) | 3,669(12'mm(Ft) | 3,974mm |
