Mini mixer machine small mixer machine twin shaft mixer concrete mixing machine for concrete mixing station
- Category: Concrete Machinery >>>
- Supplier: Qingdao,Zhongmaotong,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

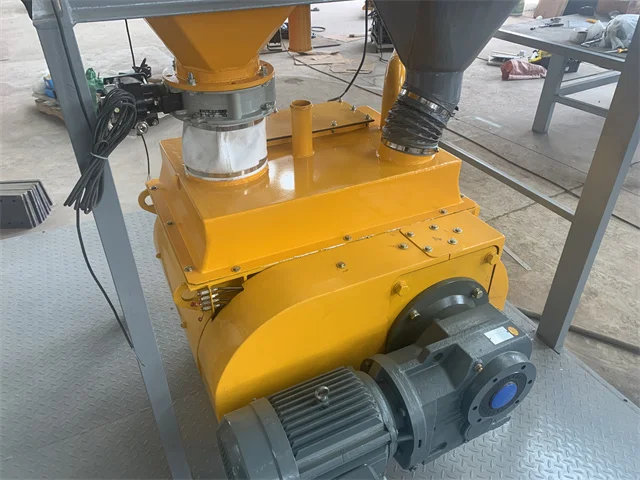

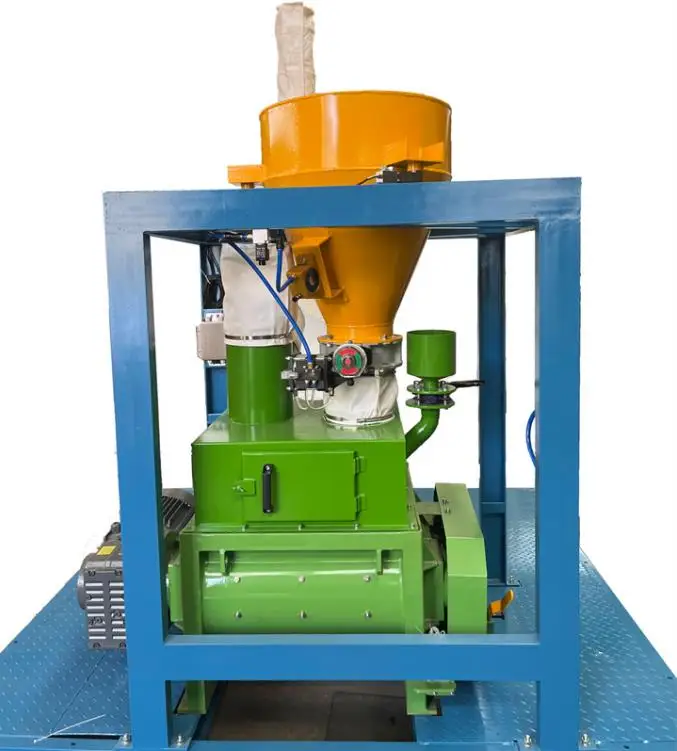

Small concrete mixing equipment
A twin-shaft mixer is used, which consists of a stirring shaft, a stirring arm, a stirring knife, and a transmission system. The stirring system rotates in opposite directions by means of parallel twin-horizontal shafts, and its direction is clockwise at the shaft end and to the right side of the head or tail; the left side runs counterclockwise. The mixing arms on the double shafts are spaced at 90° in the radial direction, and the double shaft mixing arms run staggered. The arrangement of the mixing arms and shovel blades varies with the model of the mixer, and a perfect and uniform mixing effect can be achieved in a short period of time.
Theoretical dry stirring capacity of blender | Power of mixing motor | Power of concrete screw conveyor | Empty weight of mixer |
60L | 5.5KW | 3KW | 400kg |
Mixer Structure
Cylinder system
It is composed of a cylinder body and accessories, which are used to carry the agitator and support the various parts.
The cylinder block is made of wide and thick steel plate with an Ω-shaped double barrel, which has excellent yield force under the support of a specially designed and produced multi-functional frame. The parallelism of the axes and the concentricity of a single axis are not offset.
The upper cover is composed of main body, observation door, observation window, safety switch, pipeline system, etc. Its main functions are sealing, feeding and observation.
The maintenance platform is a working platform composed of a checker plate and a frame. It can be retracted and supported according to needs, which is convenient for operation and maintenance.
It is composed of a cylinder body and accessories, which are used to carry the agitator and support the various parts.
The cylinder block is made of wide and thick steel plate with an Ω-shaped double barrel, which has excellent yield force under the support of a specially designed and produced multi-functional frame. The parallelism of the axes and the concentricity of a single axis are not offset.
The upper cover is composed of main body, observation door, observation window, safety switch, pipeline system, etc. Its main functions are sealing, feeding and observation.
The maintenance platform is a working platform composed of a checker plate and a frame. It can be retracted and supported according to needs, which is convenient for operation and maintenance.

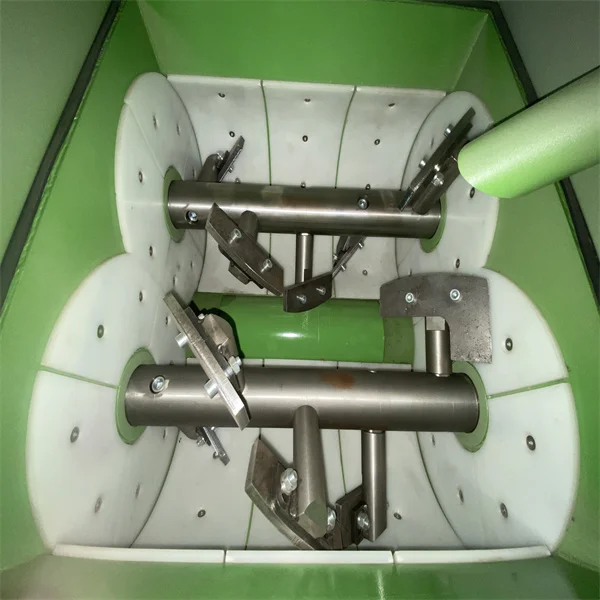

Stirring system
The main body of the stirring function is composed of the stirring shaft, the stirring arm, the stirring knife, and the cylinder lining (wear-resistant lining plate).
The mixing system rotates in opposite directions by means of parallel twin-horizontal shafts, and its direction is clockwise when the shaft end faces the head or the right side of the tail; the left side runs counterclockwise. The mixing arms and scrapers on the double shafts are spaced at 90° in the axial direction, and the double shaft scrapers run staggered at 45°. The quantity varies with the mixer model. With proper clearance and operation, a perfect and uniform mixing effect can be achieved in a short time.
I. Stirring shaft: It is made of high-quality carbon structural steel forging material, and an alloy steel sleeve is added to the support seat.
II. Mixing Arm: Spiral cast from wear-resistant ductile iron.
III. Stirring Knife: It is composed of a middle stirring knife and a side stirring knife, and is made of wear-resistant high-chromium cast iron.
IV. Side lining plate: It is composed of side lining plate and small semi-circular lining plate, made of high-chromium alloy cast steel.
V. Bottom liner: Made of wear-resistant high-chromium cast iron.
Product packaging
We can provide customized package to your demand.
FAQ
1.Q: Can your machine be customized?
A: Yes, we are a professional manufacturer specilized in bulk bag unloader machine, conveyors and mixing kneaders etc. and we have a strong design&technical team. We can design and manufacture as per your requirements.
A: Yes, we are a professional manufacturer specilized in bulk bag unloader machine, conveyors and mixing kneaders etc. and we have a strong design&technical team. We can design and manufacture as per your requirements.
2. Q: How to get an accurate quotation?
A: Please provide us the detail of your requirements such as drawing and dimensions.
A: Please provide us the detail of your requirements such as drawing and dimensions.
3. Q: What's the shipping cost from China to your country ?
A: We can send the machines to your port by sea or other term you need. Please kindly tell us your nearest port or address with code.We have reliable shipping agent to ensure the safe, convenient and timely delivery.
A: We can send the machines to your port by sea or other term you need. Please kindly tell us your nearest port or address with code.We have reliable shipping agent to ensure the safe, convenient and timely delivery.
4. Q: Payment terms, MOQ, warranty, Trade Terms
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid before the shipment.
A: Payment terms: 30% down payment against order by T/T, the balance of 70% to be paid before the shipment.
Minimum order quantity: 1 set, FOB Qingdao.
Delivery time: about 20-30 working days after receipt of formal order and 30% deposit.
Warranty: 12 months following delivery. We offer online service 24 hours all day long, Skype, Email etc. You can contact us at any time, if urgently, please call us.
5. Q: what's the package?
A: All goods are packed in wooden box or be customized.
A: All goods are packed in wooden box or be customized.
