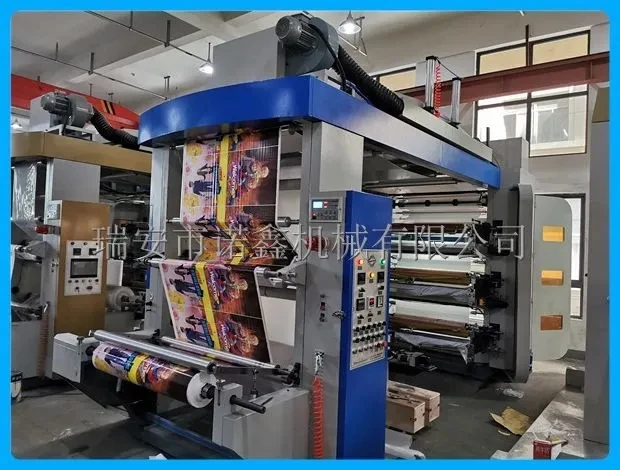

carton box central drum flexo graphic italian printing machine roll to roll satin ribbon printing machine
- Category: >>>
- Supplier: Ruian Nuoxin Machinery Co. Ltd.
Share on (1600685449949):
Product Overview
Description
Product Overview
Introduction
Introduce sensitization resin as flexible printing plate. It is a kind of ideal printing equipment for producing paper packing bag for good, supermarket handbag, vest bag and clothes bag,etc.
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Printing materials as following:
1.Polyethylene, polyethylene plastic film printing
2.Bag(packing bag for food, supermarket handbag, vest bag and clothes bag printing
3.Roller paper and craft paper printing
4.Pp woven bag , pvc film, bopp film, printing
5.Laminated bag rolling printing
6.Non woven rolling printing
7.Rice bag pp woven printing
8.Paper printing
Note:Different printing material , machine some parts design different. Pls kindly show Printing material when inquiry.
Main Features & Advantages
1.Machine form: use big gear drive and register color the color more accurate.
2.The structure is compact.The parts of the machine can interchanges standardization and easy to get.And we choose low abrasion design.
3.The printing cylinder is really simple.It can save more time and cost less.
4.The printing pressure is smaller.It can decrease the waste and make service life longer.
5.Print many kinds of material include various thin film rolls.
6.Adopt high quality ceramic anilox roller to increase the printing effect.
7.Adopts imported electric appliances to make the electric circuit control stability and safety.
8.Machine frame:75MM thick iron cast.No vibration at high speed and have a long service life.
2.The structure is compact.The parts of the machine can interchanges standardization and easy to get.And we choose low abrasion design.
3.The printing cylinder is really simple.It can save more time and cost less.
4.The printing pressure is smaller.It can decrease the waste and make service life longer.
5.Print many kinds of material include various thin film rolls.
6.Adopt high quality ceramic anilox roller to increase the printing effect.
7.Adopts imported electric appliances to make the electric circuit control stability and safety.
8.Machine frame:75MM thick iron cast.No vibration at high speed and have a long service life.
Machine Video

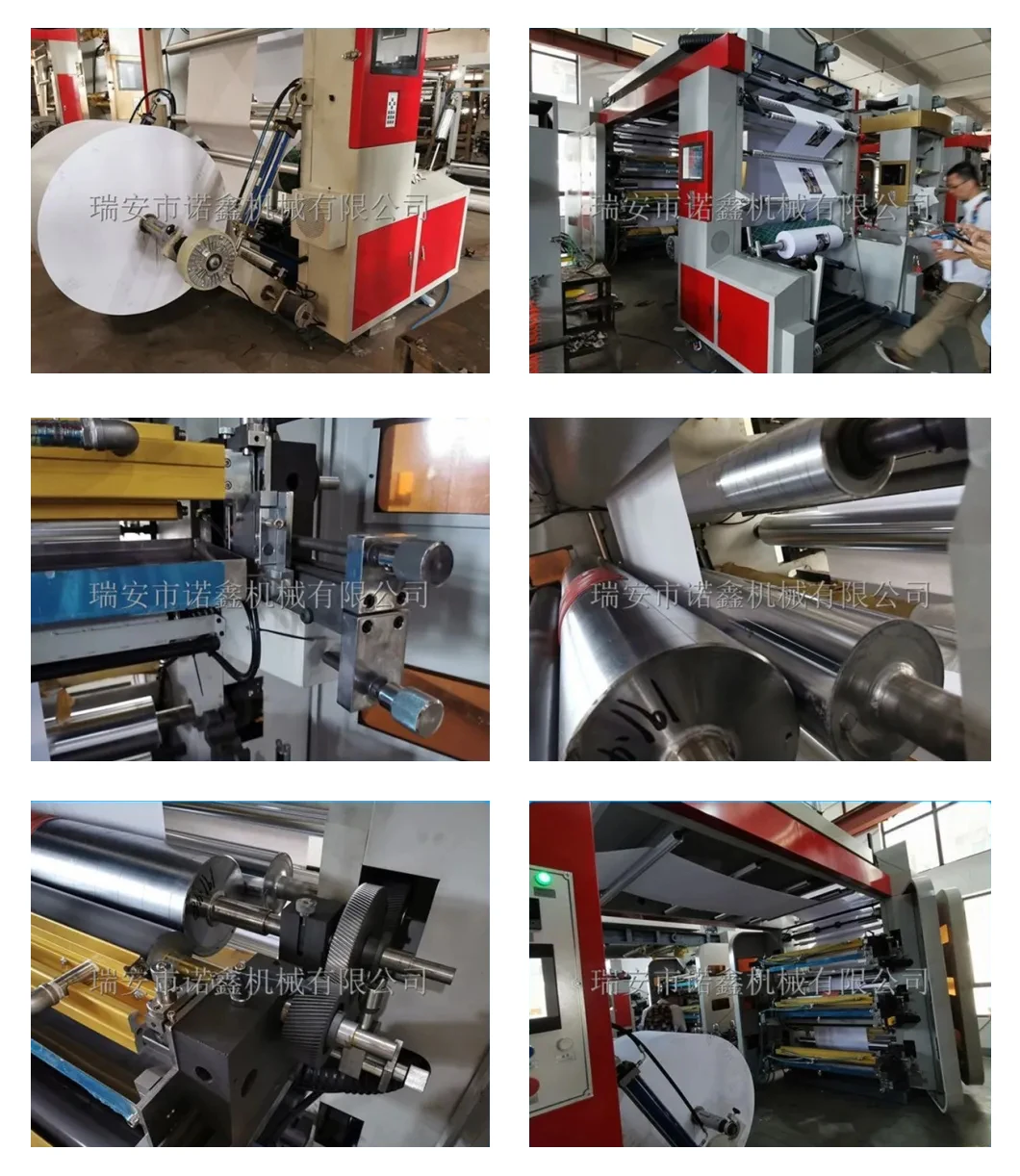

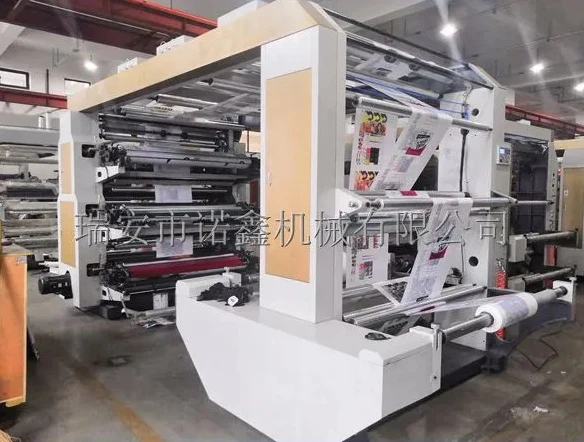

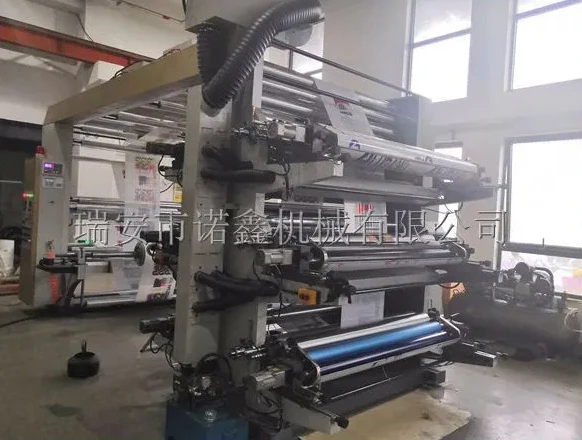

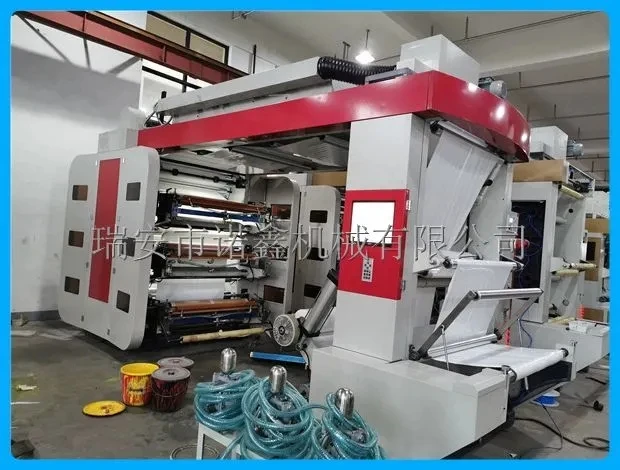

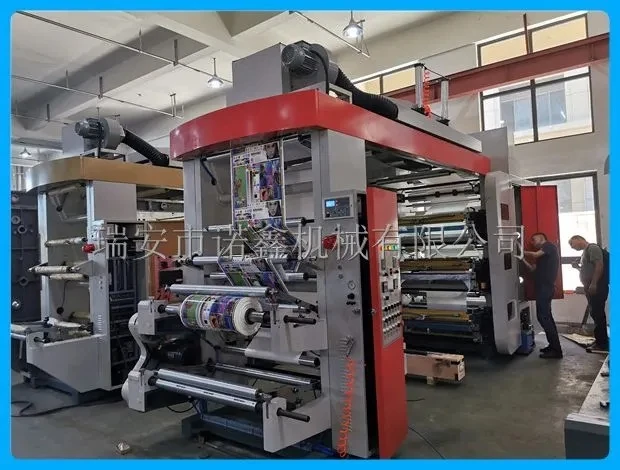

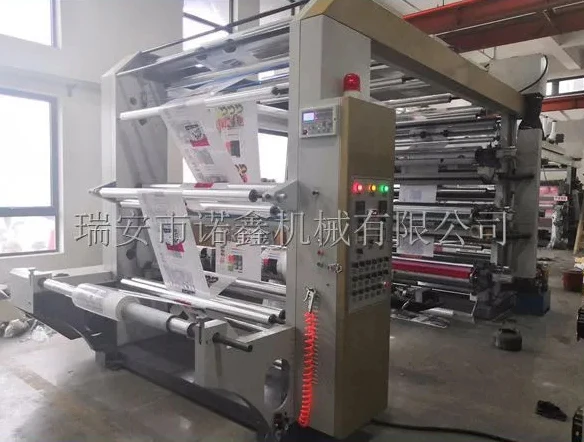

Machine Photos
Technical Parameter
Model | NXC6-600 | NXC6-800 | NXC6-1000 | NXC6-1200 | NXC6-1400 | NXC6-1600 | ||||||
Max. Material width | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | ||||||
Max. Printing width | 560mm | 760mm | 960mm | 1160mm | 1360mm | 1560mm | ||||||
Printing color | 6+0, 5+1, 4+2, 3+3 | |||||||||||
Printing length | 191-1200mm | |||||||||||
Printing plate lifting system | Automatic Hydraulic press control | |||||||||||
Mechanical speed | 100m/min | |||||||||||
Max.running speed | 80m/min | |||||||||||
Anilox roller | Metal: 100-300LPI Or Ceramic anilx roller(200-1000LPI), single doctor blade | |||||||||||
Register precision | Longitude:±0.25mm Transverse:±0.25mm | |||||||||||
Rewinder/Unwinder Diameter | ø 1000mm | |||||||||||
Electrical header | 14KW | 16KW | 20KW | 22KW | 24KW | 26KW | ||||||
Weight | 4500Kg | 4750Kg | 5600Kg | 5250 Kg | 5500Kg | 5750Kg | ||||||
Master power | 25KW | 27KW | 34KW | 37KW | 43KW | 47KW | ||||||
Dimension (L×W×H) | 5.0×2.0 ×3.2(m) | 5.0×2.2×3.2(m) | 5.0×2.4×3.2(m) | 5.0×2.6×3.2(m) | 5.0×2.8×3.2(m) | 5.0m×3.0m×3.2m | ||||||
Bearing | Japan(NSK) | |||||||||||
Unilateral bearing | ASNU (Germany) | |||||||||||
Machine Also can made as client requirement. If you need other width Size or high speed machine , pls kindly contact us directly. | ||||||||||||
Optional Parts
1.Various size of Printing cylinder
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Crane:Manual or electric
6.Ceramic Anilox Roller
2.Double unwinder/rewinder
3.Automatic pneumatic loading
4.Automatic pneumatic unloading
5.Crane:Manual or electric
6.Ceramic Anilox Roller

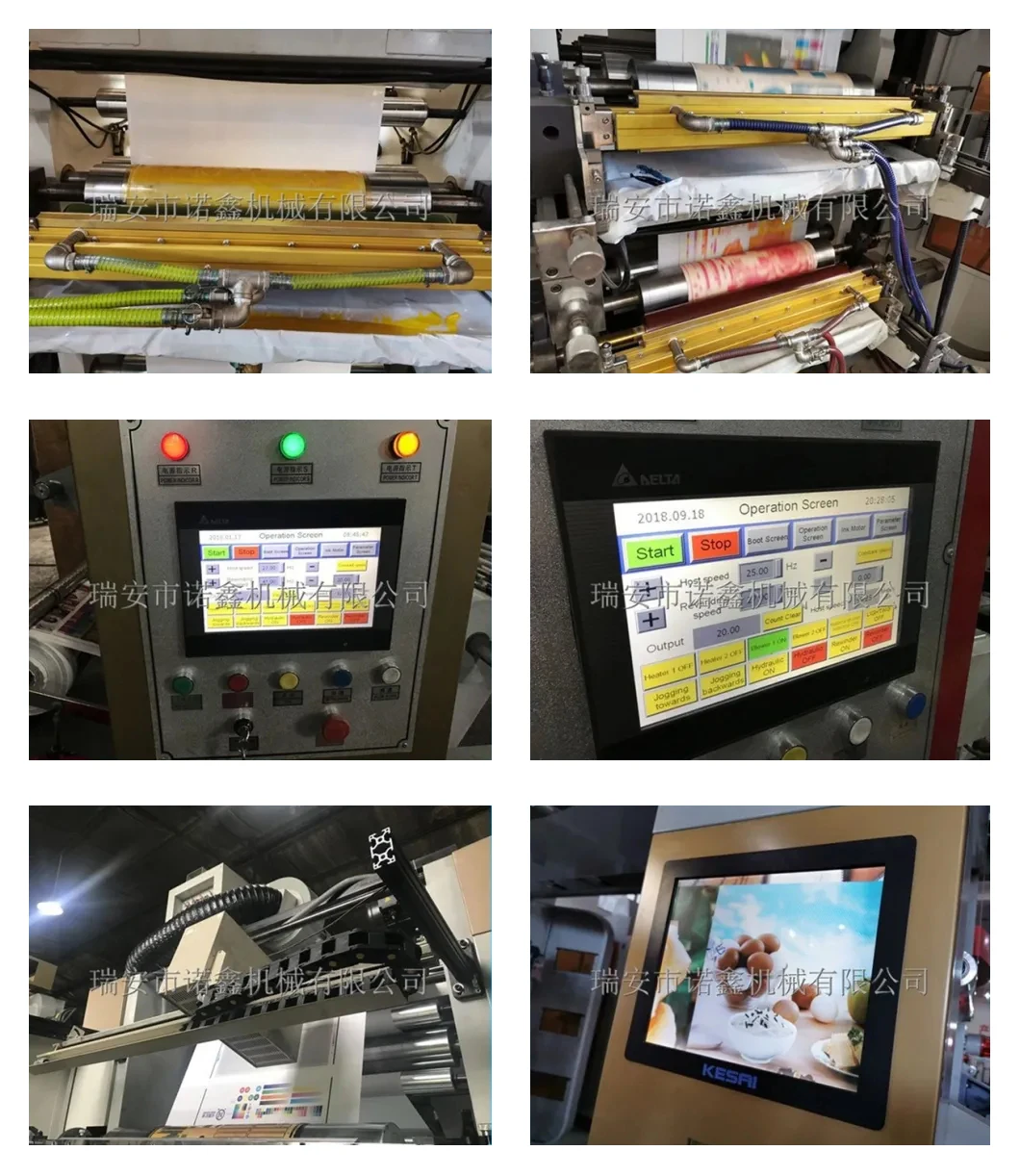

Details Images

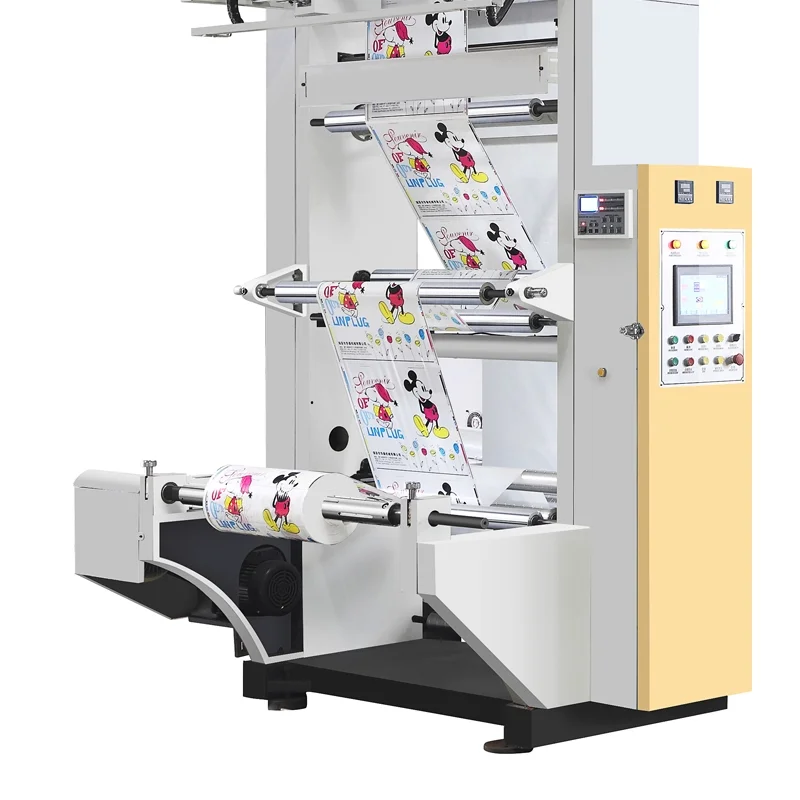

Unwinder and rewinder part:
Manual single unwinder and rewinder

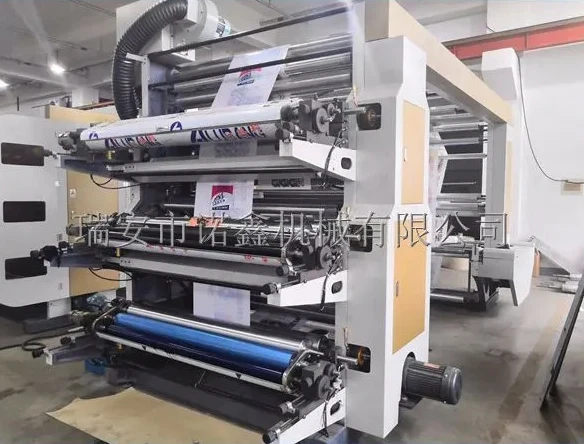

Printing Part
With 6 sets ink pumps , it is circulating , the ink will never dry.
Printing Part
With single doctor blade and metal anilox roller.

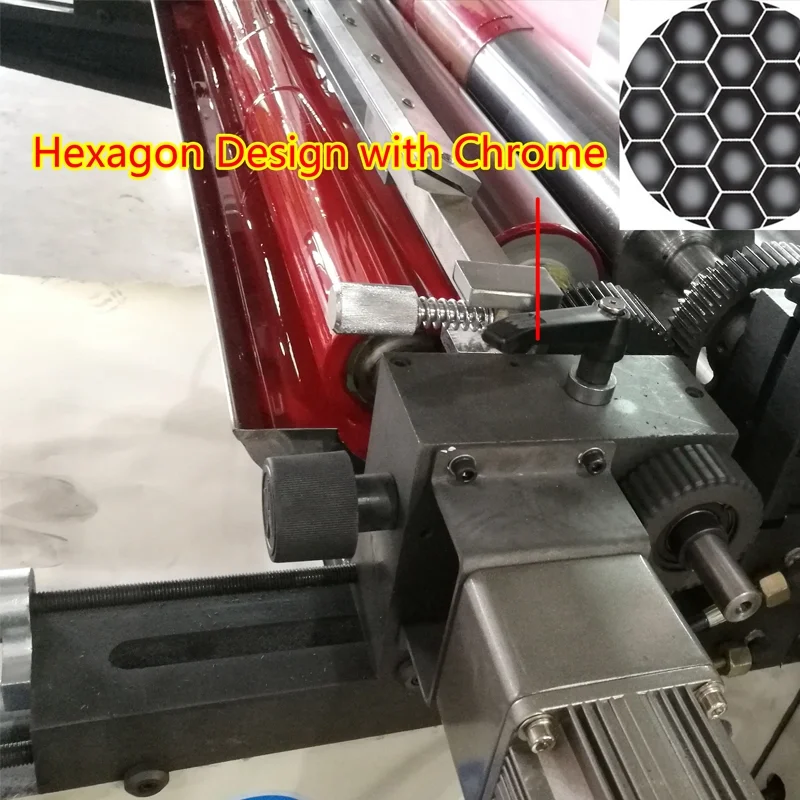

*Plate roller is Hexagon design with Chrome.

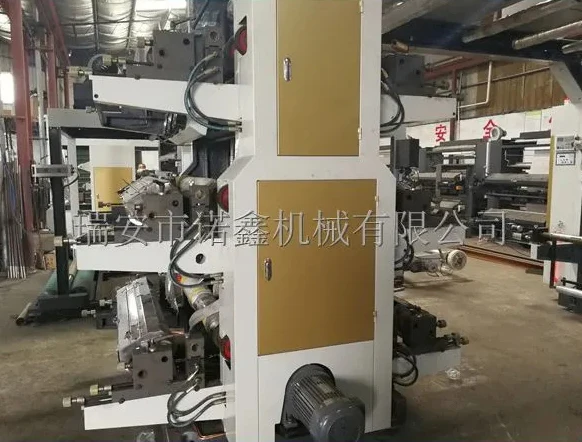

Transferring Part

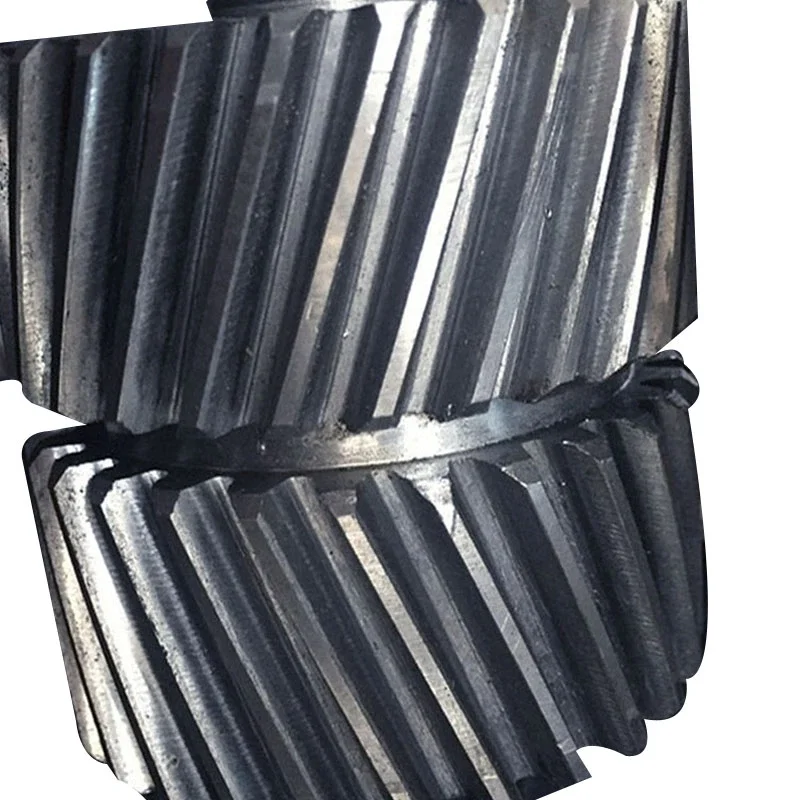

With helical gear : little noise while machine is running.
With helical gear : good register and the final roll will be accurate.
With helical gear : good register and the final roll will be accurate.

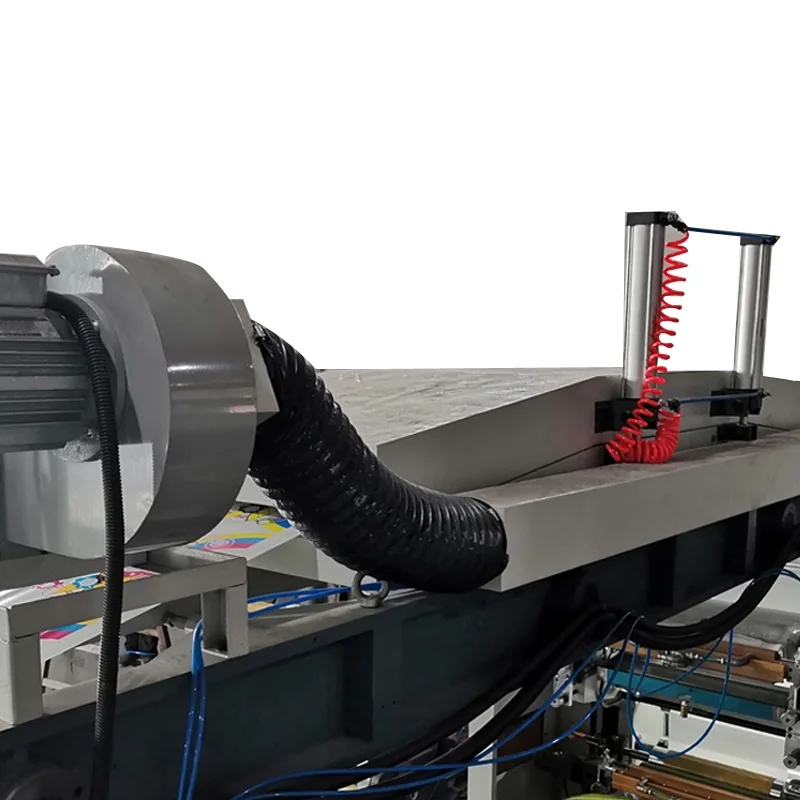

Drying Part:
The oven length is 1.5 meters , all printing group is heat wind circulating.
Printed Samples
Company Profile

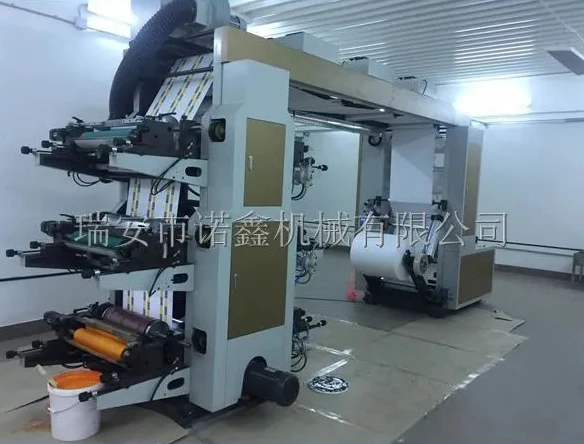

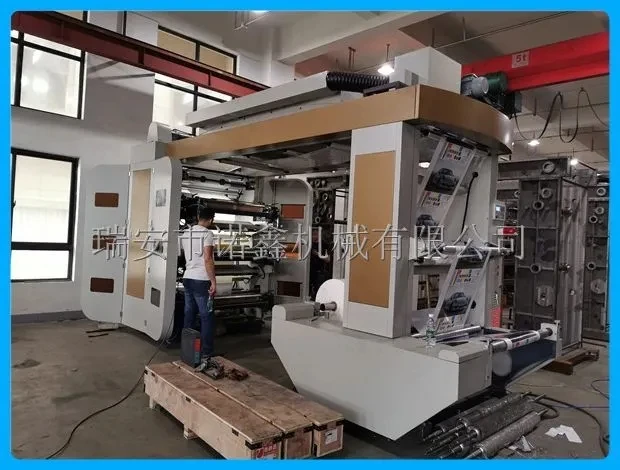

Successful Project
The client is in Spain
Our Service
Packing & Delivery
FAQ
Q1: Which industries are widely used in of your machines?
A1: The machines are widely used in various roll drum material printing.
A1: The machines are widely used in various roll drum material printing.
Q2.Are you manufacturer or trading company?
A2:We are manufacturer , we have a history more than 14 years.
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4: What about your main market?
A4: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
A2:We are manufacturer , we have a history more than 14 years.
Q3.Where is your factory Located? How can we visit it?
A3:Our factory is in Ruian City, which belongs to Zhejiang Province,China.About one hour by air from Shanghai. All our clients,from home or abroad, are warmly welcome to visit us!
Q4: What about your main market?
A4: Our products be sold well in 30 provinces and have good reputation in China, also we pay attention on developing the overseas market, such as Eastern Europe, North America,South America,Southeast Asia,Russia, Africa, the Middle East and other regions.The market response is good,the customer has a reputation.
Q5: How does your factory do regarding quality control?
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q6.What is your machine guarantee?
A5: Quality is the most important principle. Our factory always attach great importance to quality controlling from the very beginning to the very end. Our factory has passed ISO and CE certification.
Q6.What is your machine guarantee?
A6:One year , we will give you spare parts for free.During this period, if the machine has some problems, our engineers can go abroad to fix for you.Our after-service is forever!
Q6.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
Q6.What is the payment term?
A7: For new customer, our payment terms is 30% T/T in advance before production, the balance 70% should be paid before delivery.
Q8.What`s the payment method?
A8:TT , LC , trade insurance.
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
Q9.What is your delivery time?
A9:About 20-40 work days.
Q10.What is your after-sale service ?
A10: you can call us or email us telling us the machine problems and any questions about the machines. We will reply to you with 12 hours and help you to solve the problem.Our engineer can train you abroad , the salary per day is USD 100.
We will provide you : manual , working video ,drawing ,wiring diagram etc if you need.
