Stainless Steel Spring Female 16 Bar 4 Inch Brass Foot Valve

Share on (1600685452898):


Price:

Quantity:


Product Overview

Description



Details Images

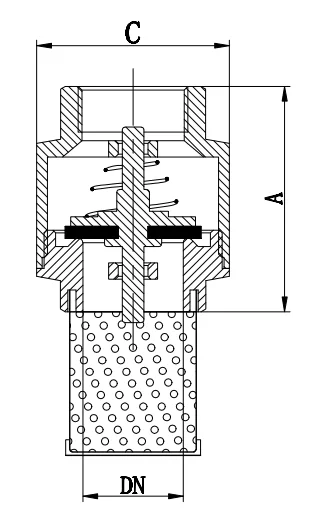

Dimension mm
1/2"
3/4"
1"
1-1/4"
1-1/2"
2"
2-1/2"
3"
4"
A
41.5
45
52
57.5
63.5
71
84
89
102
C
36
65
47
59.5
66.5
83
95
110
143
DN
18
25
29
36
42.5
53.5
66
79
99
PN
16
16
16
16
16
16
16
16
16


No.
Part
Materials
1
Body
Brass
2
Bonnet
Brass
3
Gasket
NBR
4
Spring
Stainless Steel
5
Spool
Brass
6
Strainer
Brass


Specification


item
value
Warranty
3 years
Type
Fittings
Customized support
ODM, OBM, Software reengineering
Place of Origin
China
Zhejiang
Brand Name
Double-Lin
Model Number
LL5009
Application
General
Temperature of Media
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Power
Manual
Media
Gas
Structure
Fitting
ITEM
Straight Fitting For Gas System
BRASS MATERIAL
Hpb 59-1
SIZE
1-1/2", 2"
CONNECTION TYPE
Female
GASKET TYPE
NBR
GASKET MATERIAL
NBR
WORKING PRESSURE
16 Bar (232 Psi)
WORKING TEMPERATURE
-10 ℃+120℃ (14℉+248℉)
THREAD
ISO228(equivalent To DIN259 And BS2779)
