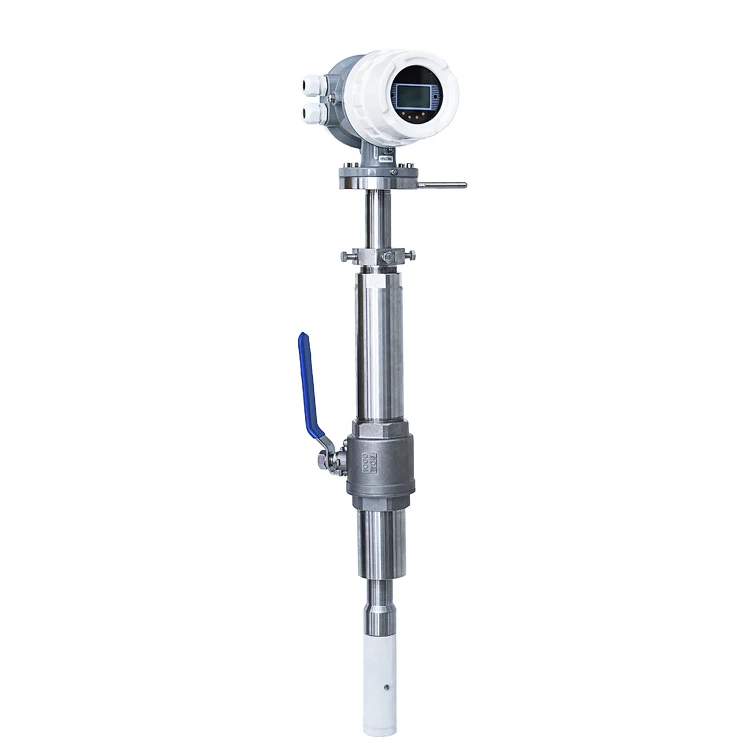

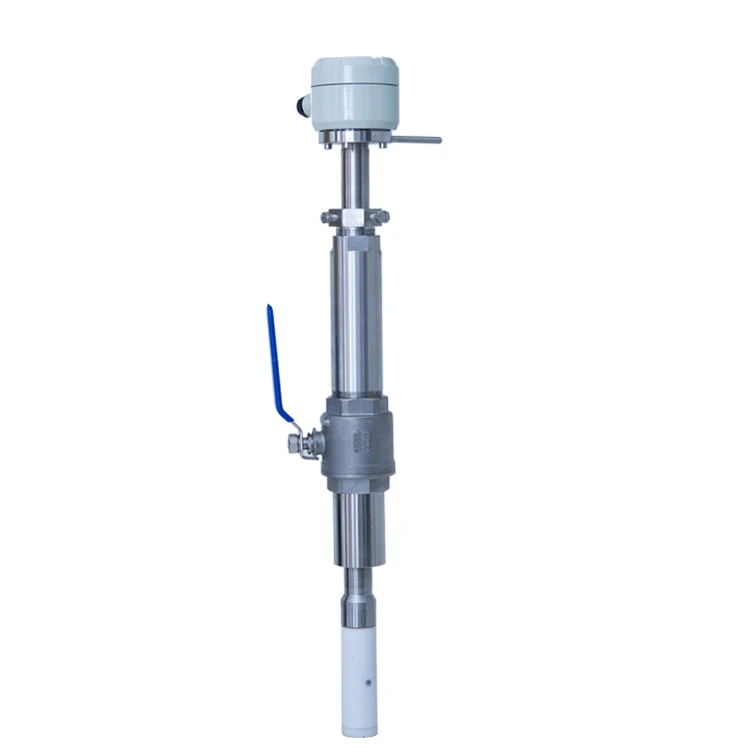

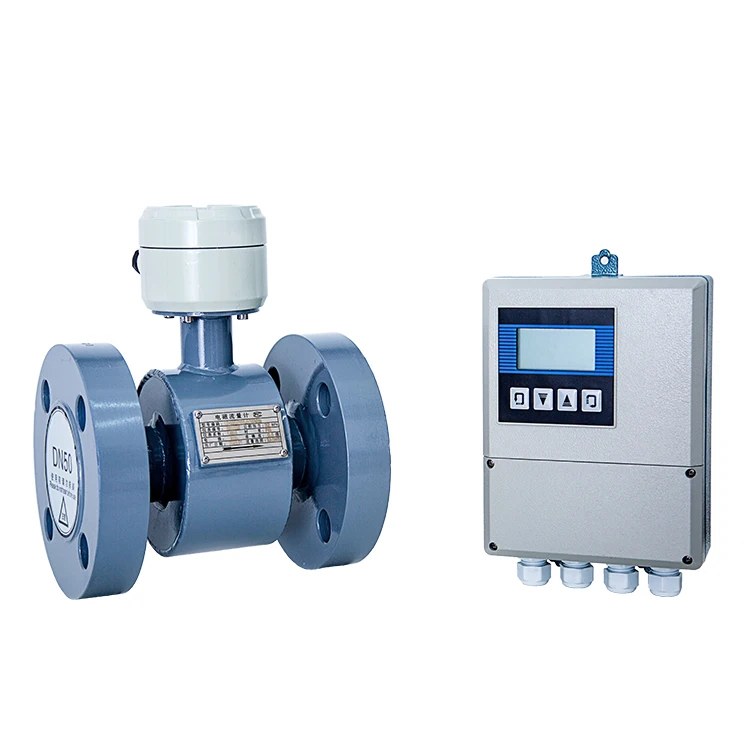

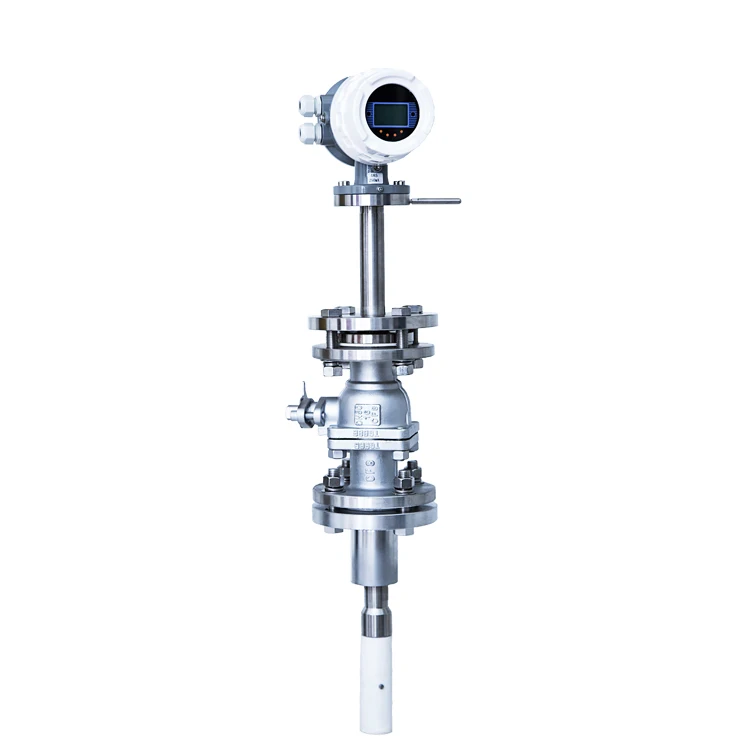

Emfm Electromagnetic Flowmeter Rs485 Electromagnetic Flow Meter Flow Meters
- Category: >>>
- Supplier: Dalian Zhuochuan Technology Co. Ltd.
Share on (1600685464597):
Product Overview
Description
Executive Standards | Electromagnetic flow sensor(JB/T9248--2015) | ||||||
Verification regulation | Electromagnetic flowmeter(JJG1033-2007) | ||||||
Measured medium | Water, acid, alkali, sea water and other corrosive media | ||||||
Maximum velocity | 15m/s | ||||||
Conductivity | ≥5u s/cm | ||||||
Accuracy class | 士0.5%R(Pipe type) | 士2.5%R(Plug-in) | |||||
Repeatability | ≤0.1%(Pipe type) | ≤0.3%(Plug-in) | |||||
Flange standard | GB/T9113.1-2000，Optional American Standard ANSI, Japanese Standard JIS | ||||||
Instrument diameter | Pipe type PTFE lining:DN4-DN1200 | ||||||
Pipe type rubber lining:DN65-DN3000 | |||||||
Rated pressure | DN4~DN50≤4.0MPa | ||||||
DN65~DN300≤1.6MPa | |||||||
DN350~DN1000≤1.0MPa | |||||||
DNI200~DN3000≤0.6MPa | |||||||
Conditions of use | Medium temperature | Conventional rubber lining:-20~+60° c | |||||
High temperature rubber lining:-20~+90° c | |||||||
Polyurethane rubber:-20~+80° c | |||||||
Tetrafluoroethylene lining:-30~+120°c | |||||||
High temperature F46 lining:-20~+180° c | |||||||
Ambient temperature | -25~+60° c | Relative humidity | 5%~95% | ||||
Total power consumption | ＜20W | ||||||
