Electric Light Stacker 250kg Hydraulic Scissor Electr Stacker Lift
- Category: Forklifts >>>
- Supplier: Hangzhou,New,Vision,Trading,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Our Advantages
※Adopt imported high quality steel,high strength, good rigdity
※Sealed batteries free of maintenance. safe operation and no pollution;
※Explosion-prood valve design, down more stable san relaible;
※over discharge protection, extending battery life.
※Sealed batteries free of maintenance. safe operation and no pollution;
※Explosion-prood valve design, down more stable san relaible;
※over discharge protection, extending battery life.

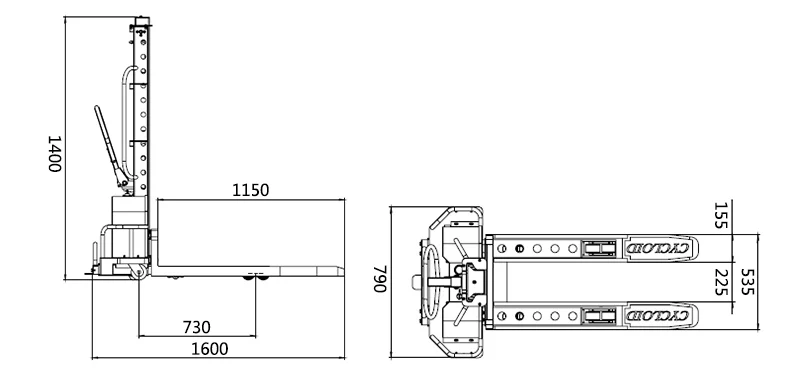

Specification
Model | sDYG-Z0511 | |
capacity | Q(Kg) | 500 |
Load center | c(mm) | 400 |
Type of lifting | 电动Electric | |
operating type | 步行Walkie | |
Material | 尼龙/聚氨酯Nylon/PU | |
wheel base | y(mm) | 860 |
Front wheel base | b11(mm) | 380 |
Back wheel base | b10(mm) | 670 |
Quantity of Steering/Bearing/Balance wheel | 2/2/6 | |
Bearing wheel size | mm | φ70×60 |
Steering wheel size | mm | φ100x50 |
Balance wheel size | mm | φ40×26 |
Training wheel size | mm | φ30×26 |
Min.fork height | mm | 90 |
Max.fork height | h3(mm) | 1100 |
Fork outside width | mm | 535 |
Fork inside width | mm | 225 |
Fork length | l(mm) | 1150 |
single fork size | e/s(mm) | 155/60 |
overall length | L1(mm) | 1600 |
overall width | b1(mm) | 790 |
Overall height | h1(mm) | 1400 |
whole height(after tape file shelf) | h4(mm) | 2500 |
Length of vertical surface to fork | l2(mm) | 1150 |
Min.turning radius | wa(mm) | 1100 |
Lifting speed(laden/unladen) | mm/s | 80/110 |
Lowering speed(laden/unladen) | mm/s | 80/80 |
Lift motor | Kw | 12V0.8 |
Battery capacity | v/Ah | 12/33 |
Battery weight | Kg | 10 |
Net weight | Kg | 197 |

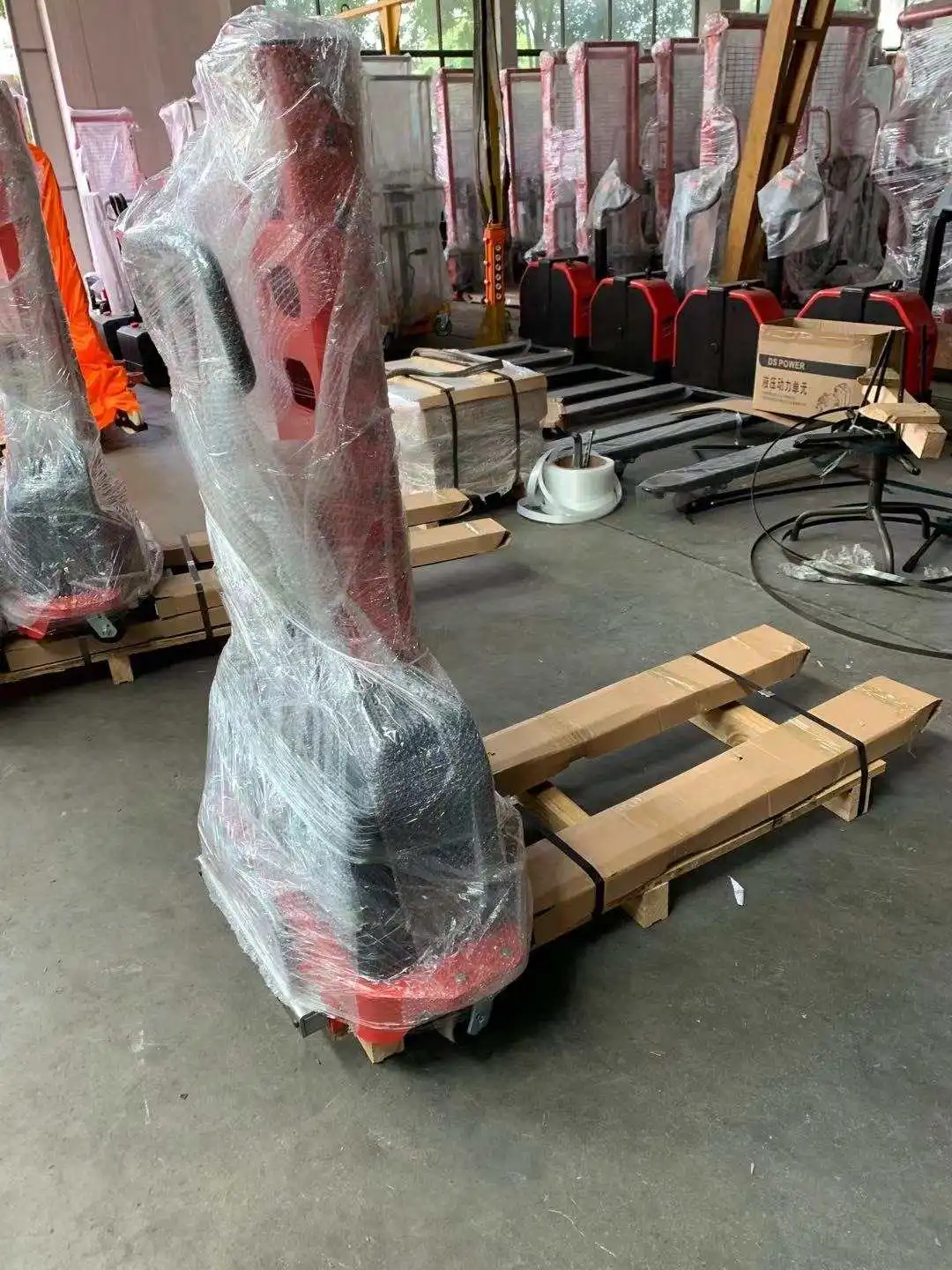

Packing & Delivery
Packaging Details:wooden package
Delivery Detail:Shipped in 20 days after payment
Delivery Detail:Shipped in 20 days after payment

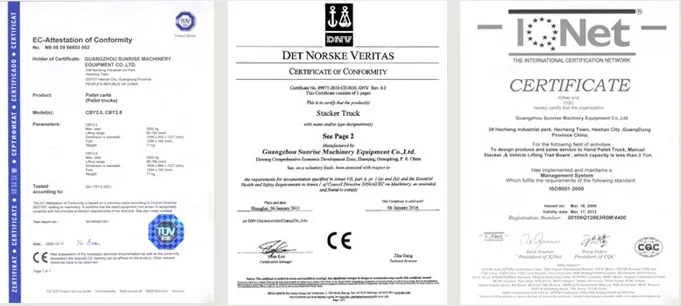

Certifications
Ralated products
FAQ
1. What's your Price Terms?
A: We offer FOB ,FCA, CIF, CFR and DDU price terms.
2. Can i place mix order?For example, i need 1 pc Electric Stacker and 1 pc Hand Pallet Truck,can this ok?
A: Yes, of course. You can mix different models as you wish.
3. Can you send the machine to my factory in other city to load the container?
A: Yes, please tell us the detail address, we can arrange to send your factory in time.
4. Are the forklift trucks covered by a warranty?
A: Yes. All our machines carry a full 1 year major parts warranty.
5. Can i get discounts?
A: Yes, For big order, old customer and frequent customers, we give reasonable discounts.
6. How to place an order?
A:Tell us your detail requirements(Load Capacity? Lifting height etc.) by email or on Trademanager or Whatsapp ,We will send you
our offer in 24 hours. If ok, please send us your purchase order, or you can ask us to send you a proforma invoice for your order.
7. How long could i get my order?
produce 1~5 pcs, delivery time is 20days;
produce 6~12 pcs, delivery time is 25 days.
8. Can you add our own logo on the products or use our designs?
A: Yes,of course you can add logo on our products! We provide OEM/ODM service.In addition, we promise your design would protect by
law, we won't tell anyone else about this. It's your own copyright.
