Huazuan Diamond Core Drill Bit Segments Soldering Magnet Welding Magnet Brazing Holder
- Category: >>>
- Supplier: Fujian Quanzhou Huazuan Diamond Tools Co. Ltd.
Share on (1600685653206):
Product Overview
Description
Product Description
The retipping magnet are made of strong N35EH neodymium magnet with strong magnitizm but also high resistance for heat.In the meantime, The retipping magnet are perfect for position the drilling segment in percise side clearance. Also the inner side clearance can be adjust when you put the magnet in it's a,b,c,d position.
Product Advantage
Application
Magnet Holder:
This tool is used for brazing the segments onto the barrels.

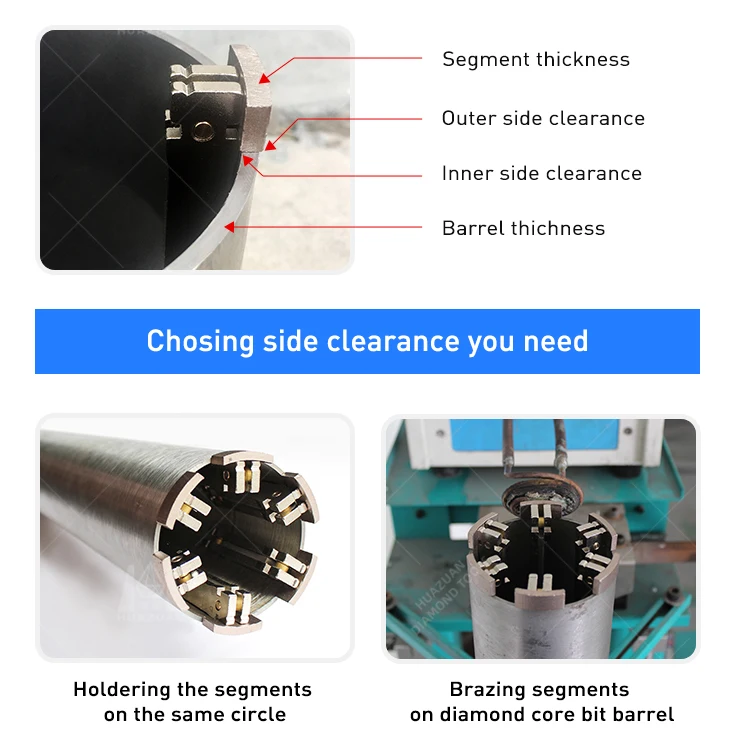

Because the segments are usually 4mm thick and a barrel might be 2mm thick, this tool gives you the offset required when brazing your segments onto the barrel.
Application: For segment retipping
This tool is used for brazing the segments onto the barrels.
Because the segments are usually 4mm thick and a barrel might be 2mm thick, this tool gives you the offset required when brazing your segments onto the barrel.
Application: For segment retipping
Specification
Normally when brazing the segment, the rule is:
Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4
Following is the reference for the segment size and steel core width for different diameter
Inner side clearance=(segment width-steel core width)x0.4
Outer side clearance=(segment width-steel core width)x0.4
Following is the reference for the segment size and steel core width for different diameter
Diameter mm | Segment No. pcs | Segment Size mm | Segment Thickness/mm | Steel Core Thickness/mm |
25 | 3 | 15*3.5*9 | 3.5 | 2.0 |
32 | 4 | 15*3.5*9 | 3.5 | 2.0 |
38 | 5 | 20*3.5*9 | 3.5 | 2.0 |
44 | 5 | 20*3.5*9 | 3.5 | 2.0 |
52 | 5 | 24*3.5*10 | 3.5 | 2.0 |
58 | 5 | 24*3.5*10 | 3.5 | 2.0 |
63 | 6 | 24*3.5*10 | 3.5 | 2.0 |
76 | 7 | 24*3.5*10 | 3.5 | 2.0 |
89 | 8 | 24*3.5*10 | 3.5 | 2.0 |
102 | 9 | 24*4.0*10 | 4.0 | 2.0 |
108 | 10 | 24*4.0*10 | 4.0 | 2.5 |
114 | 10 | 24*4.0*10 | 4.0 | 2.5 |
127 | 11 | 24*4.0*10 | 4.0 | 2.5 |
140 | 11 | 24*4.0*10 | 4.0 | 2.5 |
152 | 12 | 24*4.0*10 | 4.0 | 2.5 |
167 | 12 | 24*4.0*10 | 4.0 | 2.5 |
180 | 14 | 24*4.5*10 | 4.5 | 3.0 |
200 | 14 | 24*4.5*10 | 4.5 | 3.0 |
230 | 15 | 24*4.5*10 | 4.5 | 3.0 |
250 | 16 | 24*4.5*10 | 4.5 | 3.5 |
