Computer Register 6 Color PET Film Roto gravure Printing Machine Price
- Category: >>>
- Supplier: Ruian Jinghong Machinery Co. Ltd.
Share on (1600685658129):
Product Overview
Description

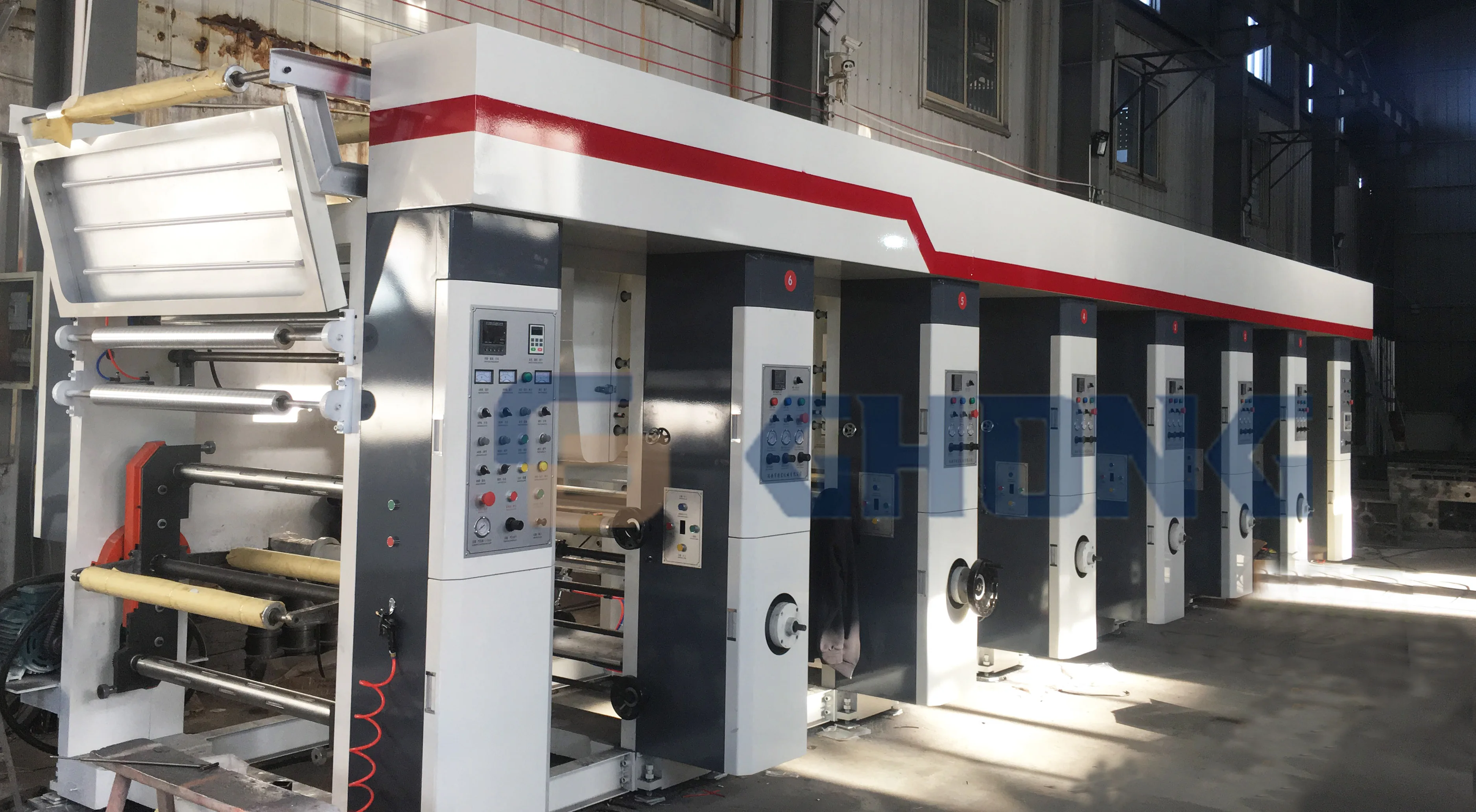

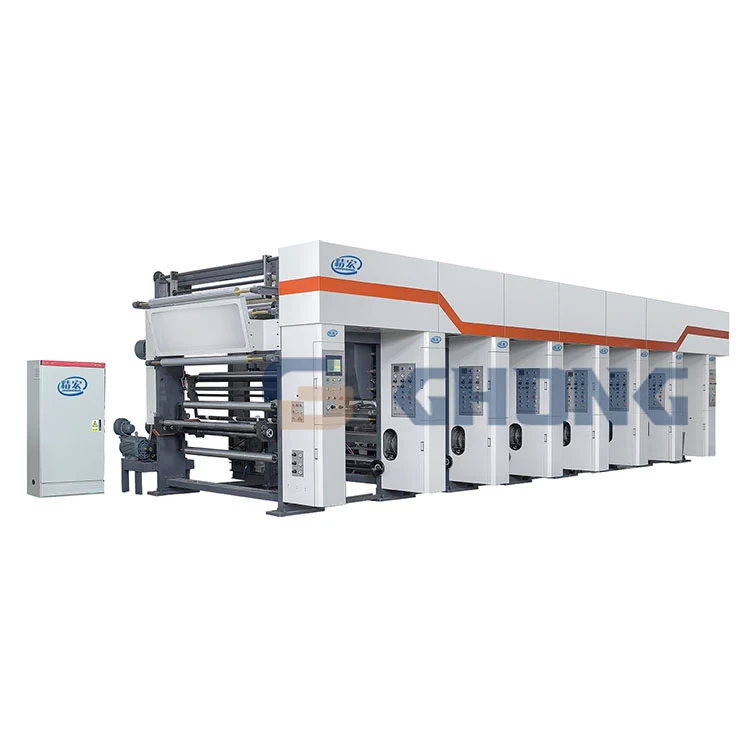

Computer Register 6 Color PET Film Roto gravure Printing Machine Price
Application
This machine is suitable for continuous ,multi-color printing or rolling material in good printing performance such as tobacco packing,paper,non woven,PP woven,aluminum foil,BOPP,PET,NYLON,PVC,PE and so on.
Features
1. The machine is three motors system control.it can choose five motors or seven motors.
2. Computer registering devices and static camera examining gaphics.
3. Double reel stations inside, non-stop splicing.
4. Adopting variable frequency motor control for main driver, unwinder and feeding.
5. Unwinder auto tension controller and rewinding by two variable frequency motors.
6. Shaft less cylinder loading.Pneumatic backpressure moving doctor blade, three side ajdusting and double air cylinder pressure.
7. Sealed type oven, outside heating system, Hot-air circulation system, auto constant temperature control system.
8. Adopting aluminum alloy guide roll after anode oxidation processing and in balance
9. High-accuracy gear transmission box, adopting patented technique.
2. Computer registering devices and static camera examining gaphics.
3. Double reel stations inside, non-stop splicing.
4. Adopting variable frequency motor control for main driver, unwinder and feeding.
5. Unwinder auto tension controller and rewinding by two variable frequency motors.
6. Shaft less cylinder loading.Pneumatic backpressure moving doctor blade, three side ajdusting and double air cylinder pressure.
7. Sealed type oven, outside heating system, Hot-air circulation system, auto constant temperature control system.
8. Adopting aluminum alloy guide roll after anode oxidation processing and in balance
9. High-accuracy gear transmission box, adopting patented technique.
Specifications
Model | JHAY-D-650 | JHAY-D-850 | JHAY-D-1050 |
No.of colors | 1-12 | 1-12 | 1-12 |
Printing cylinder diameter | 100-320mm | 100-320mm | 100-320mm |
Printing width | 600mm | 800mm | 1000mm |
Rewind &Unwind diameter | 600mm | 600mm | 600mm |
Printing speed | 100-130m/min | 100-130m/min | 100-130m/min |
Dry form | electric heating | electric heating | electric heating |
Total power | 162kw | 170kw | 178kw |
Dimension | 14500*3150*2880mm | 14500*3350*2880mm | 14500*3550*2880mm |
Weight | 15000kg | 16000kg | 17000kg |

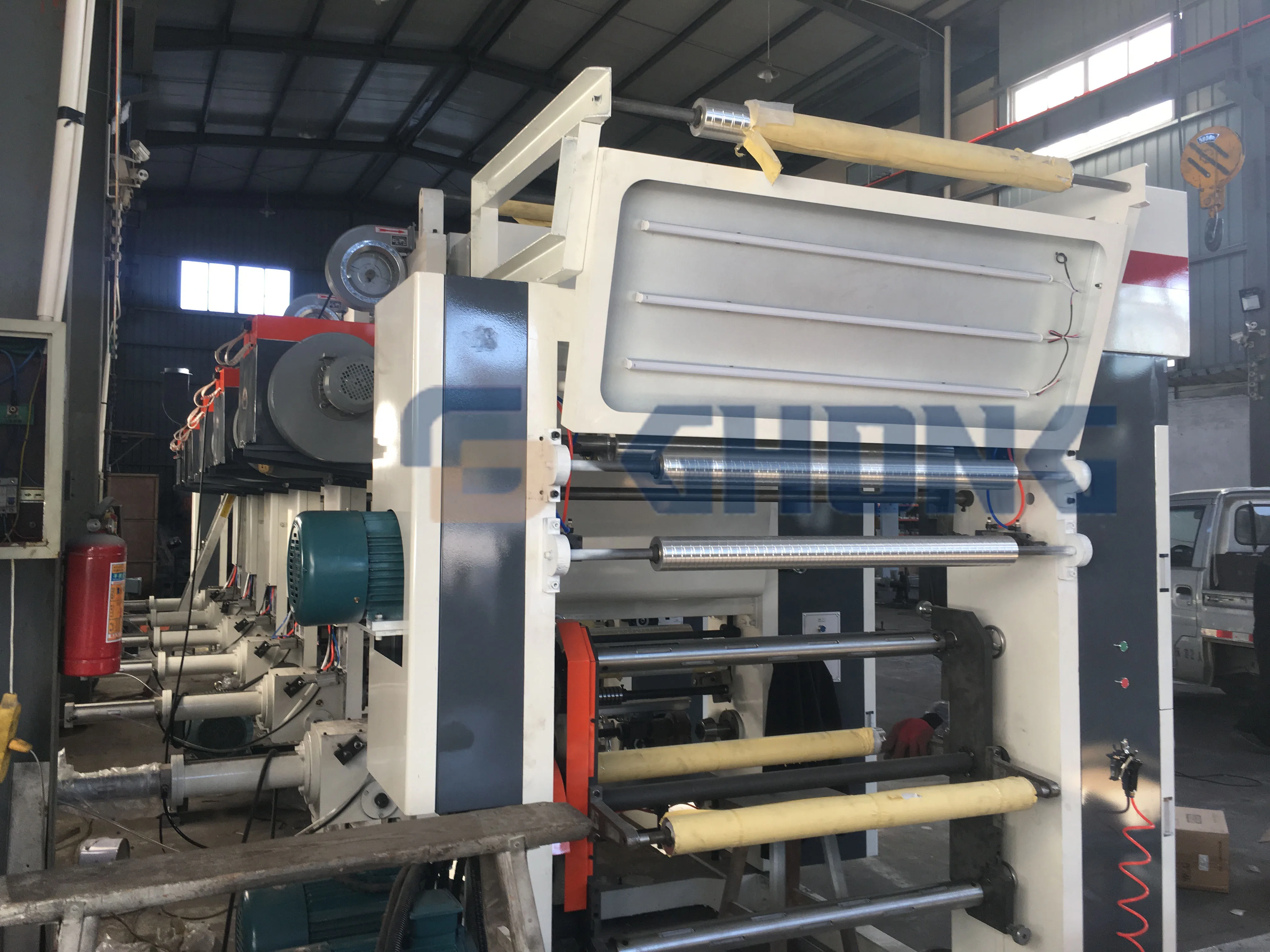

Details Images

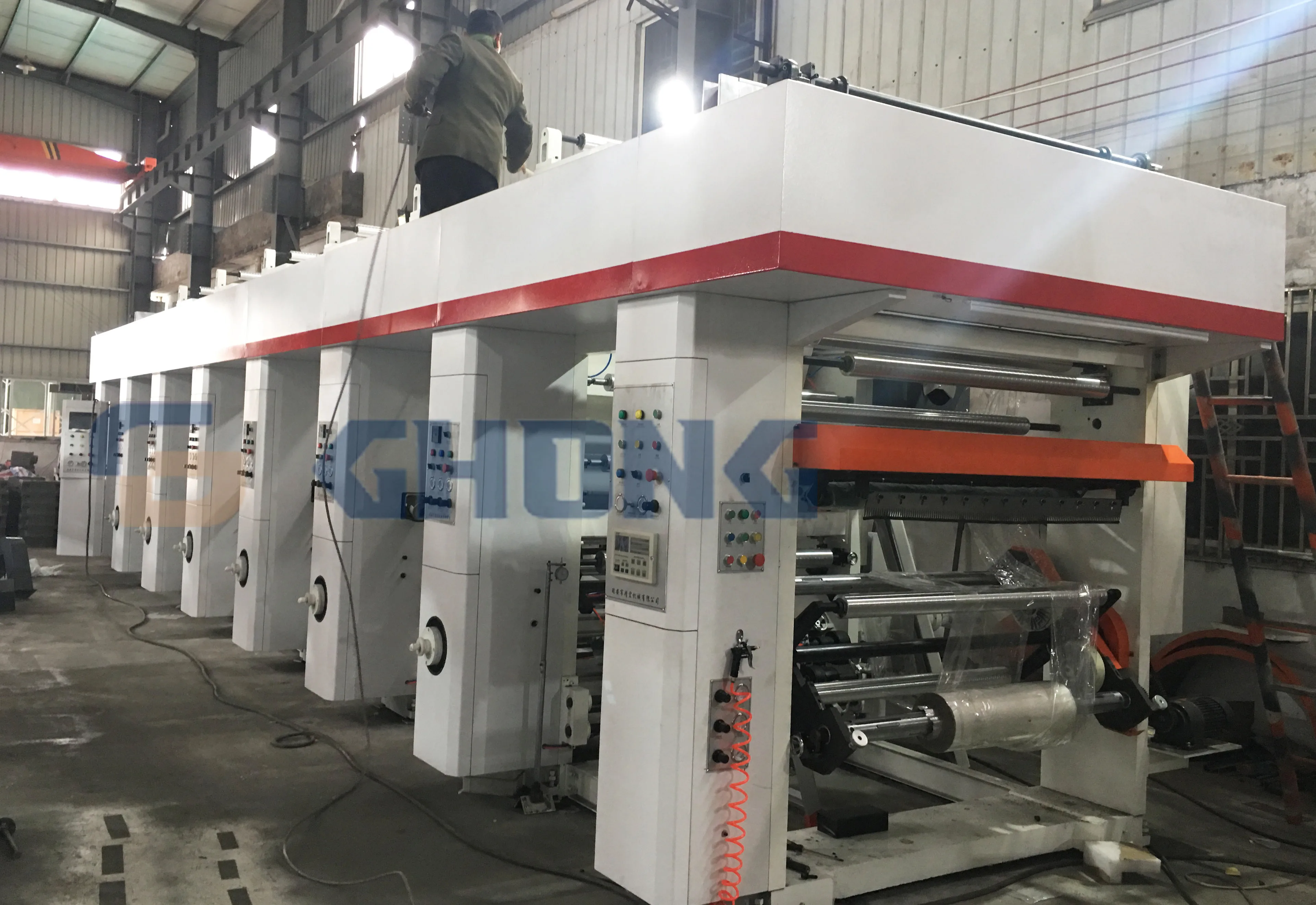

Production
Samples

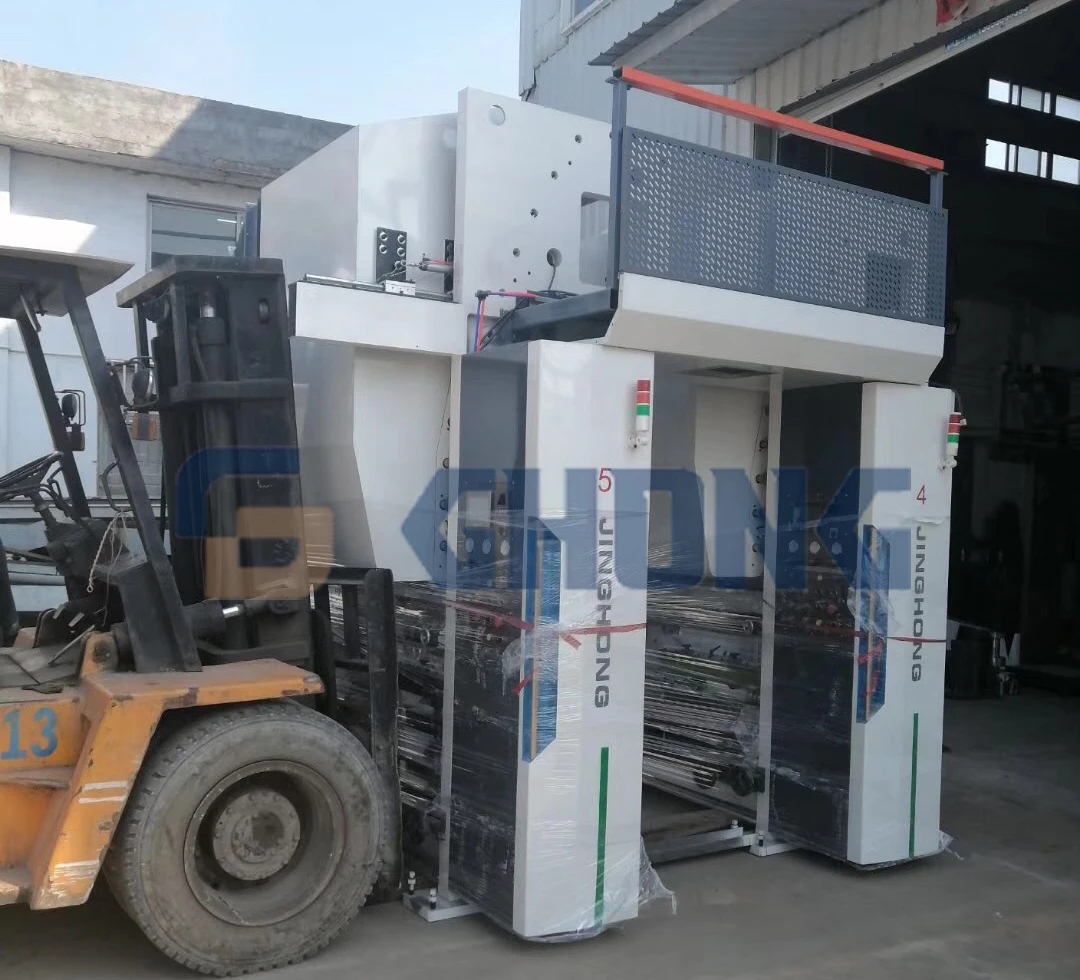

Packaging & Delivery
Company Profile
222
Ruian Jinghong Printing Machinery Co.,Ltd. always insists On its principle of "Creating quality with faithful integrity, creating future with science & technology; and has never stopped its step in technical and management innovation, is now developing along the directions of multi-function, high-speed, automation, interaction as well as environmental protection; the human based service with high quality, low-cost, high efficient and low consumption which we provided for masses of printing & packing enterprises will surely ensure the reliable equipment as well as powerful comprehensive support, and creates sustained maximum benefit for our customers.
FAQ
Please contact us feel free if you have any questions:
Amy
Ruian Jinghong Machinery Co., Ltd.
N0. 1 Jinming Road, Feiyun Street, Ruian City, Zhejiang, China 325200
Email: sales@jhgravure.com
www.jhgravure.com
