Product Overview
Description
China switchable smart pdlc film,electronic window film,Smart Switchable PDLC Film Glass
Product Overviews
Self-adhesive PDLC film is a smart film, which provides a simple and cost effective alternative to switchable film technology. It consists of 2 PET protective film layers, 2 ITO film layers, 1 PDLC layer and 1 self-adhesive cling layer, which can be directly sticked to the existing glass surface and switch from opaque to transparent instantaneously under electricity application. It can meet the double requirements of glass penetrability and privacy protection.
Privacy Protection and Space Partition | The smart film switches between opaque and transparent, its priority function is privacy protection, meanwhile, allows architects and contractors to provide creative design concepts on demands. |
Projection Screen | Ideal solution for a rear-projection screen with high contrast. |
Safety and Anti-explosion | Improve glass shatter resistance. |
Heat Insulation | Blocking 99% ultraviolet radiation, 98% infra-red rays, preventing fading of your floors and soft furnishings, protecting your skin. |
Sound Insulation | Blocking noise by 20% more than ordinary glass. |
Multiple Control Mode | To meet the needs of different occasions, various controls are available, such as remote control, wall switch, light sensor, voice control, mobile APP, etc. |
Item | Mode | Value | |
Optical Parameters | Visible Light Transmission | Power On | ≥80% |
Power Off | ≥70% | ||
Haze | Power On | ≤4% | |
Power Off | ≥96% | ||
Visual Angle | Power On | >140º | |
Electrical Parameters | Operating Voltage | Power On | 40-60VAC |
Power Consumption | Power On | <5w/m2 | |
Response Time | On-->Off | <100ms | |
Off-->On | <10ms | ||
Physical Parameters | Color | / | White, blue, green, yellow, gray, black |
Thickness | / | 0.4mm | |
Width | / | In Roll: 1/1.2/1.5m In Sheet: ≤1.5m | |
Length | / | In Roll: 30/60m, etc In Sheet: any | |
On/Off Lifespan | / | >100,000 times | |
Lifespan | Power On | >10 years | |
Environmental Parameters | Working Temperature | / | -20℃—+70℃ |
Storage Temperature | / | -30℃—+80℃ | |
Noyark smart film installation is very easy. Please follow below steps.
| Step 1: | Prepare the tools, like spray bottle, glass scraper, water squeegee, hard squeegee, clean cloth, foam glue/double-sided tapes, wire casing, special glass gule, caulking gun, power cable, power transformer, electric soldering iron, etc. |
| Step 2: | Prepare the smart film. |
| Step 3: | Clean the glass/window. |
| Step 4: | Clean the smart film. |
| Step 5: | Find the smart film self-adhesive layer side, remove the protective film gradually. |
| Step 6: | Paste the smart film to the glass/window. |
| Step 7 & 8: | Scrape the air bubbles out. |

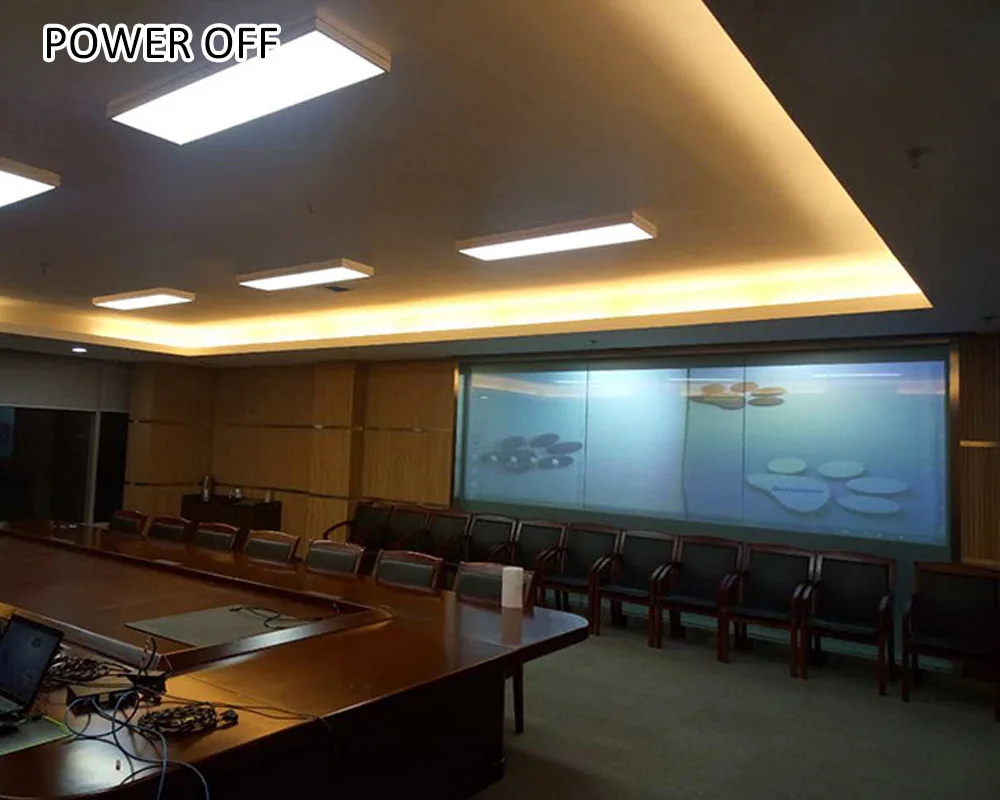

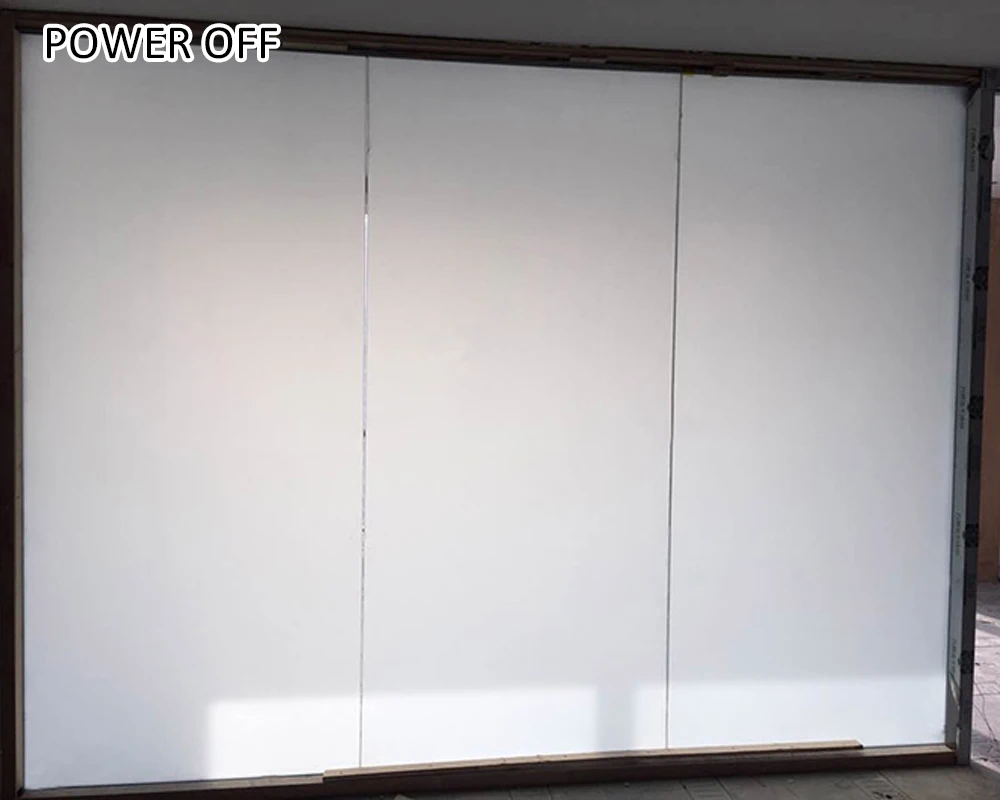

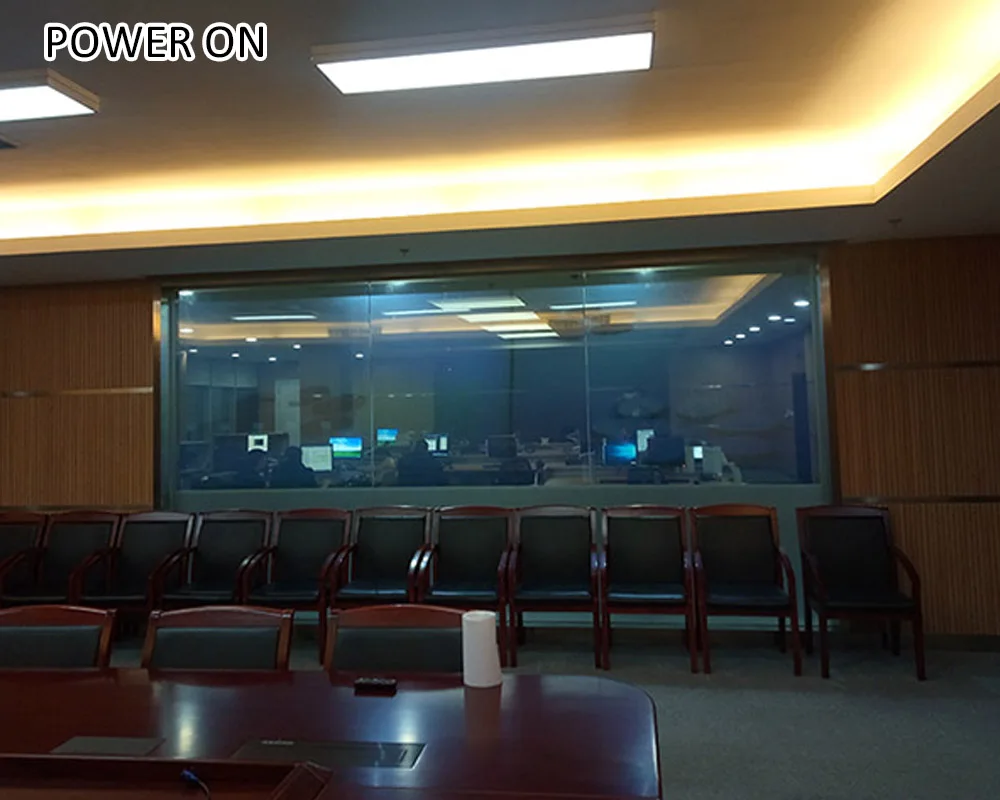

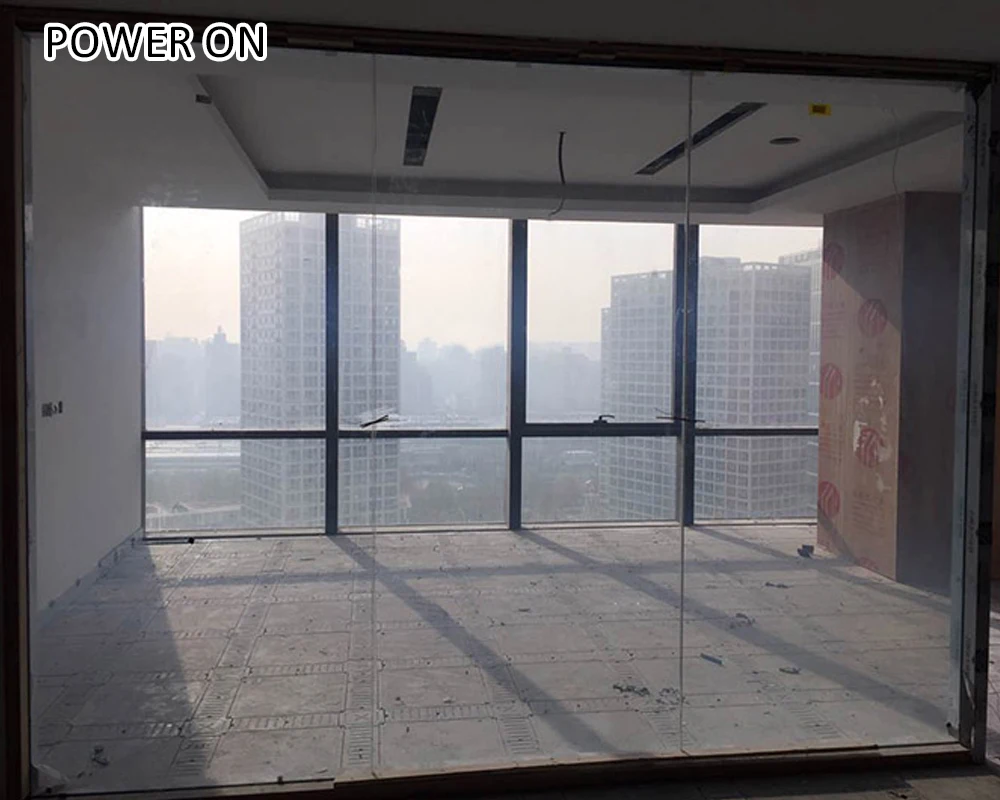

| Step 9: | Wiring for the electrode part. After wiring, you can connect the cable to the power transformer to test the smart film, power on is transparent, power off is opaque. |
| Step 10: | Remove the protective film of non self-adhesive side if test result is OK. |
| Step 11 & 12: | Remove foam glue backing, then put the foam glue on the electrode area to cover the the electrode, remove the protective layer of foam glue, stick the wire casing on it, put the wire into the wire casing, use the special glass glue to seal the wire casing. |
Noyark self-adhesive smart film is widely used in Home, Villa, Club, Office, Bank, Hospital, Hotel, School, Shopping Mall, Exhibition & Museum, Scientific Research Institution, Monitoring Room, Airport/Train Station Ticket Window, Rear Projection Screen, Automobile, Boat, etc.
Company Information
Anhui Noyark Industry Co., Ltd is one of the fastest growing high-tech companies, which was founded in 2004 and specialized in manufacturing non-adhesive PDLC film, self-adhesive smart film, smart glass, safety & security window film, solar window film, decorative window film, anti-fogging film and furniture protective film, which are mainly applied in architectural decoration and protection fields.
With advantages of wide application range, state-of-art technology, high quality, competitive prices and great after-sales service, Noyark products are widely recognized and trusted by worldwide clients, by the end of 2018, Noyark products have been exported to more than 200 countries and areas.
You’re warmly welcomed to contact us for future business relationships and mutual success!
